Steel Fiber & Plastic Drum Adapter Carrier/Rotator For 30 Gallon and 55 Gallon Drums Blue

Fiber Drum Adapter for Opening, Moving, and Handling Industrial Drums and Barrels, 800 lb. Capacity

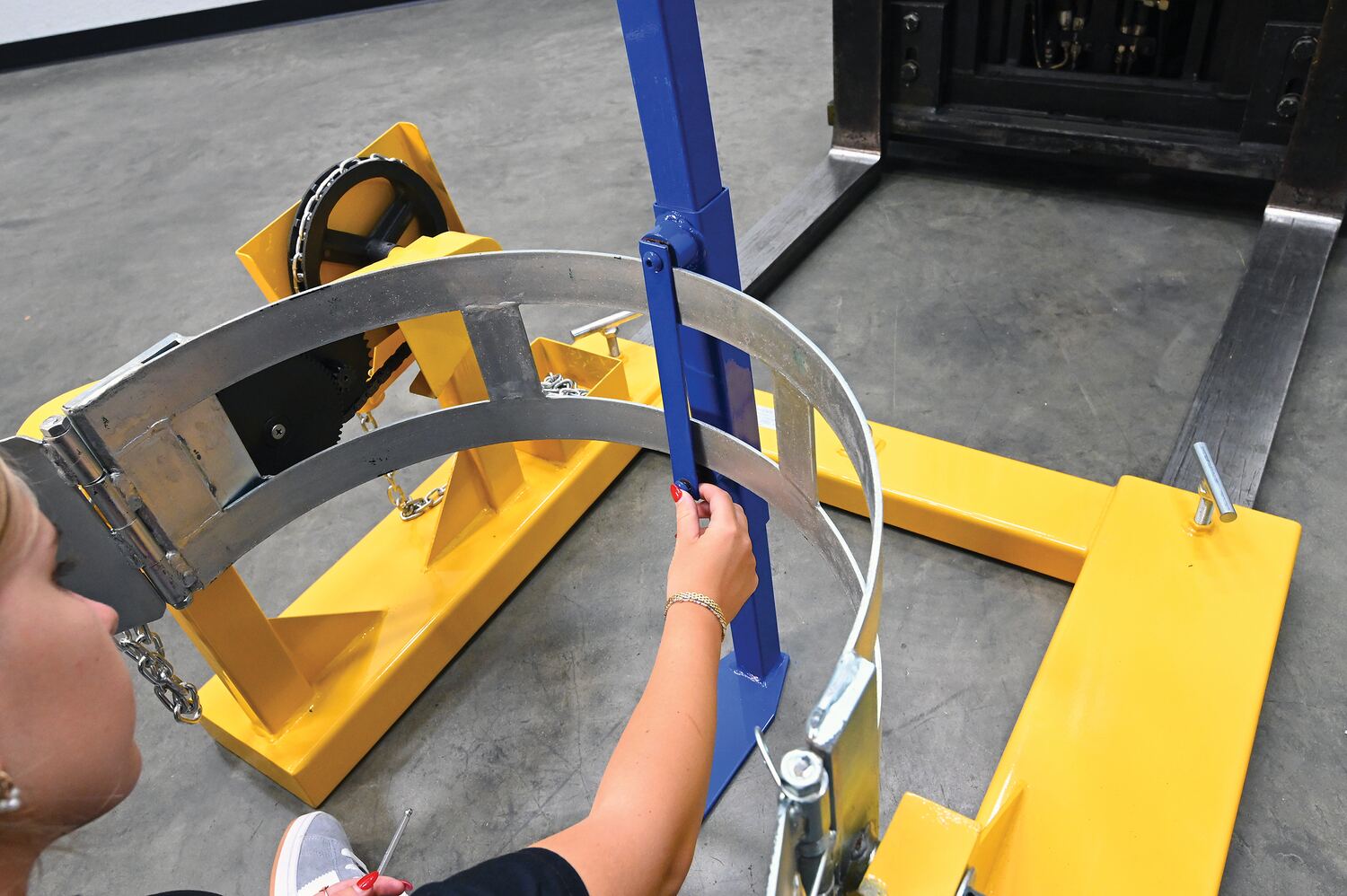

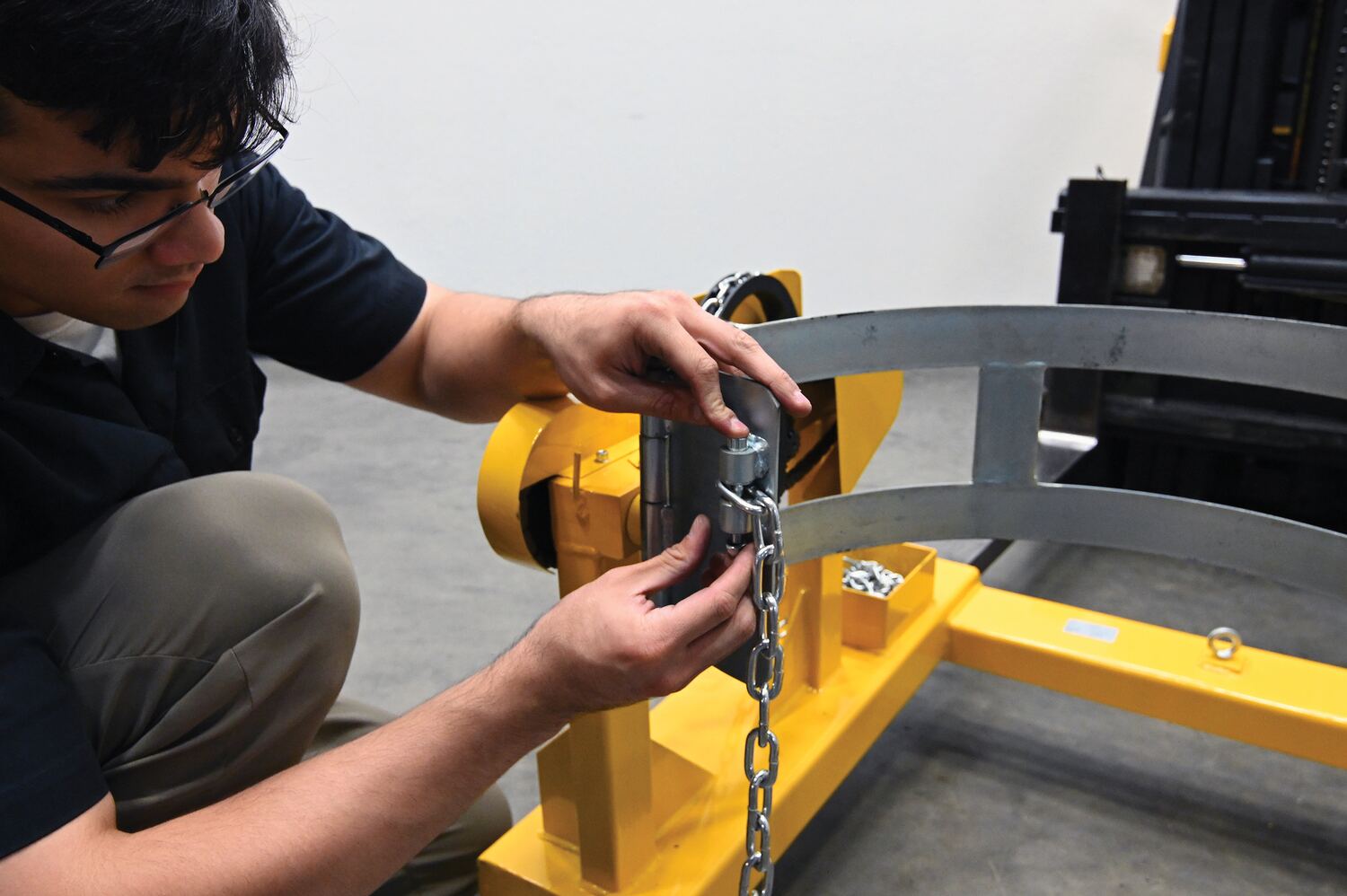

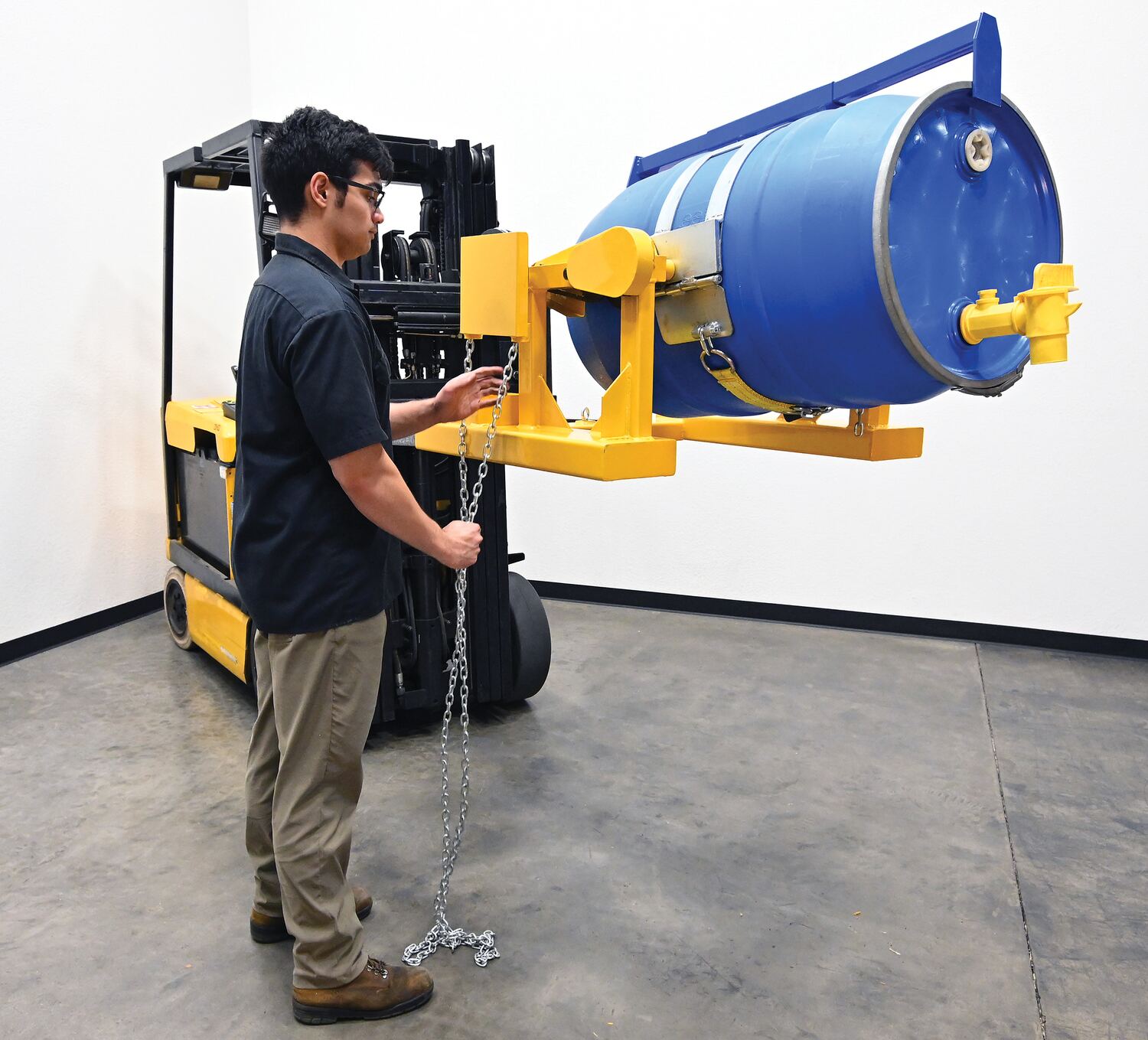

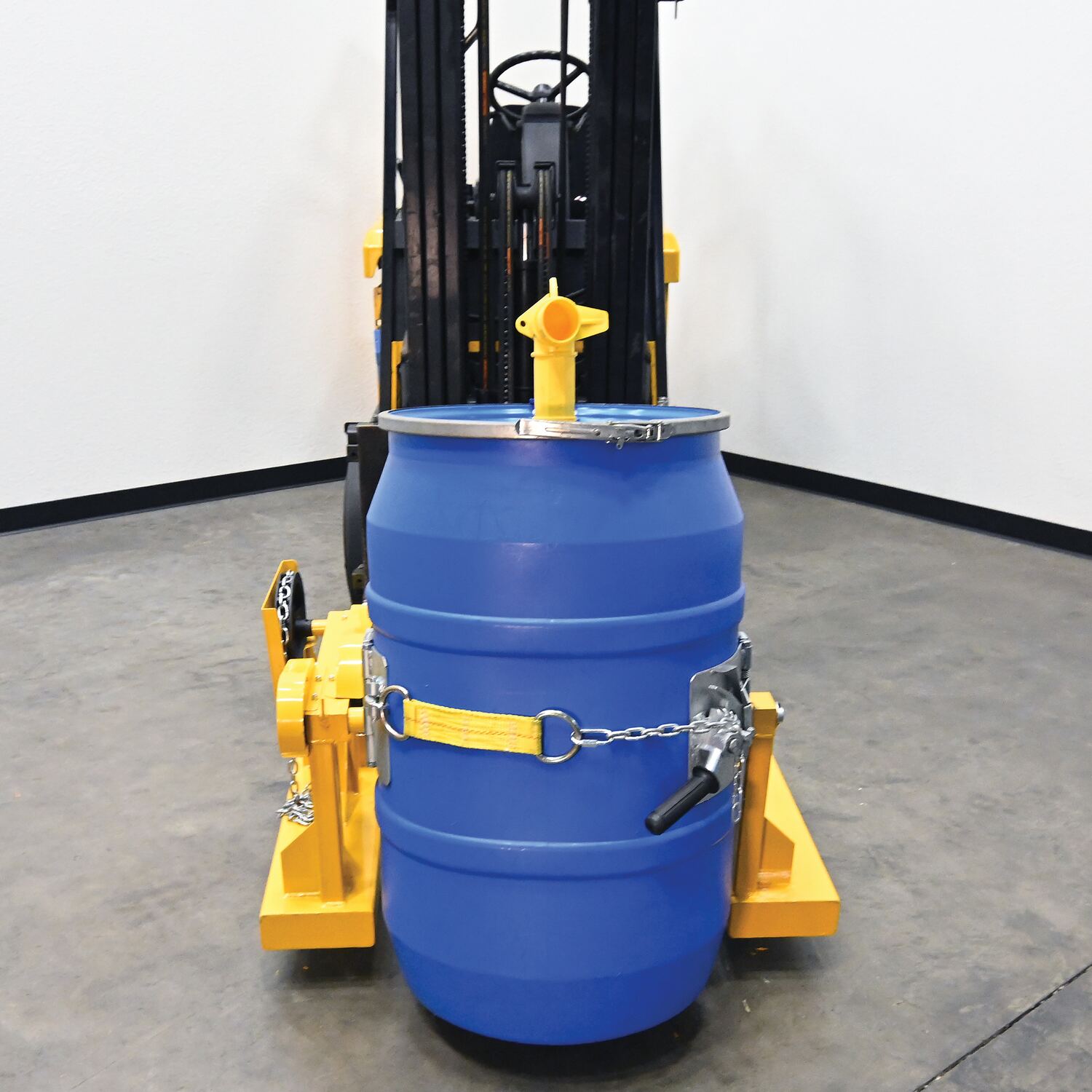

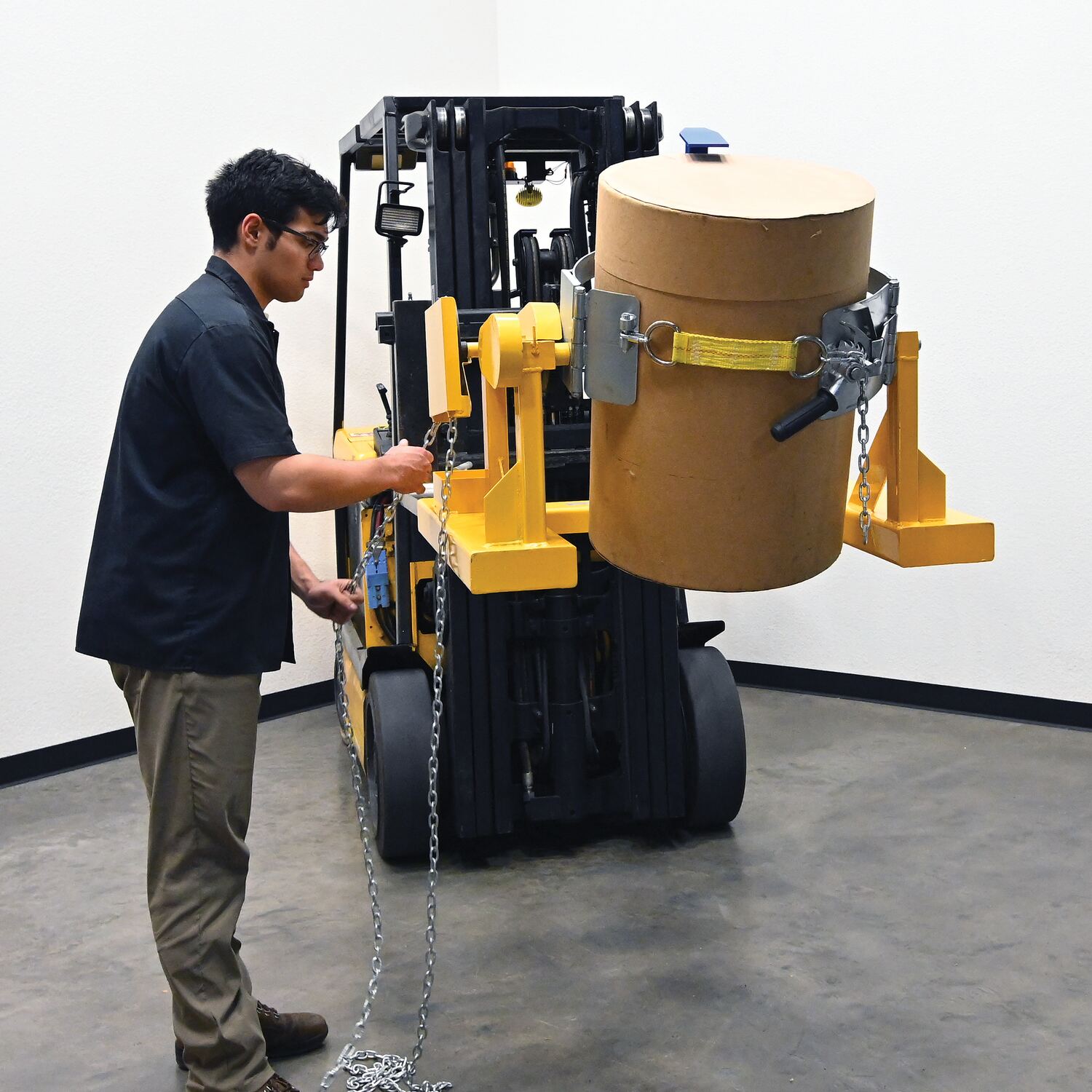

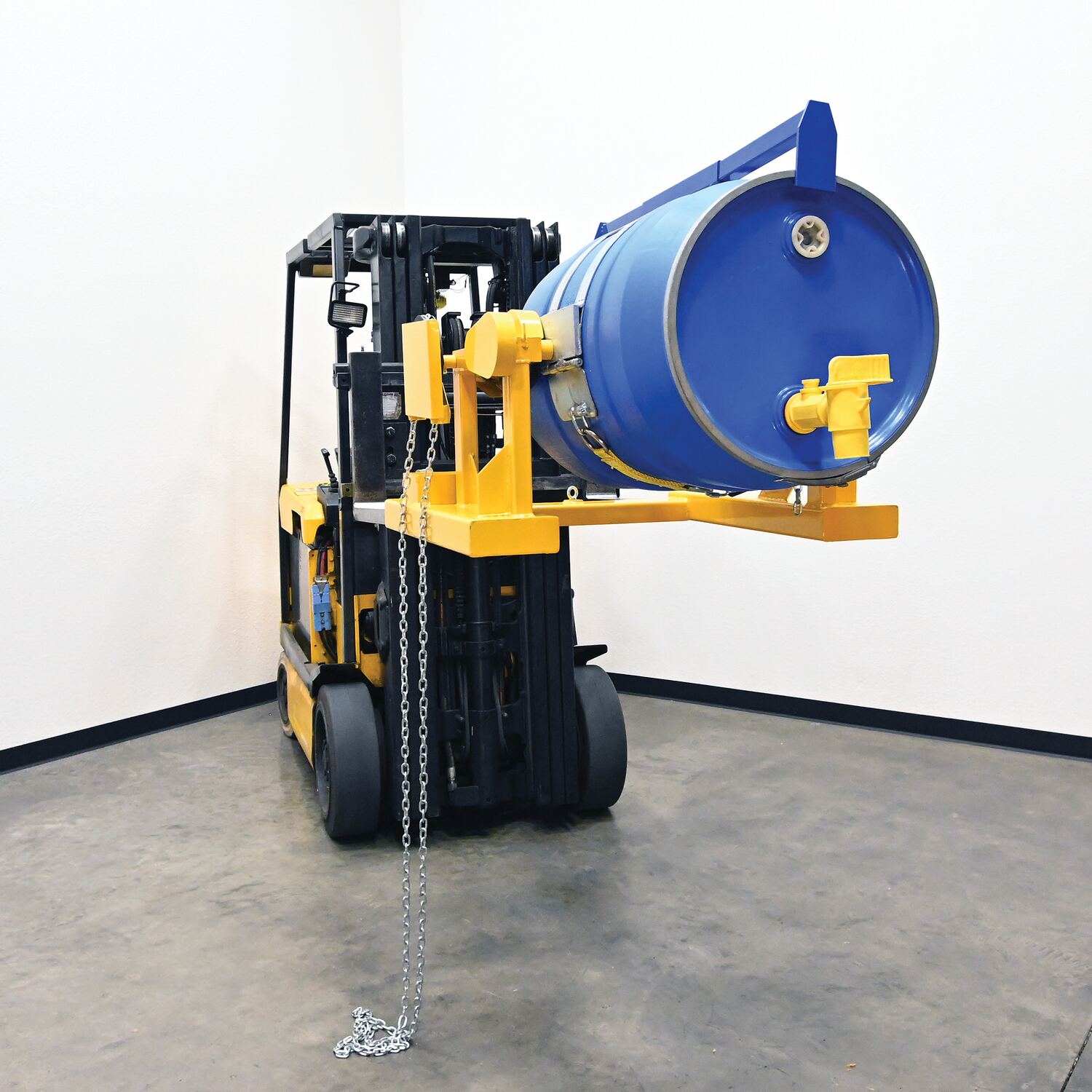

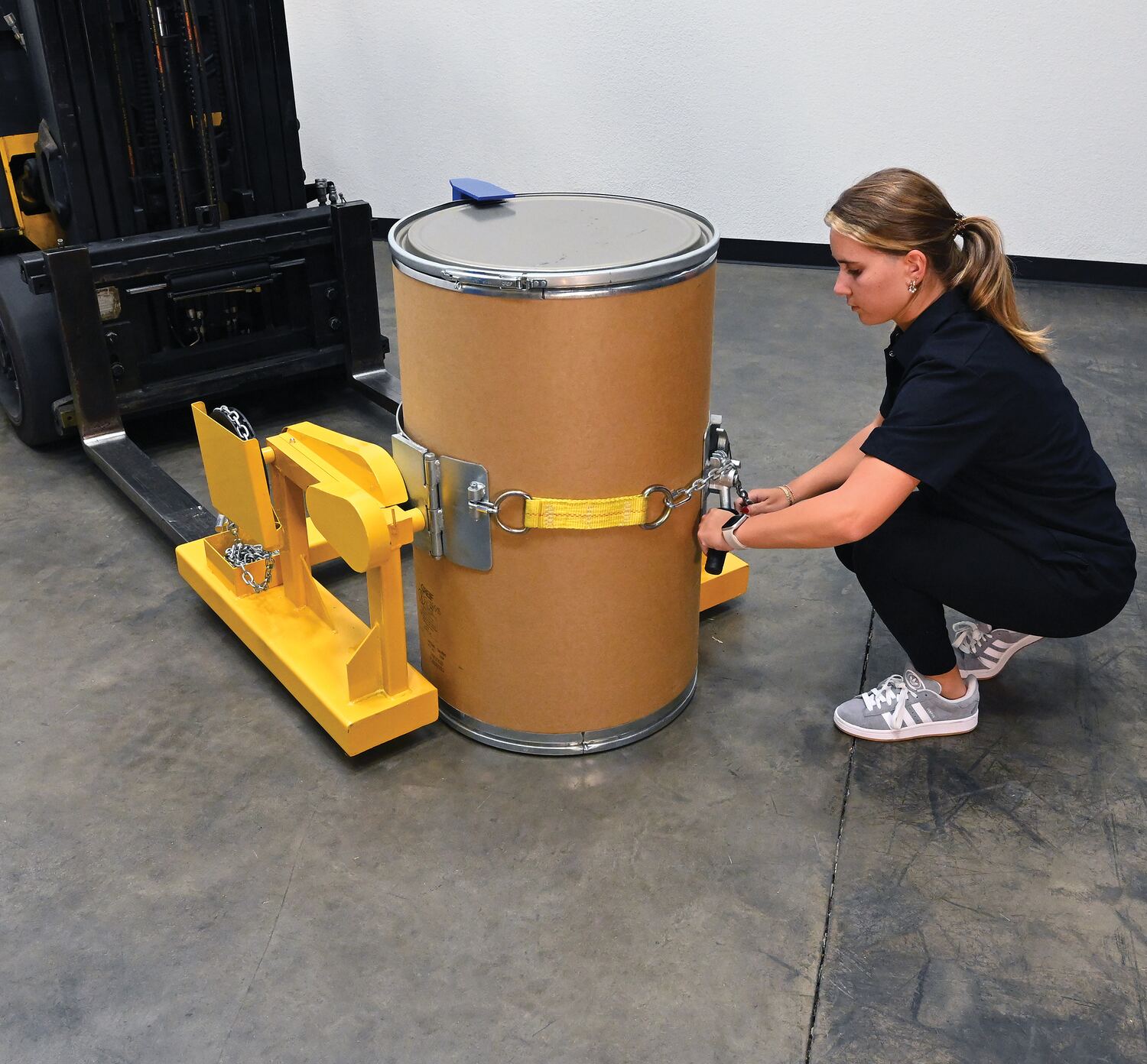

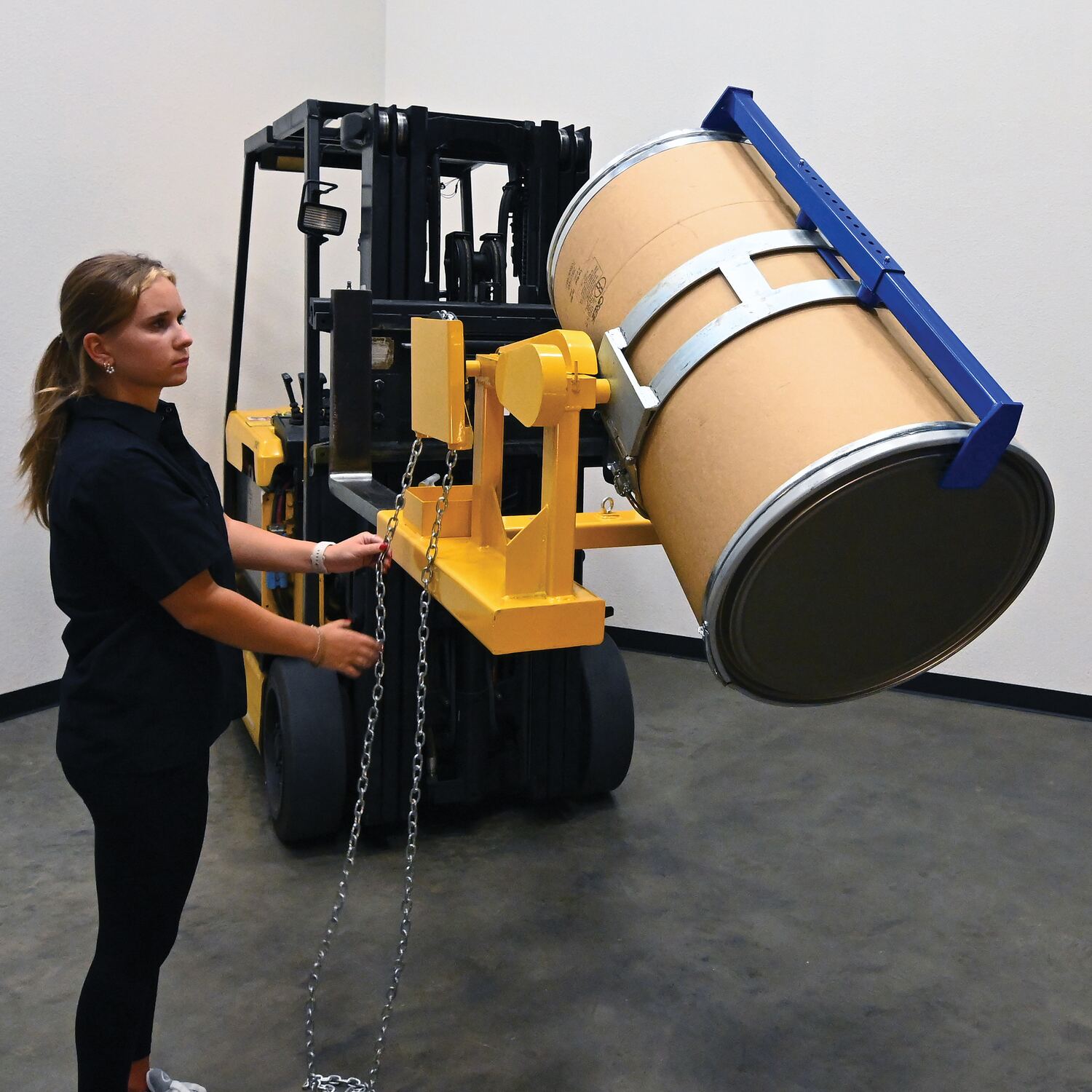

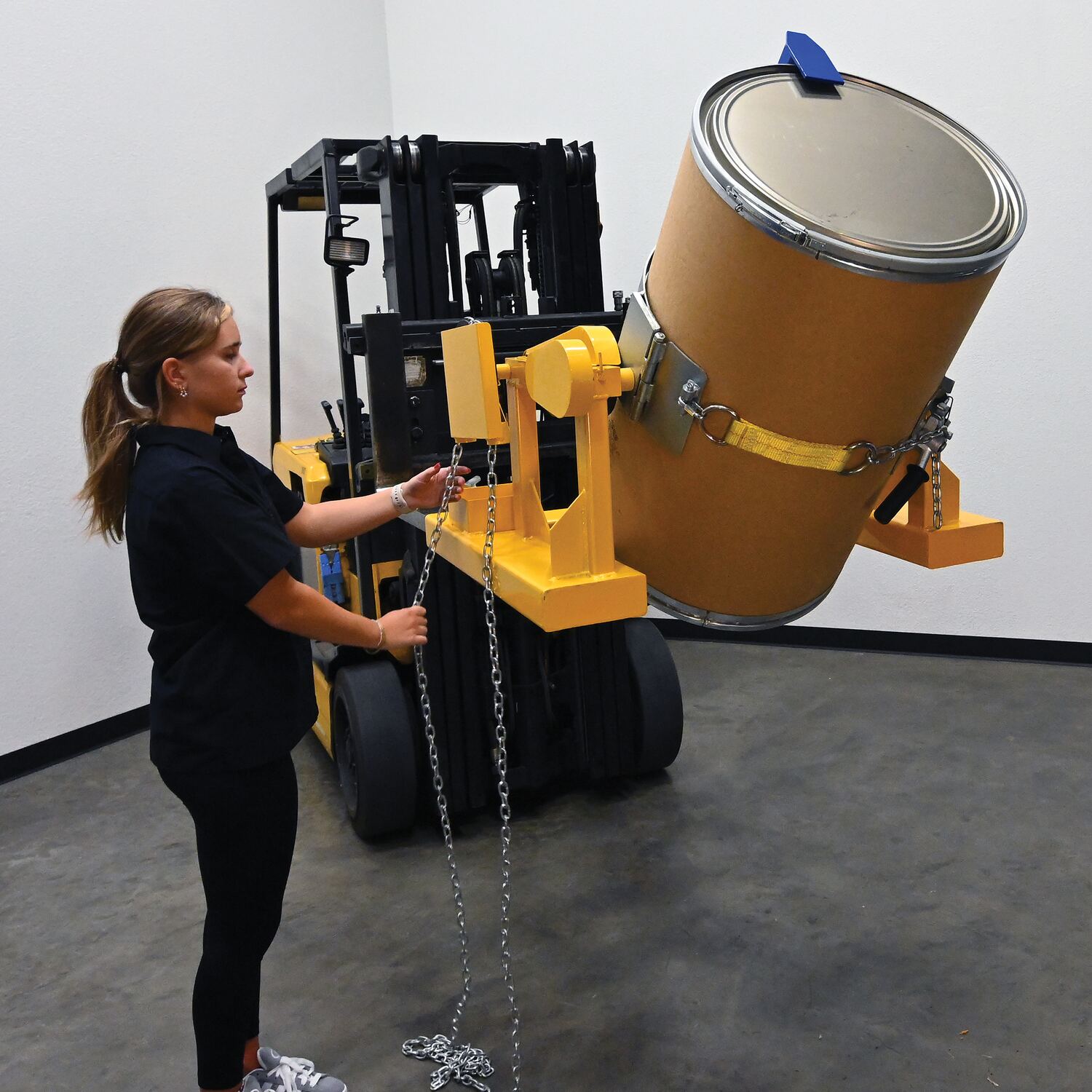

This fiber drum adapter is designed to hold and support fiber and plastic drums. Comes complete with both an adjusting arm and a high strength nylon strap so thirty (30) gallon and fifty-five (55) gallon drums can be used with listed stackers and carrier/rotators.
Product Status
Available
Key Features
  • Designed to hold and support fiber and plastic drums

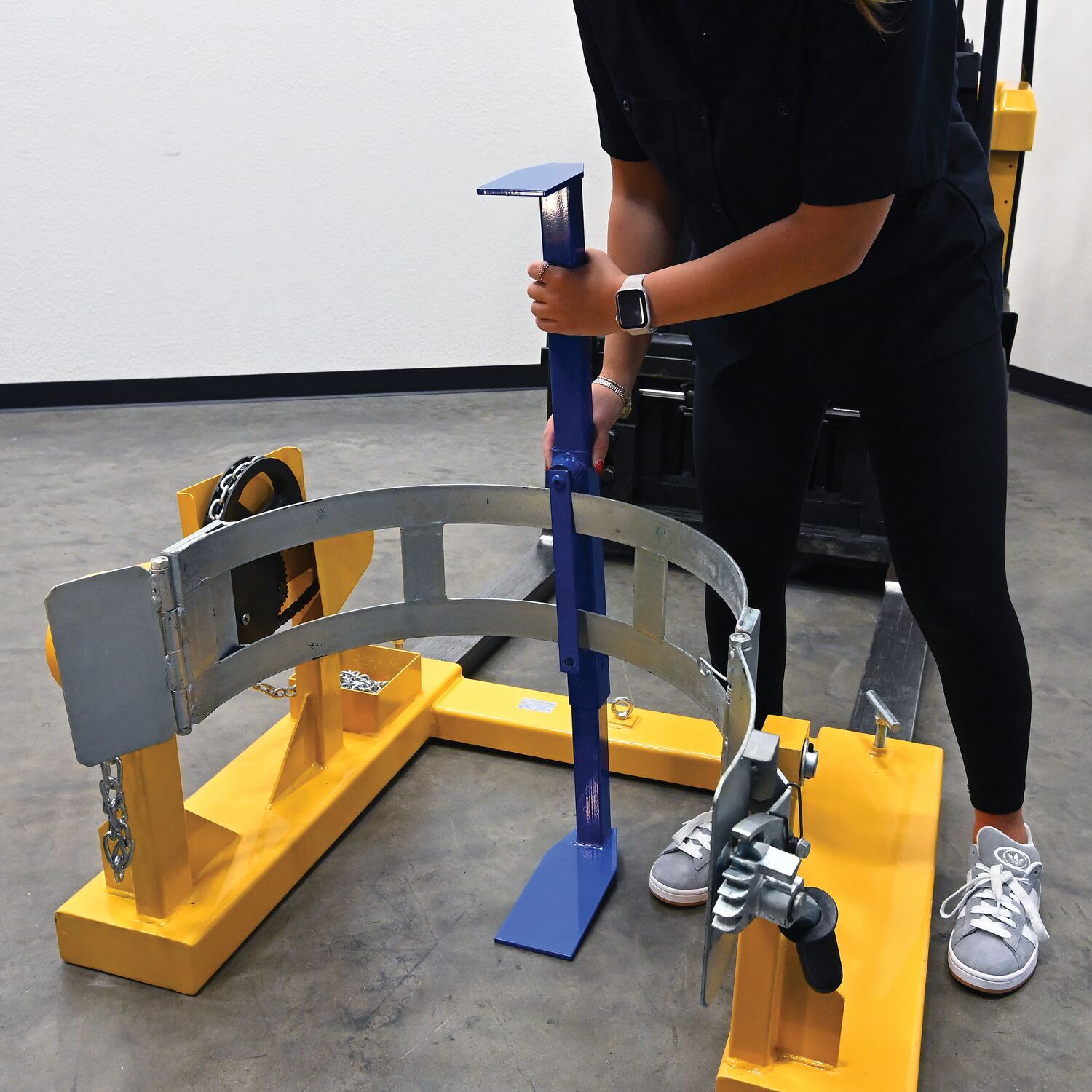

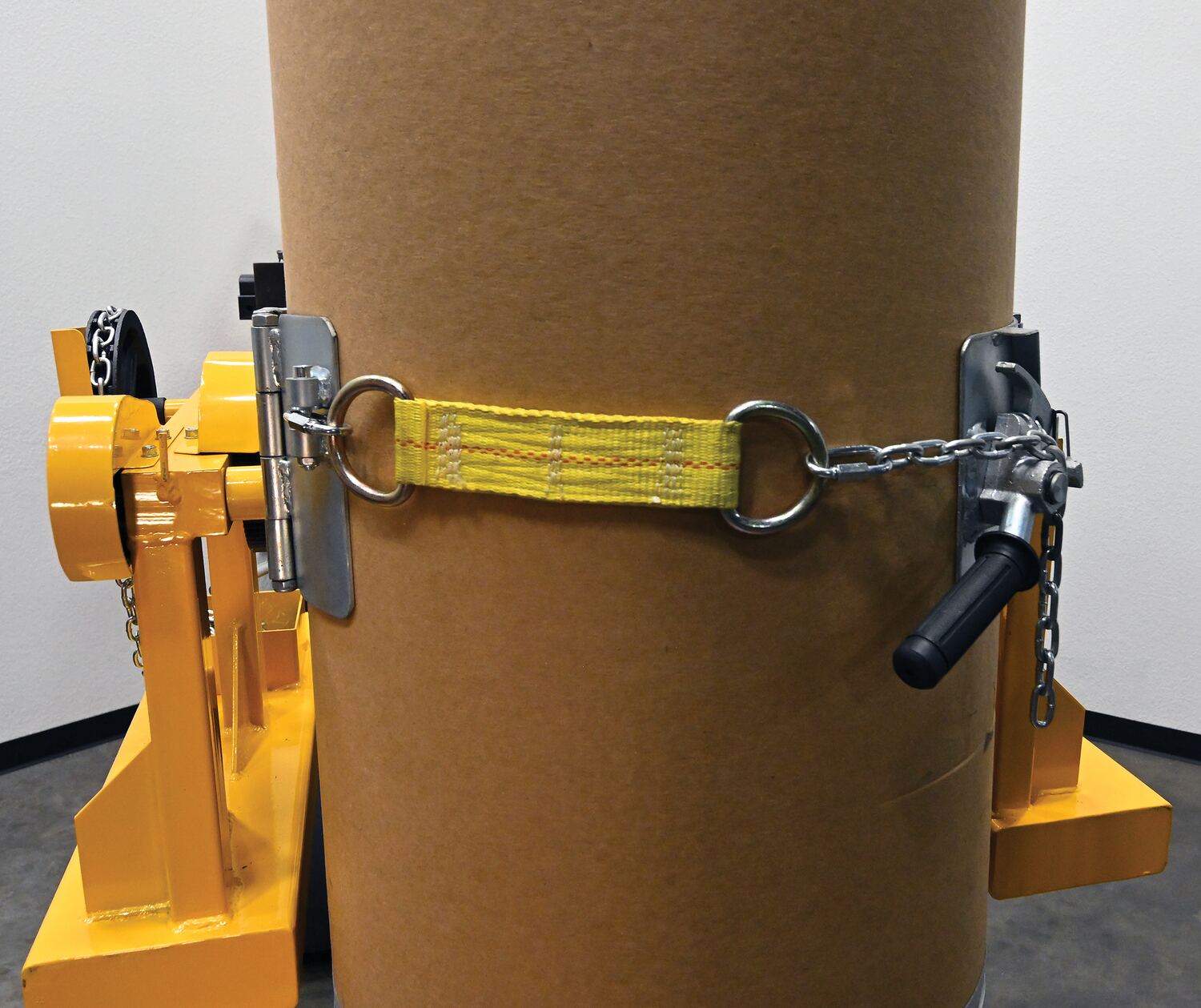

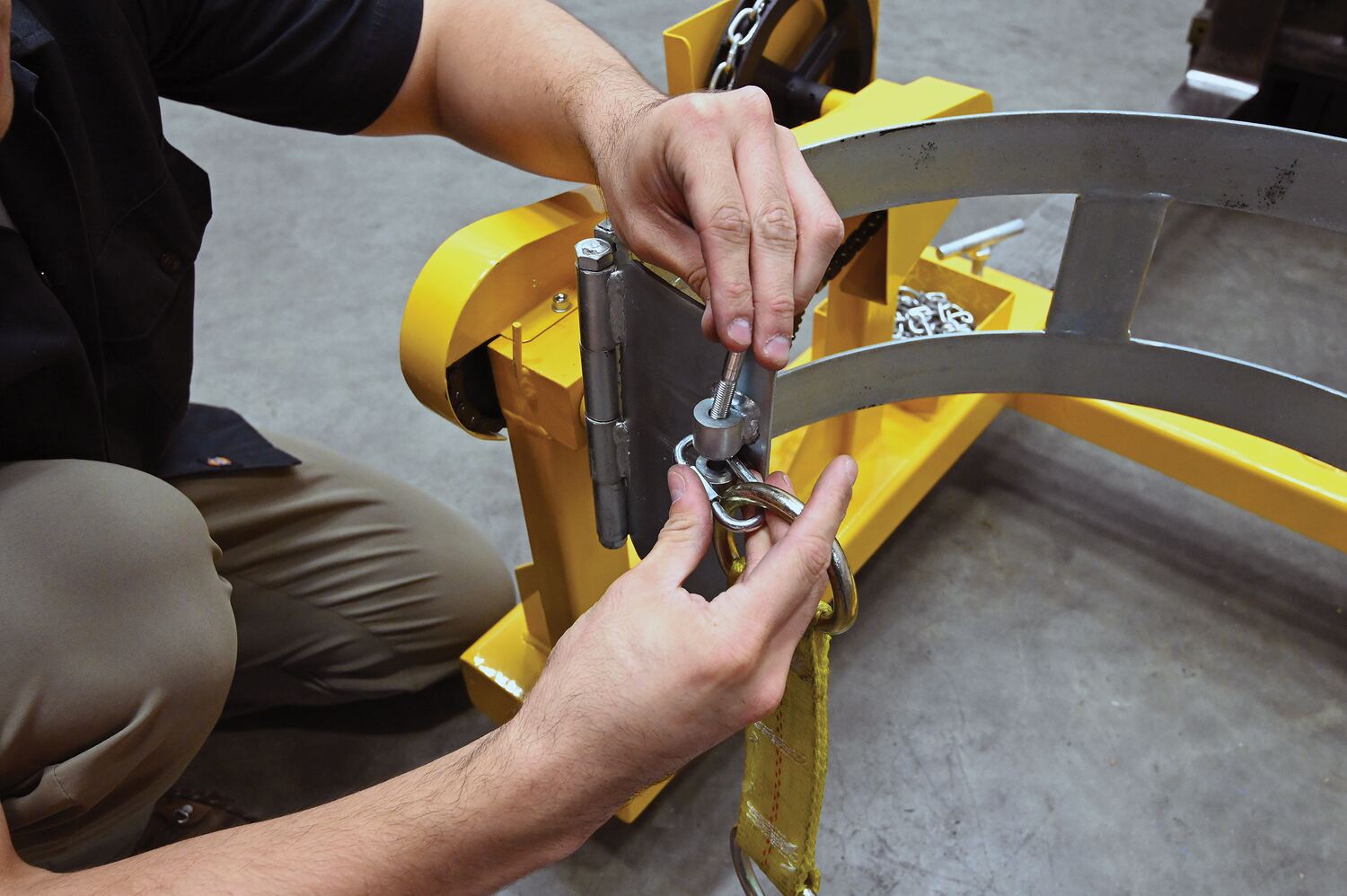

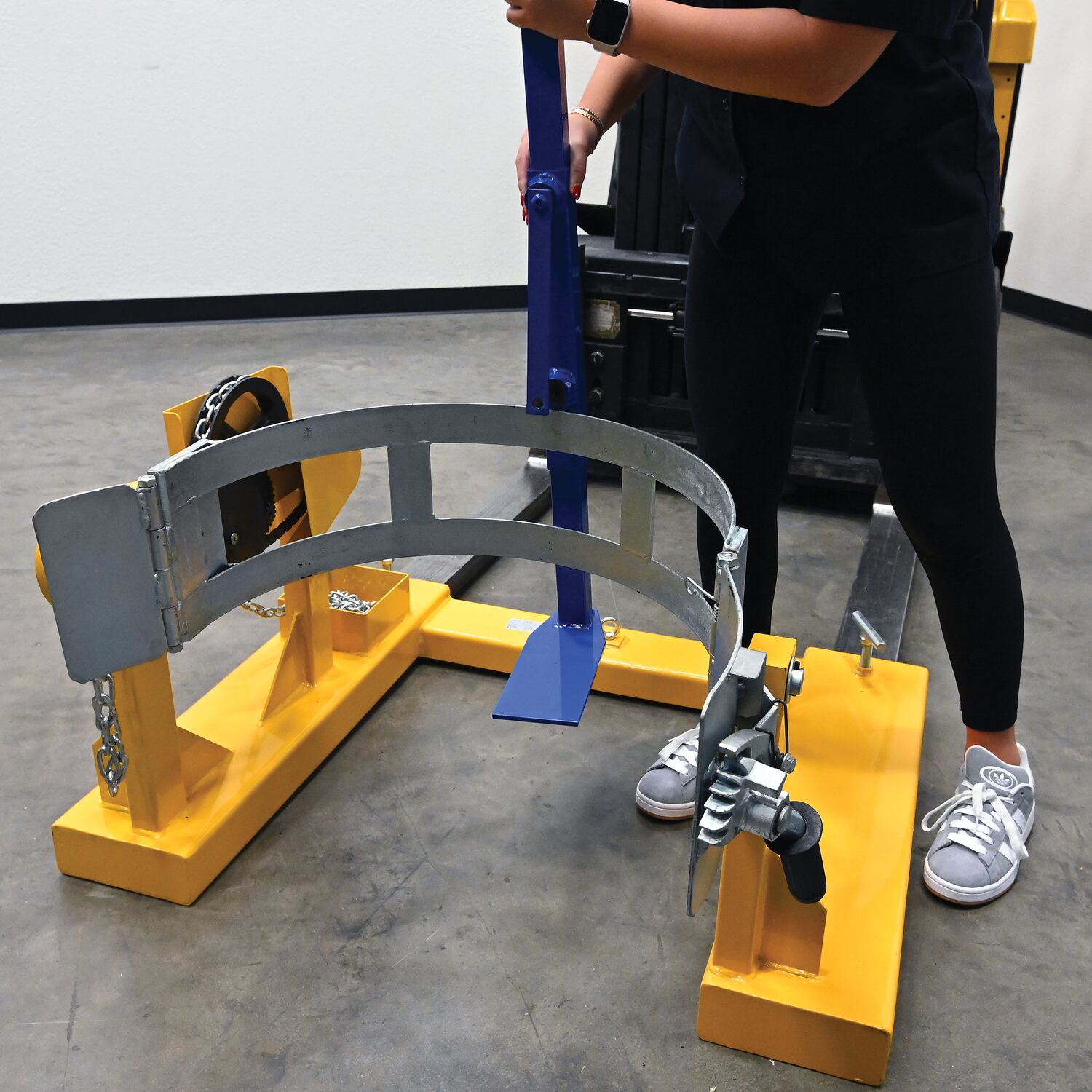

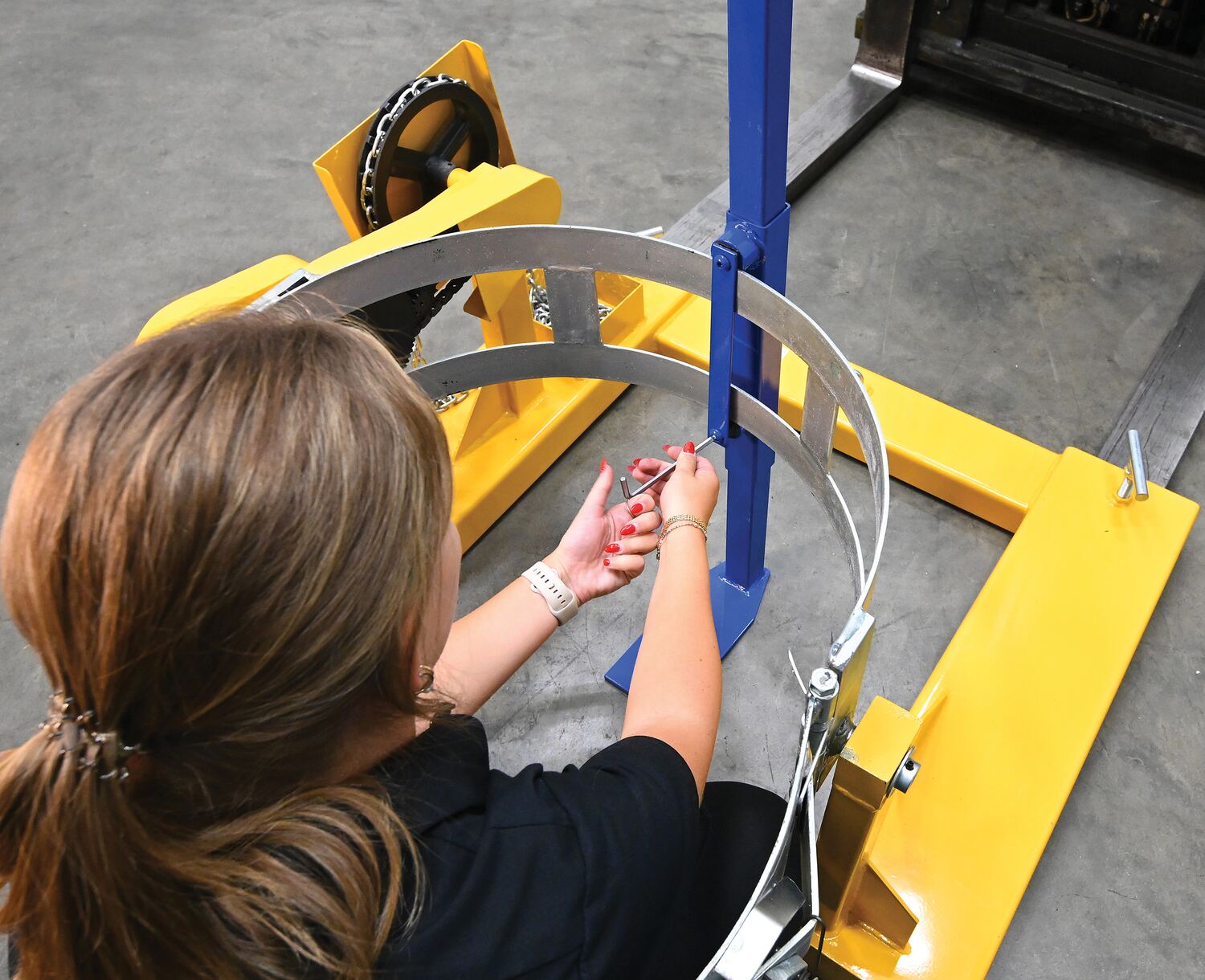

  • Includes an adjusting arm and a high strength nylon strap
  • 30 gallon and 55 gallon drums can be used with listed stackers
  • Carrier/rotators are for use in added applications
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Fiber Drum Adapter   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 14 lbs
Assembled Size 4"W x 10"L x 36.75"H
Total Ship Weight 18 lbs
Package 1 Size 11"W x 29"D x 5"H
Color / Finish Blue / Yellow
Freight Type Parcel

Additional Attributes

Chain Length (in.) 15-3/16
Strap Length (in.) 8
Quick Link Length (in.) 1/4
Fits Drum Diameter (in.) 12 to 21
Fits Drum Height (in.) 28 to 36
Minimum/Maximum Arm Length (in.) 28-3/4 to 36-3/4
Finish Powder Coat
Extended Product Details

Marketing Specs.

MFG Model # (Series)
FDA-800
Product Name
Steel Fiber & Plastic Drum Adapter Carrier/Rotator For 30 Gallon and 55 Gallon Drums Blue
UPC
691215019309
GTIN
00691215019309
Taxonomy 1
Material Handling
Taxonomy 2
Drum & Barrel Parts / Accessories
Taxonomy 3
Hoisting Attachments
Taxonomy 4
Drum Clutcher
Assembled Depth (in.)
10
Assembled Width(in.)
4
Assembled Height(in.)
36.75
Assembled Weight(lbs.)
14
Color/Finish
Blue / Yellow
Material
Nylon/Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled
Compatible Products
DCT-2000, DCT-75, DCT-75-4WFP, DCT-85, DCT-85-4WFP, HDC-305-60, HDC-305-60-AC, HDC-305-60-DC, HDC-305-72, HDC-305-72-AC, HDC-305-72-DC, HDC-305-84, HDC-305-84-AC, HDC-305-84-DC, HDC-305-96, HDC-305-96-AC, HDC-305-96-DC, HDC-450-60, HDC-450-60-AC, HDC-450-60-DC, HDC-450-72, HDC-450-72-AC, HDC-450-72-DC, HDC-450-84, HDC-450-84-AC, HDC-450-84-DC, HDC-450-96, HDC-450-96-AC, HDC-450-96-DC, DCR-205-8-DC, DCR-205-12-DC, DCR-205-8, DCR-205-15, DCR-110-55

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
29
Package Width (in.)
11
Package Height (in.)
5
Package Weight (in.)
18
Subclass
9
Freight Class
70
NMFC Code
Lift Truck Attachments Fork arms fingers tine
NMFC Number
193100
LTL Freight
Parcel
UNSPSC
41106401
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: FDA-800

FDA-800

Steel Fiber & Plastic Drum Adapter Carrier/Rotator For 30 Gallon and 55 Gallon Drums Blue

This fiber drum adapter is designed to hold and support fiber and plastic drums. Comes complete with both an adjusting arm and a high strength nylon strap so thirty (30) gallon and fifty-five (55) gallon drums can be used with listed stackers and carrier/rotators.

  • Designed to hold and support fiber and plastic drums
  • Includes an adjusting arm and a high strength nylon strap
  • 30 gallon and 55 gallon drums can be used with listed stackers
  • Carrier/rotators are for use in added applications

Core Data

Assembled Weight: 14 Assembled Size: 4"W x 10"L x 36.75"H Color: Blue / Yellow
Total Ship Weight: 18 Package 1 Size: 11"W x 29"D x 5"H Freight: Parcel

Specifications

Chain Length (in.): 15-3/16
Strap Length (in.): 8
Quick Link Length (in.): 1/4
Fits Drum Diameter (in.): 12 to 21
Fits Drum Height (in.): 28 to 36
Minimum/Maximum Arm Length (in.): 28-3/4 to 36-3/4
Finish: Powder Coat
