Steel Fork Extensions 4 In. x 72 In. 4000 Lb. Capacity Yellow

Fork Lift Fork Extensions for Extending Forklift Reach for Long and Oversized Loads, 4,000 lb. Capacity with 4 in. x 72 in., Yellow Finish – Model FE-4-72
Provide the extra support needed to lift long or large objects with a fork truck using a pair of fork extensions. Steel retaining strap prevents fork extensions from sliding off forks during use. OSHA regulations require that extensions are no more than one-hundred and fifty (150) percent of the existing fork length. Insert loop at the tip of the fork and slide it up at a forty-five (45) degree angle. Then, lay it down over the existing fork. To be used with class 2 and class 3 forks only.
Product Status
Available QuickShip
Key Features
  • Provides the needed extra length when standard forks can't reach product
  • All steel construction provides long lasting reliable use
  • Each extension includes warning and operating stickers for worker safety
  • Powder coat safety yellow finish offers lasting durability
Quick Actions

Product Resources

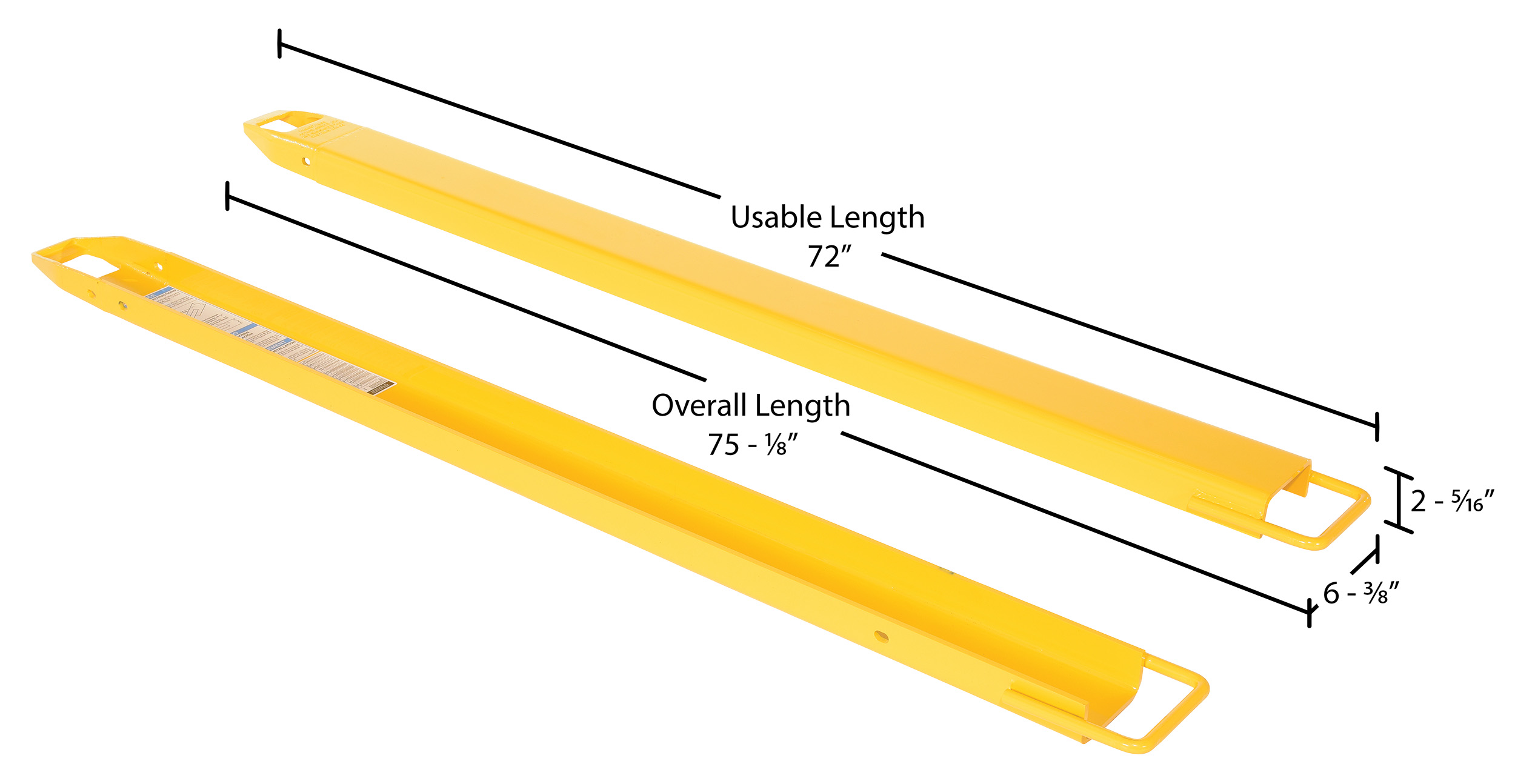

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   360 Image   FE series Fork Extensions Instruction Manual   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 113 lbs
Assembled Size 6.375"W x 75.125"L x 2.3125"H
Total Ship Weight 114 lbs
Package 1 Size 8"W x 76"D x 3"H
Color / Finish Yellow
Freight Type Parcel

Additional Attributes

Uniform Capacity Per Pair (lb.) 4,000
Usable Length (in.) 72
Fits Fork Extension Inside Height (in.) 2
Fits Fork Extension Inside Width (in.) 4
Usable Fork Extension Inside Width (in.) 4-1/2
Mount Style Loop Style
Steel Thickness (in.) 5/16
Extended Product Details

Marketing Specs.

MFG Model # (Series)
FE-4-72
Product Name
Steel Fork Extensions 4 In. x 72 In. 4000 Lb. Capacity Yellow
UPC
691215019576
GTIN
00691215019576
Taxonomy 1
Material Handling
Taxonomy 2
Forklift Attachments
Taxonomy 3
Fork Extensions
Assembled Depth (in.)
75.125
Assembled Width(in.)
6.375
Assembled Height(in.)
2.3125
Assembled Weight(lbs.)
113
Color/Finish
Yellow
Material
Steel
Option? Y/N
N
Sell UOM
PR-Pair
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
PACK_OR_INNER_PACK
Package Depth (in.)
76
Package Width (in.)
8
Package Height (in.)
3
Package Weight (in.)
57
Subclass
11
Freight Class
60
NMFC Code
Lift Truck Attachments Fork arms fingers tine
NMFC Number
193100
Package 2 Depth (in.)
76
Package 2 Width (in.)
8
Package 2 Height (in.)
3
Package 2 Weight (lbs.)
57
Package 2 Subclass
11
Package 2 Freight Class
60
Package2 NMFC Number
193100
LTL Freight
Parcel
UNSPSC
24101629
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: FE-4-72

FE-4-72

Steel Fork Extensions 4 In. x 72 In. 4000 Lb. Capacity Yellow

Provide the extra support needed to lift long or large objects with a fork truck using a pair of fork extensions. Steel retaining strap prevents fork extensions from sliding off forks during use. OSHA regulations require that extensions are no more than one-hundred and fifty (150) percent of the existing fork length. Insert loop at the tip of the fork and slide it up at a forty-five (45) degree angle. Then, lay it down over the existing fork. To be used with class 2 and class 3 forks only.

  • Provides the needed extra length when standard forks can't reach product
  • All steel construction provides long lasting reliable use
  • Each extension includes warning and operating stickers for worker safety
  • Powder coat safety yellow finish offers lasting durability

Core Data

Assembled Weight: 113 Assembled Size: 6.375"W x 75.125"L x 2.3125"H Color: Yellow
Total Ship Weight: 114 Package 1 Size: 8"W x 76"D x 3"H Freight: Parcel

Specifications

Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 72
Fits Fork Extension Inside Height (in.): 2
Fits Fork Extension Inside Width (in.): 4
Usable Fork Extension Inside Width (in.): 4-1/2
Mount Style: Loop Style
Steel Thickness (in.): 5/16
