Steel High Strength Fork Extensions 5 In. x 72 In. 4,000 Lb. Capacity Yellow

Fork Lift Fork Extensions for Extending Forklift Reach for Long and Oversized Loads, 4,000 lb. Capacity with 5 in. x 72 in – Model FE-HS-5-72
Fork extensions are the perfect accessory for new or existing forks. The high strength material provides extra support needed to lift large heavy objects with a fork lift. These models are almost 40% lighter than standard fork extensions. A powder coat finish is included to diminish scraps and minimize abrasion during use. To be used with class 2 and class 3 forks only. There are two handles included on each fork extension. The larger of the two is welded to the outside of the extension and it designed to go around the heel of the fork. While the smaller of the two handles is welded to the inside of each extension and is located at the front of the unit (opposite end). This handle is designed to assist the user while installing or removing the extension.
Product Status
Available QuickShip
Key Features
  • Smooth finish for simple cleaning
  • Brightly colored for clear visibility
  • Attached handle for easy handling
  • Compact design for minimal storage space
Quick Actions

Product Resources

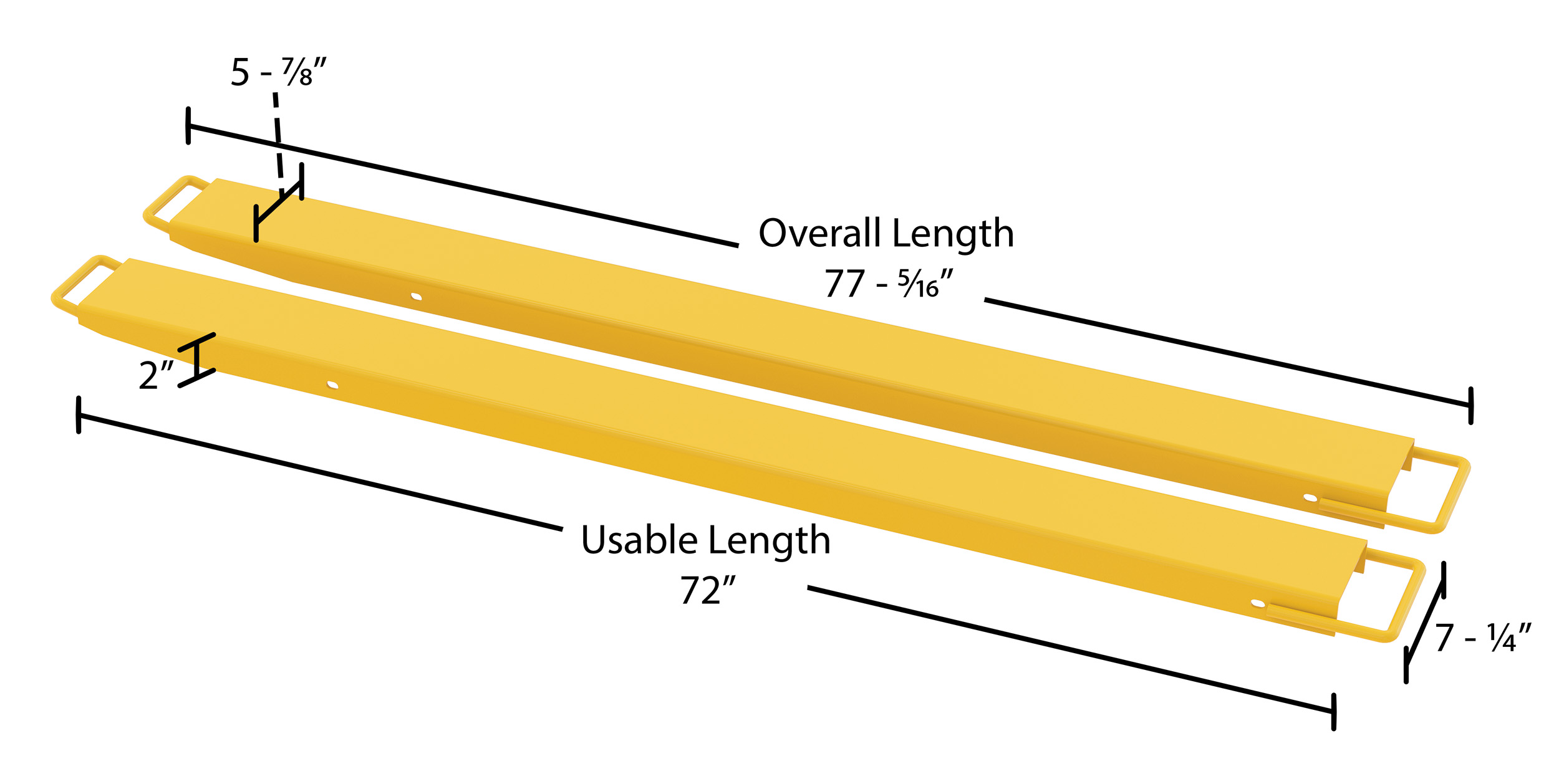

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 80 lbs
Assembled Size 7.25"W x 77.3125"L x 2.1875"H
Total Ship Weight 80 lbs
Package 1 Size 8"W x 76"D x 3"H
Color / Finish Yellow
Freight Type Parcel

Additional Attributes

Uniform Capacity Per Pair (lb.) 4,000
Usable Length (in.) 72
Maximum Fork Thickness (in.) 2
Accommodates Fork Width (in.) 5
Fork Extension Inside Width (in.) 5-1/2
Mount Style Loop Style
Steel Thickness (in.) 3/16
Extended Product Details

Marketing Specs.

MFG Model # (Series)
FE-HS-5-72
Product Name
Steel High Strength Fork Extensions 5 In. x 72 In. 4,000 Lb. Capacity Yellow
UPC
691215320665
GTIN
00691215320665
Taxonomy 1
Material Handling
Taxonomy 2
Forklift Attachments
Taxonomy 3
Fork Extensions
Assembled Depth (in.)
77.3125
Assembled Width(in.)
7.25
Assembled Height(in.)
2.1875
Assembled Weight(lbs.)
80
Color/Finish
Yellow
Material
Steel
Option? Y/N
N
Sell UOM
PR-Pair
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
PACK_OR_INNER_PACK
Package Depth (in.)
76
Package Width (in.)
8
Package Height (in.)
3
Package Weight (in.)
40
Subclass
11
Freight Class
60
NMFC Code
Lift Truck Attachments Fork arms fingers tine
NMFC Number
193100
Package 2 Depth (in.)
76
Package 2 Width (in.)
8
Package 2 Height (in.)
3
Package 2 Weight (lbs.)
40
Package 2 Subclass
11
Package 2 Freight Class
60
Package2 NMFC Number
193100
LTL Freight
Parcel
UNSPSC
24101629
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: FE-HS-5-72

FE-HS-5-72

Steel High Strength Fork Extensions 5 In. x 72 In. 4,000 Lb. Capacity Yellow

Fork extensions are the perfect accessory for new or existing forks. The high strength material provides extra support needed to lift large heavy objects with a fork lift. These models are almost 40% lighter than standard fork extensions. A powder coat finish is included to diminish scraps and minimize abrasion during use. To be used with class 2 and class 3 forks only. There are two handles included on each fork extension. The larger of the two is welded to the outside of the extension and it designed to go around the heel of the fork. While the smaller of the two handles is welded to the inside of each extension and is located at the front of the unit (opposite end). This handle is designed to assist the user while installing or removing the extension.

  • Smooth finish for simple cleaning
  • Brightly colored for clear visibility
  • Attached handle for easy handling
  • Compact design for minimal storage space

Core Data

Assembled Weight: 80 Assembled Size: 7.25"W x 77.3125"L x 2.1875"H Color: Yellow
Total Ship Weight: 80 Package 1 Size: 8"W x 76"D x 3"H Freight: Parcel

Specifications

Uniform Capacity Per Pair (lb.): 4,000
Usable Length (in.): 72
Maximum Fork Thickness (in.): 2
Accommodates Fork Width (in.): 5
Fork Extension Inside Width (in.): 5-1/2
Mount Style: Loop Style
Steel Thickness (in.): 3/16
