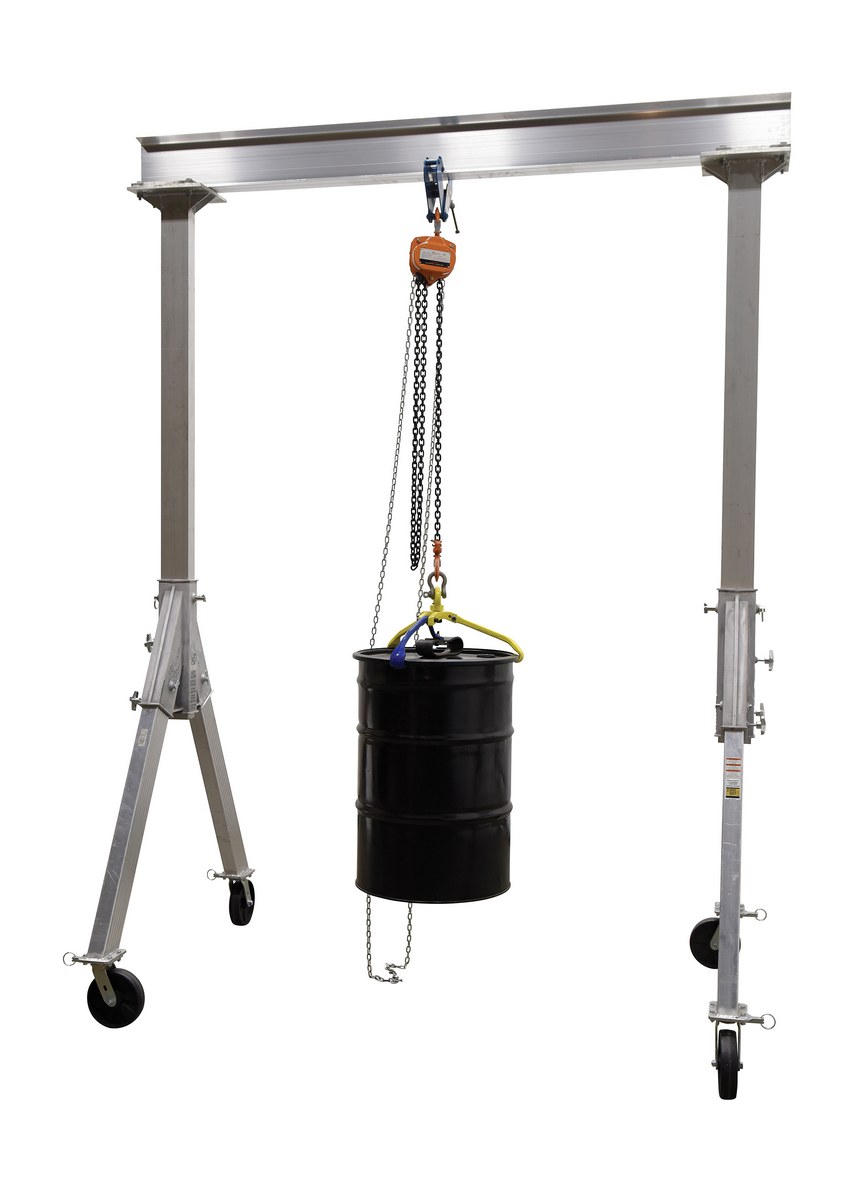

Aluminum Fixed Gantry Crane with Phenolic Locking Casters 12 Ft. x 10 Ft. 4000 Lb. Capacity Silver

Fixed Height Aluminum Gantry Crane for Overhead Load Lifting and Controlled Positioning, 4,000 lb. Capacity, Silver Finish – Model FHA-4-12-10
The fixed height Aluminum Gantry cranes are ideal for the manufacturing and maintenance facilities. The aluminum construction is easily manageable and can be simply assembled for immediate use. The unit has a fixed height for working in a permanent or semi-permanent environment. The casters allow the user to move the crane from workstation to workstation and smoothly roll over rough surfaces, while not marring. Do not move units while loaded.
Product Status
Available
Key Features
  • Robust construction for long term use
  • Each unit includes four casters for safe positioning
  • The fixed height of the unit provides constant lifting stability
  • Great for long term consistent height projects
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   FHA Series Fixed Height Aluminum Jib Crane Manual   Label Page PDF   1 Year Warranty
Product Data

Core Data

Assembled Weight 366 lbs
Assembled Size 53.9375"W x 144"L x 128"H
Total Ship Weight 406 lbs
Package 1 Size 29"W x 144"D x 18"H
Color / Finish Silver
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 4,000
Overall I-Beam Length (in.) 144
Overall I-Beam Height (in.) 8
I-Beam Flange Width (in.) 4-3/16
Under I-Beam to Ground (in.) 120
Base Width (in.) 53-15/16

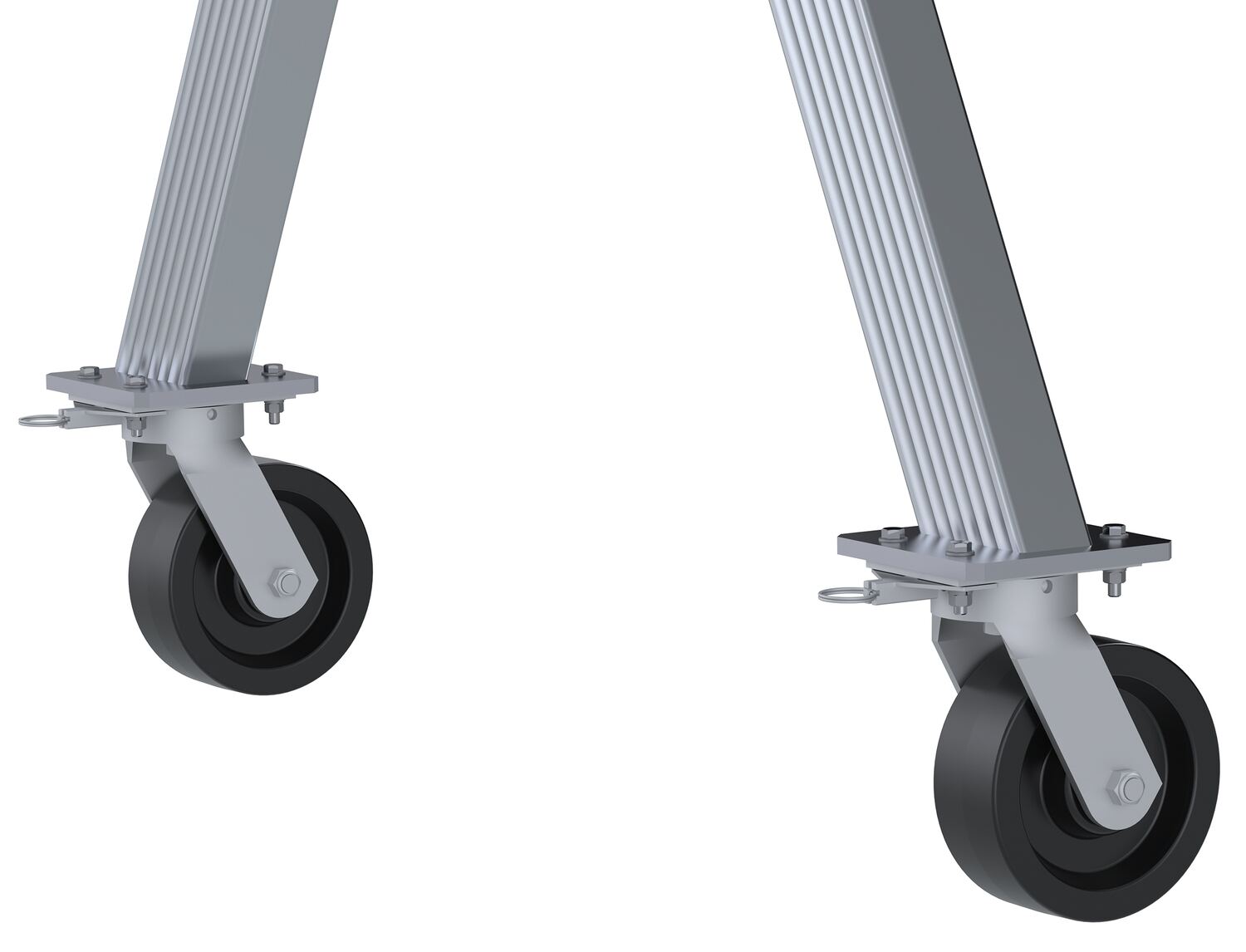

Caster Quantity/Diameter/Width (in.) (4) 8 x 2
Caster Type Swivel (4) Position Locking Casters
Caster Material Phenolic
Extended Product Details

Marketing Specs.

MFG Model # (Series)
FHA-4-12-10
Product Name
Aluminum Fixed Gantry Crane with Phenolic Locking Casters 12 Ft. x 10 Ft. 4000 Lb. Capacity Silver
UPC
691215221221
GTIN
00691215221221
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Cranes
Taxonomy 4
Gantry
Assembled Depth (in.)
144
Assembled Width(in.)
53.9375
Assembled Height(in.)
128
Assembled Weight(lbs.)
366
Color/Finish
Silver
Material
Aluminum
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
144
Package Width (in.)
29
Package Height (in.)
18
Package Weight (in.)
406
Subclass
8
Freight Class
175
NMFC Code
Machinery Group
NMFC Number
133300
LTL Freight
LTL Palletized
UNSPSC
24101654
HTSUS Number
8426.19.0000
USMCA HS
8426.19
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: FHA-4-12-10

FHA-4-12-10

Aluminum Fixed Gantry Crane with Phenolic Locking Casters 12 Ft. x 10 Ft. 4000 Lb. Capacity Silver

The fixed height Aluminum Gantry cranes are ideal for the manufacturing and maintenance facilities. The aluminum construction is easily manageable and can be simply assembled for immediate use. The unit has a fixed height for working in a permanent or semi-permanent environment. The casters allow the user to move the crane from workstation to workstation and smoothly roll over rough surfaces, while not marring. Do not move units while loaded.

  • Robust construction for long term use
  • Each unit includes four casters for safe positioning
  • The fixed height of the unit provides constant lifting stability
  • Great for long term consistent height projects

Core Data

Assembled Weight: 366 Assembled Size: 53.9375"W x 144"L x 128"H Color: Silver
Total Ship Weight: 406 Package 1 Size: 29"W x 144"D x 18"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 4,000
Overall I-Beam Length (in.): 144
Overall I-Beam Height (in.): 8
I-Beam Flange Width (in.): 4-3/16
Under I-Beam to Ground (in.): 120
Base Width (in.): 53-15/16
Caster Quantity/Diameter/Width (in.): (4) 8 x 2
Caster Type: Swivel (4) Position Locking Casters
Caster Material: Phenolic
