Steel Fixed Gantry Crane with Total Locking Phenolic Casters 15 Ft. 8000 Lb. Capacity Blue

Portable Gantry Crane for Overhead Load Lifting and Controlled Positioning, 8,000 lb. Capacity, Blue Finish – Model FHS-8-15-TLC
The fixed height steel gantry crane is designed for transporting and positioning materials along the beams length. The solid steel construction will provide years of service, while the painted blue finish will keep the models protected from surface ware. Unit comes standard with total locking casters. The unit is an economical and efficient way to lift and raise products, diminishing the need of additional personnel. The fixed height design allows for constant use in a particular setting without the need to maneuver the overall height of the unit.
Product Status
Out of Stock
Key Features
  • Sleek painted finish
  • Heavy-duty welded steel construction for long lasting use
  • Beam length allows for use with items, both large and small
  • All units comply with applicable OSHA 29 CFR 1910 179, ASME B30 17, ANSI Z535 4 specifications
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   Fixed Height Steel Gantry Crane FHS series   Label Page PDF   1 Year Warranty
Product Data

Core Data

Assembled Weight 961 lbs
Assembled Size 64.5"W x 180"L x 131.3125"H
Total Ship Weight 996 lbs
Package 1 Size 65"W x 77"D x 19"H
Color / Finish Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 8,000
Overall Beam Length (in.) 180
Usable Beam Length (in.) 149-3/4
Fixed Clearance (in.) 121
Beam Height (in.) 10-1/8
Flange Width (in.) 4

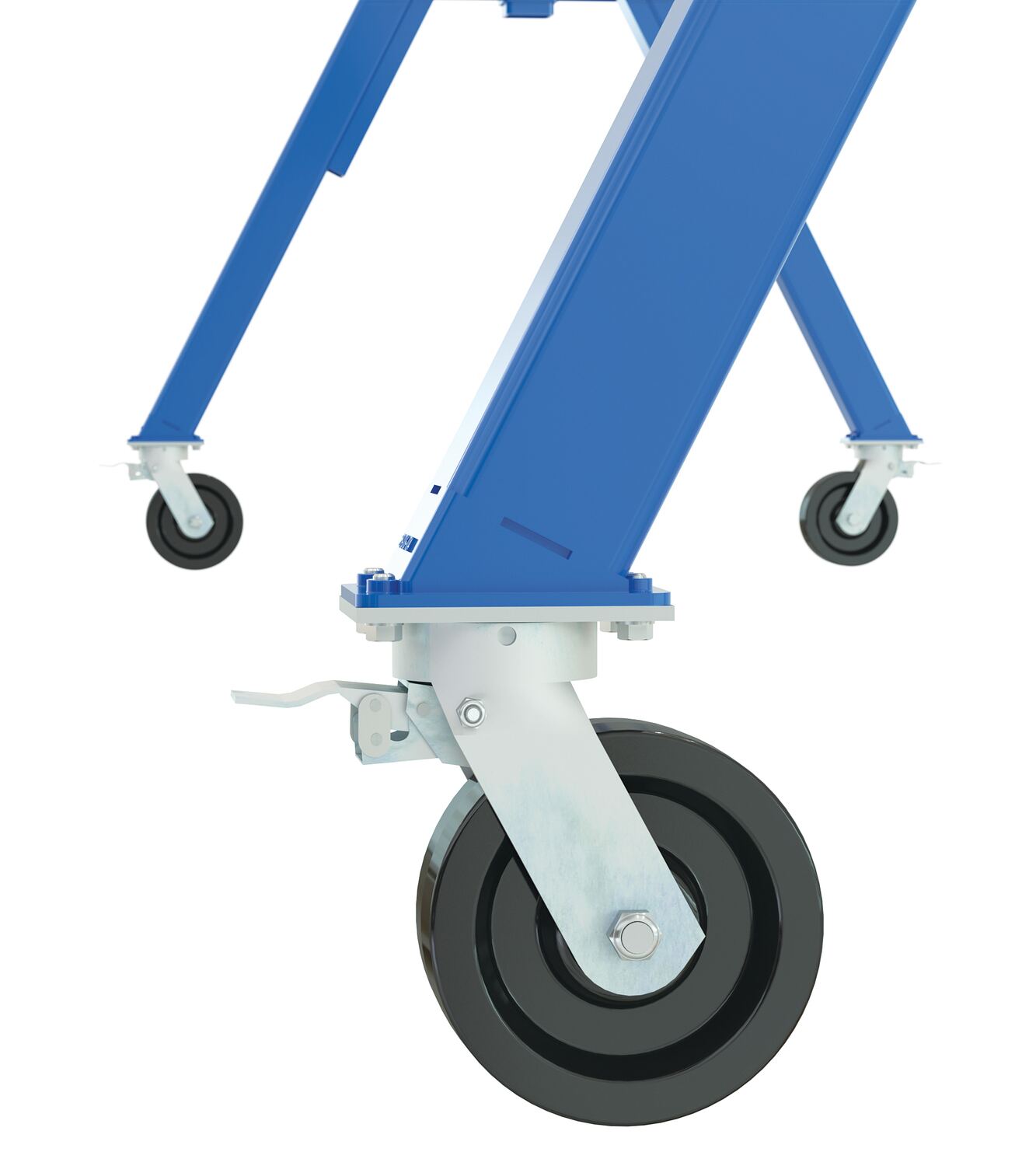

Caster Qty/Diameter/Width (in.) (4) 8 x 3
Caster Material Phenolic
Caster/Wheel Locking? Yes
Extended Product Details

Marketing Specs.

MFG Model # (Series)
FHS-8-15-TLC
Product Name
Steel Fixed Gantry Crane with Total Locking Phenolic Casters 15 Ft. 8000 Lb. Capacity Blue
UPC
691215367776
GTIN
00691215367776
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Cranes
Taxonomy 4
Gantry
Assembled Depth (in.)
180
Assembled Width(in.)
64.5
Assembled Height(in.)
131.3125
Assembled Weight(lbs.)
961
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
77
Package Width (in.)
65
Package Height (in.)
19
Package Weight (in.)
705
Subclass
9
Freight Class
100
NMFC Code
Machinery Group
NMFC Number
133300
Package 2 Depth (in.)
192
Package 2 Width (in.)
14
Package 2 Height (in.)
10
Package 2 Weight (lbs.)
291
Package 2 Subclass
9
Package 2 Freight Class
100
Package2 NMFC Number
133300
LTL Freight
LTL Palletized
UNSPSC
24101654
HTSUS Number
8426.19.0000
USMCA HS
8426.19
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning
