FHS-PNU-DT4-RF
FHS-PNU-DT4-RF
FHS-PNU-DT4-RF

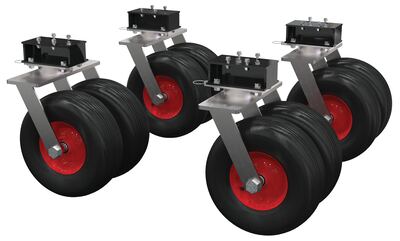

Pneumatic Rubber Dual Tire Kit 15-1/2 In. x 5-7/8 In. Wheel For Steel Fixed Height Gantry Cranes 4000 Lb. Capacity

Pneumatic Wheels for Gantry Cranes for Overhead Load Lifting and Controlled Positioning, 4,000 lb. Capacity with 15-1/2 in. x 5-7/8 in.
Pneumatic casters provide a balanced and dependable roll to the gantry crane. With a simple plate connection, the casters can quickly be installed on an existing gantry crane. The swivel design allows for quick movement and directional changes.
Product Status
Available
Key Features
  • Pack of 4
  • Rubber tread
  • Mounting plate installation style
  • Dual design
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Fixed Height Steel Gantry Crane FHS series   90 Days Warranty
Product Data

Core Data

Assembled Weight 57 lbs
Assembled Size 17"W x 18"L x 18.5"H
Total Ship Weight 271 lbs
Package 1 Size 40"W x 48"D x 27"H
Color / Finish Black
Freight Type LTL Palletized

Additional Attributes

Individual Caster Capacity (lb.) 1000
Total Caster Kit Capacity (lb.) 4000
Caster Material Rubber
Caster Type Swivel
Set (qty.) 4
Caster Diameter/Width (in.) 15-1/2 x 5-7/8
Plate Size Width/Length (in.) 7-1/4 x 5-1/4
Overall Width (In.) 17
Overall Length (in.) 18
Overall Height (in.) 18-1/2
Extended Product Details

Marketing Specs.

MFG Model # (Series)
FHS-PNU-DT4-RF
Product Name
Pneumatic Rubber Dual Tire Kit 15-1/2 In. x 5-7/8 In. Wheel For Steel Fixed Height Gantry Cranes 4000 Lb. Capacity
UPC
691215369749
GTIN
00691215369749
Taxonomy 1
Hardware
Taxonomy 2
Builders Hardware
Taxonomy 3
Casters & Glides
Taxonomy 4
Wheels
Assembled Depth (in.)
18
Assembled Width(in.)
17
Assembled Height(in.)
18.5
Assembled Weight(lbs.)
57
Color/Finish
Black
Material
Pneumatic Rubber
Option? Y/N
Y
Sell UOM
ST-Set
Country Of Origin
CA
Approval Drawing Required? Y/N
N
Assembly
Assembly required
Compatible Products
FHS-4-10-PNU, FHS-4-15-PNU, FHS-4-20-PNU

Logistics

Packaging Level
PACK_OR_INNER_PACK
Package Depth (in.)
48
Package Width (in.)
40
Package Height (in.)
27
Package Weight (in.)
271
Freight Class
65
NMFC Code
Casters NOI in bags boxes or drums
NMFC Number
41725
LTL Freight
LTL Palletized
UNSPSC
25172513
HTSUS Number
8716.90.3000
USMCA HS
8716.90
Origin Criterion
B
Certification Indicator
A
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: FHS-PNU-DT4-RF

FHS-PNU-DT4-RF

Pneumatic Rubber Dual Tire Kit 15-1/2 In. x 5-7/8 In. Wheel For Steel Fixed Height Gantry Cranes 4000 Lb. Capacity

Pneumatic casters provide a balanced and dependable roll to the gantry crane. With a simple plate connection, the casters can quickly be installed on an existing gantry crane. The swivel design allows for quick movement and directional changes.

  • Pack of 4
  • Rubber tread
  • Mounting plate installation style
  • Dual design

Core Data

Assembled Weight: 57 Assembled Size: 17"W x 18"L x 18.5"H Color: Black
Total Ship Weight: 271 Package 1 Size: 40"W x 48"D x 27"H Freight: LTL Palletized

Specifications

Individual Caster Capacity (lb.): 1000
Total Caster Kit Capacity (lb.): 4000
Caster Material: Rubber
Caster Type: Swivel
Set (qty.): 4
Caster Diameter/Width (in.): 15-1/2 x 5-7/8
Plate Size Width/Length (in.): 7-1/4 x 5-1/4
Overall Width (In.): 17
Overall Length (in.): 18
Overall Height (in.): 18-1/2
