Steel Knockdown Fixed Gantry Crane with V-Groove Ductile Steel Casters 15 Ft. 4000 Lb. Capacity Blue

Portable Gantry Crane for Overhead Load Lifting and Controlled Positioning, 4,000 lb. Capacity, Blue Finish – Model FHSN-4-15-VG
The fixed height knockdown industrial steel Gantry cranes are uniquely designed to be disassembled when not in use for compact storage and easier transportation / shipping from one job site to another. Facilitate easy mobility from one area to another with total locking casters. The total locking casters lock the rigging in any position and locks the wheel from rotating. Features quick setup design. Do not move units while loaded. Painted blue finish. Designed for semi-permanent or permanent applications. Requires assistance from fork truck to set-up.
Product Status
Available
Key Features
  • Knockdown unit, assembly required
  • Heavy-duty welded steel construction for long lasting use
  • Beam length allows for use with items, both large and small
  • Complies with applicable ANSI specifications
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   FHSN Series Knock-Down Gantry Crane Manual   Label Page PDF   1 Year Warranty
Product Data

Core Data

Assembled Weight 876 lbs
Assembled Size 64.5"W x 180"L x 128.5"H
Total Ship Weight 904 lbs
Package 1 Size 66"W x 77"D x 19"H
Color / Finish Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 4,000
Overall Beam Length (in.) 180
Usable Beam Length (in.) 149-3/4
Fixed Clearance (in.) 120-3/8
Beam Height (in.) 8-1/8
Flange Width (in.) 4

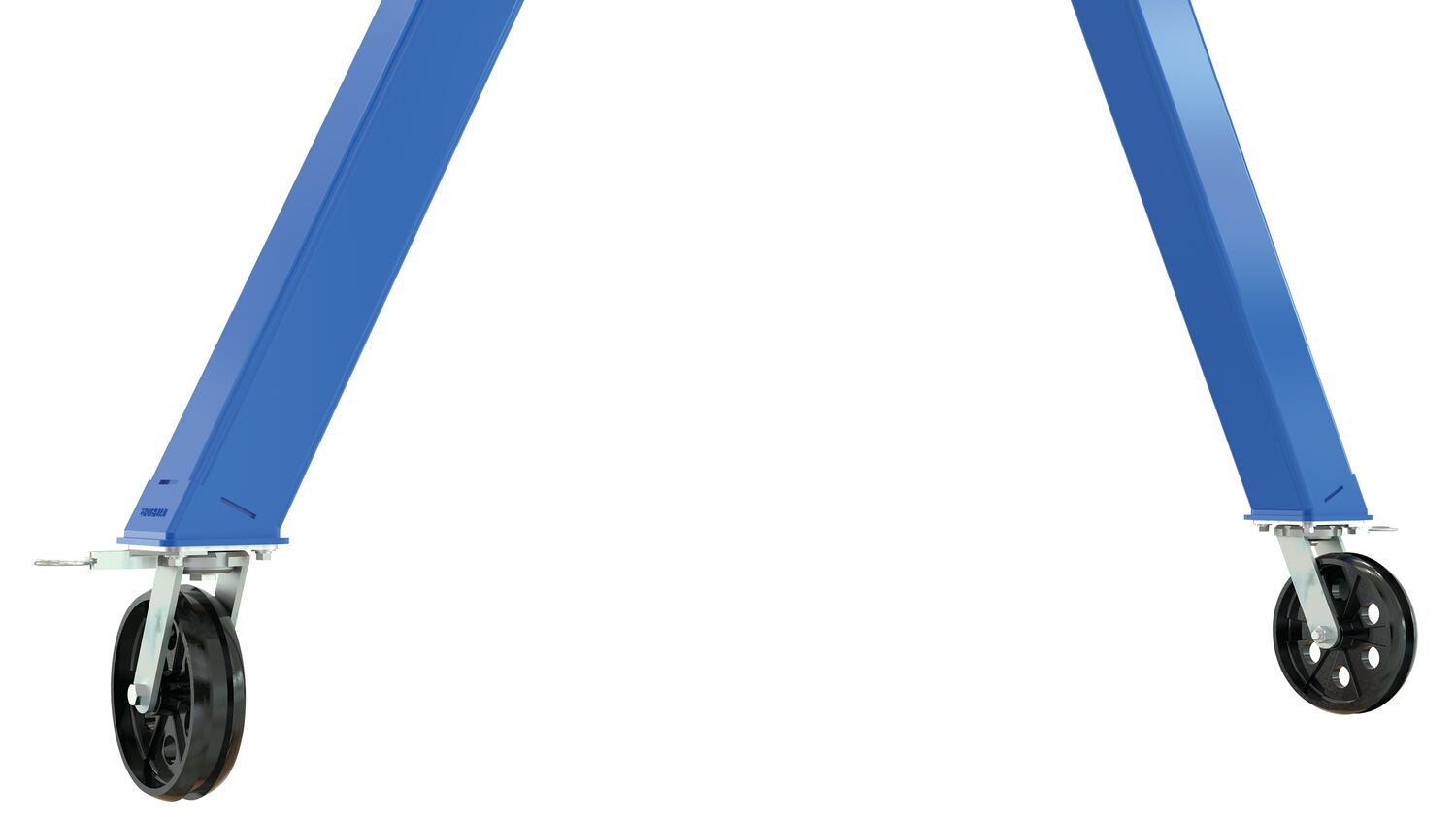

Caster Qty/Diameter/Width (in.) (4) 8 x 3
Caster Material Ductile Steel
Caster/Wheel Locking? Yes
Extended Product Details

Marketing Specs.

MFG Model # (Series)
FHSN-4-15-VG
Product Name
Steel Knockdown Fixed Gantry Crane with V-Groove Ductile Steel Casters 15 Ft. 4000 Lb. Capacity Blue
UPC
691215367844
GTIN
00691215367844
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Cranes
Taxonomy 4
Gantry
Assembled Depth (in.)
180
Assembled Width(in.)
64.5
Assembled Height(in.)
128.5
Assembled Weight(lbs.)
876
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
77
Package Width (in.)
66
Package Height (in.)
19
Package Weight (in.)
679
Subclass
9
Freight Class
100
NMFC Code
Machinery Group
NMFC Number
133300
Package 2 Depth (in.)
180
Package 2 Width (in.)
12
Package 2 Height (in.)
10
Package 2 Weight (lbs.)
225
Package 2 Subclass
9
Package 2 Freight Class
100
Package2 NMFC Number
133300
LTL Freight
LTL Palletized
UNSPSC
24101654
HTSUS Number
8426.19.0000
USMCA HS
8426.19
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: FHSN-4-15-VG

FHSN-4-15-VG

Steel Knockdown Fixed Gantry Crane with V-Groove Ductile Steel Casters 15 Ft. 4000 Lb. Capacity Blue

The fixed height knockdown industrial steel Gantry cranes are uniquely designed to be disassembled when not in use for compact storage and easier transportation / shipping from one job site to another. Facilitate easy mobility from one area to another with total locking casters. The total locking casters lock the rigging in any position and locks the wheel from rotating. Features quick setup design. Do not move units while loaded. Painted blue finish. Designed for semi-permanent or permanent applications. Requires assistance from fork truck to set-up.

  • Knockdown unit, assembly required
  • Heavy-duty welded steel construction for long lasting use
  • Beam length allows for use with items, both large and small
  • Complies with applicable ANSI specifications

Core Data

Assembled Weight: 876 Assembled Size: 64.5"W x 180"L x 128.5"H Color: Blue
Total Ship Weight: 904 Package 1 Size: 66"W x 77"D x 19"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 4,000
Overall Beam Length (in.): 180
Usable Beam Length (in.): 149-3/4
Fixed Clearance (in.): 120-3/8
Beam Height (in.): 8-1/8
Flange Width (in.): 4
Caster Qty/Diameter/Width (in.): (4) 8 x 3
Caster Material: Ductile Steel
Caster/Wheel Locking?: Yes
