Steel Floor Lock 5 In. to 5-7/8 In. Height Silver

Economical Floor Lock for Stabilizing Mobile Carts and Portable Equipment, 5 in.
The economical Floor Lock helps to stabilize mobile equipment during loading and unloading. It is perfect for keeping carts, trucks, work benches and other portable equipment stationary. Lock is spring loaded and offer a non-skid rubber foot pad to keep equipment stationary. The heavy-duty steel construction has a bright zinc plated finish.
Product Status
Available QuickShip
Key Features
  • Floor lock stabilizes mobile equipment during loading and unloading
  • Ideal for keeping carts, trucks, and other portable equipment stationary
  • Includes spring loaded lock and offers non-skid rubber foot pad
  • Features bright zinc plated finish for strength and durability
Quick Actions

Product Resources

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   30 Days Warranty
Product Data

Core Data

Assembled Weight 4 lbs
Assembled Size 8"W x 5"L x 5.875"H
Total Ship Weight 5 lbs
Package 1 Size 8"W x 10"D x 6"H
Color / Finish Silver
Freight Type Parcel

Additional Attributes

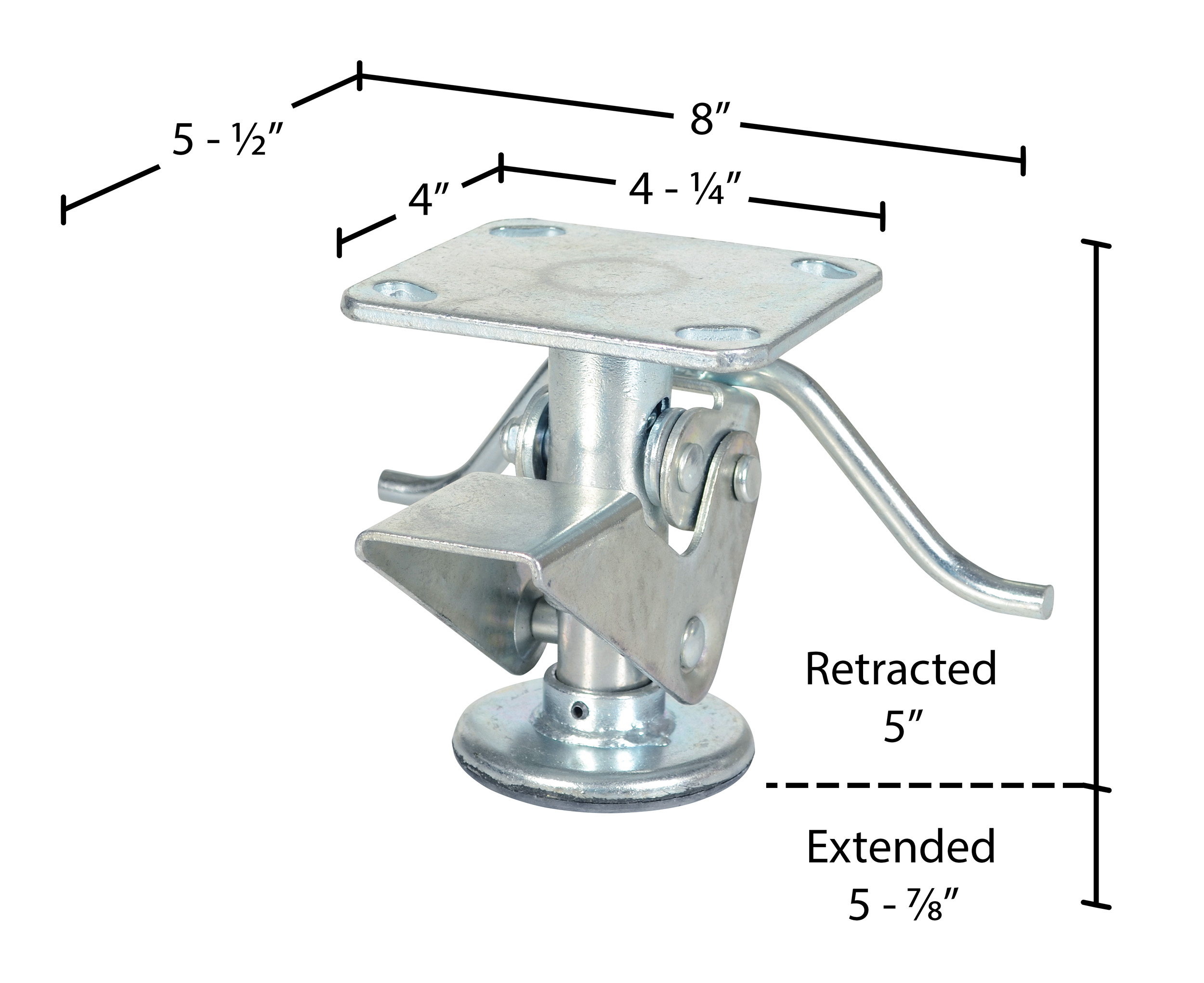

Use with Caster Diameter (in.) 4
Extended Height (in.) 5-7/8
Retracted Height (in.) 5
Top Plate Length (in.) 4-1/2
Top Plate Width (in.) 4
Extended Product Details

Marketing Specs.

MFG Model # (Series)
FL-4
Product Name
Steel Floor Lock 5 In. to 5-7/8 In. Height Silver
UPC
691215076982
GTIN
00691215076982
Taxonomy 1
Material Handling
Taxonomy 2
Hand Trucks & Dollies
Taxonomy 3
Accessories
Taxonomy 4
Floor Locks
Assembled Depth (in.)
5
Assembled Width(in.)
8
Assembled Height(in.)
5.875
Assembled Weight(lbs.)
4
Color/Finish
Silver
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
10
Package Width (in.)
8
Package Height (in.)
6
Package Weight (in.)
5
Subclass
6
Freight Class
100
NMFC Code
LOCKS
NMFC Number
18260
LTL Freight
Parcel
UNSPSC
24000000
HTSUS Number
8425.49.0000
USMCA HS
8425.49
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
30 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: FL-4

FL-4

Steel Floor Lock 5 In. to 5-7/8 In. Height Silver

The economical Floor Lock helps to stabilize mobile equipment during loading and unloading. It is perfect for keeping carts, trucks, work benches and other portable equipment stationary. Lock is spring loaded and offer a non-skid rubber foot pad to keep equipment stationary. The heavy-duty steel construction has a bright zinc plated finish.

  • Floor lock stabilizes mobile equipment during loading and unloading
  • Ideal for keeping carts, trucks, and other portable equipment stationary
  • Includes spring loaded lock and offers non-skid rubber foot pad
  • Features bright zinc plated finish for strength and durability

Core Data

Assembled Weight: 4 Assembled Size: 8"W x 5"L x 5.875"H Color: Silver
Total Ship Weight: 5 Package 1 Size: 8"W x 10"D x 6"H Freight: Parcel

Specifications

Use with Caster Diameter (in.): 4
Extended Height (in.): 5-7/8
Retracted Height (in.): 5
Top Plate Length (in.): 4-1/2
Top Plate Width (in.): 4
