Steel Adjustable Floor Lock 8-1/4 to 11-1/2 In. Height Silver

Adjustable Economical Floor Lock for Stabilizing Mobile Carts and Portable Equipment, 11-1/2 in.
This one of a kind adjustable height Floor Lock includes an adjustable height foot pad that will work on carts with different caster heights. The adjustable height feature provides uniform locking and safety unlocking force for better ergonomic operation. This feature also keeps the floor lock working properly as spring and pads wear over time. Height is adjustable by turning the bottom pad. The bottom pad includes suction-cups for extra grip.
Product Status
Out of Stock QuickShip
Key Features
  • Uniform locking and safer unlocking force offers better ergonomic operation
  • Heavy-duty cast steel construction offers long lasting use
  • Pedal release has a visible & convenient location
  • Bottom pad includes suction-cups for extra grip
Quick Actions

Product Resources

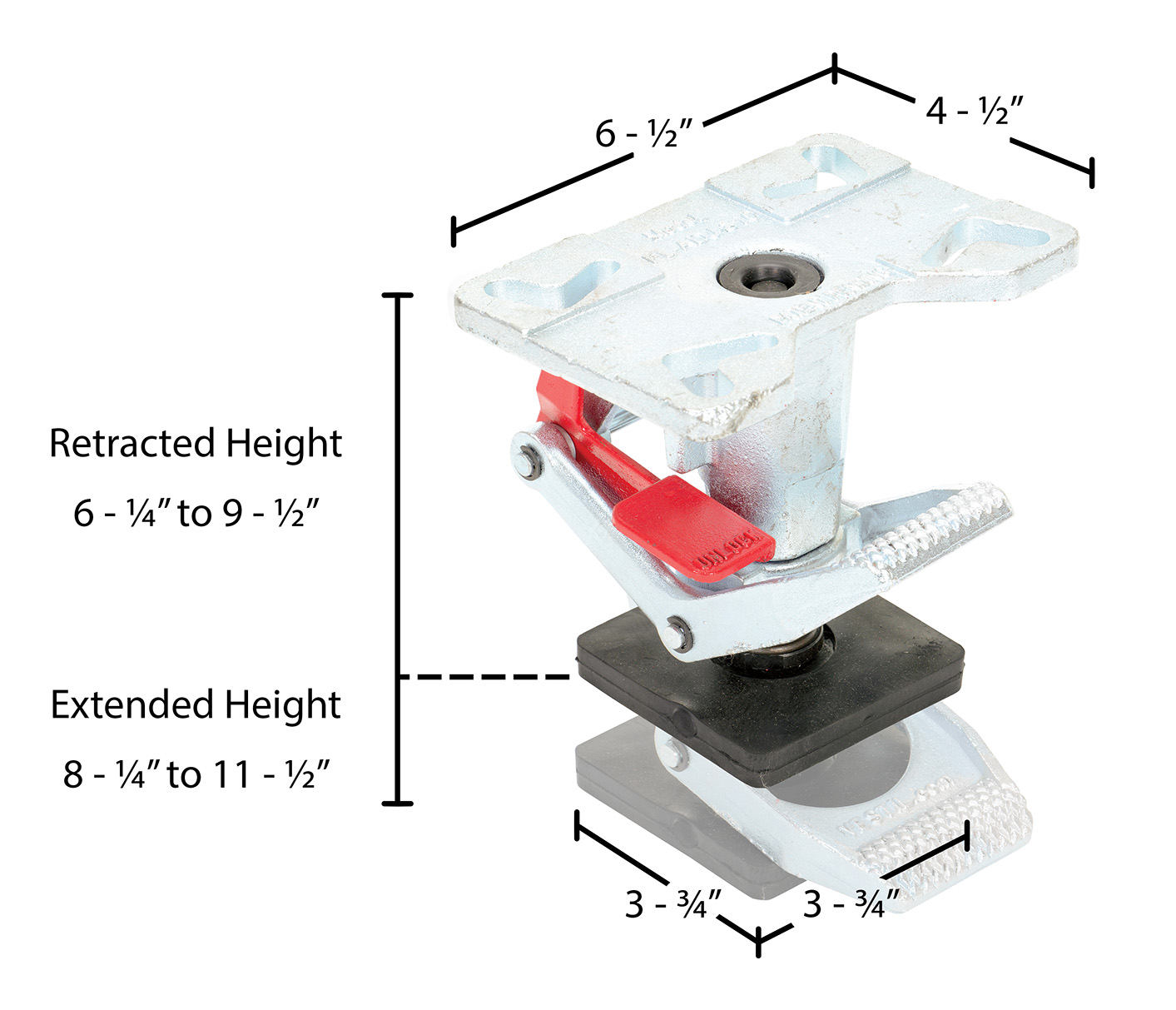

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Adjustable Height Floor Locks   90 Days Warranty
Product Data

Core Data

Assembled Weight 8 lbs
Assembled Size 6.6875"W x 6.5"L x 11.5"H
Total Ship Weight 8 lbs
Package 1 Size 7"W x 8"D x 7"H
Color / Finish Silver
Freight Type Parcel

Additional Attributes

Used with Caster Size (in. - in.) 6 to 8
Extended Height (in. to in.) 8-1/4 to 11-1/2
Retracted Height (in. to in.) 6-1/4 to 9-1/2
Top Plate Width (in.) 4-1/2
Top Plate Length (in.) 6-1/2
Mounting Bolt Diameter (in.) 3/8
Mounting Plate Thickness (in.) 3/8
Extended Product Details

Marketing Specs.

MFG Model # (Series)
FL-ADJ-810
Product Name
Steel Adjustable Floor Lock 8-1/4 to 11-1/2 In. Height Silver
UPC
691215020435
GTIN
00691215020435
Taxonomy 1
Material Handling
Taxonomy 2
Hand Trucks & Dollies
Taxonomy 3
Accessories
Taxonomy 4
Floor Locks
Assembled Depth (in.)
6.5
Assembled Width(in.)
6.6875
Assembled Height(in.)
11.5
Assembled Weight(lbs.)
8
Color/Finish
Silver
Material
Heavy-duty Cast Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
8
Package Width (in.)
7
Package Height (in.)
7
Package Weight (in.)
8
Subclass
6
Freight Class
100
NMFC Code
LOCKS
NMFC Number
18260
LTL Freight
Parcel
UNSPSC
24000000
HTSUS Number
8425.49.0000
USMCA HS
8425.49
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: FL-ADJ-810

FL-ADJ-810

Steel Adjustable Floor Lock 8-1/4 to 11-1/2 In. Height Silver

This one of a kind adjustable height Floor Lock includes an adjustable height foot pad that will work on carts with different caster heights. The adjustable height feature provides uniform locking and safety unlocking force for better ergonomic operation. This feature also keeps the floor lock working properly as spring and pads wear over time. Height is adjustable by turning the bottom pad. The bottom pad includes suction-cups for extra grip.

  • Uniform locking and safer unlocking force offers better ergonomic operation
  • Heavy-duty cast steel construction offers long lasting use
  • Pedal release has a visible & convenient location
  • Bottom pad includes suction-cups for extra grip

Core Data

Assembled Weight: 8 Assembled Size: 6.6875"W x 6.5"L x 11.5"H Color: Silver
Total Ship Weight: 8 Package 1 Size: 7"W x 8"D x 7"H Freight: Parcel

Specifications

Used with Caster Size (in. - in.): 6 to 8
Extended Height (in. to in.): 8-1/4 to 11-1/2
Retracted Height (in. to in.): 6-1/4 to 9-1/2
Top Plate Width (in.): 4-1/2
Top Plate Length (in.): 6-1/2
Mounting Bolt Diameter (in.): 3/8
Mounting Plate Thickness (in.): 3/8
