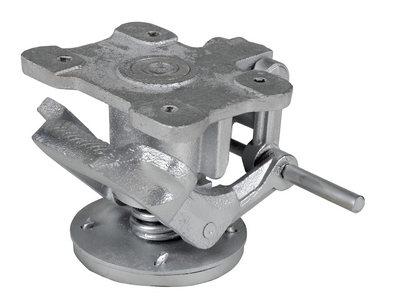

Steel Top Mount Floor Lock 4-1/2 to 5-5/8 In. Height Silver

Economical Floor Lock for Stabilizing Mobile Carts and Portable Equipment, 5-5/8 in.
A general purpose Floor Lock may be used on platform trucks, fixture dollies, or equipment with casters. Simple foot pressure immobilizes equipment. Locks when large friction face is pressed against the floor. To release simply kick release rod. Brake is independent of casters and can be installed to any convenient location on the cart. Vertical mounting plate designed to mount to sides of carts and other portable products. The spring loaded pad accommodates uneven floors. Unit mounts with pad off the floor when retracted.
Product Status
Available QuickShip
Key Features
  • Spring loaded pad accommodates uneven floors
  • Simple foot pressure immobilizes equipment
  • Simple kick rod releases floor lock
  • Independent brake system can be installed to any convenient location on the cart
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   30 Days Warranty
Product Data

Core Data

Assembled Weight 9 lbs
Assembled Size 8"W x 5.5"L x 4.625"H
Total Ship Weight 9 lbs
Package 1 Size 7"W x 7"D x 6"H
Color / Finish Silver
Freight Type Parcel

Additional Attributes

Mounting Height (in.) 5-5/8
Retracted Height (in.) 4-1/2
Used with Caster Size (in.) 5
Pad Mounting Height Retracted (in.) 1-1/2
Extended Product Details

Marketing Specs.

MFG Model # (Series)
FL-LK-5X
Product Name
Steel Top Mount Floor Lock 4-1/2 to 5-5/8 In. Height Silver
UPC
691215020473
GTIN
00691215020473
Taxonomy 1
Material Handling
Taxonomy 2
Hand Trucks & Dollies
Taxonomy 3
Accessories
Taxonomy 4
Floor Locks
Assembled Depth (in.)
5.5
Assembled Width(in.)
8
Assembled Height(in.)
4.625
Assembled Weight(lbs.)
9
Color/Finish
Silver
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
7
Package Width (in.)
7
Package Height (in.)
6
Package Weight (in.)
9
Subclass
7
Freight Class
92.5
NMFC Code
LOCKS
NMFC Number
18260
LTL Freight
Parcel
UNSPSC
24000000
HTSUS Number
8425.49.0000
USMCA HS
8425.49
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
30 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: FL-LK-5X

FL-LK-5X

Steel Top Mount Floor Lock 4-1/2 to 5-5/8 In. Height Silver

A general purpose Floor Lock may be used on platform trucks, fixture dollies, or equipment with casters. Simple foot pressure immobilizes equipment. Locks when large friction face is pressed against the floor. To release simply kick release rod. Brake is independent of casters and can be installed to any convenient location on the cart. Vertical mounting plate designed to mount to sides of carts and other portable products. The spring loaded pad accommodates uneven floors. Unit mounts with pad off the floor when retracted.

  • Spring loaded pad accommodates uneven floors
  • Simple foot pressure immobilizes equipment
  • Simple kick rod releases floor lock
  • Independent brake system can be installed to any convenient location on the cart

Core Data

Assembled Weight: 9 Assembled Size: 8"W x 5.5"L x 4.625"H Color: Silver
Total Ship Weight: 9 Package 1 Size: 7"W x 7"D x 6"H Freight: Parcel

Specifications

Mounting Height (in.): 5-5/8
Retracted Height (in.): 4-1/2
Used with Caster Size (in.): 5
Pad Mounting Height Retracted (in.): 1-1/2
