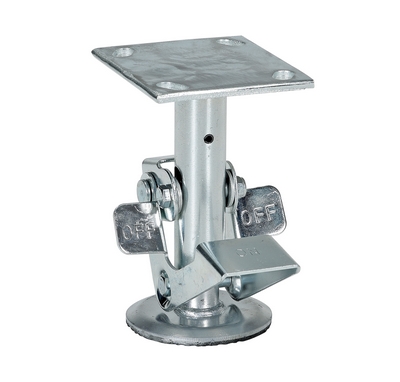

Galvanized Steel Top Mount Floor Lock 6-1/2 to 7-1/4 In. Height Gray

Galvanized Economical Floor Lock for Stabilizing Mobile Carts and Portable Equipment, 7-1/4 in.
Floor locks may be used on platform trucks, fixture dollies, or equipment with casters. Simple foot pressure immobilizes equipment. Locks when large friction face is pressed against the floor. To release simply kick release rod. Brake is independent of casters and can be installed to any convenient location on the cart. Vertical mounting plate designed to mount to sides of carts and other portable products. The spring loaded pad accommodates uneven floors. Units mount with pad 1." off the floor when retracted.
Product Status
Available QuickShip
Key Features
  • Lock constricts movement of unit
  • Attachable to moving platform carts
  • Simple locking and unlocking function
  • Able to be used on rough surfaces
Quick Actions

Product Resources

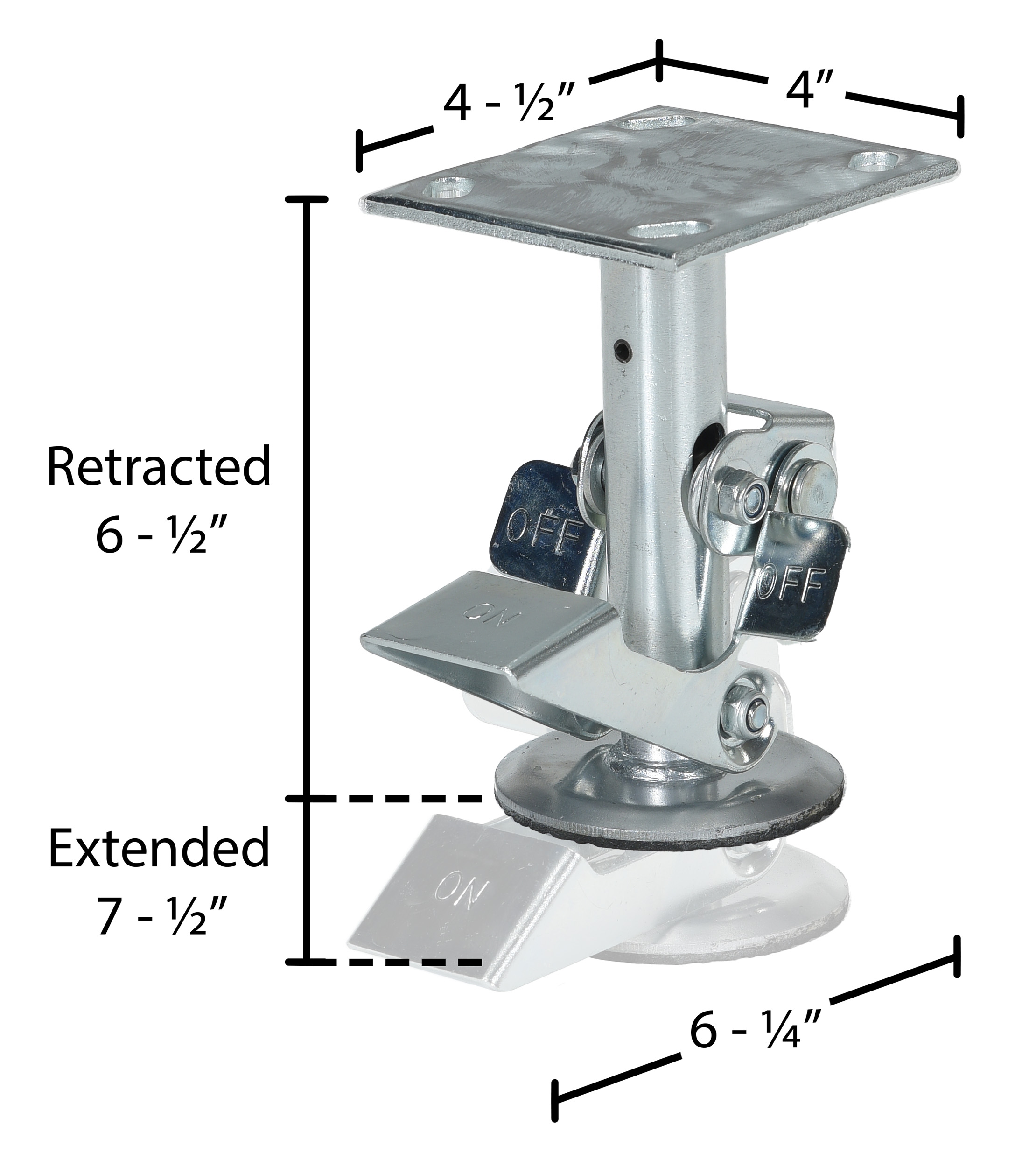

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   30 Days Warranty
Product Data

Core Data

Assembled Weight 3 lbs
Assembled Size 4"W x 6.25"L x 7.5"H
Total Ship Weight 4 lbs
Package 1 Size 5"W x 7"D x 8"H
Color / Finish Gray
Freight Type Parcel

Additional Attributes

Mounting Height (in.) 7-1/4
Retracted Height (in.) 6-1/2
Used with Caster Size (in.) 6
Pad Mounting Height Retracted (in.) 1-1/2
Type Foot pedal
Mounting Type Top Plate
Base Plate Width (in.) 4
Base Plate Length (in.) 4-1/2
Base Plate Mounting Holes (qty.) 4
Slotted Mounting Hole Width/Height (in.) 7/16 x15/16
Inside Bolt Hole Spacing (in.) 2-9/16 X 3-1/4
Outside Bolt Hole Spacing (in.) 3 X 3-5/8
Plate Thickness (in.) 3/16
Extended Product Details

Marketing Specs.

MFG Model # (Series)
FL-LK-6EL
Product Name
Galvanized Steel Top Mount Floor Lock 6-1/2 to 7-1/4 In. Height Gray
UPC
691215120470
GTIN
00691215120470
Taxonomy 1
Material Handling
Taxonomy 2
Hand Trucks & Dollies
Taxonomy 3
Accessories
Taxonomy 4
Floor Locks
Assembled Depth (in.)
6.25
Assembled Width(in.)
4
Assembled Height(in.)
7.5
Assembled Weight(lbs.)
3
Color/Finish
Gray
Material
Galvanized Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
7
Package Width (in.)
5
Package Height (in.)
8
Package Weight (in.)
4
Subclass
5
Freight Class
125
NMFC Code
LOCKS
NMFC Number
18260
LTL Freight
Parcel
UNSPSC
24000000
HTSUS Number
8425.49.0000
USMCA HS
8425.49
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
30 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning
