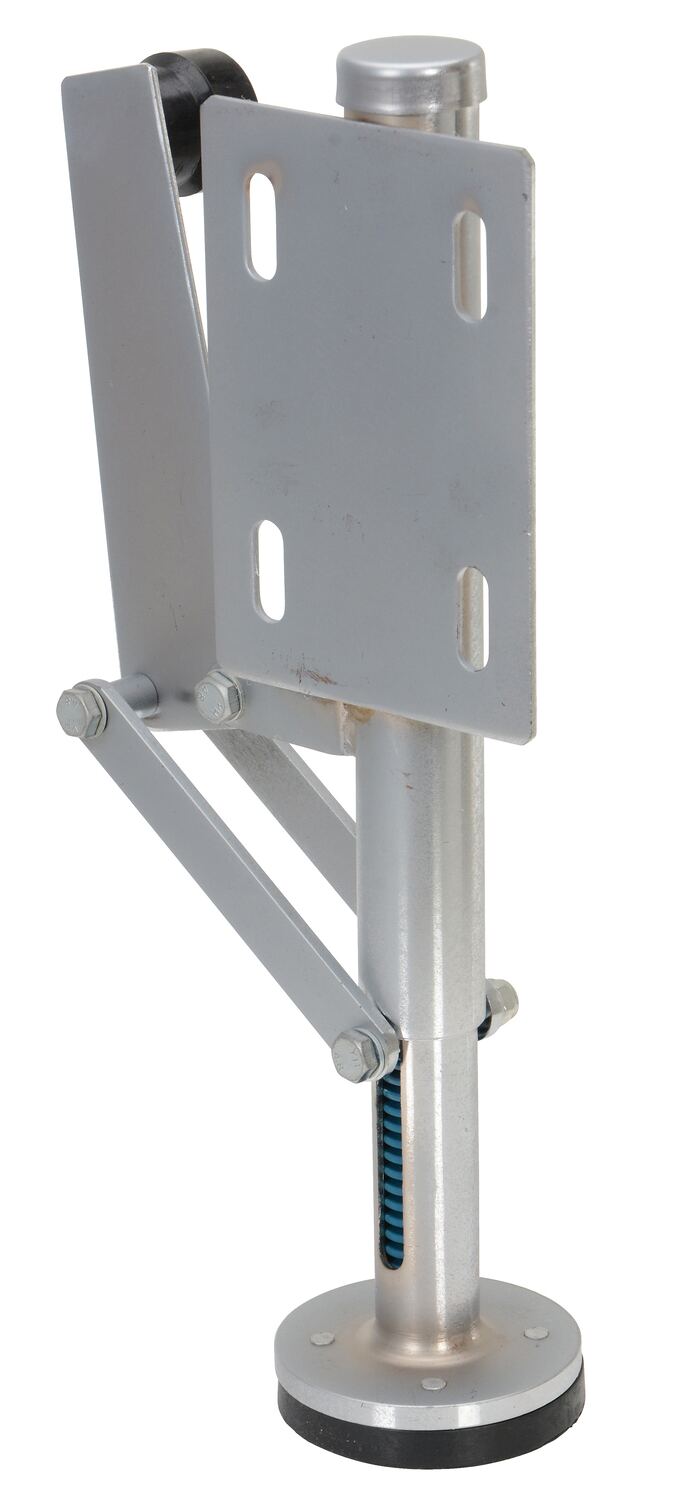

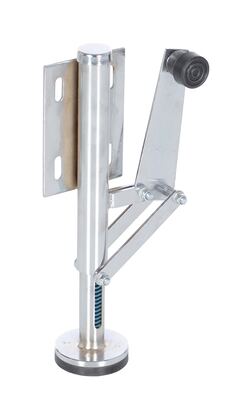

Steel Left Mount Hand Operated Floor Lock 15-3/4 to 18 In. Height Silver

Economical Floor Lock for Stabilizing Mobile Carts and Portable Equipment, 12 in., Silver Finish – Model FL-LK-SMR-L
A general purpose Floor Lock may be used on platform trucks, fixture dollies, or equipment with casters. Lock is activated when you use your hand to lower the large friction face against the floor. To release, simply release the rod by hand. Brake is independent of casters and can be installed to any convenient location on the cart. Vertical mounting plate designed to mount to sides of carts and other portable products. The spring loaded pad accommodates uneven floors. Unit mounts with pad off the floor when retracted.
Product Status
Available QuickShip
Key Features
  • Spring loaded pad accommodates uneven floors
  • Downward pressure immobilizes equipment
  • Simple hand operation
  • Independent brake system can be installed to any convenient location on the cart
Quick Actions

Product Resources

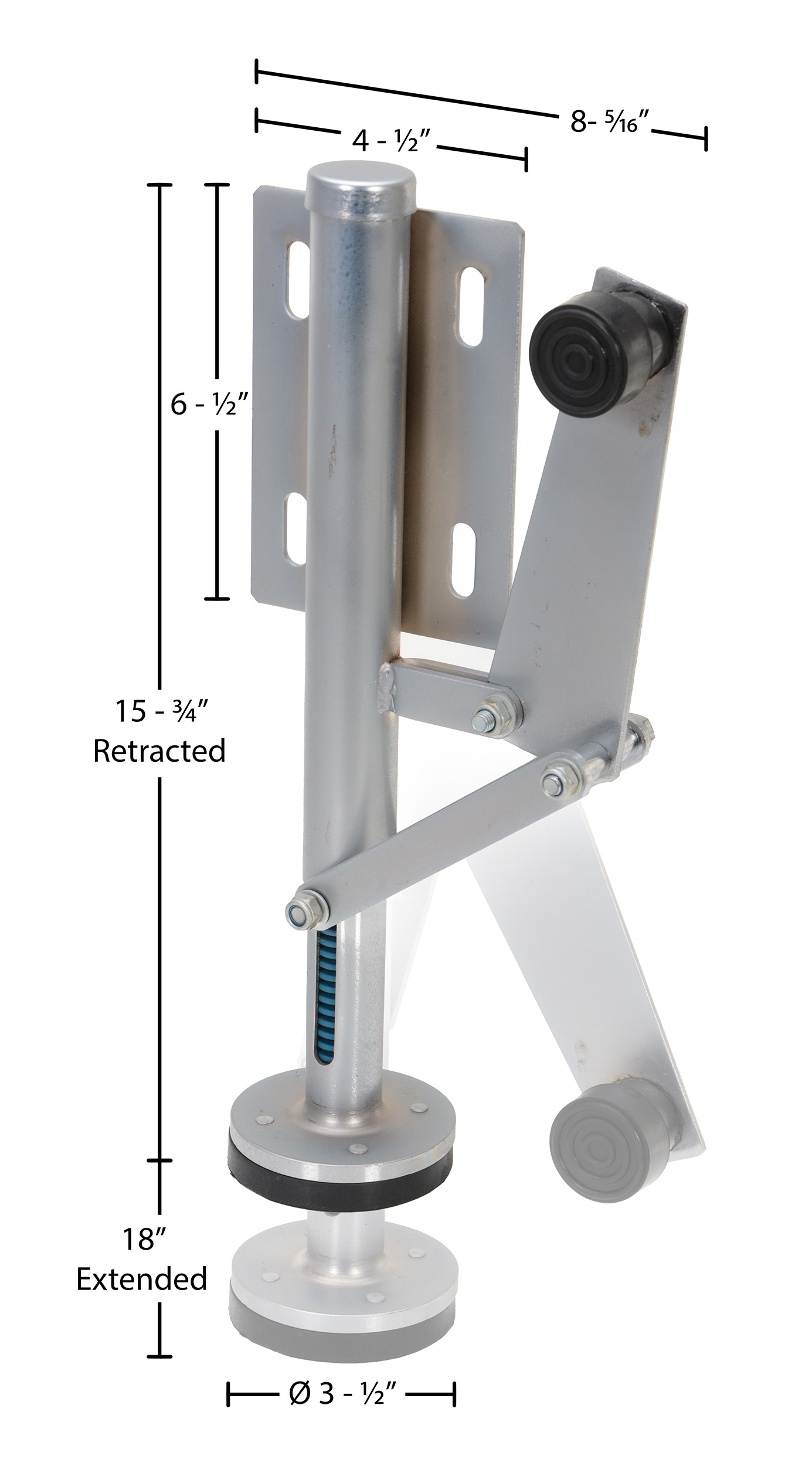

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   30 Days Warranty
Product Data

Core Data

Assembled Weight 9 lbs
Assembled Size 8.3125"W x 3.875"L x 18"H
Total Ship Weight 9 lbs
Package 1 Size 8"W x 17"D x 5"H
Color / Finish Silver
Freight Type Parcel

Additional Attributes

Mounting Height (in.) 10 to 13-7/8
Retracted Height on Bottom Mounting Hole (in.) 10
Used with Caster width (in.) 2 of Travel
Extended Height on Bottom Mounting Hole (in.) 12
Overall Unit Retracted Height (in.) 15-3/4
Overall Unit Extended Height (in.) 18
Pad Mounting Height (in.) 1-1/2
Plate Width (in.) 4-1/2
Plate Height (in.) 6-1/2
Mounting Bolt Diameter (in.) 3/8
Mounting Plate Thickness (in.) 1/8
Slotted Mounting Hole Width/Height (in.) 13/32 x 13/16
Inside Bolt Hole Spacing (in.) 2-29/32 X 3-1/4
Outside Bolt Hole Spacing (in.) 2-29/32 X 4-3/4
Extended Product Details

Marketing Specs.

MFG Model # (Series)
FL-LK-SMR-L
Product Name
Steel Left Mount Hand Operated Floor Lock 15-3/4 to 18 In. Height Silver
UPC
691215103770
GTIN
00691215103770
Taxonomy 1
Material Handling
Taxonomy 2
Hand Trucks & Dollies
Taxonomy 3
Accessories
Taxonomy 4
Floor Locks
Assembled Depth (in.)
3.875
Assembled Width(in.)
8.3125
Assembled Height(in.)
18
Assembled Weight(lbs.)
9
Color/Finish
Silver
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
17
Package Width (in.)
8
Package Height (in.)
5
Package Weight (in.)
9
Subclass
7
Freight Class
92.5
NMFC Code
LOCKS
NMFC Number
18260
LTL Freight
Parcel
UNSPSC
24000000
HTSUS Number
8425.49.0000
USMCA HS
8425.49
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
30 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning
