Steel Floor Lock 5-5/8 to 6-3/4 In. Height Silver

Economical Floor Lock for Stabilizing Mobile Carts and Portable Equipment, 6-3/4 in.
Floor locks are ideal for maintenance and construction facilities. The unit is designed to created a stable environment, while decreasing the chance of jostling or slight movement. The unit is constructed of steel with a thermoplastic polyurethane base. To use, place the unit close to a desired wheel or caster and raise until tension is built. Once secured, a simple locking device can be activated by applying pressure to the foot pedal.
Product Status
Available QuickShip
Key Features
  • Steel construction for durability
  • Thermoplastic polyurethane base for stability
  • Locking device for quick service
  • Lightweight for portability
Quick Actions

Product Resources

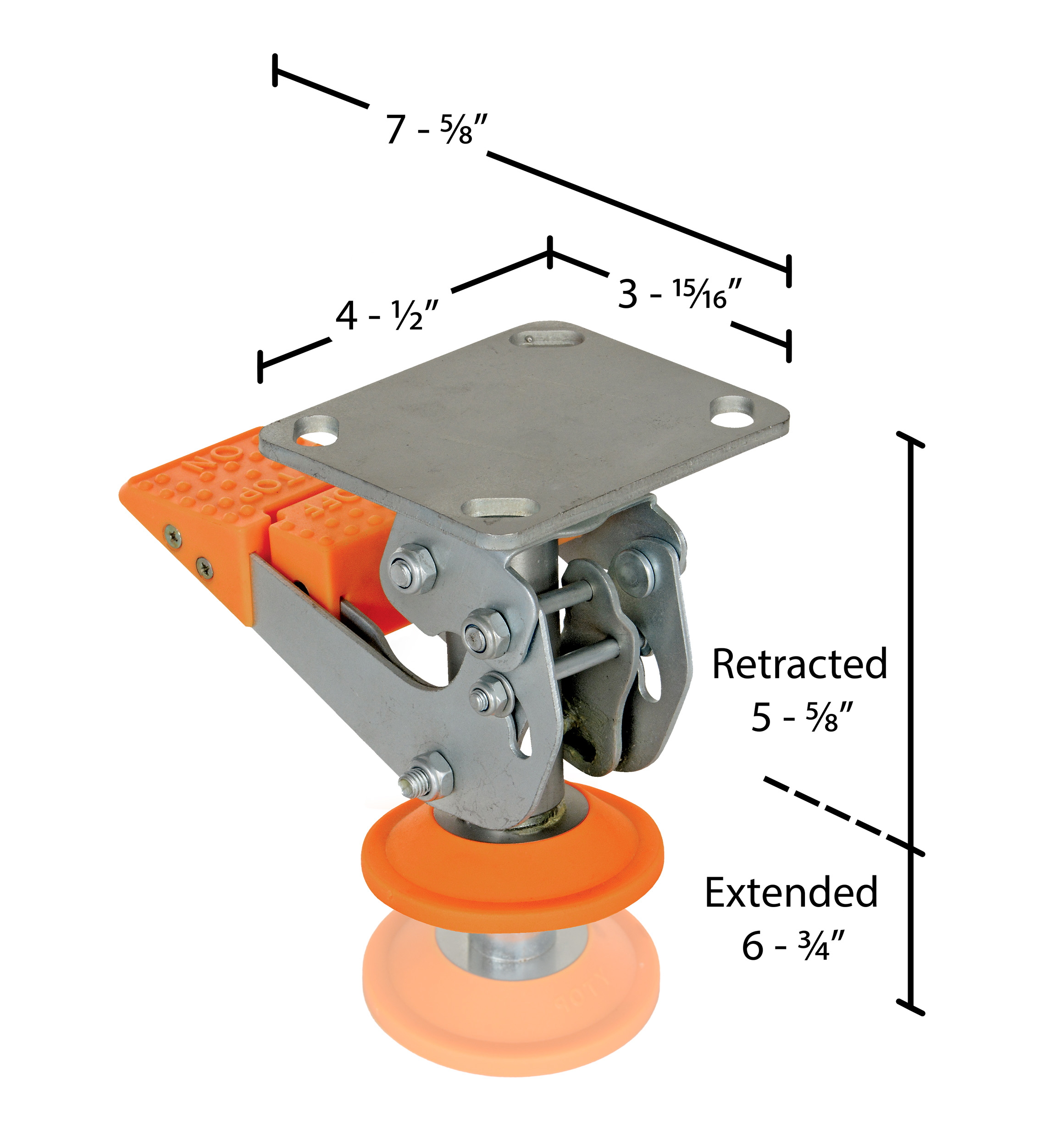

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   30 Days Warranty
Product Data

Core Data

Assembled Weight 5 lbs
Assembled Size 4.5"W x 7.625"L x 5.625"H
Total Ship Weight 5 lbs
Package 1 Size 6"W x 8"D x 6"H
Color / Finish Silver
Freight Type Parcel

Additional Attributes

Lowered Height (in.) 5-5/8
Raised Height (in.) 6-3/4
Foot Pad Diameter (in.) 3-5/16
Foot Pad Material Thermoplastic polyurethane (TPU)
Grip Pedal Material Thermoplastic polyurethane (TPU)
Mounting Plate (in.) 3-15/16 x 4-1/2
Slotted Holes on Center (in.) 3-1/16, 3-11/16
Mounting Plate Thickness (in.) 3/16
Slotted Mounting Hole Width/Height (in.) 3/8 x 13/16
Inside Bolt Hole Spacing (in.) 2-9/16 X 3-3/16
Outside Bolt Hole Spacing (in.) 3-3/16 X 3-11/16
Suggested Caster Size (in.) 5
Extended Product Details

Marketing Specs.

MFG Model # (Series)
FL-LKH-5
Product Name
Steel Floor Lock 5-5/8 to 6-3/4 In. Height Silver
UPC
691215114318
GTIN
00691215114318
Taxonomy 1
Material Handling
Taxonomy 2
Hand Trucks & Dollies
Taxonomy 3
Accessories
Taxonomy 4
Floor Locks
Assembled Depth (in.)
7.625
Assembled Width(in.)
4.5
Assembled Height(in.)
5.625
Assembled Weight(lbs.)
5
Color/Finish
Silver
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
8
Package Width (in.)
6
Package Height (in.)
6
Package Weight (in.)
5
Subclass
6
Freight Class
100
NMFC Code
LOCKS
NMFC Number
18260
LTL Freight
Parcel
UNSPSC
46171500
HTSUS Number
8425.49.0000
USMCA HS
8425.49
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
30 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning
