  All Products   Fork Truck Attachments   Hoisting Hooks & Hitch   Forklift Lifting Beam FLB-D-6
Product Image

Visual Reference

FLB-D-6
FLB-D-6
FLB-D-6
FLB-D-6
FLB-D-6
FLB-D-6

Steel Forklift Lifting Beam 40 In. x 4-1/4 In. x 14-29/32 In. 6,000 Lb. Capacity Yellow

Fork Truck Lifting Beam for Overhead Load Lifting and Controlled Positioning, 6,000 lb. Capacity with 40 in. x 4-1/4 in. x 14-29/32 in.
A forklift lifting beam is the perfect asset for maneuvering and transferring heavy objects. The centrally located hook between two fork pockets allow the user to safely attach to the unit and transport to the desired location. Hooks are also attached to the outside of the unit for a more secure lifting experience. The strong steel construction with a bright finish enables high visibility from both near and far. Secure to the fork truck by means of a 48" long safety restraint and screw clamps.
Product Status
Available QuickShip
Key Features
  • Large fork openings for easy attachment
  • Durable construction for long term use
  • Smooth finish for easy handling
  • Yellow surface color for clear visibility
Quick Actions

Product Resources

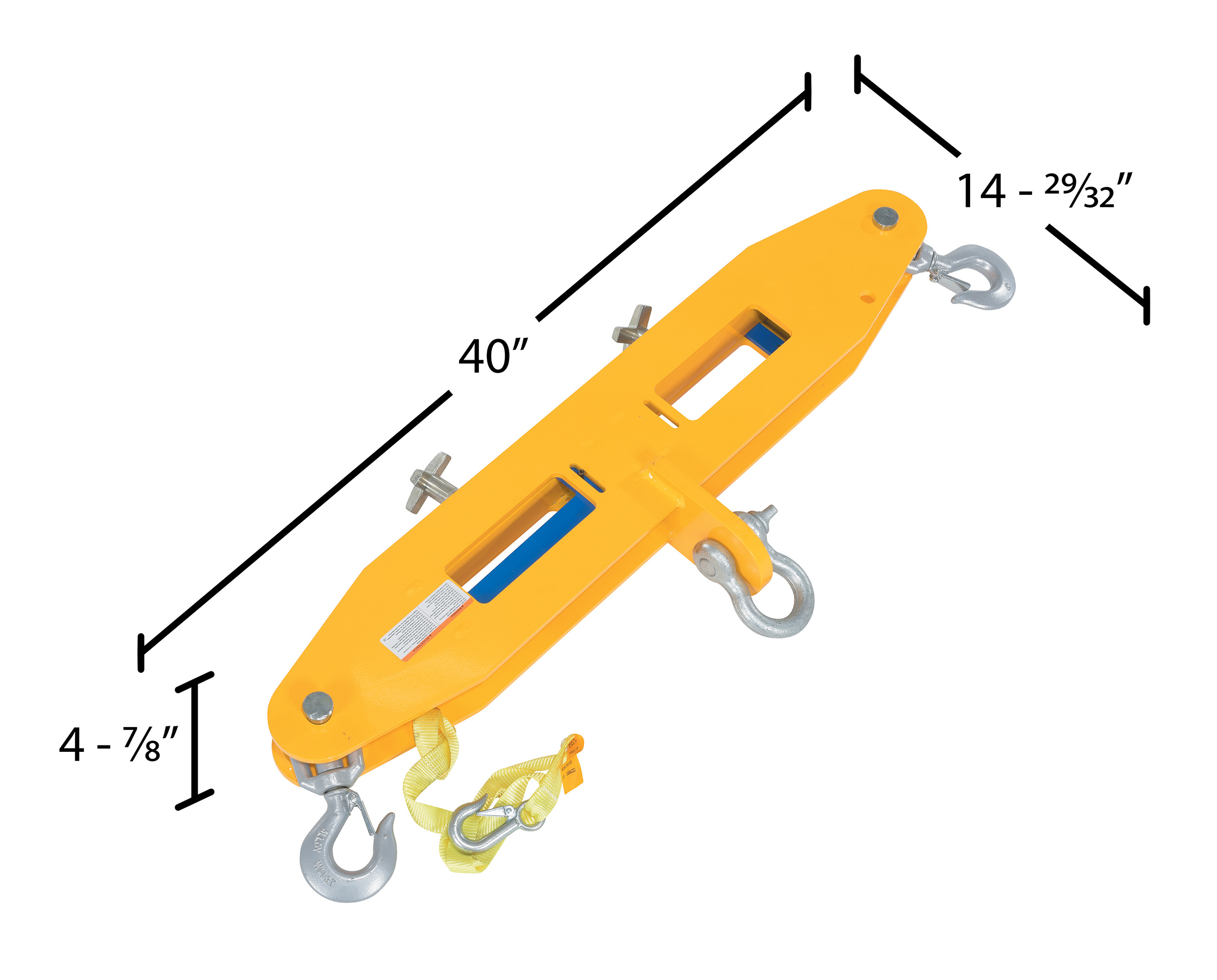

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Fork Lifting Beam Manual   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 63.76 lbs
Assembled Size 4.25"W x 40"L x 14.90625"H
Total Ship Weight 64 lbs
Package 1 Size 11"W x 40"D x 3"H
Color / Finish Yellow
Freight Type Parcel

Additional Attributes

Uniform Capacity (lb.) 6000
Fork Pocket Width/Height (in.) 7 x 2-1/2
Fork Pocket Center (in.) 13
Safety Restraint Length (in.) 48
Overall Width (in.) 4-1/4
Overall Length (in.) 40
Overall Height (in.) 14-29/32
Extended Product Details

Marketing Specs.

MFG Model # (Series)
FLB-D-6
Product Name
Steel Forklift Lifting Beam 40 In. x 4-1/4 In. x 14-29/32 In. 6,000 Lb. Capacity Yellow
UPC
691215339957
GTIN
00691215339957
Taxonomy 1
Material Handling
Taxonomy 2
Forklift Attachments
Taxonomy 3
Hoisting Hooks
Assembled Depth (in.)
40
Assembled Width(in.)
4.25
Assembled Height(in.)
14.90625
Assembled Weight(lbs.)
63.76
Color/Finish
Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
40
Package Width (in.)
11
Package Height (in.)
3
Package Weight (in.)
64
Subclass
5
Freight Class
125
NMFC Code
Lift Truck Attachments Fork arms fingers tine
NMFC Number
193100
LTL Freight
Parcel
UNSPSC
31162600
HTSUS Number
8431.20.0000
USMCA HS
8431.20
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: FLB-D-6

FLB-D-6

Steel Forklift Lifting Beam 40 In. x 4-1/4 In. x 14-29/32 In. 6,000 Lb. Capacity Yellow

A forklift lifting beam is the perfect asset for maneuvering and transferring heavy objects. The centrally located hook between two fork pockets allow the user to safely attach to the unit and transport to the desired location. Hooks are also attached to the outside of the unit for a more secure lifting experience. The strong steel construction with a bright finish enables high visibility from both near and far. Secure to the fork truck by means of a 48" long safety restraint and screw clamps.

  • Large fork openings for easy attachment
  • Durable construction for long term use
  • Smooth finish for easy handling
  • Yellow surface color for clear visibility

Core Data

Assembled Weight: 63.76 Assembled Size: 4.25"W x 40"L x 14.90625"H Color: Yellow
Total Ship Weight: 64 Package 1 Size: 11"W x 40"D x 3"H Freight: Parcel

Specifications

Uniform Capacity (lb.): 6000
Fork Pocket Width/Height (in.): 7 x 2-1/2
Fork Pocket Center (in.): 13
Safety Restraint Length (in.): 48
Overall Width (in.): 4-1/4
Overall Length (in.): 40
Overall Height (in.): 14-29/32
