Steel Fixed Machinery Skates 16-1/4 In. x 8-1/2 In. x 4 In. 12,000 Lb. Capacity Blue

Machine Skate for Commercial and Industrial Machine Rollers & Lifts Use, 12,000 lb. Capacity with 16-1/4 in. x 8-1/2 in. x 4 in.
This machinery skate is designed to move heavy equipment and machinery. Nylon wheels are strong and will not mark floors. The top of each skate includes a rubber surface for extra grip. Steel construction with handle to carry and position. On this fixed skate dolly size is nonadjustable and wheels are rigid. Designed primarily for moving in straight lines.
Product Status
Available QuickShip
Key Features
  • Designed to move heavy equipment and machinery
  • Rigid nylon wheels are strong and will not mark floors
  • Includes a rubber surface for extra grip
  • Steel construction with handle to carry and position
Quick Actions

Product Resources

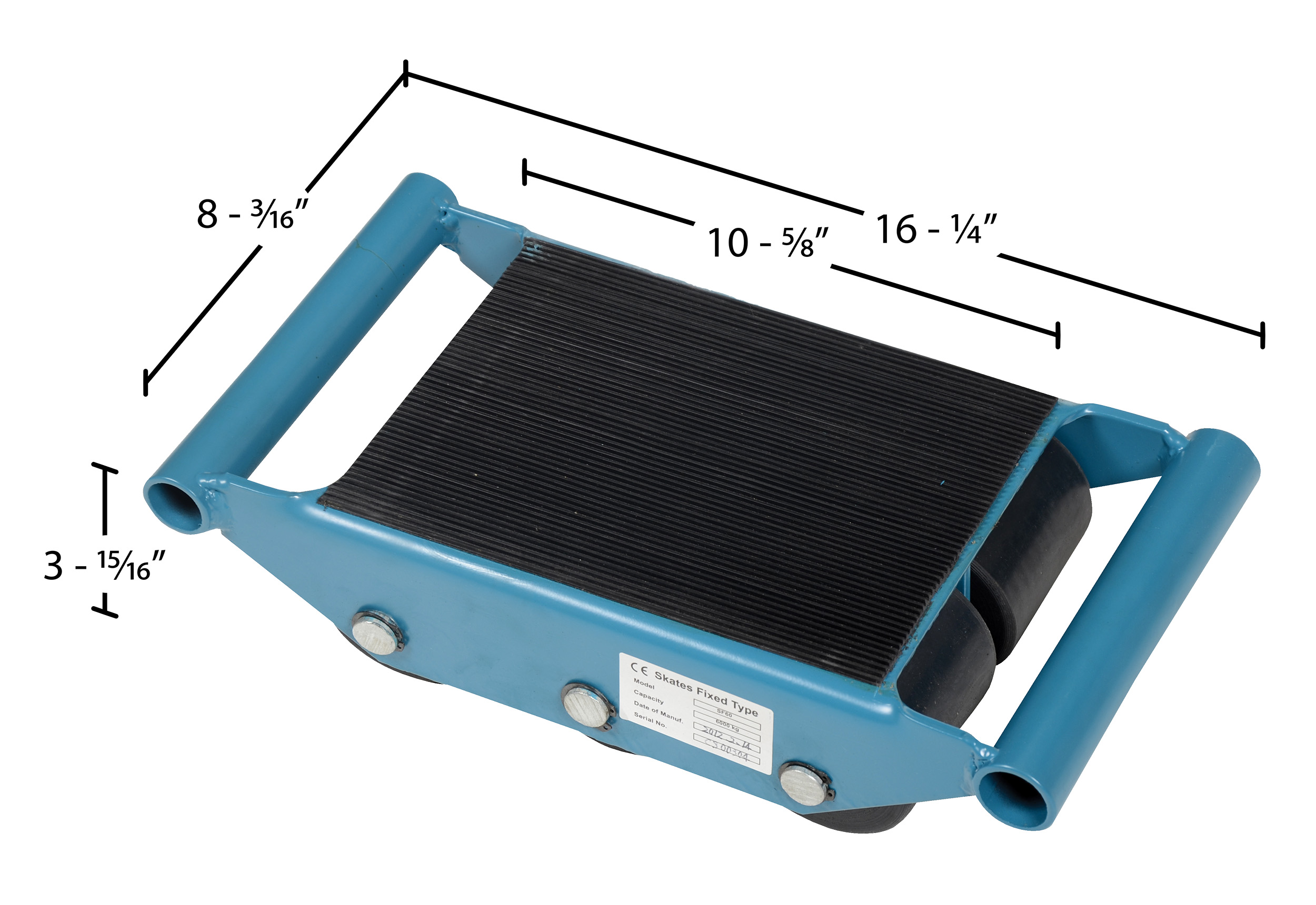

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Model FMS Fixed Machinery Skates Manual   Label Page PDF   30 Days Warranty
Product Data

Core Data

Assembled Weight 27 lbs
Assembled Size 16.25"W x 8.5"L x 4"H
Total Ship Weight 28 lbs
Package 1 Size 9"W x 17"D x 5"H
Color / Finish Blue
Freight Type Parcel

Additional Attributes

Uniform Capacity (tons) 6
Roller Material Nylon
Roller (qty.) 6
Wheel Diameter (in.) 3-1/2
Wheel Width (in.) 3-1/4
Style Fixed
Rubber Surface Length (in.) 10-1/2
Rubber Surface Length (in.) 6-1/2
Extended Product Details

Marketing Specs.

MFG Model # (Series)
FMS-6
Product Name
Steel Fixed Machinery Skates 16-1/4 In. x 8-1/2 In. x 4 In. 12,000 Lb. Capacity Blue
UPC
691215020787
GTIN
00691215020787
Taxonomy 1
Material Handling
Taxonomy 2
Hand Trucks & Dollies
Taxonomy 3
Wheeled Dollies / Skates
Assembled Depth (in.)
8.5
Assembled Width(in.)
16.25
Assembled Height(in.)
4
Assembled Weight(lbs.)
27
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
17
Package Width (in.)
9
Package Height (in.)
5
Package Weight (in.)
28
Freight Class
70
NMFC Code
Dollie material handling NOI wood and or steel
NMFC Number
189035
LTL Freight
Parcel
UNSPSC
24101502
HTSUS Number
8716.80.5090
USMCA HS
8716.80
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
30 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: FMS-6

FMS-6

Steel Fixed Machinery Skates 16-1/4 In. x 8-1/2 In. x 4 In. 12,000 Lb. Capacity Blue

This machinery skate is designed to move heavy equipment and machinery. Nylon wheels are strong and will not mark floors. The top of each skate includes a rubber surface for extra grip. Steel construction with handle to carry and position. On this fixed skate dolly size is nonadjustable and wheels are rigid. Designed primarily for moving in straight lines.

  • Designed to move heavy equipment and machinery
  • Rigid nylon wheels are strong and will not mark floors
  • Includes a rubber surface for extra grip
  • Steel construction with handle to carry and position

Core Data

Assembled Weight: 27 Assembled Size: 16.25"W x 8.5"L x 4"H Color: Blue
Total Ship Weight: 28 Package 1 Size: 9"W x 17"D x 5"H Freight: Parcel

Specifications

Uniform Capacity (tons): 6
Roller Material: Nylon
Roller (qty.): 6
Wheel Diameter (in.): 3-1/2
Wheel Width (in.): 3-1/4
Style: Fixed
Rubber Surface Length (in.): 10-1/2
Rubber Surface Length (in.): 6-1/2
