Steel Manual Hydraulic Fork Truck Jack 43-1/4 In. x 7-7/8 In. x 36 In. 8,000 Lb. Capacity Gray

Manual Air Powered Fork Truck Jack for Lifting, Leveling, and Supporting Heavy Loads, 8,000 lb. Capacity with 43-1/4 in. x 7-7/8 in. x 36 in.
The manual Hydraulic Fork Truck jack is designed to raise fork trucks for maintenance. Features high-quality seals, chrome plated internal components, and rugged steel construction. This jack is manually raised by a hand pump lever and the lift height provides room needed to perform a variety of repairs. The removable handle and the compact size make it easy to maneuver and transport. Includes two (2) jack stands with holding pins for adjustable heights.
Product Status
Available QuickShip
Key Features
  • Jack design is for raising fork trucks for maintenance
  • Features high-quality seals, chrome plated internal components, and rugged steel construction
  • Hand pump lever and lift height provide room for various applications
  • Includes two jack stands with holding pins for adjustable heights
Quick Actions

Product Resources

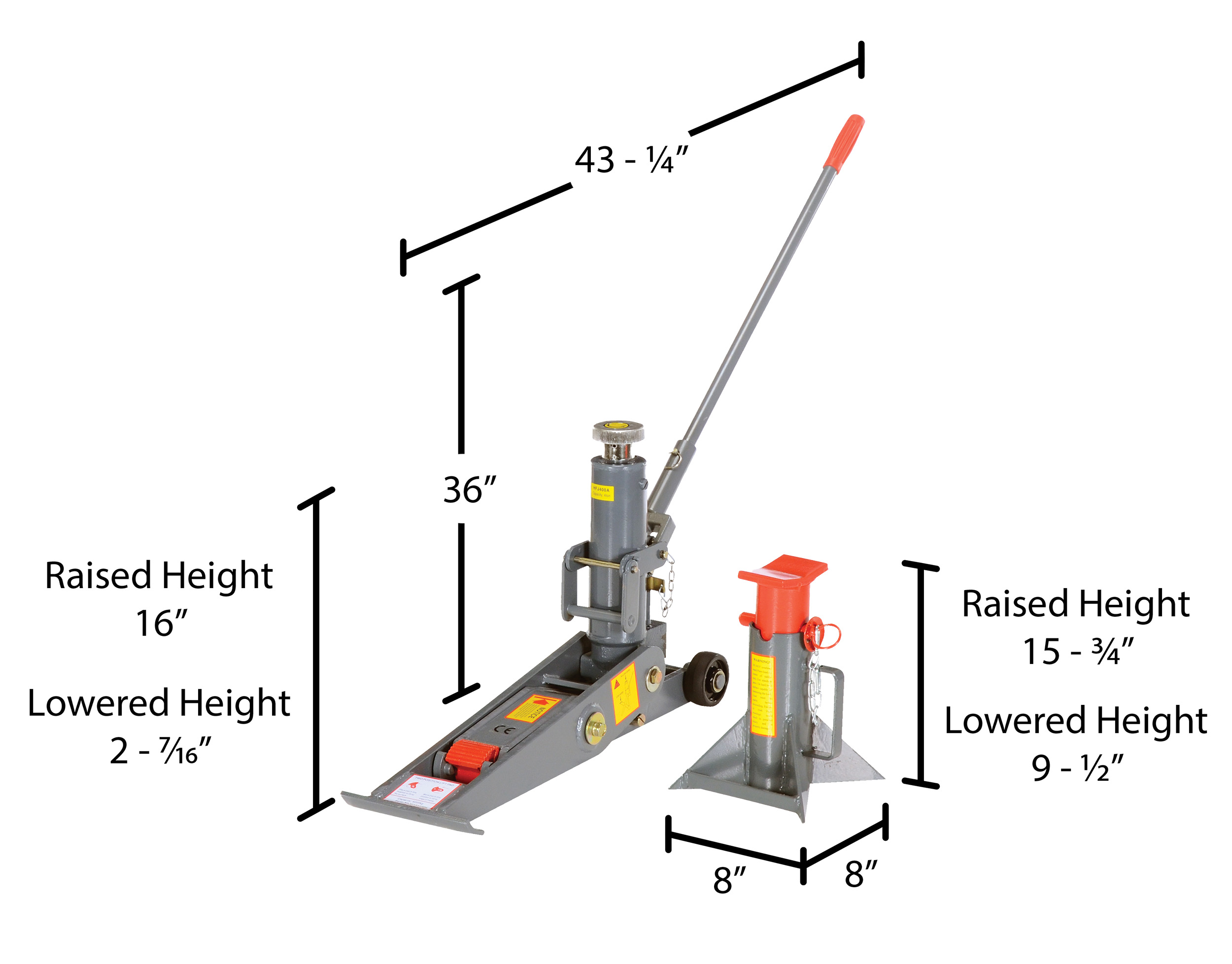

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   Manual Hydraulic Fork Truck Jack Manual   Label Page PDF   Hydraulic Oil SDS   90 Days Warranty
Product Data

Core Data

Assembled Weight 106 lbs
Assembled Size 7.875"W x 43.25"L x 36"H
Total Ship Weight 124 lbs
Package 1 Size 31"W x 36"D x 24"H
Color / Finish Gray
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 8,000
Lowered Height partial pad (in.) 2-1/4
Raised Height (in.) 16
Jack Stand Pair Capacity (tons) 13
Jack Stand Width (in.) 8
Jack Stand Length (in.) 8
Jack Stand Height (in.) 9-1/2
Jack Stand Raised Height (in.) 15-3/4
Lowered Height full pad (in.) 2-7/16
Extended Product Details

Marketing Specs.

MFG Model # (Series)
FORK-J
Product Name
Steel Manual Hydraulic Fork Truck Jack 43-1/4 In. x 7-7/8 In. x 36 In. 8,000 Lb. Capacity Gray
UPC
691215020848
GTIN
00691215020848
Taxonomy 1
Building Supplies
Taxonomy 2
Industrial Jacks
Taxonomy 3
Machinery Jacks
Assembled Depth (in.)
43.25
Assembled Width(in.)
7.875
Assembled Height(in.)
36
Assembled Weight(lbs.)
106
Color/Finish
Gray
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
36
Package Width (in.)
31
Package Height (in.)
24
Package Weight (in.)
124
Subclass
6
Freight Class
100
NMFC Code
Jacks or jackscrews lifting NOI wheeled
NMFC Number
186600
LTL Freight
LTL Palletized
UNSPSC
24101612
HTSUS Number
8425.49.0000
USMCA HS
8425.49
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
Yes
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: FORK-J

FORK-J

Steel Manual Hydraulic Fork Truck Jack 43-1/4 In. x 7-7/8 In. x 36 In. 8,000 Lb. Capacity Gray

The manual Hydraulic Fork Truck jack is designed to raise fork trucks for maintenance. Features high-quality seals, chrome plated internal components, and rugged steel construction. This jack is manually raised by a hand pump lever and the lift height provides room needed to perform a variety of repairs. The removable handle and the compact size make it easy to maneuver and transport. Includes two (2) jack stands with holding pins for adjustable heights.

  • Jack design is for raising fork trucks for maintenance
  • Features high-quality seals, chrome plated internal components, and rugged steel construction
  • Hand pump lever and lift height provide room for various applications
  • Includes two jack stands with holding pins for adjustable heights

Core Data

Assembled Weight: 106 Assembled Size: 7.875"W x 43.25"L x 36"H Color: Gray
Total Ship Weight: 124 Package 1 Size: 31"W x 36"D x 24"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 8,000
Lowered Height partial pad (in.): 2-1/4
Raised Height (in.): 16
Jack Stand Pair Capacity (tons): 13
Jack Stand Width (in.): 8
Jack Stand Length (in.): 8
Jack Stand Height (in.): 9-1/2
Jack Stand Raised Height (in.): 15-3/4
Lowered Height full pad (in.): 2-7/16
