  All Products   Fork Truck Attachments   Fork Extensions   Fork Rear Spacers FRS-5-12
Product Image

Visual Reference

FRS-5-12
FRS-5-12
FRS-5-12
FRS-5-12
FRS-5-12
FRS-5-12

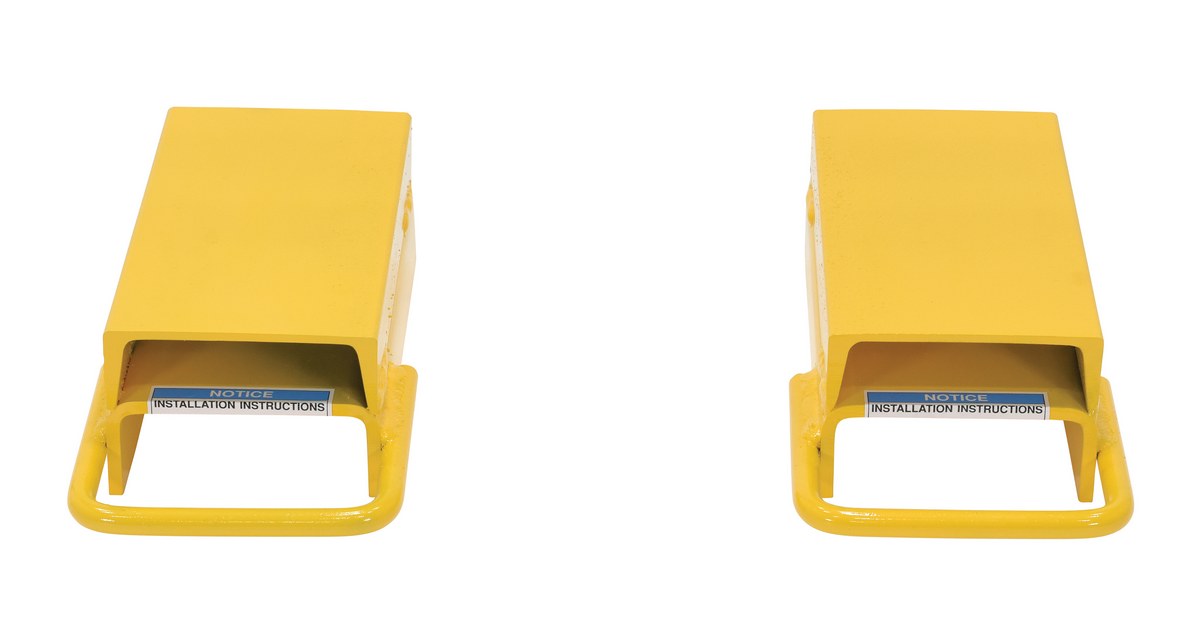

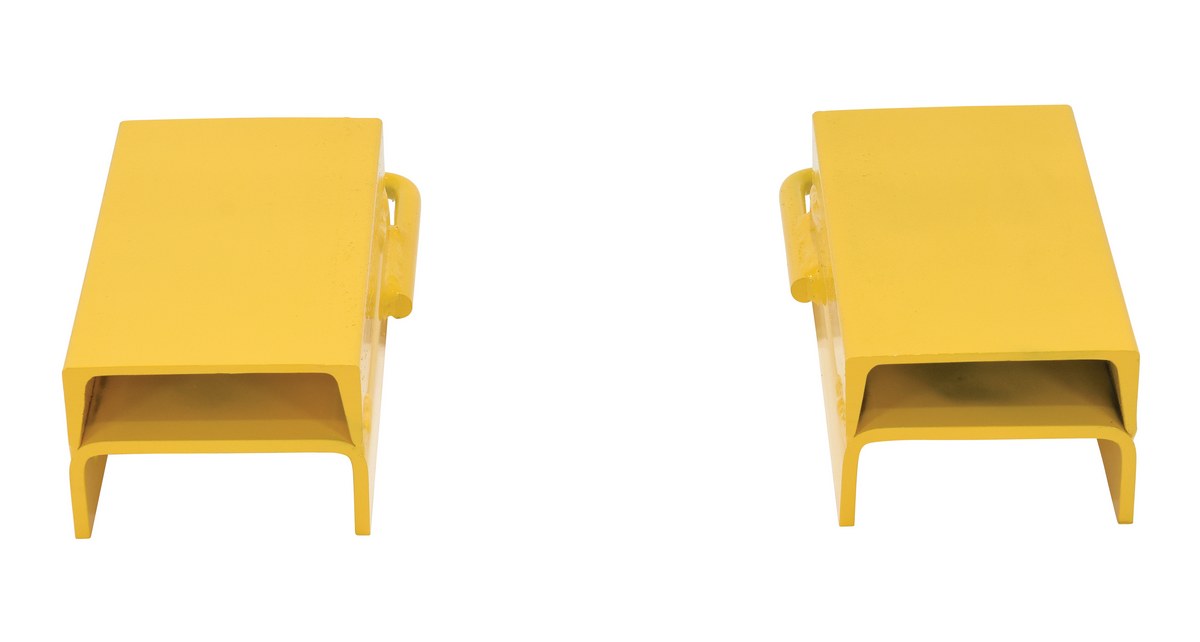

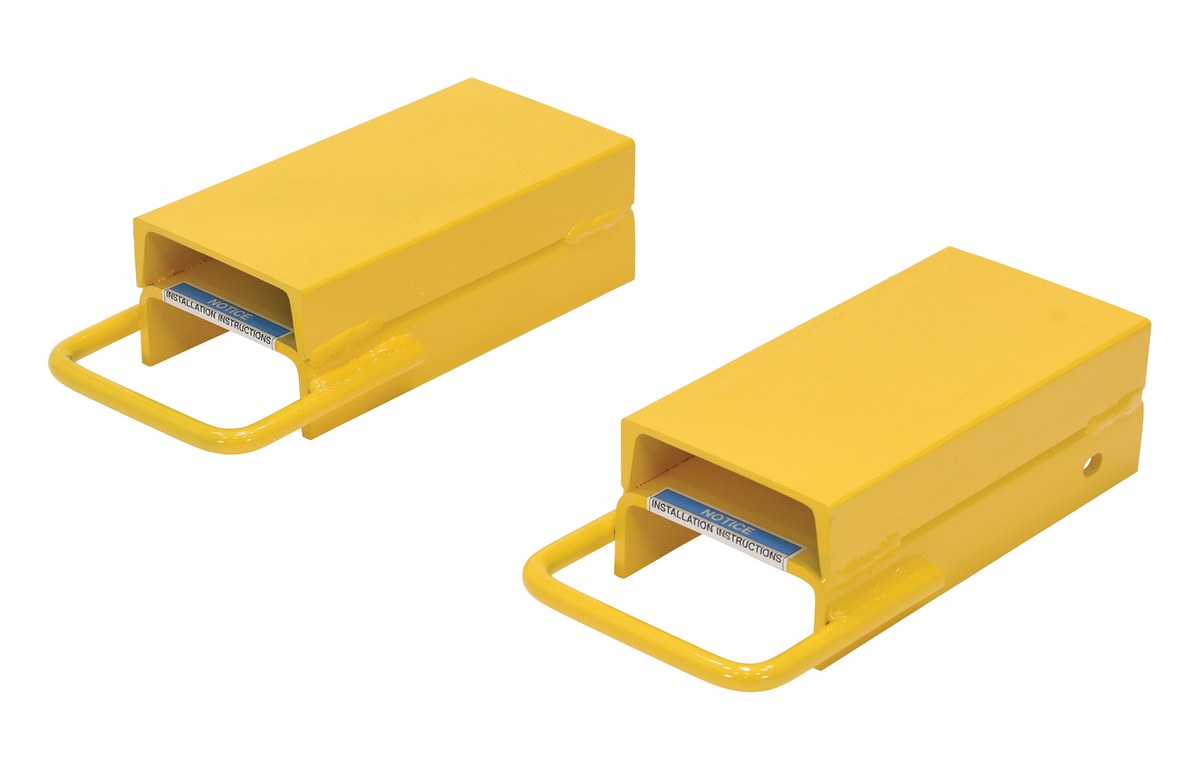

Steel Fork Rear Spacer 5 In. Width Yellow

Fork Extensions for Extending Forklift Reach for Long and Oversized Loads, 0 lb. Capacity with 5 in.
A rear spacer protects against possible damage to the fork truck, as well as products. Insert the loop at the tip of the fork and slide it up at a 45 degree angle. Then, lay it down over the existing forks. The attached end loop secures the spacer around each fork. Once in place, the spacers prevent pallets from retreating backwards onto the fork.
Product Status
Available QuickShip
Key Features
  • Sold in pairs
  • Steel construction for long lasting strength
  • Accommodates 2 in. maximum fork thickness
  • Compact design leaves plenty of usable space on forks
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 35 lbs
Assembled Size 7.375"W x 15.125"L x 4.1875"H
Total Ship Weight 35 lbs
Package 1 Size 10"W x 17"D x 7"H
Color / Finish Yellow
Freight Type Parcel

Additional Attributes

Accommodates Fork Width/Height (in.) 5 x 2
Spacer Length (in.) 12
Extended Product Details

Marketing Specs.

MFG Model # (Series)
FRS-5-12
Product Name
Steel Fork Rear Spacer 5 In. Width Yellow
UPC
691215112154
GTIN
00691215112154
Taxonomy 1
Material Handling
Taxonomy 2
Forklift Attachments
Taxonomy 3
Fork Extensions
Assembled Depth (in.)
15.125
Assembled Width(in.)
7.375
Assembled Height(in.)
4.1875
Assembled Weight(lbs.)
35
Color/Finish
Yellow
Material
Steel
Option? Y/N
N
Sell UOM
PR-Pair
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
PACK_OR_INNER_PACK
Package Depth (in.)
17
Package Width (in.)
10
Package Height (in.)
7
Package Weight (in.)
35
Subclass
11
Freight Class
60
NMFC Code
Lift Truck Attachments: Fork arms, fingers/tine, s
NMFC Number
193100
LTL Freight
Parcel
UNSPSC
24101629
HTSUS Number
8431.20.0000
USMCA HS
8431.20
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: FRS-5-12

FRS-5-12

Steel Fork Rear Spacer 5 In. Width Yellow

A rear spacer protects against possible damage to the fork truck, as well as products. Insert the loop at the tip of the fork and slide it up at a 45 degree angle. Then, lay it down over the existing forks. The attached end loop secures the spacer around each fork. Once in place, the spacers prevent pallets from retreating backwards onto the fork.

  • Sold in pairs
  • Steel construction for long lasting strength
  • Accommodates 2 in. maximum fork thickness
  • Compact design leaves plenty of usable space on forks

Core Data

Assembled Weight: 35 Assembled Size: 7.375"W x 15.125"L x 4.1875"H Color: Yellow
Total Ship Weight: 35 Package 1 Size: 10"W x 17"D x 7"H Freight: Parcel

Specifications

Accommodates Fork Width/Height (in.): 5 x 2
Spacer Length (in.): 12
