Steel Economical Portable Loading Platform with Handrails 54 In. x 54 In. 2000 Lb. Capacity Blue

Economical Portable Loading Platform with Handrails for Safer Elevated Access in Industrial Work Areas, 2,000 lb. Capacity with 54 in. x 54 in.

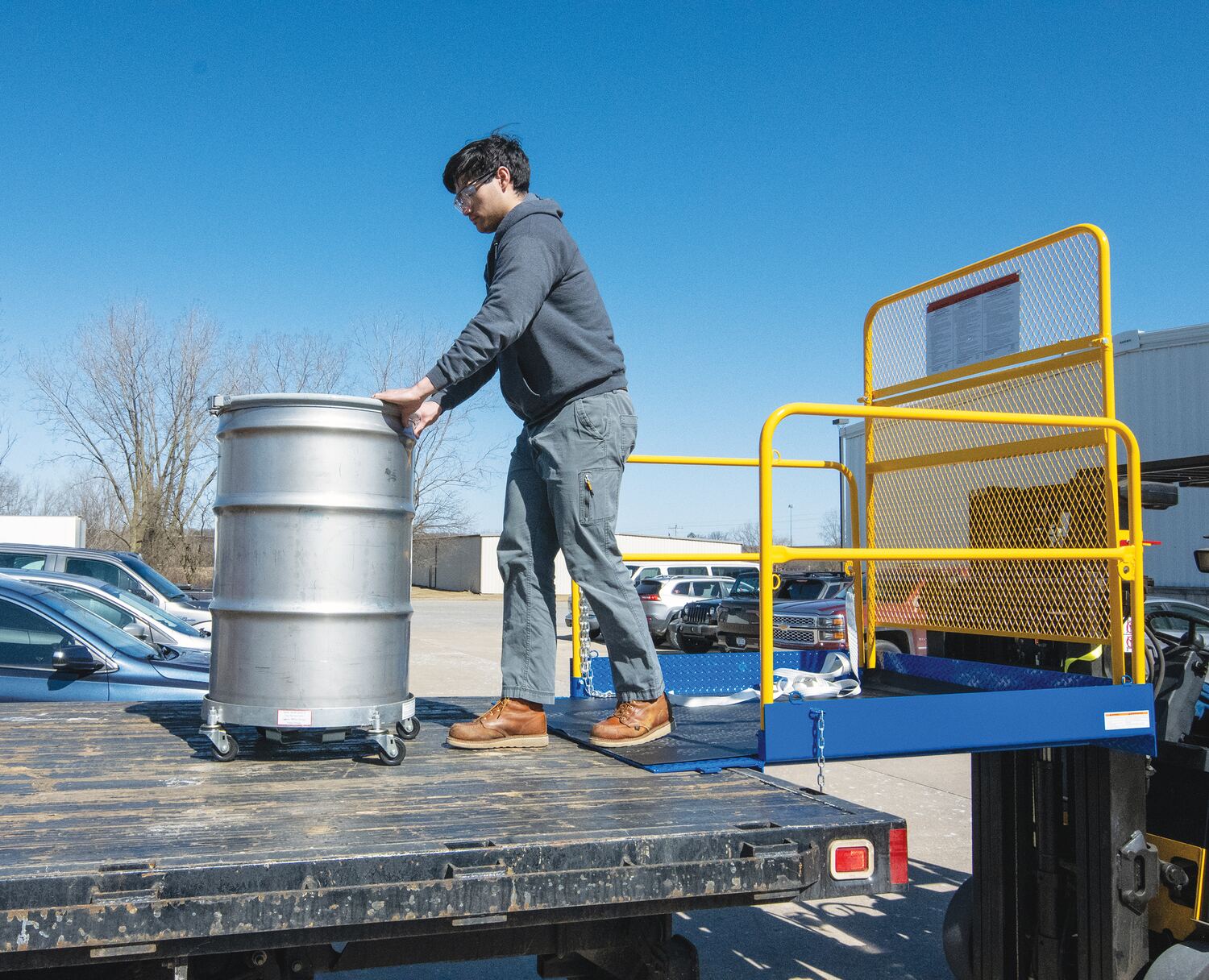

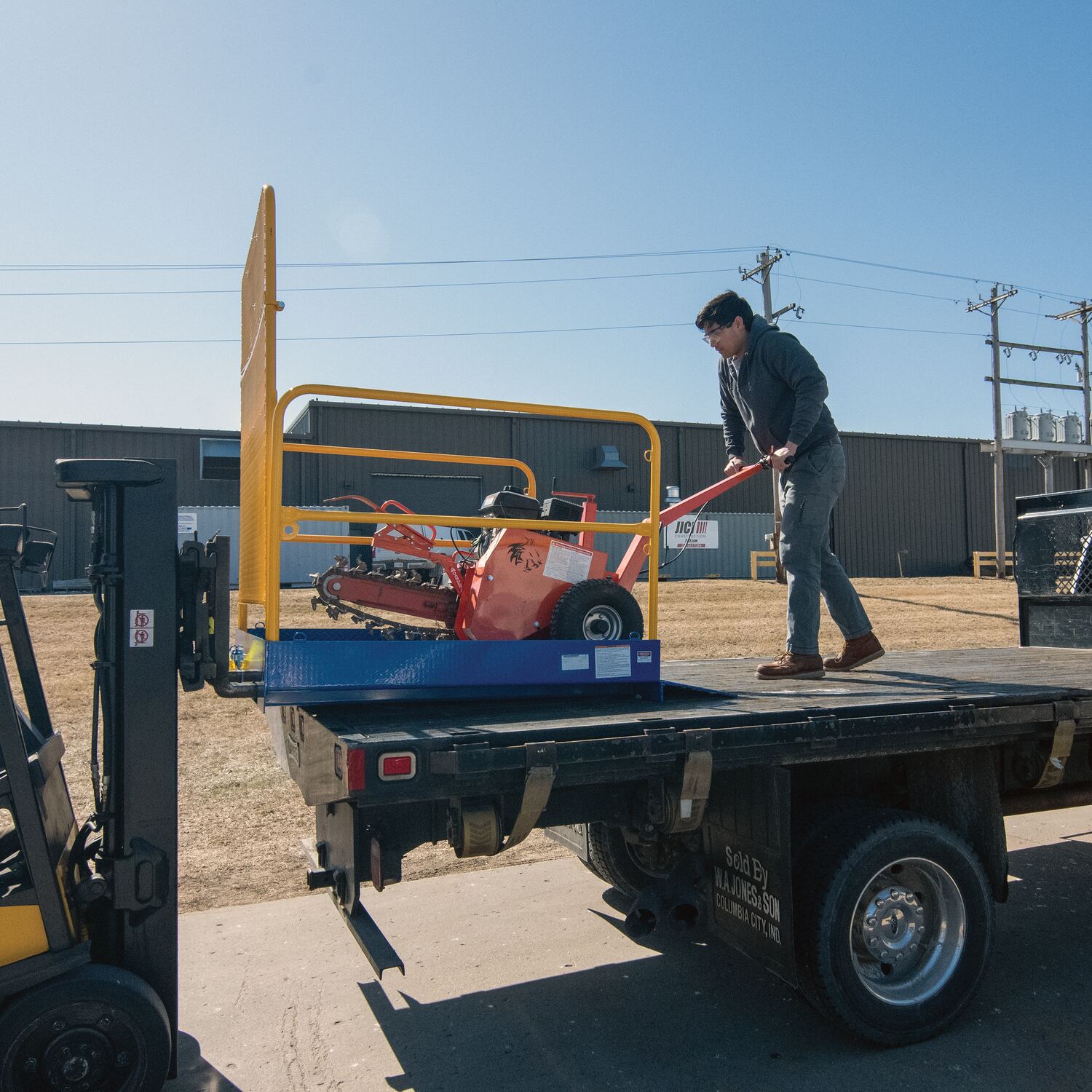

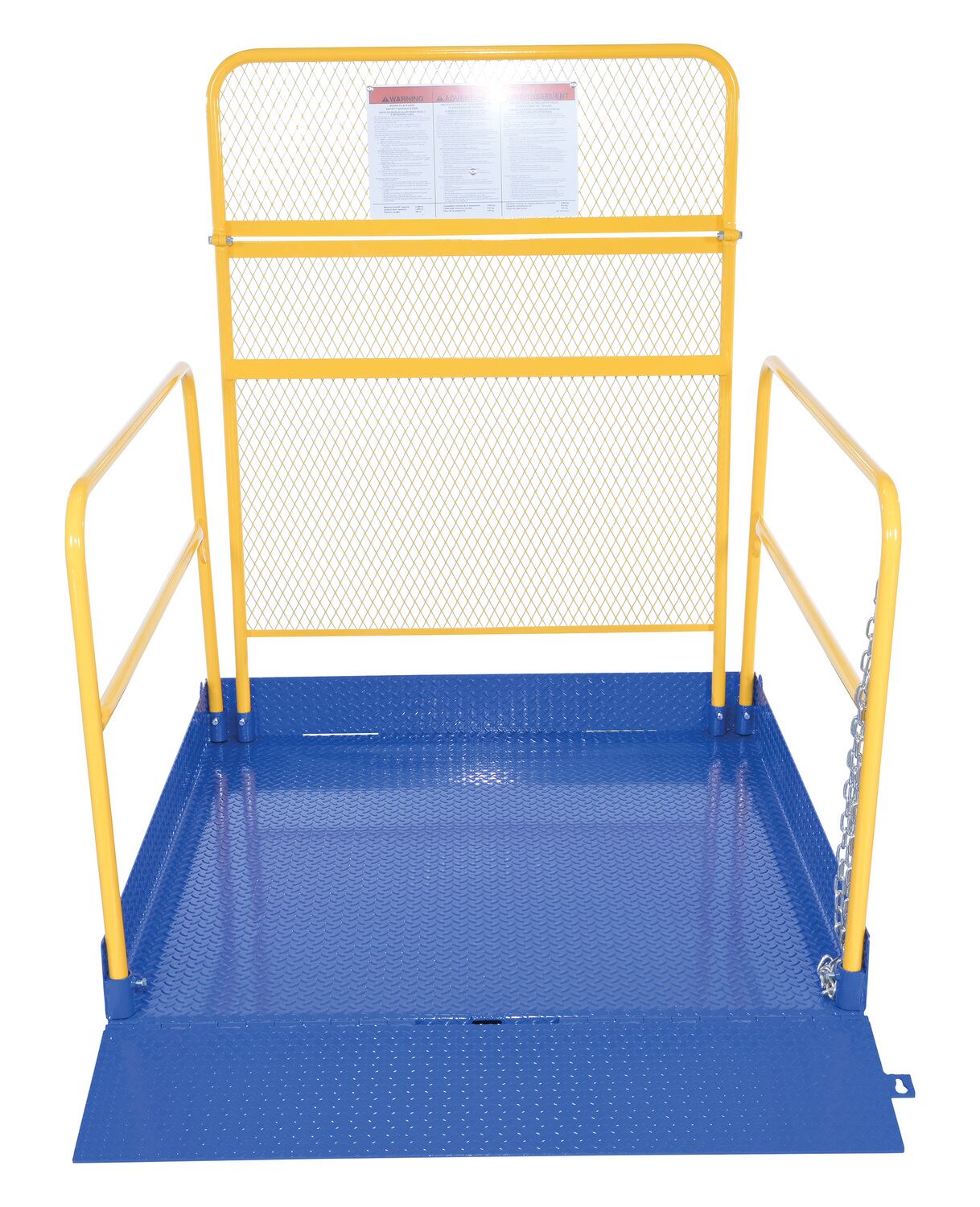

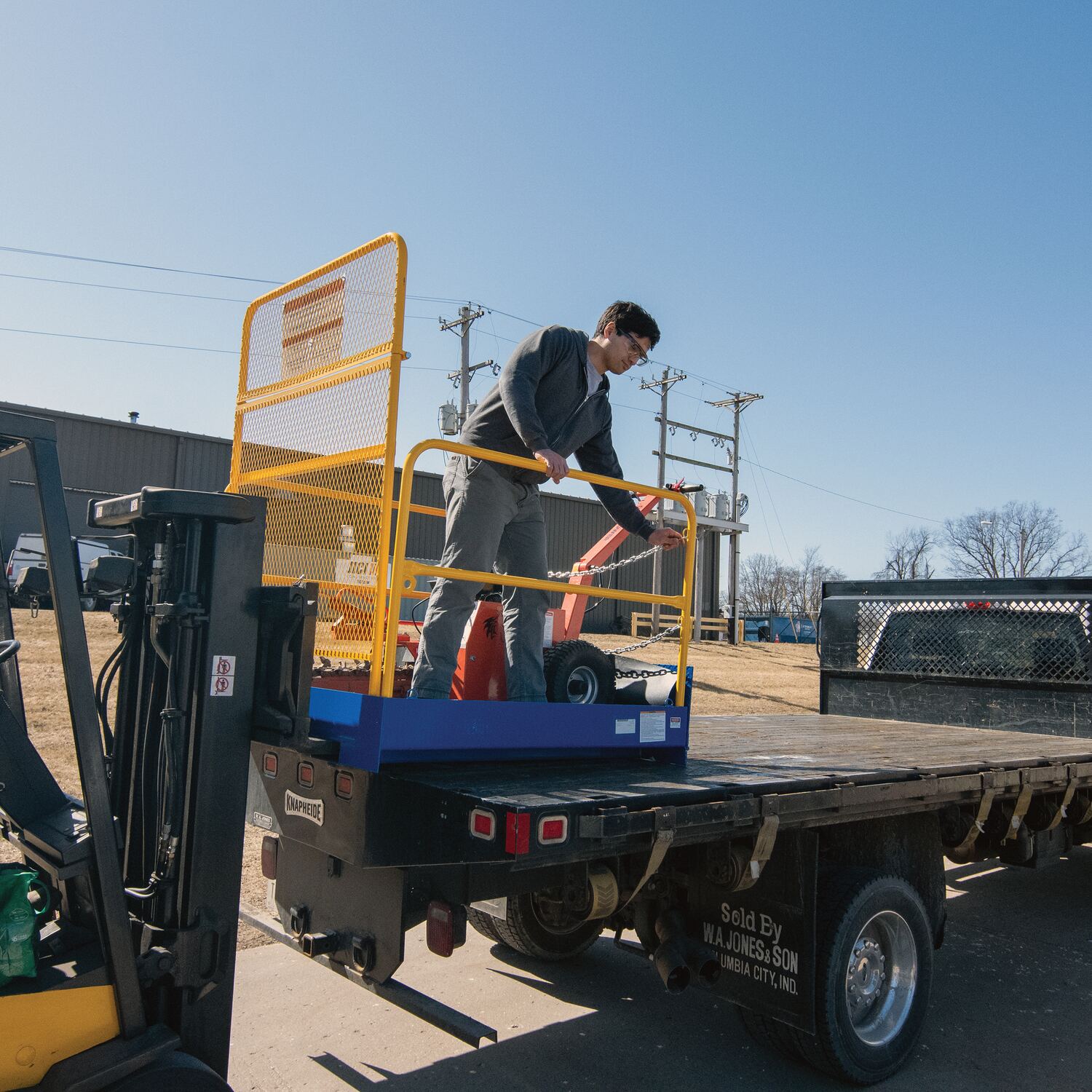

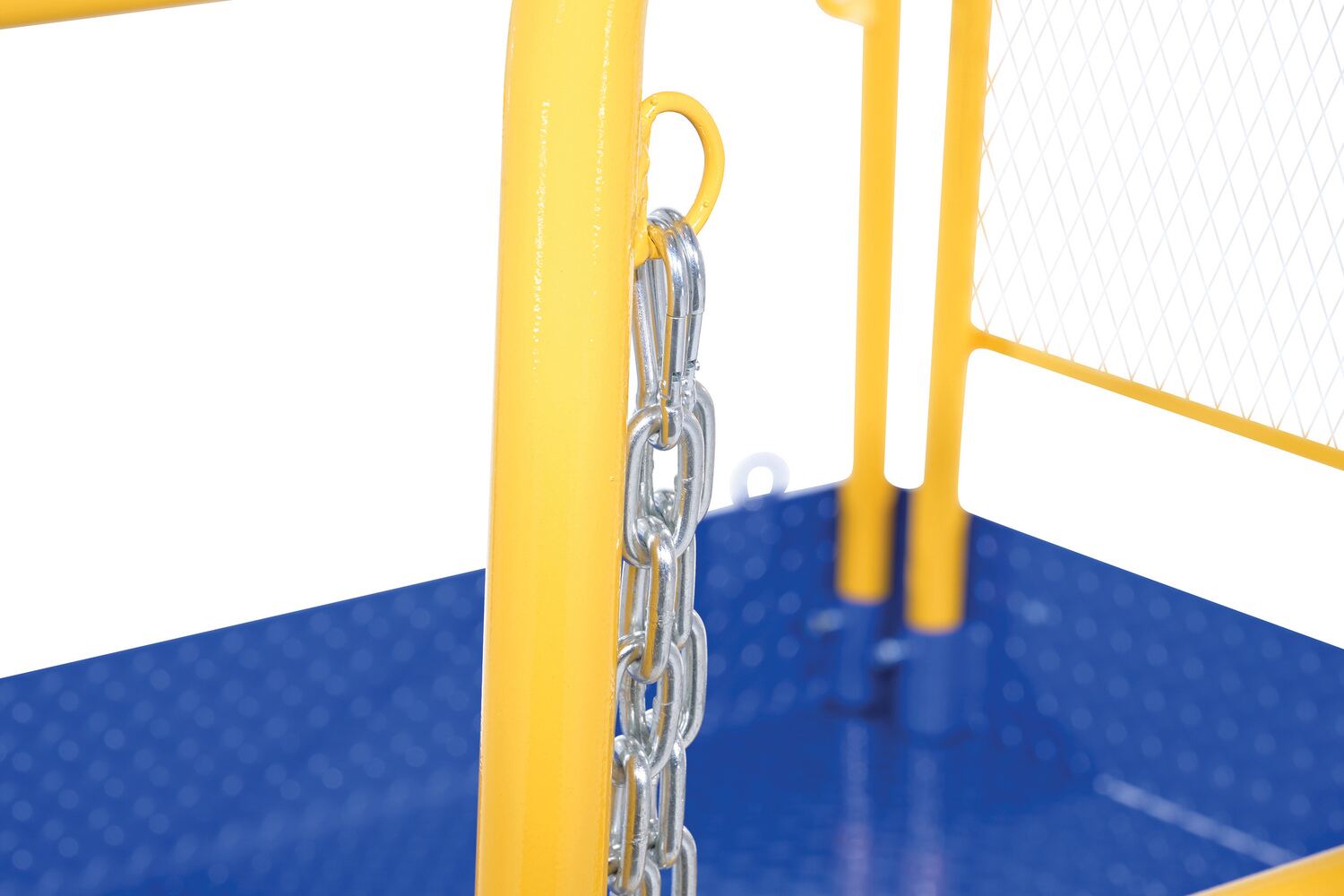

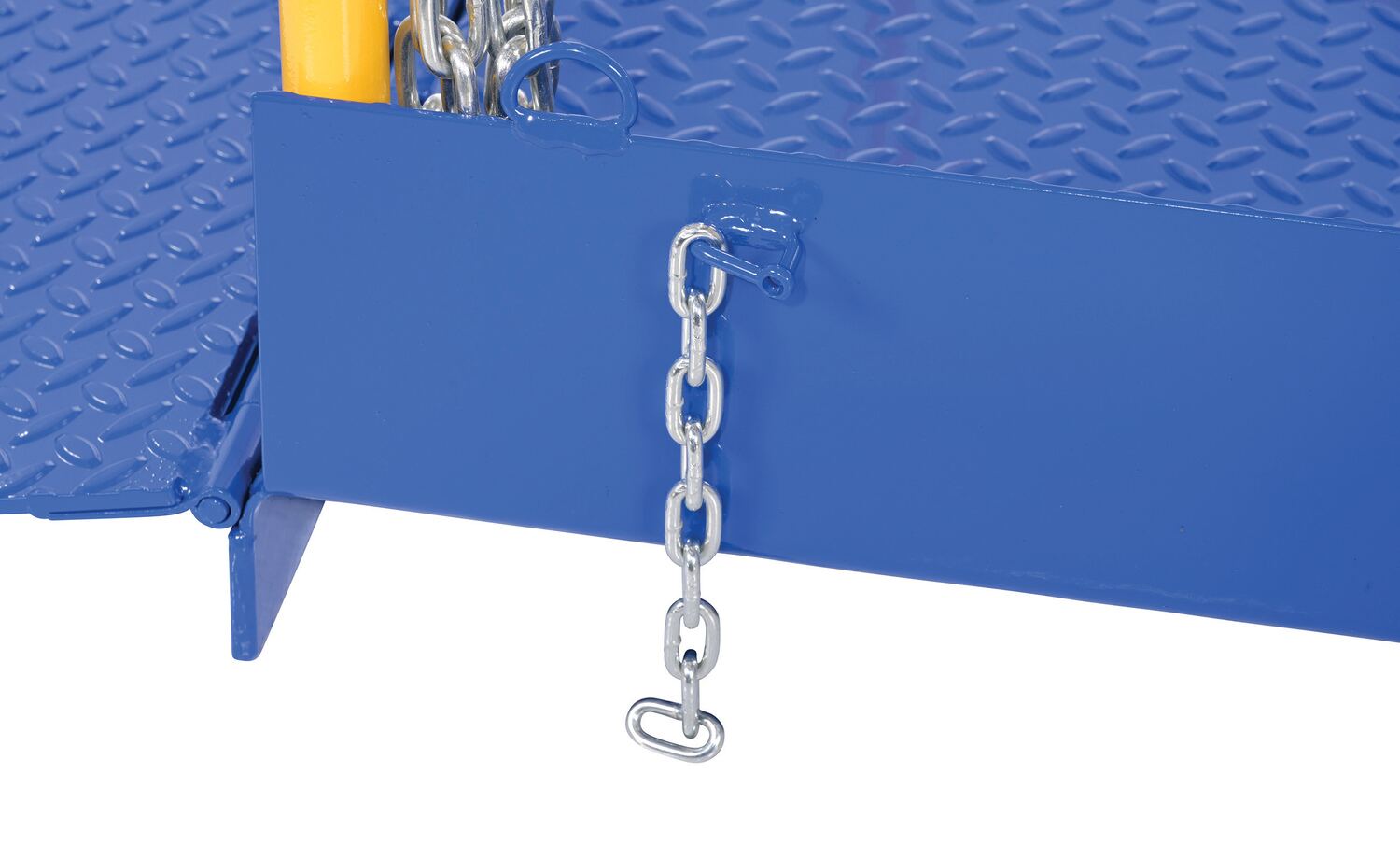

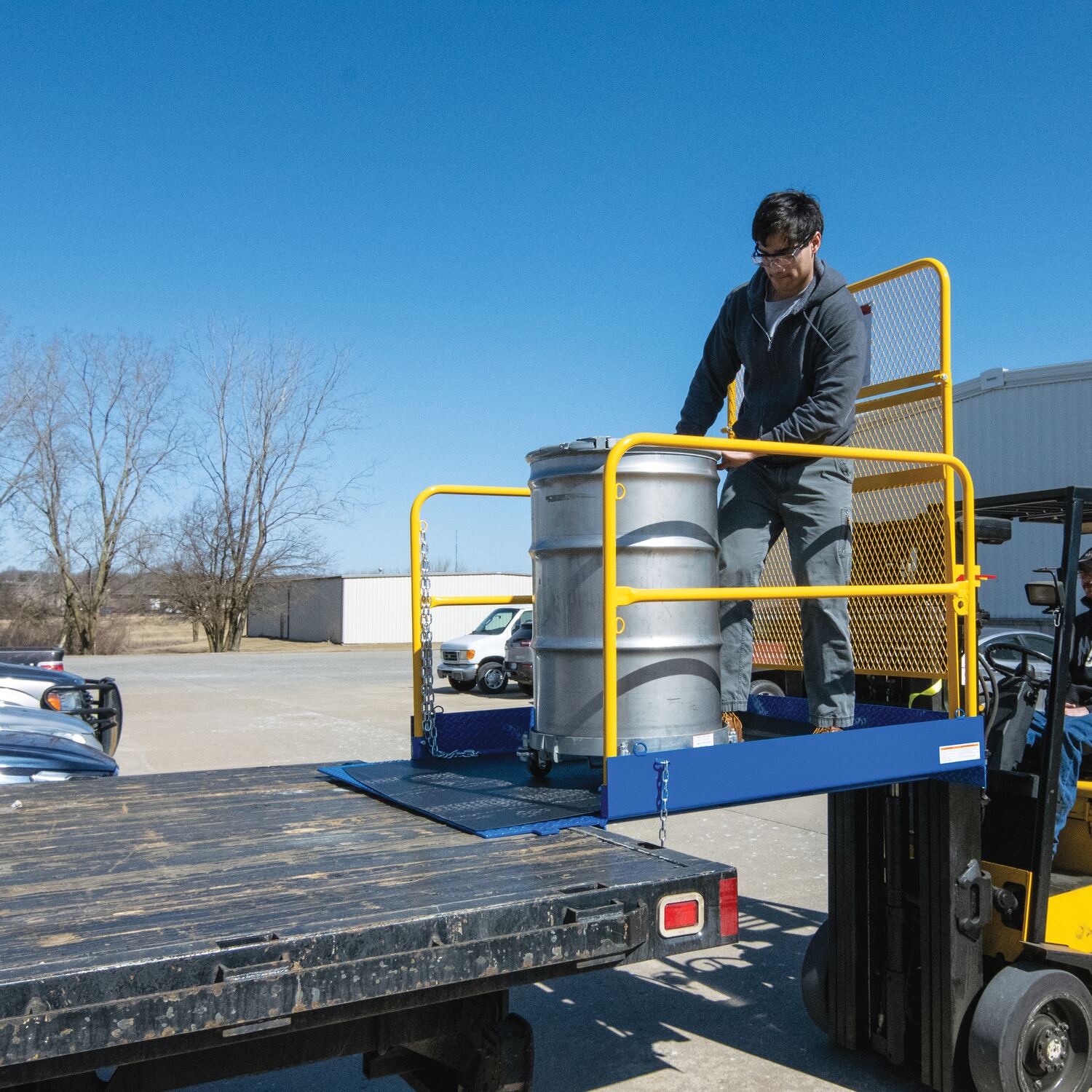

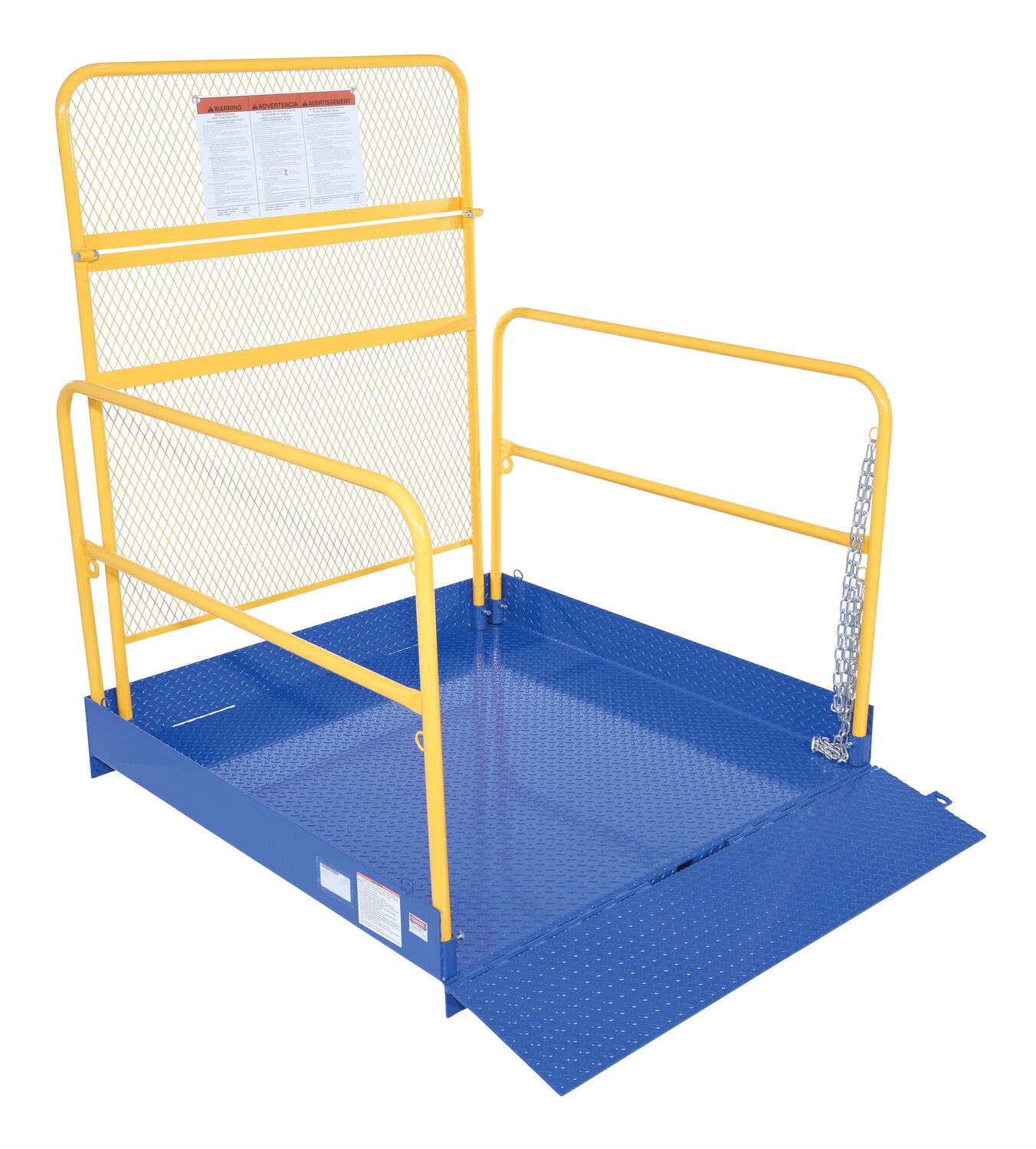

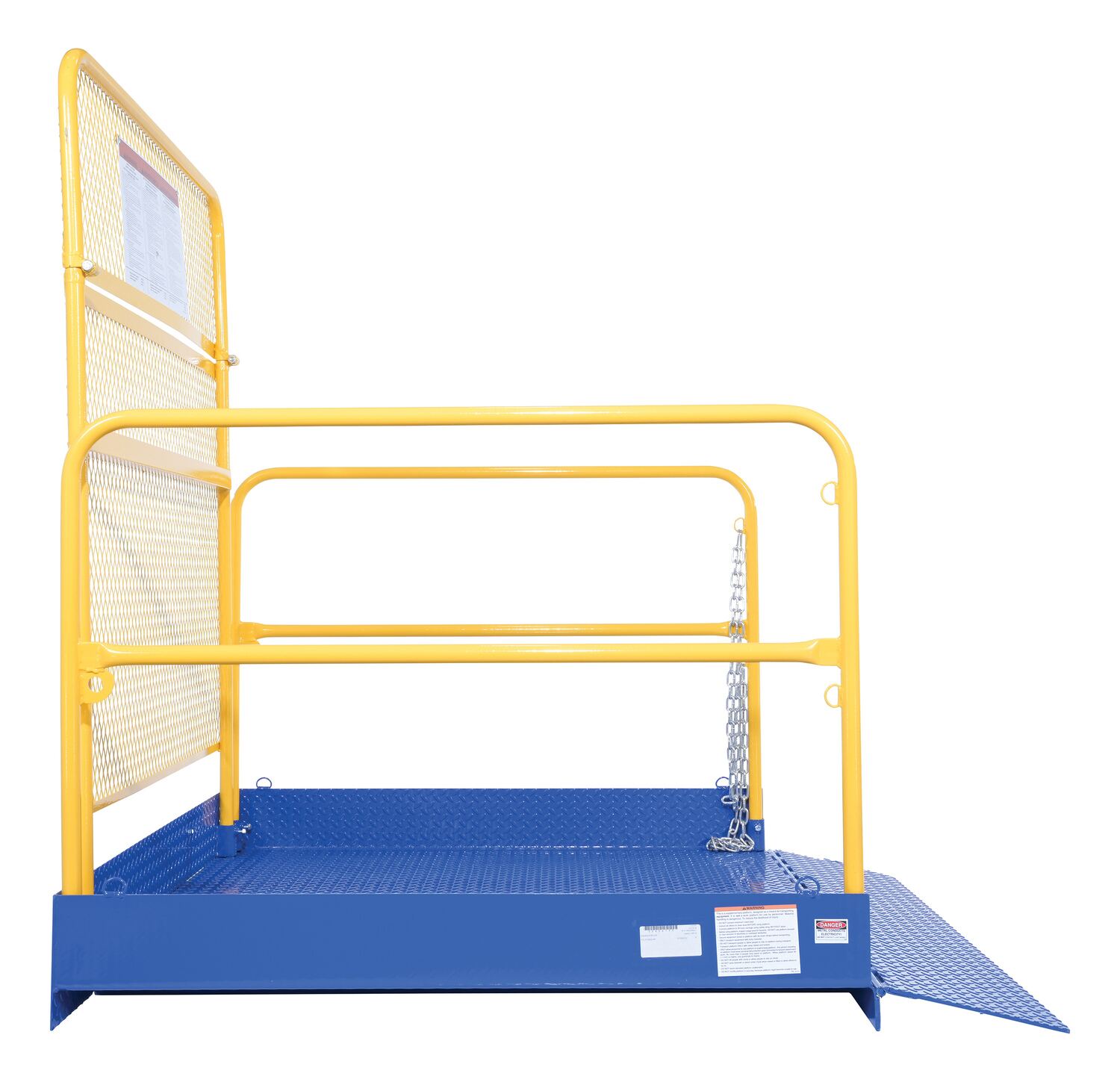

This loading platform for fork trucks allows fork trucks to load/unload items into trucks and trailers. Maximum uniform weight capacity is dependent on fork truck capacity. Includes fold-down lip to help with transition. Side guard toe boards. Four (4) tie-down rings are included for securing equipment (tie downs not included). Diamond tread plate floor for extra traction. Handrails on two (2) sides, back mesh screen and chain to secure open end. safety strap (included) to secure platform to fork truck. Steel construction with blue baked-in powder-coated toughness.
Product Status
Out of Stock
Key Features
  • Loading platform allows fork trucks to load/unload items with ease

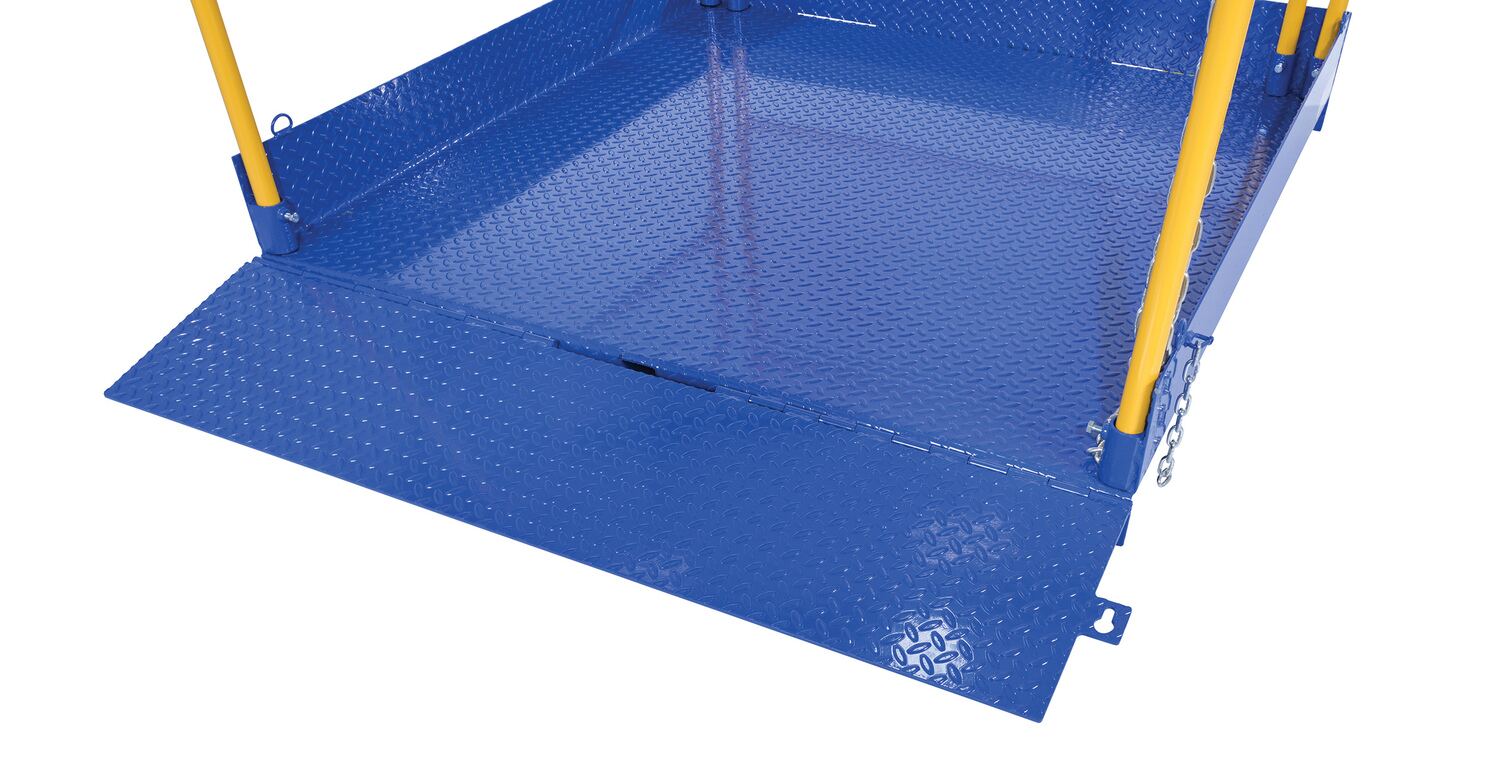

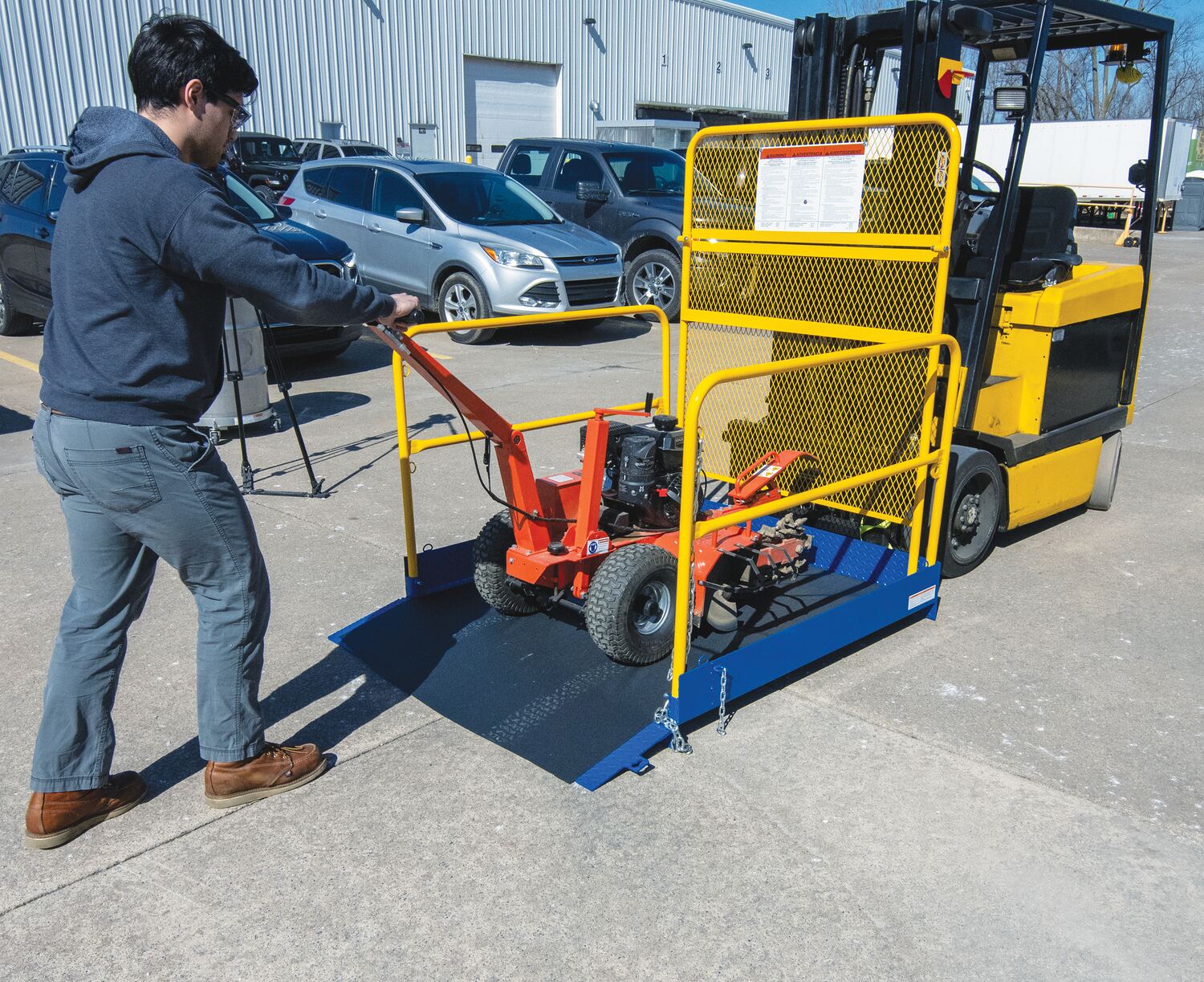

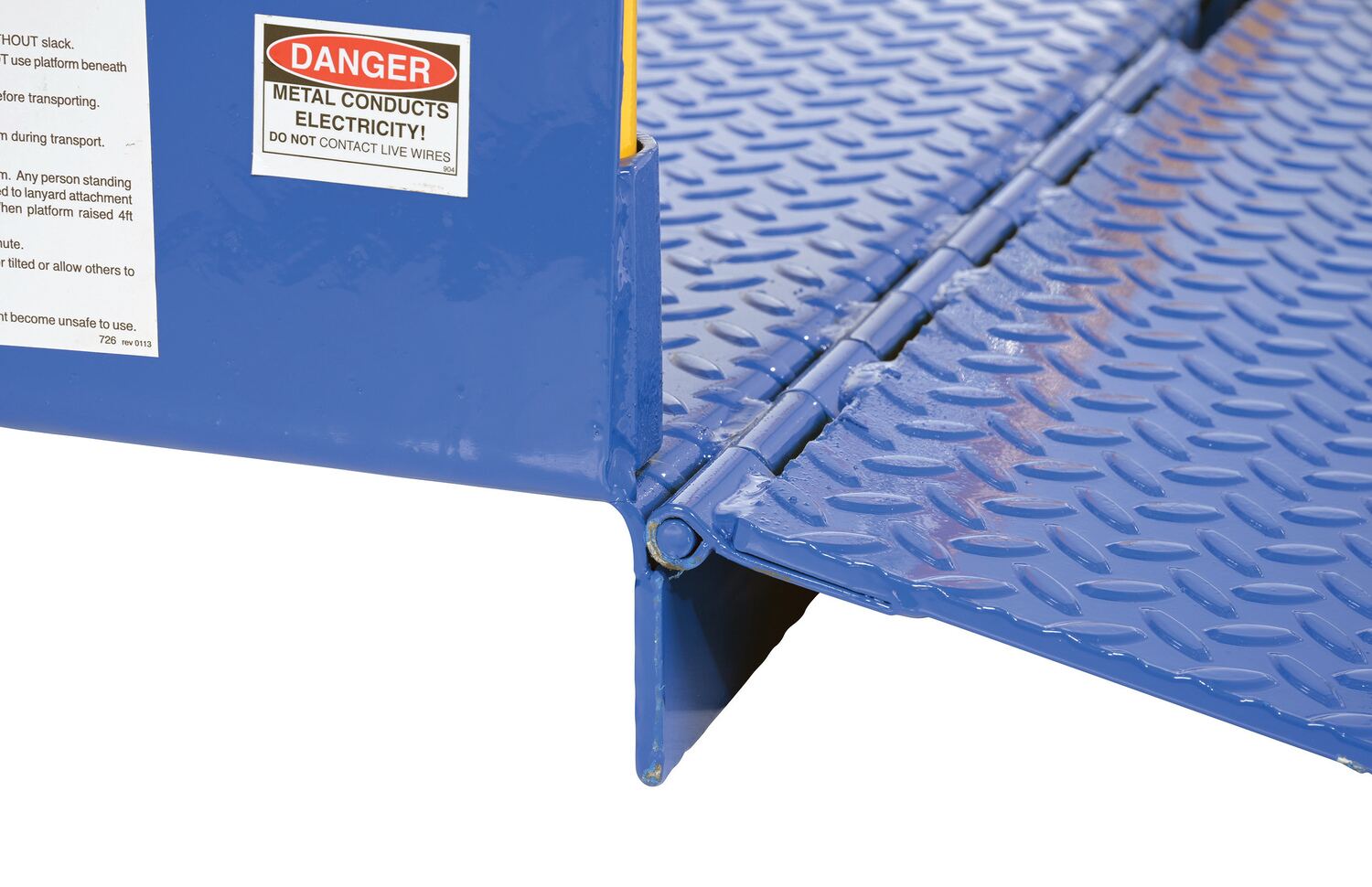

  • Includes fold-down lip to help with transition and side guard toe boards for optimal safety

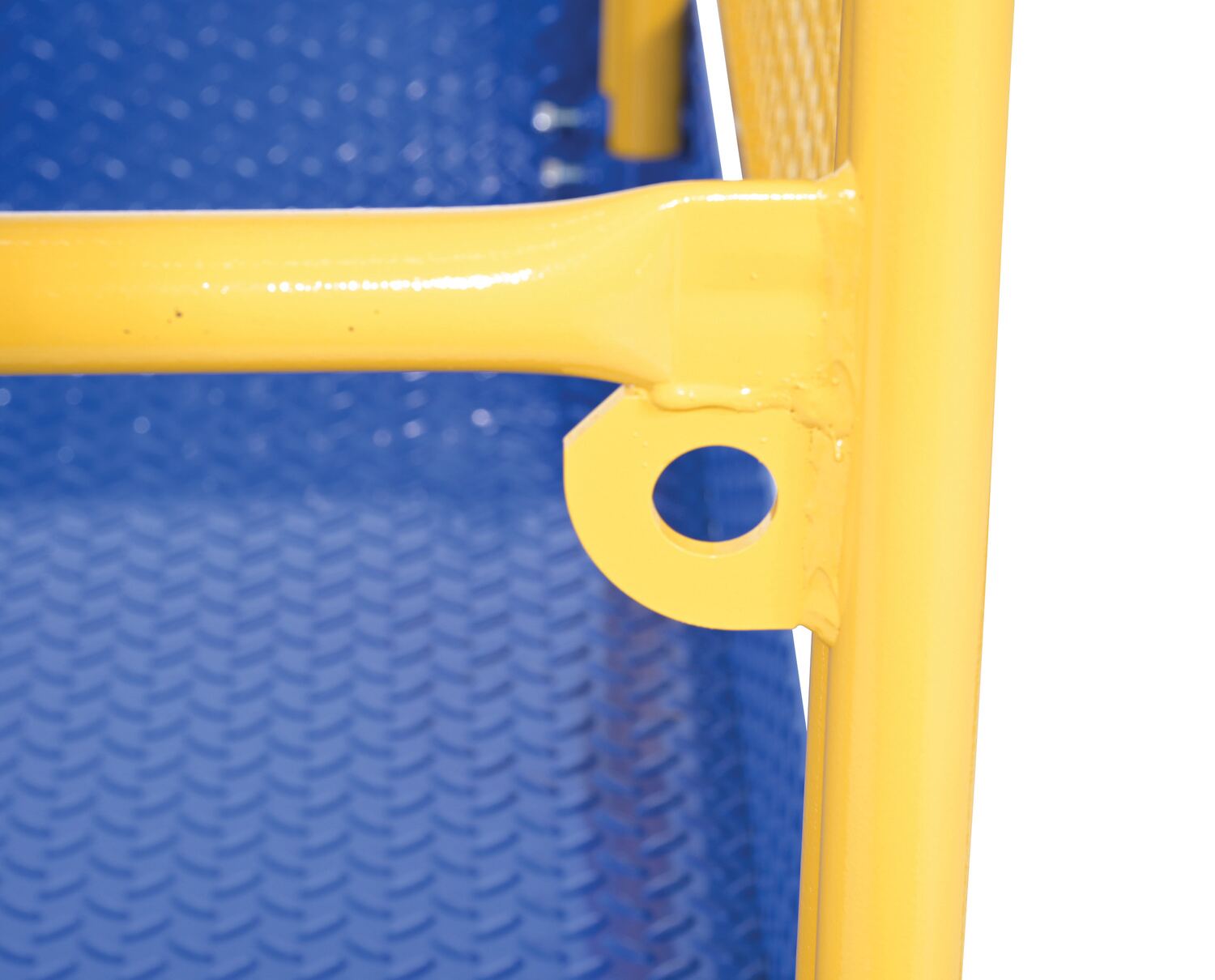

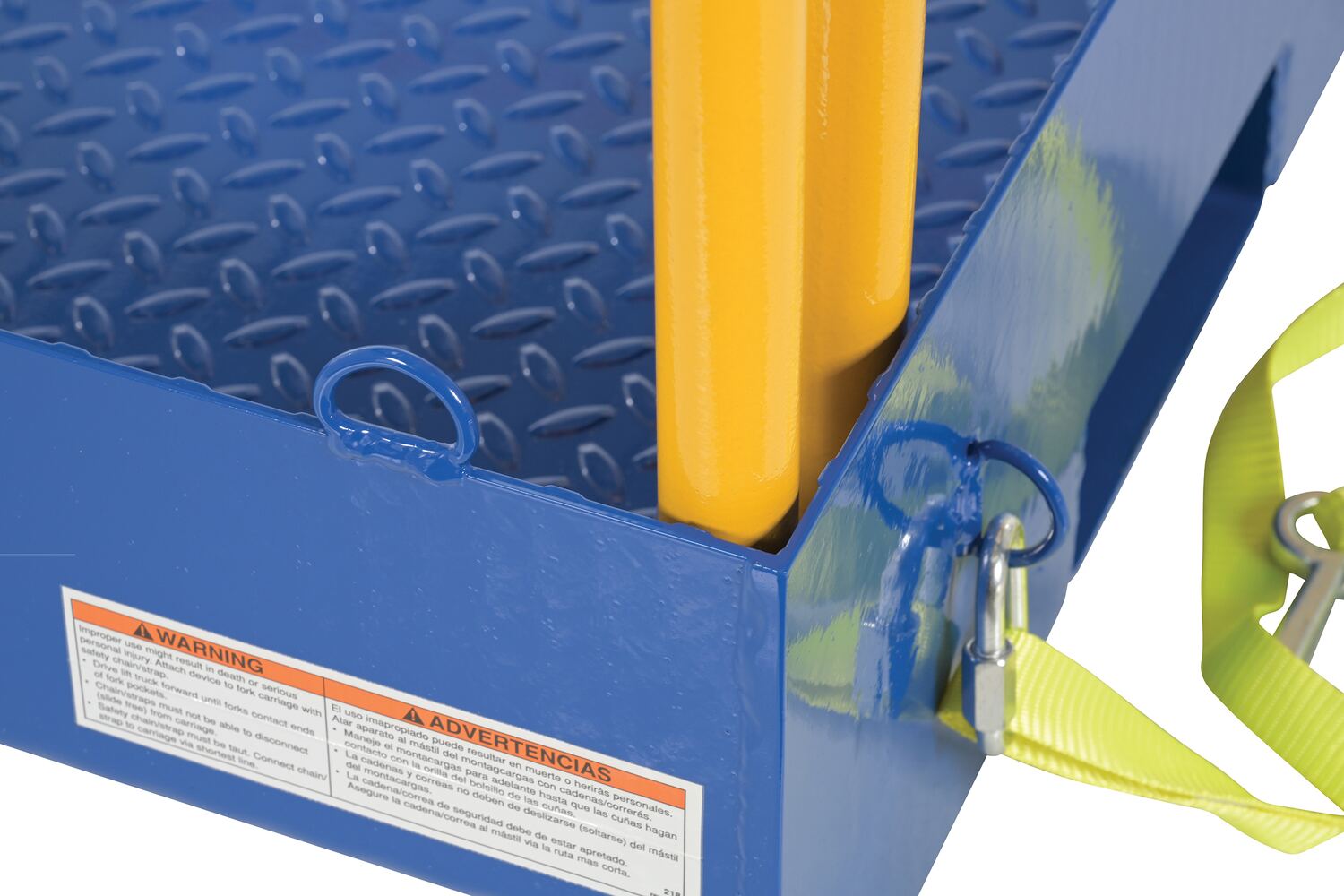

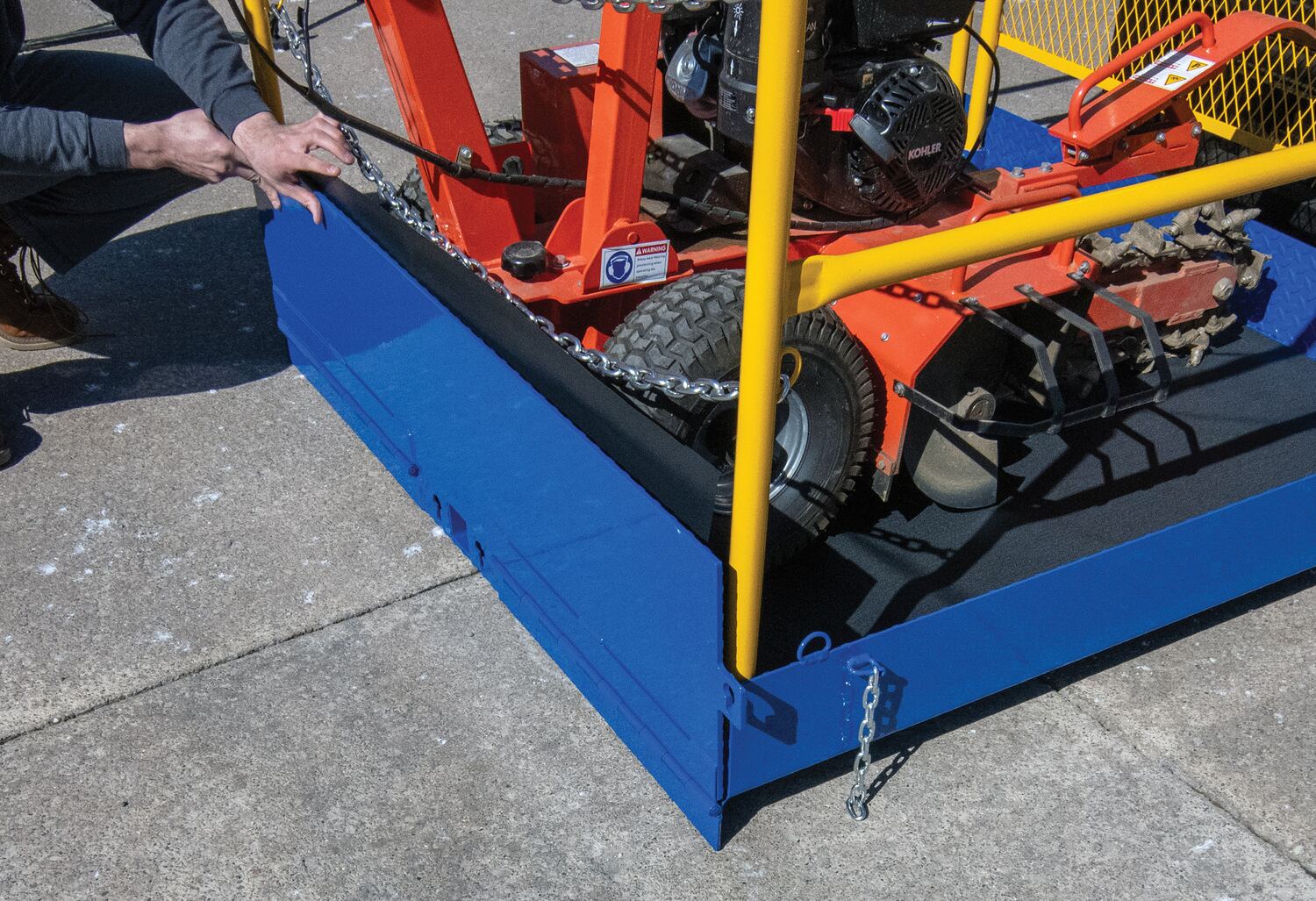

  • Four tie-down rings are included for securing equipment
  • Diamond tread plate floor for extra traction and safety strap to secure platform to fork truck
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Loading Platform for Fork Truck - FTLP-5454 Owners Manual   Label Page PDF   1 Year Warranty
Product Data

Core Data

Assembled Weight 329 lbs
Assembled Size 56"W x 54"L x 68.4375"H
Total Ship Weight 460 lbs
Package 1 Size 64"W x 64"D x 24"H
Color / Finish Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 2,000
Lip Height (in.) 12
Toeboard Height (in.) 6
Fork Pocket Width (in.) 7-1/2
Fork Pocket Height (in.) 2-1/2
Usable Platform Width (in.) 56
Usable Platform Length (in.) 48-1/2
Strap Length (in.) 48
OSHA 1910.178
Overall Height (in.) 68-7/16
Quantity Tie Down Rings Included 4
Tie Down Type D-Ring
Extended Product Details

Marketing Specs.

MFG Model # (Series)
FTLP-5454-HR
Product Name
Steel Economical Portable Loading Platform with Handrails 54 In. x 54 In. 2000 Lb. Capacity Blue
UPC
691215087568
GTIN
00691215087568
Taxonomy 1
Material Handling
Taxonomy 2
Forklift Attachments
Taxonomy 3
Loading Platform
Assembled Depth (in.)
54
Assembled Width(in.)
56
Assembled Height(in.)
68.4375
Assembled Weight(lbs.)
329
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
64
Package Width (in.)
64
Package Height (in.)
24
Package Weight (in.)
460
Subclass
6
Freight Class
100
NMFC Code
Lift Truck Attachments: Fork arms, fingers/tine, s
NMFC Number
193100
LTL Freight
LTL Palletized
UNSPSC
22101802
HTSUS Number
7326.90.8688
USMCA HS
7326.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: FTLP-5454-HR

FTLP-5454-HR

Steel Economical Portable Loading Platform with Handrails 54 In. x 54 In. 2000 Lb. Capacity Blue

This loading platform for fork trucks allows fork trucks to load/unload items into trucks and trailers. Maximum uniform weight capacity is dependent on fork truck capacity. Includes fold-down lip to help with transition. Side guard toe boards. Four (4) tie-down rings are included for securing equipment (tie downs not included). Diamond tread plate floor for extra traction. Handrails on two (2) sides, back mesh screen and chain to secure open end. safety strap (included) to secure platform to fork truck. Steel construction with blue baked-in powder-coated toughness.

  • Loading platform allows fork trucks to load/unload items with ease
  • Includes fold-down lip to help with transition and side guard toe boards for optimal safety
  • Four tie-down rings are included for securing equipment
  • Diamond tread plate floor for extra traction and safety strap to secure platform to fork truck

Core Data

Assembled Weight: 329 Assembled Size: 56"W x 54"L x 68.4375"H Color: Blue
Total Ship Weight: 460 Package 1 Size: 64"W x 64"D x 24"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 2,000
Lip Height (in.): 12
Toeboard Height (in.): 6
Fork Pocket Width (in.): 7-1/2
Fork Pocket Height (in.): 2-1/2
Usable Platform Width (in.): 56
Usable Platform Length (in.): 48-1/2
Strap Length (in.): 48
OSHA: 1910.178
Overall Height (in.): 68-7/16
Quantity Tie Down Rings Included: 4
Tie Down Type: D-Ring
