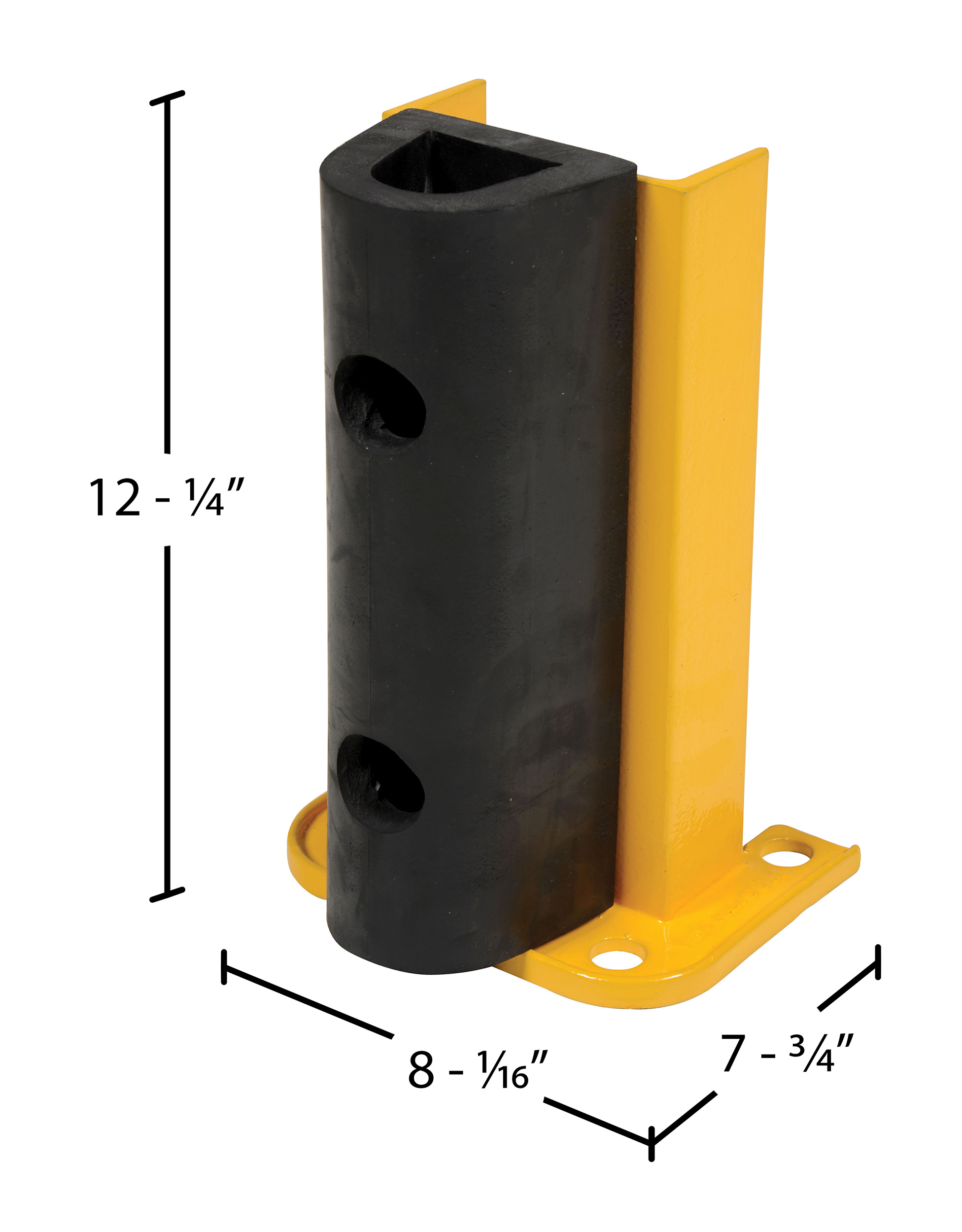

Steel Structural Rack Guard 7-3/4 In. x 8-1/16 In. x 12-1/4 In. Yellow

Pallet Rack Guard for Organized Warehouse Storage and Material Support, 7-3/4 in. x 8-1/16 in. x 12-1/4 in.
A structural Rack Guard with rubber bumper is the economical way to protect against damage to pallet racking and wall corners. Easy to install to concrete surface. Four (4) mounting holes for maximum stability. Installation hardware sold separately. Assembly required.
Product Status
Available QuickShip
Key Features
  • Heavy-duty steel "C" channel construction provides rugged long lasting use
  • Powder coat yellow provides an attractive safety finish
  • Four pre-drilled mounting holes in base plate allow quick lag down installation
  • Economical design provides safety at an affordable cost
Quick Actions

Product Resources

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Label Page PDF   30 Days Warranty
Product Data

Core Data

Assembled Weight 15 lbs
Assembled Size 8.0625"W x 7.75"L x 12.25"H
Total Ship Weight 19 lbs
Package 1 Size 9"W x 14"D x 13"H
Color / Finish Yellow
Freight Type Parcel

Additional Attributes

Construction Steel C Channel (in.) 6
C Channel Thickness (in.) 0.20
Usable Width (in.) 4-9/16
Usable Length (in.) 2-7/8
Mounting Hole (qty.) 4
Mounting Hole Size (in.) 5/8
Plate Width (in.) 8-1/16
Plate Length (in.) 6
Mounting Plate Thickness (in.) 1/4
Extended Product Details

Marketing Specs.

MFG Model # (Series)
G6-12-B
Product Name
Steel Structural Rack Guard 7-3/4 In. x 8-1/16 In. x 12-1/4 In. Yellow
UPC
691215021111
GTIN
00691215021111
Taxonomy 1
Cleaning & Janitorial
Taxonomy 2
Storage & Organization
Taxonomy 3
Industrial Storage
Taxonomy 4
Accessories
Taxonomy 5
Rack Guards
Assembled Depth (in.)
7.75
Assembled Width(in.)
8.0625
Assembled Height(in.)
12.25
Assembled Weight(lbs.)
15
Color/Finish
Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
14
Package Width (in.)
9
Package Height (in.)
13
Package Weight (in.)
19
Subclass
2
Freight Class
100
NMFC Code
Machine Guards iron steel or wire
NMFC Number
124560
LTL Freight
Parcel
UNSPSC
23152206
HTSUS Number
7326.90.8688
USMCA HS
7326.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
30 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: G6-12-B

G6-12-B

Steel Structural Rack Guard 7-3/4 In. x 8-1/16 In. x 12-1/4 In. Yellow

A structural Rack Guard with rubber bumper is the economical way to protect against damage to pallet racking and wall corners. Easy to install to concrete surface. Four (4) mounting holes for maximum stability. Installation hardware sold separately. Assembly required.

  • Heavy-duty steel "C" channel construction provides rugged long lasting use
  • Powder coat yellow provides an attractive safety finish
  • Four pre-drilled mounting holes in base plate allow quick lag down installation
  • Economical design provides safety at an affordable cost

Core Data

Assembled Weight: 15 Assembled Size: 8.0625"W x 7.75"L x 12.25"H Color: Yellow
Total Ship Weight: 19 Package 1 Size: 9"W x 14"D x 13"H Freight: Parcel

Specifications

Construction Steel C Channel (in.): 6
C Channel Thickness (in.): 0.20
Usable Width (in.): 4-9/16
Usable Length (in.): 2-7/8
Mounting Hole (qty.): 4
Mounting Hole Size (in.): 5/8
Plate Width (in.): 8-1/16
Plate Length (in.): 6
Mounting Plate Thickness (in.): 1/4
