Product Data Sheet

  Print to PDF
  All Products   Protective Barriers   Guard Rail Systems   Structural Guard Rails (drop-in and bolt-on style) GR-F2R-BO-1-YL
Product Image

Visual Reference

GR-F2R-BO-1-YL
GR-F2R-BO-1-YL
GR-F2R-BO-1-YL
GR-F2R-BO-1-YL
GR-F2R-BO-1-YL
GR-F2R-BO-1-YL
GR-F2R-BO-1-YL
GR-F2R-BO-1-YL
GR-F2R-BO-1-YL

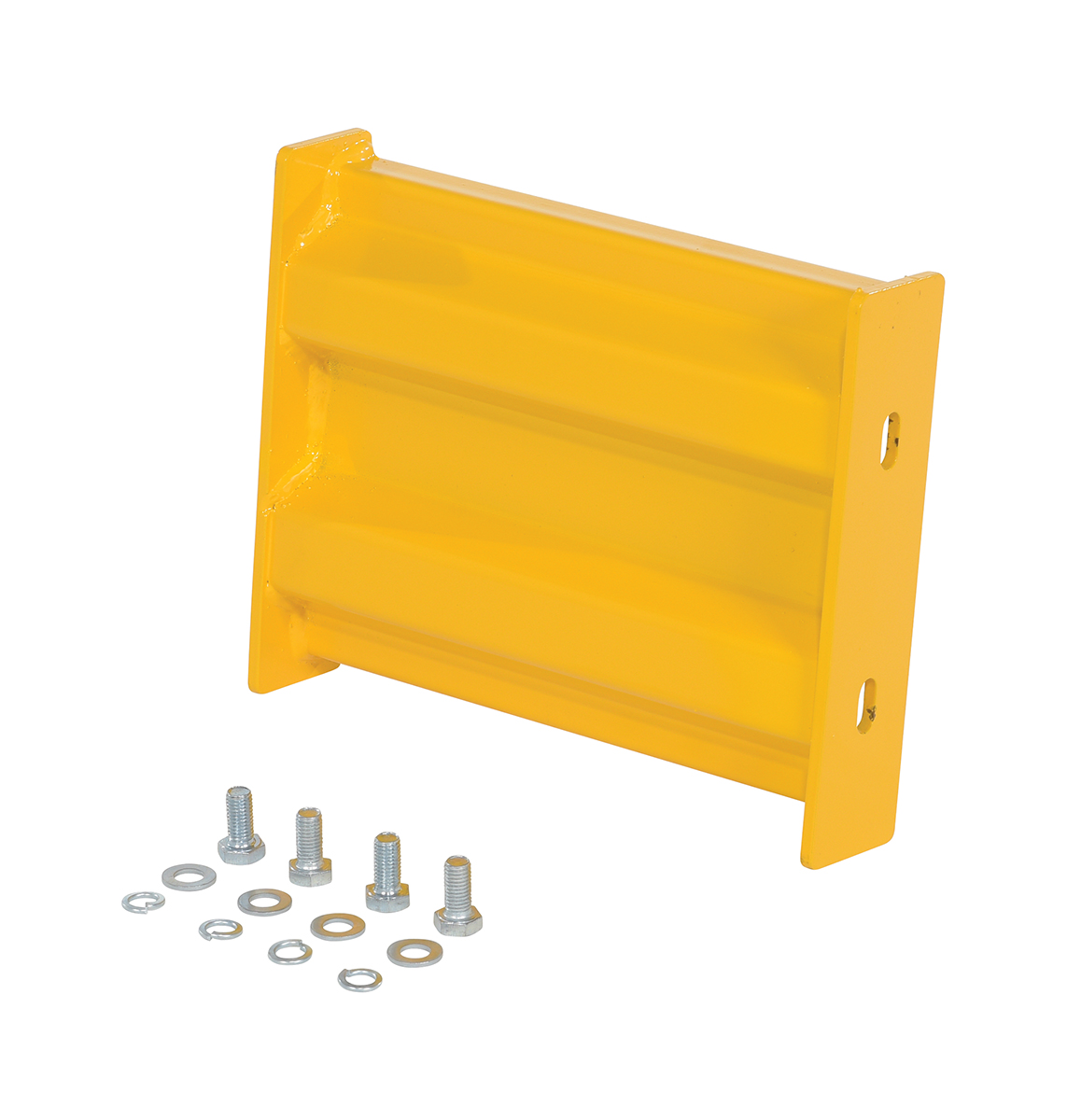

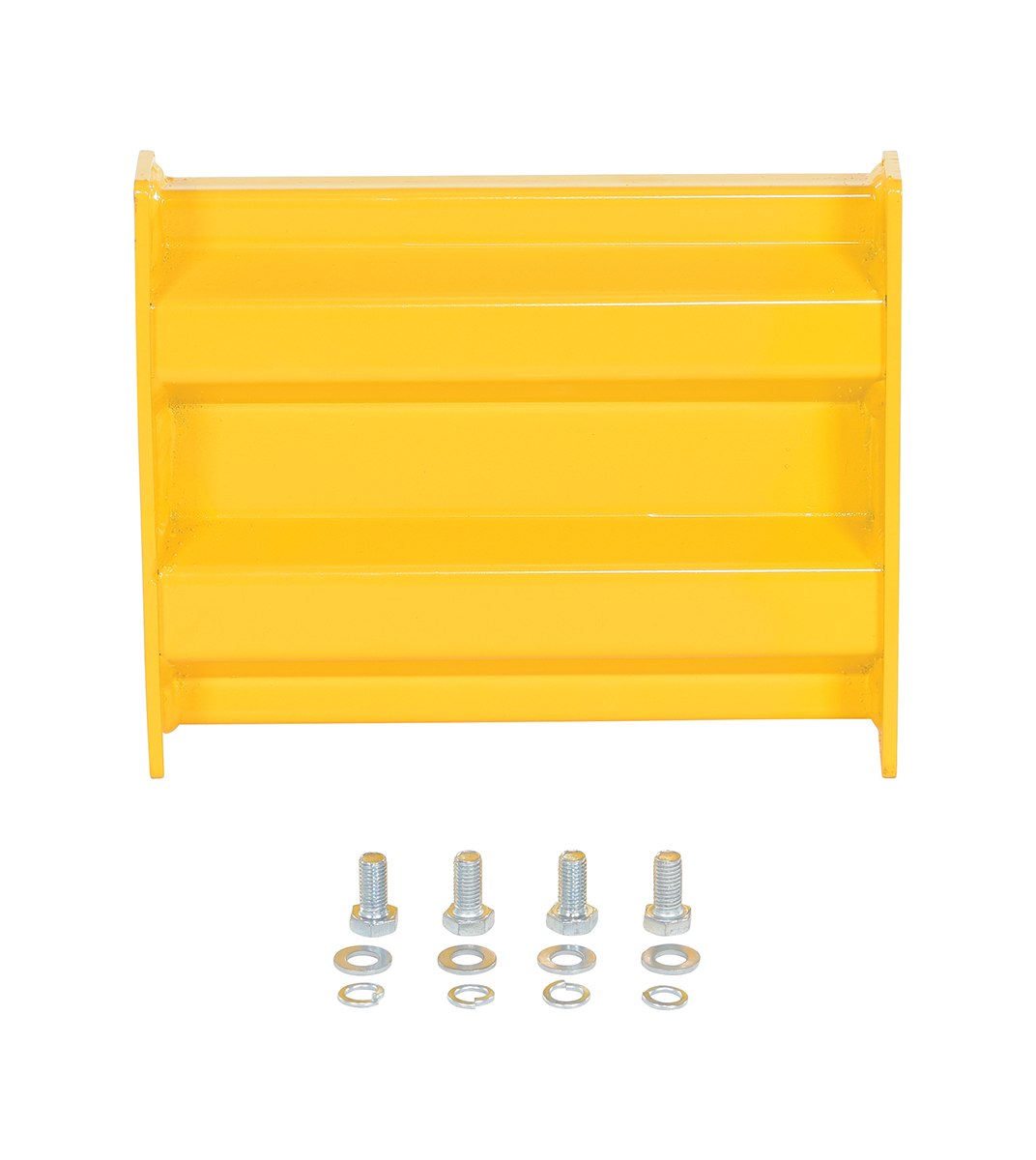

Steel 2 Ribbed Bolt On Style Guard Rail 12 In. Length Yellow

2-Rib Bolt-on Style Guard Rail for Warehouse Traffic Control and Collision Protection, 12 in. Length
Protecting equipment, inventory, and most importantly individuals from damage or injury is always a concern. But, with a structurally strong steel guard rail those worries can be eased. This rail is double ribbed for impact resistance both indoors and out. A bolt-on style rail design allows the user to fasten the rails securely in place. Powder coated finish for built in added toughness. Additional posts are available and sold separately. If adding a rail to an existing rail and post section, only a single post is needed.
Product Status
Available QuickShip Non-Returnable
Key Features
  • 2 Ribbed design for secure protection
  • Yellow baked-in powder-coated finish for added toughness
  • Bolt-on style rail for secure positioning
  • Pre drilled surface mounting holes
Quick Actions

Product Resources

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   360 Image   90 Days Warranty
Product Data

Core Data

Assembled Weight 8 lbs

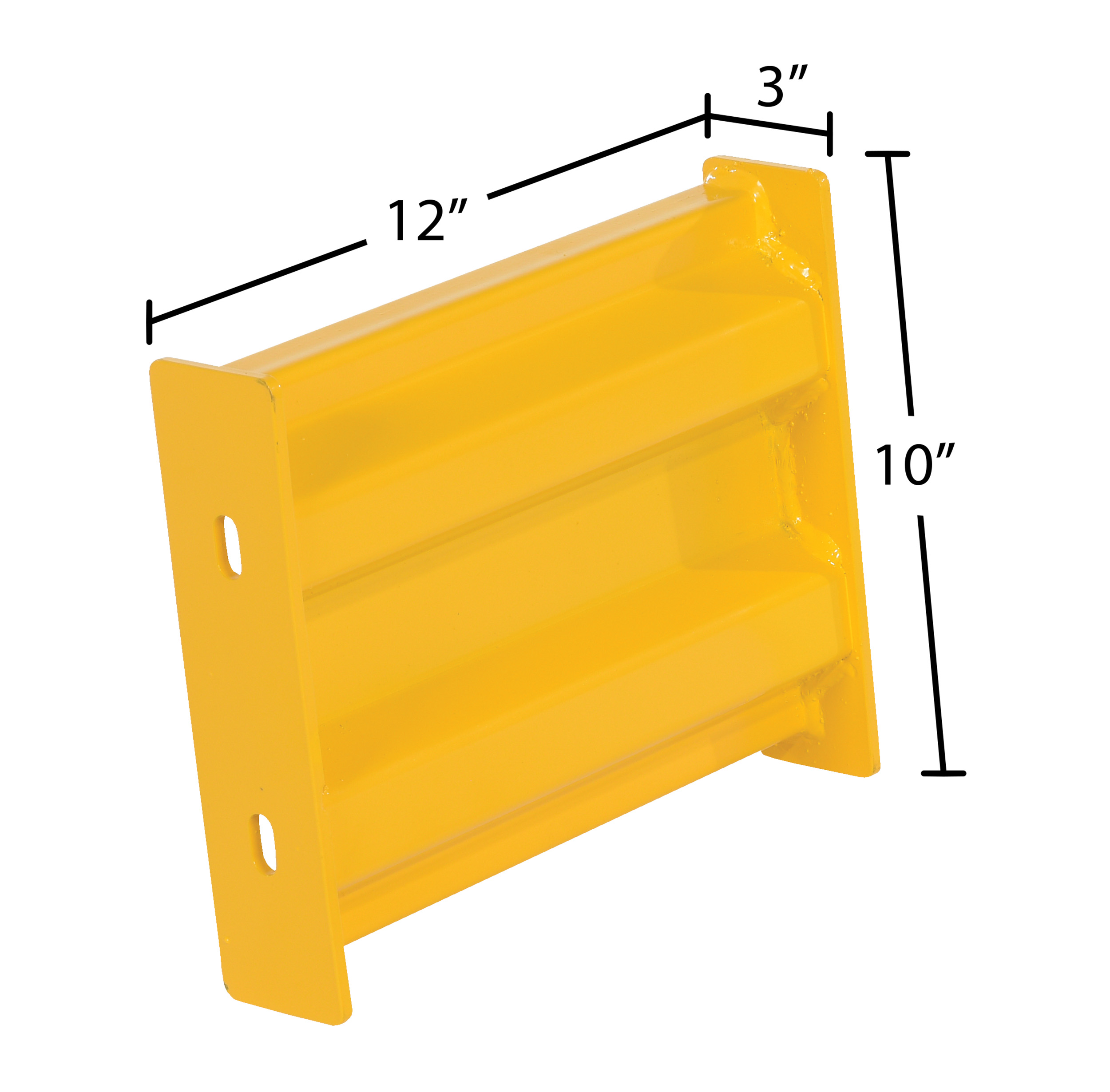

Assembled Size 12"W x 3"L x 10"H
Total Ship Weight 8 lbs
Package 1 Size 12"W x 4"D x 10"H
Color / Finish Yellow
Freight Type Parcel

Additional Attributes

Mounting Post (qty.) 2
Extended Product Details

Marketing Specs.

MFG Model # (Series)
GR-F2R-BO-1-YL
Product Name
Steel 2 Ribbed Bolt On Style Guard Rail 12 In. Length Yellow
UPC
691215339483
GTIN
00691215339483
Taxonomy 1
Hardware
Taxonomy 2
Safety & Security
Taxonomy 3
Traffic Control
Assembled Depth (in.)
3
Assembled Width(in.)
12
Assembled Height(in.)
10
Assembled Weight(lbs.)
8
Color/Finish
Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
TR
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
4
Package Width (in.)
12
Package Height (in.)
10
Package Weight (in.)
8
Subclass
12
Freight Class
65
NMFC Code
RAILINGS
NMFC Number
35255
LTL Freight
Parcel
UNSPSC
30121717
HTSUS Number
7308.90.9590
USMCA HS
7308.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
N
Returnable? Y/N
N
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: GR-F2R-BO-1-YL

GR-F2R-BO-1-YL

Steel 2 Ribbed Bolt On Style Guard Rail 12 In. Length Yellow

Protecting equipment, inventory, and most importantly individuals from damage or injury is always a concern. But, with a structurally strong steel guard rail those worries can be eased. This rail is double ribbed for impact resistance both indoors and out. A bolt-on style rail design allows the user to fasten the rails securely in place. Powder coated finish for built in added toughness. Additional posts are available and sold separately. If adding a rail to an existing rail and post section, only a single post is needed.

  • 2 Ribbed design for secure protection
  • Yellow baked-in powder-coated finish for added toughness
  • Bolt-on style rail for secure positioning
  • Pre drilled surface mounting holes

Core Data

Assembled Weight: 8 Assembled Size: 12"W x 3"L x 10"H Color: Yellow
Total Ship Weight: 8 Package 1 Size: 12"W x 4"D x 10"H Freight: Parcel

Specifications

Mounting Post (qty.): 2
