Steel Rigid Tube Post Bolt On Style 18 In. For 3 Ribbed Bolt On Style Guard Rails Yellow

3-Rib Bolt-On Rigid Guard Rail Post for Warehouse Traffic Control and Collision Protection, 18 in., Yellow Finish
Protecting equipment, inventory, and most importantly individuals from damage or injury is always a concern. But, with a structurally strong guard rail those worries can be eased. Rails have 3 ribs for impact resistance both indoors and out. A bolt-on style rail design allows the user to fasten the rails securely in place. Powder coated finish for built in added toughness. Additional posts are available and sold separately. If adding a rail to an existing rail and post section, only a single post is needed.
Product Status
Available QuickShip
Key Features
  • 3 Ribbed design for added strength
  • Yellow baked-in powder-coated finish for added toughness
  • Bolt-on style rail for secure positioning
  • Pre drilled surface mounting holes
Quick Actions

Product Resources

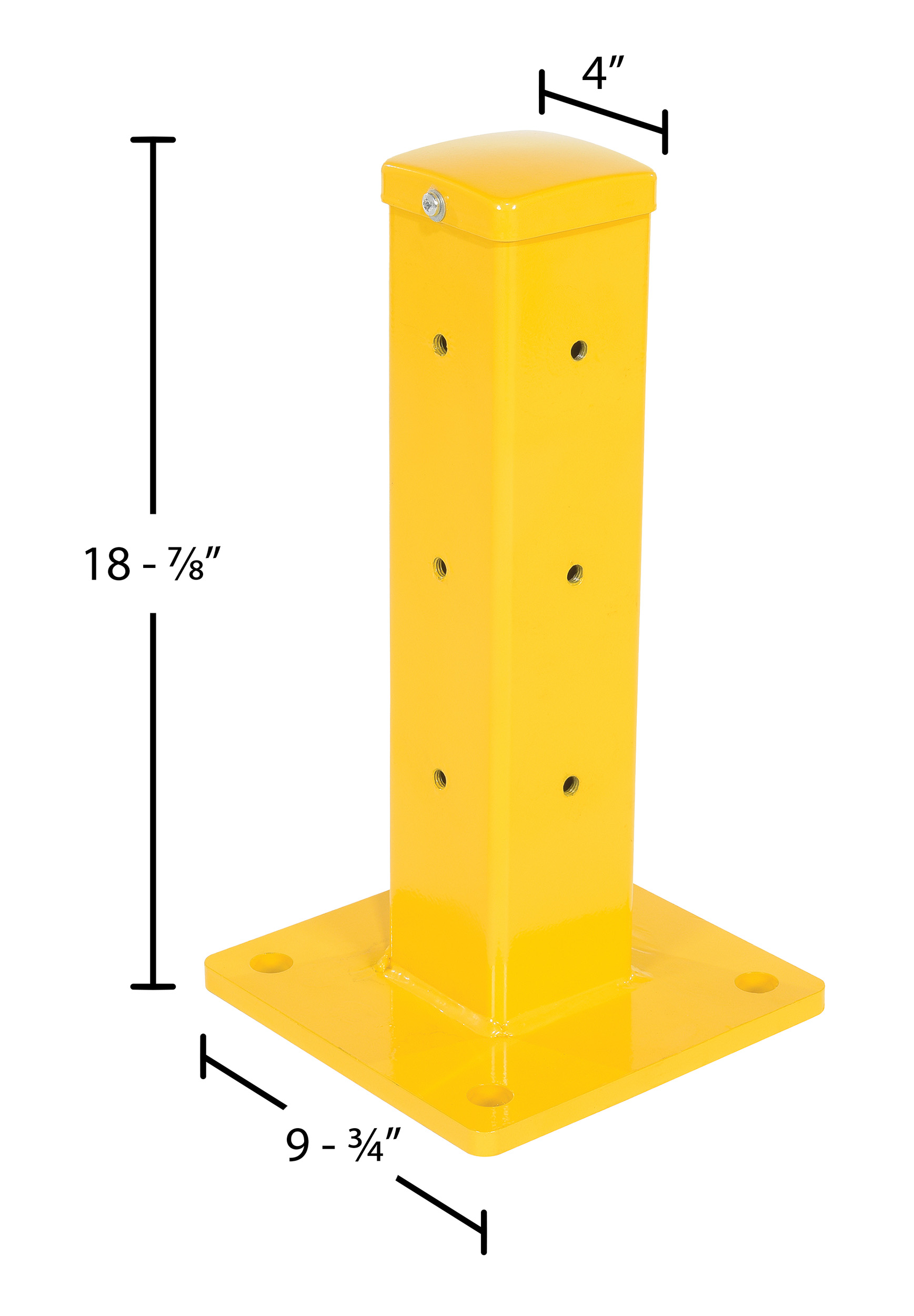

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   90 Days Warranty
Product Data

Core Data

Assembled Weight 36 lbs
Assembled Size 9.875"W x 9.875"L x 18.875"H
Total Ship Weight 38 lbs
Package 1 Size 12"W x 12"D x 25"H
Color / Finish Yellow
Freight Type Parcel

Additional Attributes

Impact Capacity (Lbs.) 10,000
Base Plate Width (in.) 9.875
Base Plate Length (in.) 9.875
Base Plate Mounting Holes 4
Base Plate Hole Diameter 0.9375
Base Plate Thickness 0.625
Gauge 3
Extended Product Details

Marketing Specs.

MFG Model # (Series)
GR-F3R-BO-TP18-YL
Product Name
Steel Rigid Tube Post Bolt On Style 18 In. For 3 Ribbed Bolt On Style Guard Rails Yellow
UPC
691215327923
GTIN
00691215327923
Taxonomy 1
Hardware
Taxonomy 2
Safety & Security
Taxonomy 3
Safety Barriers
Taxonomy 4
Barricade Bases / Feet
Assembled Depth (in.)
9.875
Assembled Width(in.)
9.875
Assembled Height(in.)
18.875
Assembled Weight(lbs.)
36
Color/Finish
Yellow
Material
Steel
Option? Y/N
Y
Sell UOM
EA-Each
Country Of Origin
IN
Approval Drawing Required? Y/N
N
Assembly
Assembled
Compatible Products
Structural Guard Rails

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
12
Package Width (in.)
12
Package Height (in.)
25
Package Weight (in.)
38
Subclass
19
Freight Class
70
NMFC Code
POSTS OR POLES, WITH OR WITHOUT BASES
NMFC Number
161130
LTL Freight
Parcel
UNSPSC
30121717
HTSUS Number
7326.90.8688
USMCA HS
7326.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: GR-F3R-BO-TP18-YL

GR-F3R-BO-TP18-YL

Steel Rigid Tube Post Bolt On Style 18 In. For 3 Ribbed Bolt On Style Guard Rails Yellow

Protecting equipment, inventory, and most importantly individuals from damage or injury is always a concern. But, with a structurally strong guard rail those worries can be eased. Rails have 3 ribs for impact resistance both indoors and out. A bolt-on style rail design allows the user to fasten the rails securely in place. Powder coated finish for built in added toughness. Additional posts are available and sold separately. If adding a rail to an existing rail and post section, only a single post is needed.

  • 3 Ribbed design for added strength
  • Yellow baked-in powder-coated finish for added toughness
  • Bolt-on style rail for secure positioning
  • Pre drilled surface mounting holes

Core Data

Assembled Weight: 36 Assembled Size: 9.875"W x 9.875"L x 18.875"H Color: Yellow
Total Ship Weight: 38 Package 1 Size: 12"W x 12"D x 25"H Freight: Parcel

Specifications

Impact Capacity (Lbs.): 10,000
Base Plate Width (in.): 9.875
Base Plate Length (in.): 9.875
Base Plate Mounting Holes: 4
Base Plate Hole Diameter: 0.9375
Base Plate Thickness: 0.625
Gauge: 3
