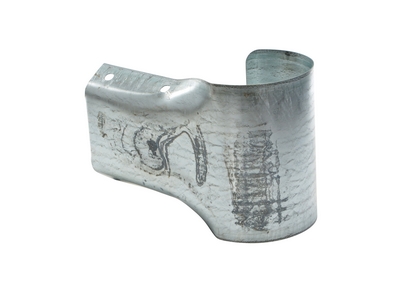

Steel Buffer End Guard For Guard Rail System Silver

Buffer End for Guard Rail for Warehouse Traffic Control and Collision Protection, Silver Finish
The buffer end guard is an addition to the guard rail system. The steel construction allows for constant use in harsh conditions. The hardware to mount the unit is included.
Product Status
Available QuickShip
Key Features
  • Simple installation for immediate use
  • Strong construction for added strength
  • Creates a smooth edge for safety
  • Lightweight for one person handling
Quick Actions

Product Resources

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Highway Guard Rail Systems   Highway Guard Rail Systems   90 Days Warranty
Product Data

Core Data

Assembled Weight 20 lbs
Assembled Size 12.5"W x 25.4375"L x 16"H
Total Ship Weight 24 lbs
Package 1 Size 17"W x 25"D x 27"H
Color / Finish Silver
Freight Type Parcel

Additional Attributes

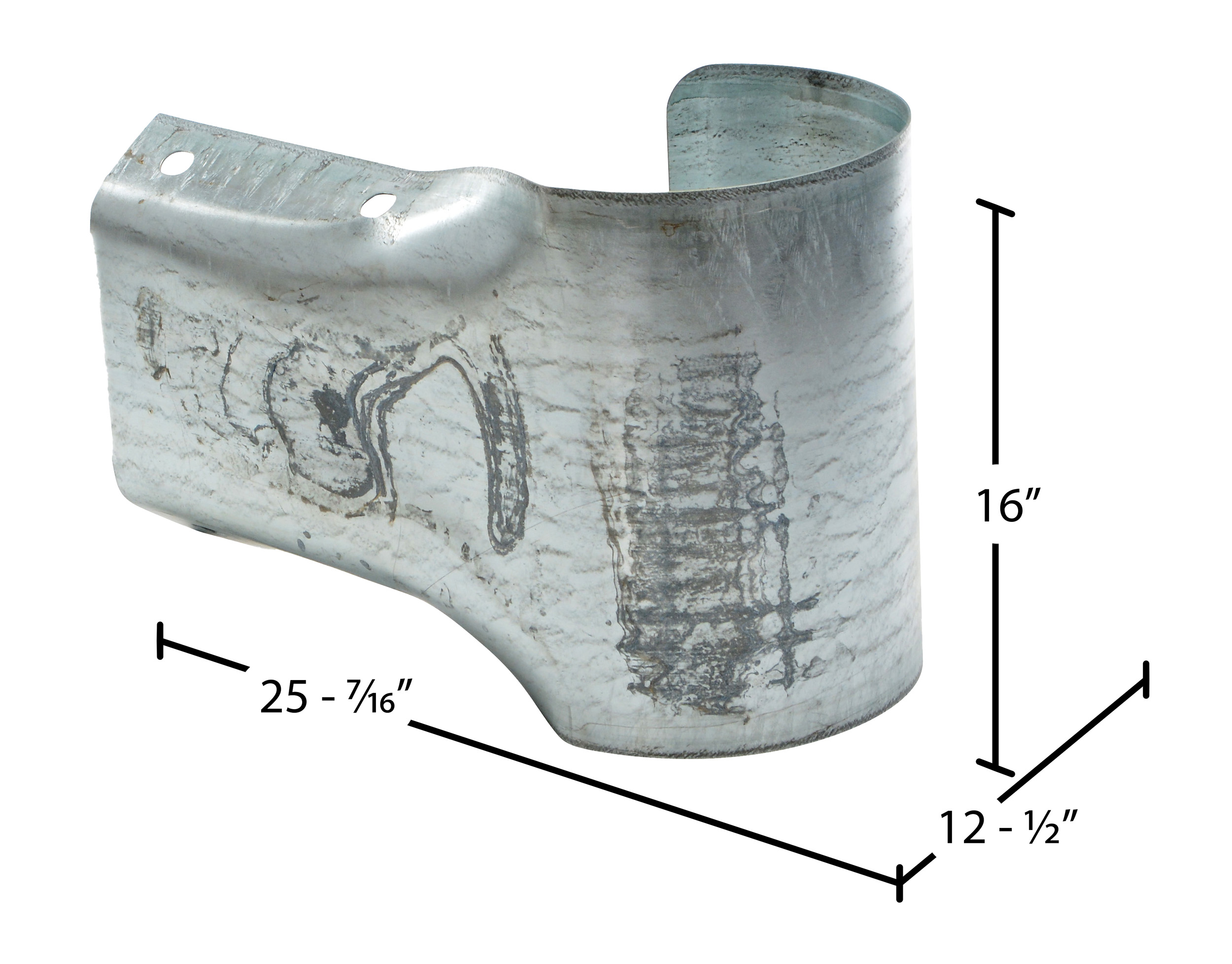

Adds to Length (in.) 11-7/8
Hardware (4) bolts, (4) washers, (4) nuts
Overall Depth (in.) 12-1/2
Overall Length (in.) 25-7/16
Overall Height (in.) 16
Extended Product Details

Marketing Specs.

MFG Model # (Series)
GR-H2R-BG
Product Name
Steel Buffer End Guard For Guard Rail System Silver
UPC
691215021487
GTIN
00691215021487
Taxonomy 1
Hardware
Taxonomy 2
Builders Hardware
Taxonomy 3
Mending Plates, Brackets & Braces
Assembled Depth (in.)
25.4375
Assembled Width(in.)
12.5
Assembled Height(in.)
16
Assembled Weight(lbs.)
20
Color/Finish
Silver
Material
Steel
Option? Y/N
Y
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled
Compatible Products
Highway Guard Rail Systems

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
25
Package Width (in.)
17
Package Height (in.)
27
Package Weight (in.)
24
Subclass
8
Freight Class
300
NMFC Code
RAILINGS
NMFC Number
35255
LTL Freight
Parcel
UNSPSC
30121717
HTSUS Number
7308.90.9590
USMCA HS
7308.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: GR-H2R-BG

GR-H2R-BG

Steel Buffer End Guard For Guard Rail System Silver

The buffer end guard is an addition to the guard rail system. The steel construction allows for constant use in harsh conditions. The hardware to mount the unit is included.

  • Simple installation for immediate use
  • Strong construction for added strength
  • Creates a smooth edge for safety
  • Lightweight for one person handling

Core Data

Assembled Weight: 20 Assembled Size: 12.5"W x 25.4375"L x 16"H Color: Silver
Total Ship Weight: 24 Package 1 Size: 17"W x 25"D x 27"H Freight: Parcel

Specifications

Adds to Length (in.): 11-7/8
Hardware: (4) bolts, (4) washers, (4) nuts
Overall Depth (in.): 12-1/2
Overall Length (in.): 25-7/16
Overall Height (in.): 16
