Galvanized Steel Straight Guard Rail 120 In. Length Gray

Galvanized Guard Rail System for Warehouse Traffic Control and Collision Protection, 120 in. Length
Protect personnel and equipment both visually and physically with this guard rail system. This economical system can be utilized indoors or outdoors. Ideal for protecting corners of buildings and machinery from fork truck and vehicle damage. Choose between one, two, or three high rail systems. Additional posts are available and sold separately. If adding a rail to an existing rail and post section, only a single post is needed.
Product Status
Out of Stock QuickShip
Key Features
  • Guard rail design protects equipment visually and physically
  • Economical system can be utilized indoors or outdoors
  • Heavy-duty design protects corners of buildings and machinery from fork truck and vehicle damage
  • Steel offers strong reliable protection
Quick Actions

Product Resources

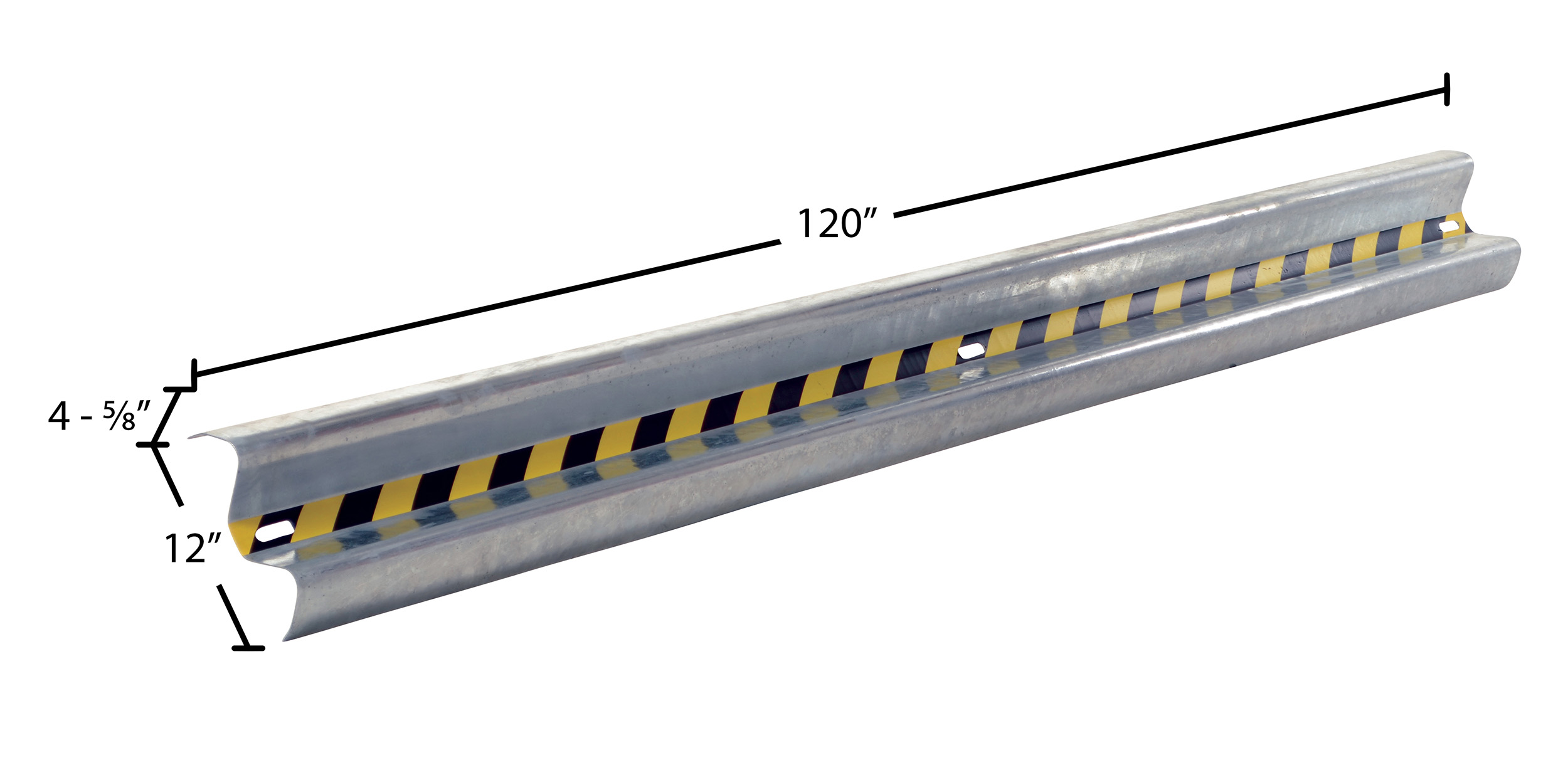

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   Highway Guard Rail Systems   90 Days Warranty
Product Data

Core Data

Assembled Weight 76 lbs
Assembled Size 4.625"W x 120"L x 12"H
Total Ship Weight 104 lbs
Package 1 Size 14"W x 130"D x 9"H
Color / Finish Gray
Freight Type LTL Palletized

Additional Attributes

Mounting Posts Required (qty.) 3
Rail Style Straight
Impact Resistance 4,000 lb. @ 4 mph
Overlap on Shared Post Deduct (in.) 5
Rail Mounting Hole Slotted (in.) 3/4 x 2-1/2
Extended Product Details

Marketing Specs.

MFG Model # (Series)
GR-H2R-BO-10-HDG
Product Name
Galvanized Steel Straight Guard Rail 120 In. Length Gray
UPC
691215021326
GTIN
00691215021326
Taxonomy 1
Hardware
Taxonomy 2
Safety & Security
Taxonomy 3
Traffic Control
Assembled Depth (in.)
120
Assembled Width(in.)
4.625
Assembled Height(in.)
12
Assembled Weight(lbs.)
76
Color/Finish
Gray
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
130
Package Width (in.)
14
Package Height (in.)
9
Package Weight (in.)
104
Subclass
10
Freight Class
92.5
NMFC Code
RAILINGS
NMFC Number
35255
LTL Freight
LTL Palletized
UNSPSC
30121717
HTSUS Number
7326.90.8688
USMCA HS
7326.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: GR-H2R-BO-10-HDG

GR-H2R-BO-10-HDG

Galvanized Steel Straight Guard Rail 120 In. Length Gray

Protect personnel and equipment both visually and physically with this guard rail system. This economical system can be utilized indoors or outdoors. Ideal for protecting corners of buildings and machinery from fork truck and vehicle damage. Choose between one, two, or three high rail systems. Additional posts are available and sold separately. If adding a rail to an existing rail and post section, only a single post is needed.

  • Guard rail design protects equipment visually and physically
  • Economical system can be utilized indoors or outdoors
  • Heavy-duty design protects corners of buildings and machinery from fork truck and vehicle damage
  • Steel offers strong reliable protection

Core Data

Assembled Weight: 76 Assembled Size: 4.625"W x 120"L x 12"H Color: Gray
Total Ship Weight: 104 Package 1 Size: 14"W x 130"D x 9"H Freight: LTL Palletized

Specifications

Mounting Posts Required (qty.): 3
Rail Style: Straight
Impact Resistance: 4,000 lb. @ 4 mph
Overlap on Shared Post Deduct (in.): 5
Rail Mounting Hole Slotted (in.): 3/4 x 2-1/2
