Product Data Sheet

  Print to PDF
  All Products   Protective Barriers   Guard Rail Systems   Highway Guard Rail Systems GR-H2R-TG
Product Image

Visual Reference

GR-H2R-TG
GR-H2R-TG
GR-H2R-TG
GR-H2R-TG
GR-H2R-TG
GR-H2R-TG
GR-H2R-TG
GR-H2R-TG
GR-H2R-TG

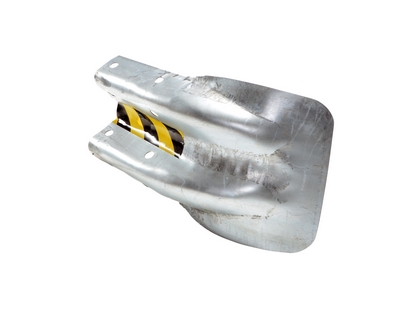

Steel Flared End Guard 28-5/8 In. x 9-5/8 In. x 16-1/4 In. For Guard Rail Systems Silver

Guard Rail End for Warehouse Traffic Control and Collision Protection, 28-5/8 in. x 9-5/8 in. x 16-1/4 in.
The flared end guard is an addition to the guard rail system. The steel construction allows for constant use in harsh conditions. The hardware to mount the unit is included.
Product Status
Available QuickShip
Key Features
  • Strong construction for added strength
  • Creates a smooth edge for safety
  • Yellow strips for visibility
  • Simple installation for immediate use
Quick Actions

Product Resources

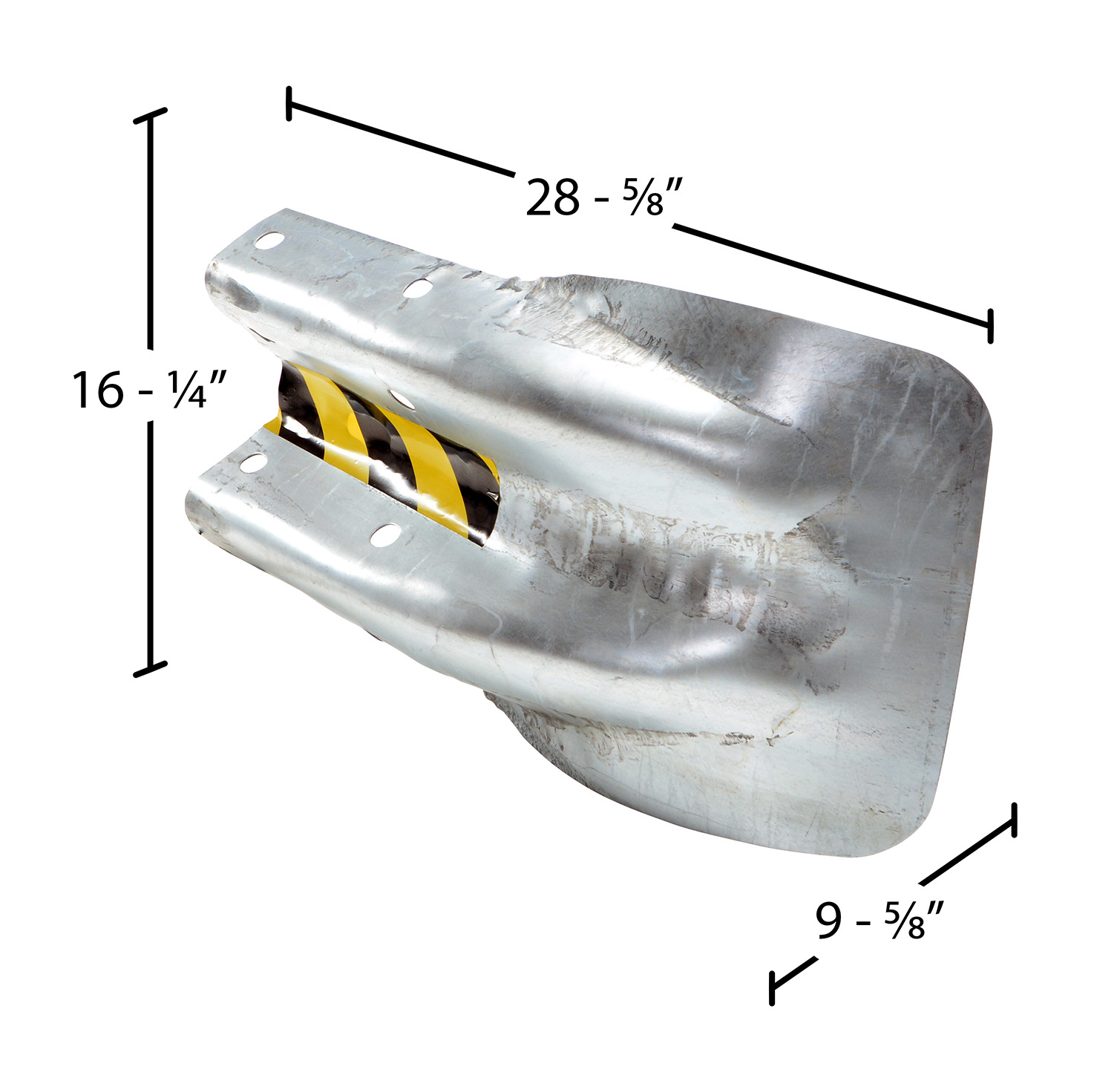

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Highway Guard Rail Systems   Highway Guard Rail Systems   90 Days Warranty
Product Data

Core Data

Assembled Weight 40 lbs
Assembled Size 9.625"W x 28.625"L x 16.25"H
Total Ship Weight 20 lbs
Package 1 Size 17"W x 31"D x 8"H
Color / Finish Silver
Freight Type Parcel

Additional Attributes

Adds to Length (in.) 16-1/8
End Guards Flared
Hardware (8) bolts, (8) washers, (8) nuts
Overall Depth (in.) 9-5/8
Overall Length (in.) 28-5/8
Overall Height (in.) 16-1/4
Extended Product Details

Marketing Specs.

MFG Model # (Series)
GR-H2R-TG
Product Name
Steel Flared End Guard 28-5/8 In. x 9-5/8 In. x 16-1/4 In. For Guard Rail Systems Silver
UPC
691215021531
GTIN
00691215021531
Taxonomy 1
Hardware
Taxonomy 2
Builders Hardware
Taxonomy 3
Mending Plates, Brackets & Braces
Assembled Depth (in.)
28.625
Assembled Width(in.)
9.625
Assembled Height(in.)
16.25
Assembled Weight(lbs.)
40
Color/Finish
Silver
Material
Steel
Option? Y/N
Y
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled
Compatible Products
Highway Guard Rail Systems

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
31
Package Width (in.)
17
Package Height (in.)
8
Package Weight (in.)
20
Subclass
9
Freight Class
150
NMFC Code
RAILINGS
NMFC Number
35255
LTL Freight
Parcel
UNSPSC
30121717
HTSUS Number
7326.90.8688
USMCA HS
7326.90
Origin Criterion
B
Certification Indicator
A
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: GR-H2R-TG

GR-H2R-TG

Steel Flared End Guard 28-5/8 In. x 9-5/8 In. x 16-1/4 In. For Guard Rail Systems Silver

The flared end guard is an addition to the guard rail system. The steel construction allows for constant use in harsh conditions. The hardware to mount the unit is included.

  • Strong construction for added strength
  • Creates a smooth edge for safety
  • Yellow strips for visibility
  • Simple installation for immediate use

Core Data

Assembled Weight: 40 Assembled Size: 9.625"W x 28.625"L x 16.25"H Color: Silver
Total Ship Weight: 20 Package 1 Size: 17"W x 31"D x 8"H Freight: Parcel

Specifications

Adds to Length (in.): 16-1/8
End Guards: Flared
Hardware: (8) bolts, (8) washers, (8) nuts
Overall Depth (in.): 9-5/8
Overall Length (in.): 28-5/8
Overall Height (in.): 16-1/4
