  All Products   Fork Truck Attachments   Hoppers   H Style Bump & Dump Hoppers H-100-LD-BD
Product Image

Visual Reference

H-100-LD-BD
H-100-LD-BD
H-100-LD-BD
H-100-LD-BD
H-100-LD-BD

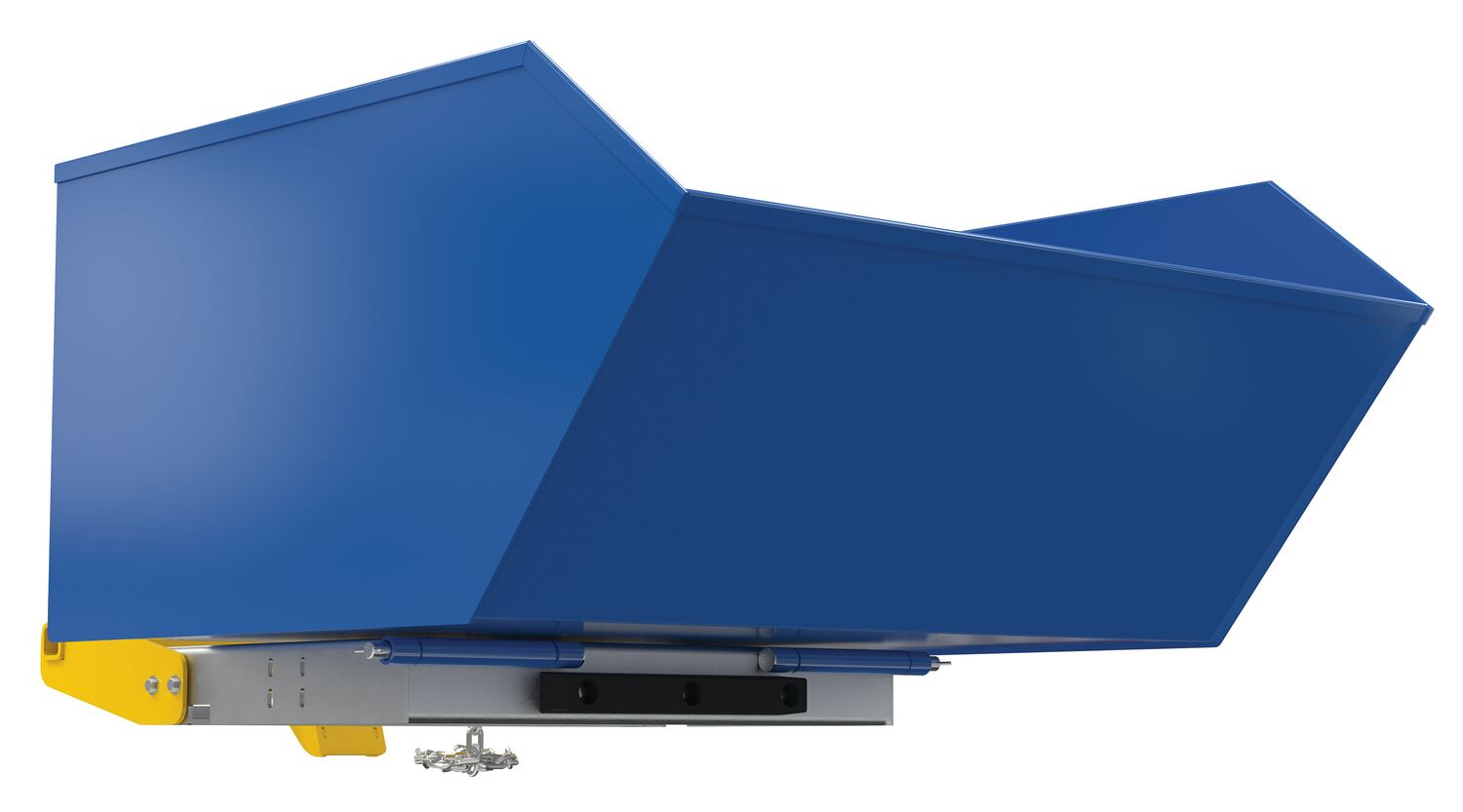

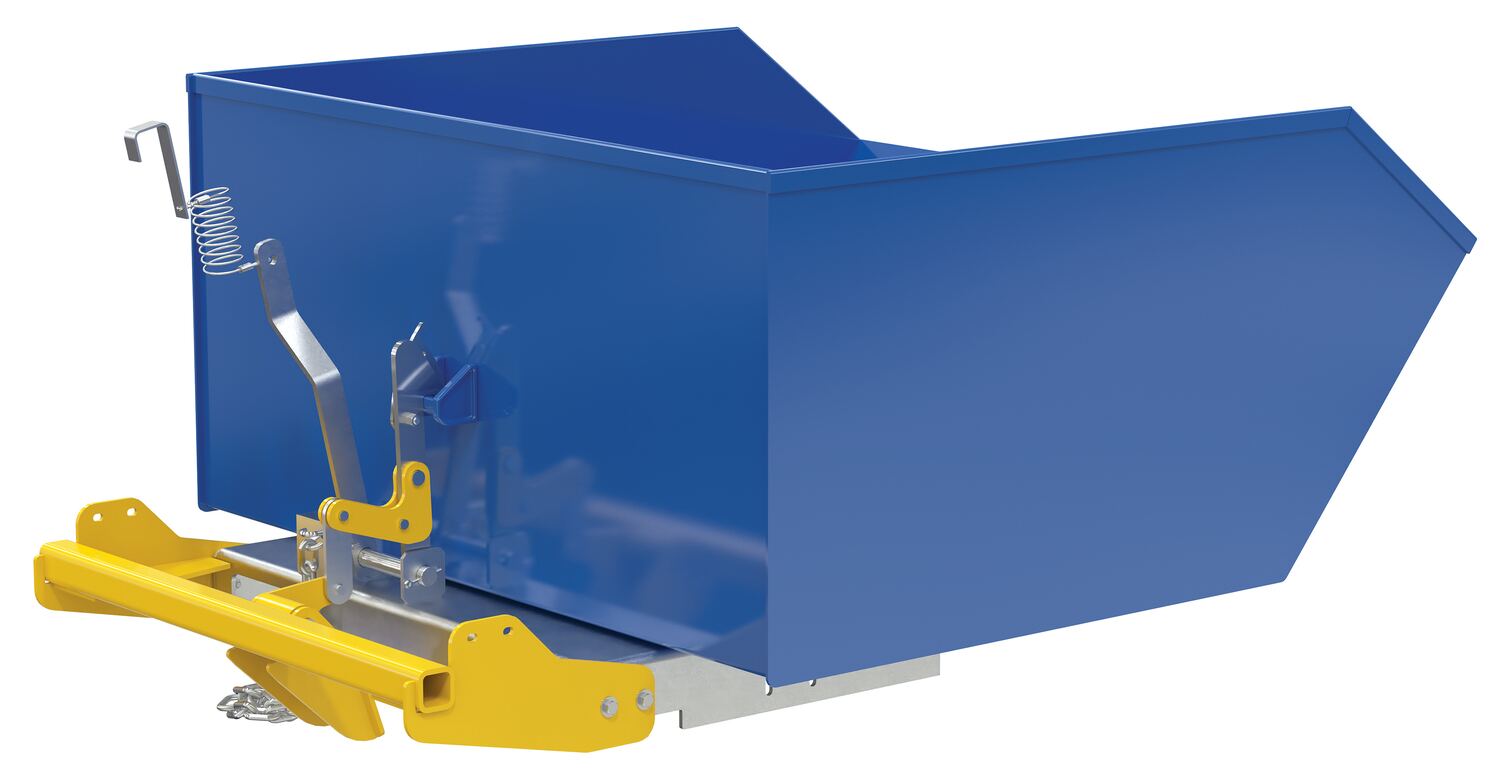

Steel Light Duty Bump & Dump Hopper 1 Cubic Yard 2,000 Lb. Capacity Blue

Bump and Dump Hopper for Forklift Material Handling and Controlled Load Discharge, 2,000 lb. Capacity with 1 Cubic Yard, Blue Finish
A self-dumping hopper with a bumper release defends worker safety. The hopper is automatically released to dump, when the edge of the hopper is contacted. Hopper then returns to an upright and locked position automatically after it dumps. A cable is also included that may be operated from the seat of the fork truck to manually dump the hopper. A safety restraint is provided to secure the hopper to the fork truck. Steel construction with blue baked-in powder-coated finish for added toughness. Hopper must be attached to the fork truck when dumping.
Product Status
Available Non-Returnable
Key Features
  • Capped fork pockets
  • Low Profile design
  • 90 Degree dump angle
  • Cushioned rubber bump stop
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   H Style Bump & Dump Hoppers Manual   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 385 lbs
Assembled Size 51"W x 62"L x 28.125"H
Total Ship Weight 385 lbs
Package 1 Size 51"W x 62"D x 29"H
Color / Finish Blue
Freight Type LTL Loose

Additional Attributes

Uniform Capacity (lb.) 2,000
Volume (cu. yd.) 1
Steel (gauge) 12
Fork Pockets (in.) 7 x 2
Fork Pocket Center (in.) 21-5/8
Overall Width (in.) 51
Overall Length (in.) 61-3/8
Overall Height (in.) 28-1/8
Extended Product Details

Marketing Specs.

MFG Model # (Series)
H-100-LD-BD
Product Name
Steel Light Duty Bump & Dump Hopper 1 Cubic Yard 2,000 Lb. Capacity Blue
UPC
691215371117
GTIN
00691215371117
Taxonomy 1
Material Handling
Taxonomy 2
Forklift Attachments
Taxonomy 3
Hoppers & Accessories
Taxonomy 4
Hoppers
Assembled Depth (in.)
62
Assembled Width(in.)
51
Assembled Height(in.)
28.125
Assembled Weight(lbs.)
385
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
62
Package Width (in.)
51
Package Height (in.)
29
Package Weight (in.)
385
Subclass
1
Freight Class
200
NMFC Code
Hoppers or Bins a bulk material handling or storage
NMFC Number
99950
LTL Freight
LTL Loose
UNSPSC
25101916
HTSUS Number
7309.00.0090
USMCA HS
7309.00
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
N
Returnable? Y/N
N
California Prop 65 Compliant?
Yes
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: H-100-LD-BD

H-100-LD-BD

Steel Light Duty Bump & Dump Hopper 1 Cubic Yard 2,000 Lb. Capacity Blue

A self-dumping hopper with a bumper release defends worker safety. The hopper is automatically released to dump, when the edge of the hopper is contacted. Hopper then returns to an upright and locked position automatically after it dumps. A cable is also included that may be operated from the seat of the fork truck to manually dump the hopper. A safety restraint is provided to secure the hopper to the fork truck. Steel construction with blue baked-in powder-coated finish for added toughness. Hopper must be attached to the fork truck when dumping.

  • Capped fork pockets
  • Low Profile design
  • 90 Degree dump angle
  • Cushioned rubber bump stop

Core Data

Assembled Weight: 385 Assembled Size: 51"W x 62"L x 28.125"H Color: Blue
Total Ship Weight: 385 Package 1 Size: 51"W x 62"D x 29"H Freight: LTL Loose

Specifications

Uniform Capacity (lb.): 2,000
Volume (cu. yd.): 1
Steel (gauge): 12
Fork Pockets (in.): 7 x 2
Fork Pocket Center (in.): 21-5/8
Overall Width (in.): 51
Overall Length (in.): 61-3/8
Overall Height (in.): 28-1/8
