Product Data Sheet

  Print to PDF
  All Products   Fork Truck Attachments   Hoppers   Casters For Hoppers (D, R & H) H-CK4-SC6-2
Product Image

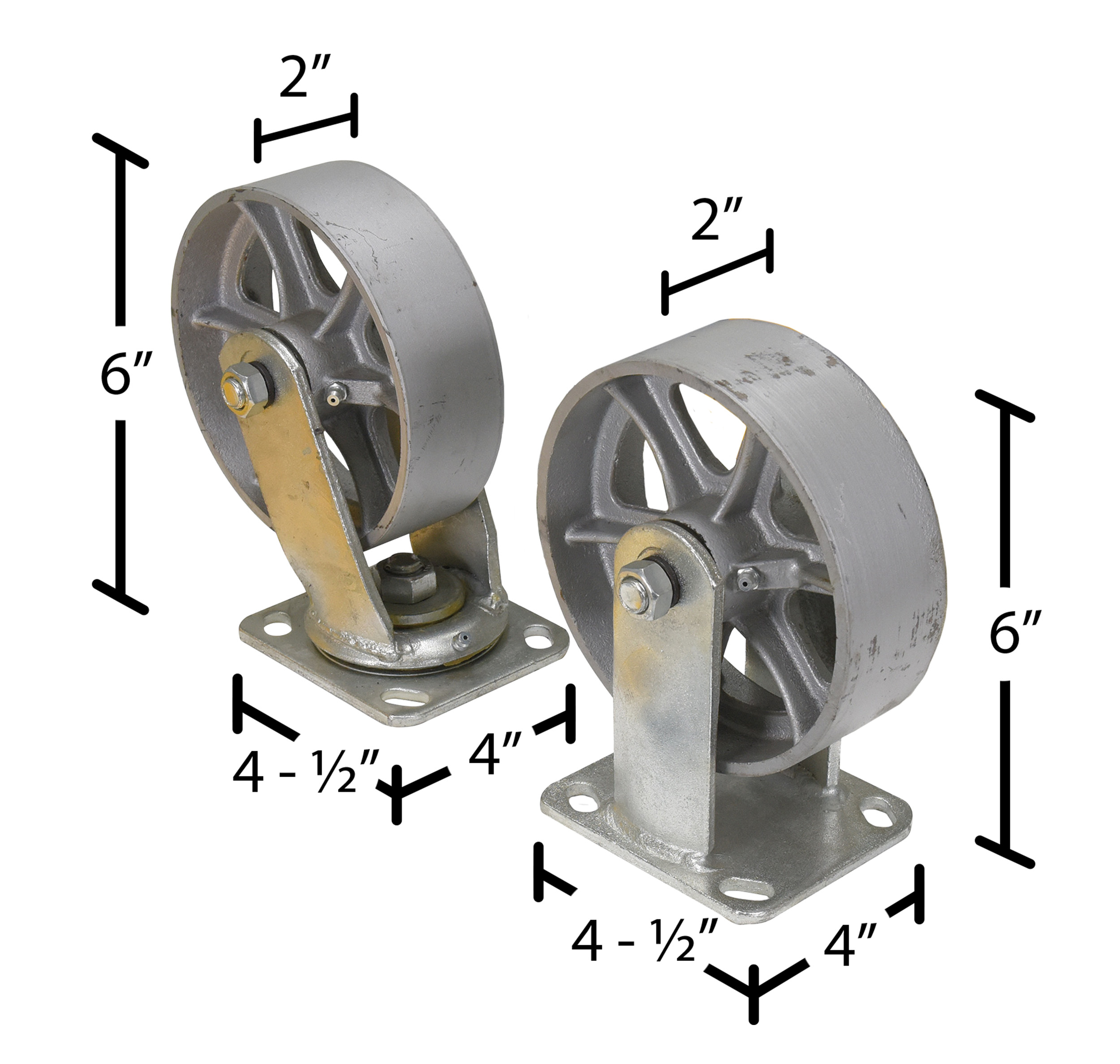

Visual Reference

H-CK4-SC6-2
H-CK4-SC6-2
H-CK4-SC6-2
H-CK4-SC6-2
H-CK4-SC6-2
H-CK4-SC6-2

Semi Steel Caster Kit 6 In. x 2 In. 4,800 Lb. Capacity Silver

Dumping Bin Caster for Industrial Carts and Mobile Material Handling Equipment, 4,800 lb. Capacity with 6 in. x 2 in., Silver Finish
Casters for the self-dumping hoppers create a more worthwhile portable unit. Casters are constructed of semi-steel for strength and durability throughout a lifetime of use. The high capacity allows the simple transport of heavy loads promoting task efficiency. Casters are bolted-on by utilizing the factory stamped hole in the fork tubes.
Product Status
Available QuickShip
Key Features
  • Designed to be easily installed on hoppers
  • Casters allow hopper units to be transported without the use of a fork truck
  • Robust assembly provides long lasting resilient use
  • Both rigid and swivel designs included for maneuverability
Quick Actions

Product Resources

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Hopper Casters Installation Manual   90 Days Warranty
Product Data

Core Data

Assembled Weight 28 lbs
Assembled Size 2"W x 6"L x 6"H
Total Ship Weight 31 lbs
Package 1 Size 10"W x 18"D x 11"H
Color / Finish Silver
Freight Type Parcel

Additional Attributes

Uniform Capacity (lb.) 4,800
Caster Quantity/Diameter/Width (in.) (4) 6 x 2
Caster Quantity/Type (2) Rigid (2) Swivel
Added Height H-Style Hopper (in.) 3-3/4
Flat Washer (qty.) 16
Carriage Bolt (qty.) 16
Lock Nut (qty.) 16
Bracket (qty.) 2
Pin, Bulldog Bolt and Nut Assembly 4
Top Plate Dimensions (in.) 4 x 4-1/2
Hole Spacing (Center to Center)(in.) 2-3/4 x 3-1/4
Carriage Bolt Size (in.) 3/8 x 1-1/2
Bull Dog Bolt Nut combo (in.) 3/8 x 5
Extended Product Details

Marketing Specs.

MFG Model # (Series)
H-CK4-SC6-2
Product Name
Semi Steel Caster Kit 6 In. x 2 In. 4,800 Lb. Capacity Silver
UPC
691215227124
GTIN
00691215227124
Taxonomy 1
Hardware
Taxonomy 2
Builders Hardware
Taxonomy 3
Casters & Glides
Taxonomy 4
Casters
Assembled Depth (in.)
6
Assembled Width(in.)
2
Assembled Height(in.)
6
Assembled Weight(lbs.)
28
Color/Finish
Silver
Material
Semi-Steel
Option? Y/N
Y
Sell UOM
ST-Set
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled
Compatible Products
H-Style Hoppers

Logistics

Packaging Level
PACK_OR_INNER_PACK
Package Depth (in.)
18
Package Width (in.)
10
Package Height (in.)
11
Package Weight (in.)
31
Freight Class
65
NMFC Code
Casters NOI in bags boxes or drums
NMFC Number
41725
LTL Freight
Parcel
UNSPSC
31162701
HTSUS Number
8716.90.3000
USMCA HS
8716.90
Origin Criterion
B
Certification Indicator
A
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: H-CK4-SC6-2

H-CK4-SC6-2

Semi Steel Caster Kit 6 In. x 2 In. 4,800 Lb. Capacity Silver

Casters for the self-dumping hoppers create a more worthwhile portable unit. Casters are constructed of semi-steel for strength and durability throughout a lifetime of use. The high capacity allows the simple transport of heavy loads promoting task efficiency. Casters are bolted-on by utilizing the factory stamped hole in the fork tubes.

  • Designed to be easily installed on hoppers
  • Casters allow hopper units to be transported without the use of a fork truck
  • Robust assembly provides long lasting resilient use
  • Both rigid and swivel designs included for maneuverability

Core Data

Assembled Weight: 28 Assembled Size: 2"W x 6"L x 6"H Color: Silver
Total Ship Weight: 31 Package 1 Size: 10"W x 18"D x 11"H Freight: Parcel

Specifications

Uniform Capacity (lb.): 4,800
Caster Quantity/Diameter/Width (in.): (4) 6 x 2
Caster Quantity/Type: (2) Rigid (2) Swivel
Added Height H-Style Hopper (in.): 3-3/4
Flat Washer (qty.): 16
Carriage Bolt (qty.): 16
Lock Nut (qty.): 16
Bracket (qty.): 2
Pin, Bulldog Bolt and Nut Assembly: 4
Top Plate Dimensions (in.): 4 x 4-1/2
Hole Spacing (Center to Center)(in.): 2-3/4 x 3-1/4
Carriage Bolt Size (in.): 3/8 x 1-1/2
Bull Dog Bolt Nut combo (in.): 3/8 x 5
