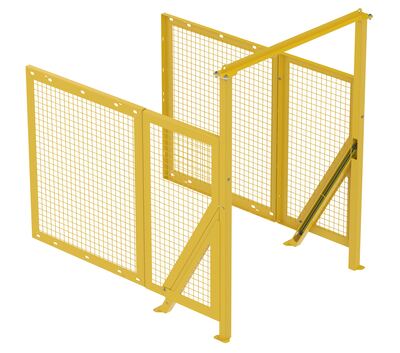

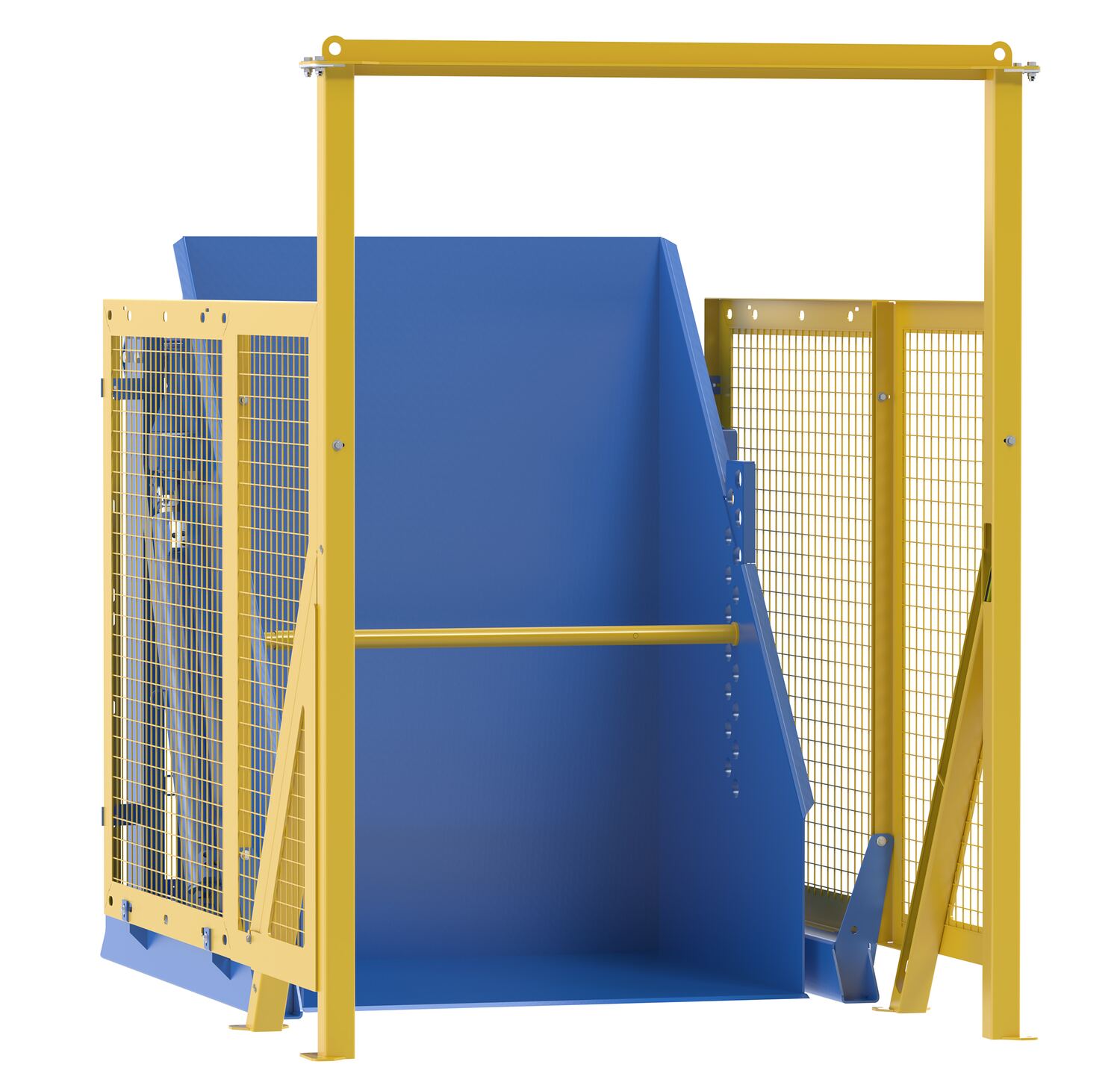

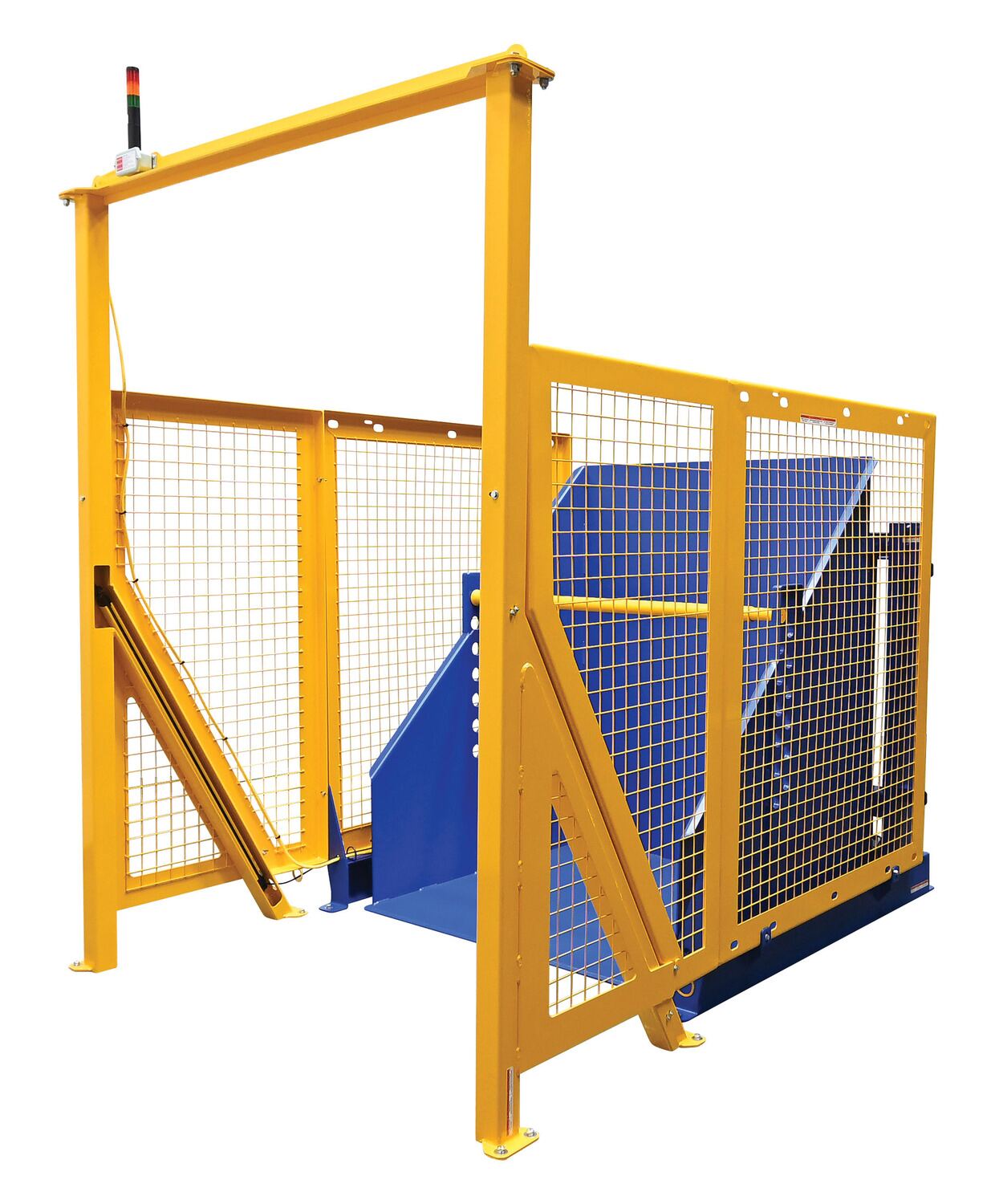

Factory Installed Steel Hydraulic Box Dumper Safety Light Curtain Option Yellow

Factory Installed Steel Hydraulic Box Dumper Safety Light Curtain Option for Forklift Material Handling and Controlled Load Discharge, Yellow Finish
Are you looking to improve your workplace safety? Are you tired of the ordinary and want something modern? If so, try a safety light curtain! Traditional box dumper safety gates need constant interaction, which wreak havoc on production efficiencies. On the contrary, the safety light curtain is so hands off; one might forget that it's even there! The photoelectric sensor of the light curtain keeps both personnel and work areas safe, while taking the element of human error away. If one or more of the 60 Infrared LED light beams are interrupted, the automatic safety switch will engage causing the operation of the box dumper to shut down. With this curtain protecting the entrance, the layout continues to give ample room for the box dumper to maneuver and operate in its natural way!
Product Status
Available Non-Returnable
Key Features
  • Steel mesh perimeter design
  • DC power supply
  • Force guided relay
  • Pushbutton enclosure
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   "HBD Series Hydraulic Box Dumpers Instruction Manual"   90 Days Warranty
Product Data

Core Data

Assembled Weight 436 lbs
Assembled Size 72.25"W x 93.1875"L x 95.75"H
Total Ship Weight 481 lbs
Package 1 Size 74"W x 96"D x 14"H
Color / Finish YELLOW
Freight Type LTL Palletized

Additional Attributes

Power Option DC
Enclosure Type Push Button
Factory Installed Only? Yes
Usable Width (in.) 63-1/4
Usable Height (in.) 92
Extended Product Details

Marketing Specs.

MFG Model # (Series)
HBD-SLC
Product Name
Factory Installed Steel Hydraulic Box Dumper Safety Light Curtain Option Yellow
UPC
691215377966
GTIN
00691215377966
Taxonomy 1
Hardware
Taxonomy 2
Safety & Security
Taxonomy 3
Safety Barriers
Taxonomy 4
Safety Barricades
Assembled Depth (in.)
93.1875
Assembled Width(in.)
72.25
Assembled Height(in.)
95.75
Assembled Weight(lbs.)
436
Color/Finish
YELLOW
Material
STEEL
Option? Y/N
Y
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
Y
Assembly
Assembled
Compatible Products
All HBD Models

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
96
Package Width (in.)
74
Package Height (in.)
14
Package Weight (in.)
481
Subclass
6
Freight Class
300
NMFC Code
Barricades, pedestrian, iron or steel or iron or steel and aluminum combined
NMFC Number
68005
LTL Freight
LTL Palletized
UNSPSC
47131611
HTSUS Number
7326.90.8688
USMCA HS
7326.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
N
Returnable? Y/N
N
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: HBD-SLC

HBD-SLC

Factory Installed Steel Hydraulic Box Dumper Safety Light Curtain Option Yellow

Are you looking to improve your workplace safety? Are you tired of the ordinary and want something modern? If so, try a safety light curtain! Traditional box dumper safety gates need constant interaction, which wreak havoc on production efficiencies. On the contrary, the safety light curtain is so hands off; one might forget that it's even there! The photoelectric sensor of the light curtain keeps both personnel and work areas safe, while taking the element of human error away. If one or more of the 60 Infrared LED light beams are interrupted, the automatic safety switch will engage causing the operation of the box dumper to shut down. With this curtain protecting the entrance, the layout continues to give ample room for the box dumper to maneuver and operate in its natural way!

  • Steel mesh perimeter design
  • DC power supply
  • Force guided relay
  • Pushbutton enclosure

Core Data

Assembled Weight: 436 Assembled Size: 72.25"W x 93.1875"L x 95.75"H Color: YELLOW
Total Ship Weight: 481 Package 1 Size: 74"W x 96"D x 14"H Freight: LTL Palletized

Specifications

Power Option: DC
Enclosure Type: Push Button
Factory Installed Only?: Yes
Usable Width (in.): 63-1/4
Usable Height (in.): 92
