Steel Manual Chain Hoist 20 Ft. Lift 2,000 Lb. Capacity Orange

Manual Hand Chain Hoist for Overhead Load Lifting and Controlled Positioning, 2,000 lb. Capacity, Orange Finish – Model HCH-2-20
This portable, lightweight hand Chain Hoist is durable and easy to operate. Compact design and low headroom allow installation in confined areas. Enclosed double ratchet pawls with self adjusting disc brake standard. Designed with a safety factory four (4) times rated capacity. Individually tested at 150% rated capacity. Features black chain tempered to ISO 3077, pull chain, hardened two-stage gears and forged steel upper and lower hooks with safety latches. Constructed of high quality steel components ideal for industrial applications.
Product Status
Out of Stock QuickShip
Key Features
  • Heavy-duty stamped steel housing provides sturdy coverage
  • Grade 80 load chain is hardened for safety and durability
  • Tested to 150% of the rated capacity
  • Meets ASME/ANSI B30.16 requirements
Quick Actions

Product Resources

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   Hand Chain Hoists Manual   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 35 lbs

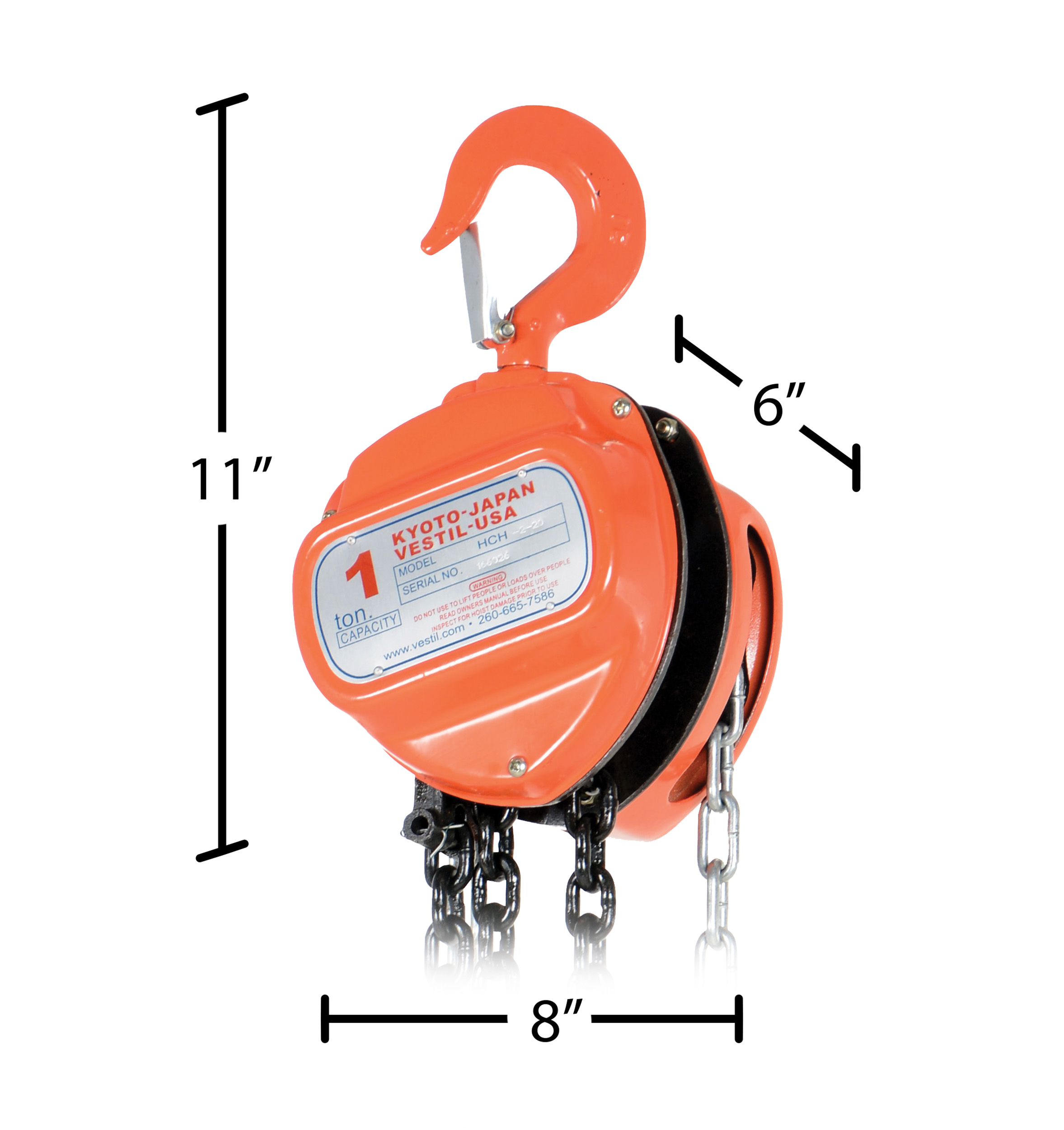

Assembled Size 8"W x 11"L x 6"H
Total Ship Weight 37 lbs
Package 1 Size 9"W x 12"D x 6"H
Color / Finish Orange
Freight Type Parcel

Additional Attributes

Uniform Capacity (lb.) 2,000
Standard Lift (ft.) 20
Headroom (in.) 12
Black Chain Grade 80
Pull Resistance (lb.) 68
Extended Product Details

Marketing Specs.

MFG Model # (Series)
HCH-2-20
Product Name
Steel Manual Chain Hoist 20 Ft. Lift 2,000 Lb. Capacity Orange
UPC
691215022002
GTIN
00691215022002
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Chain Hoists
Taxonomy 4
Hand
Assembled Depth (in.)
11
Assembled Width(in.)
8
Assembled Height(in.)
6
Assembled Weight(lbs.)
35
Color/Finish
Orange
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
12
Package Width (in.)
9
Package Height (in.)
6
Package Weight (in.)
37
Subclass
1
Freight Class
85
NMFC Code
Chain Pulley Hoists Chain Hoist Pulley Block
NMFC Number
117040
LTL Freight
Parcel
UNSPSC
24101602
HTSUS Number
8425.19.0000
USMCA HS
8425.19
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Yes
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: HCH-2-20

HCH-2-20

Steel Manual Chain Hoist 20 Ft. Lift 2,000 Lb. Capacity Orange

This portable, lightweight hand Chain Hoist is durable and easy to operate. Compact design and low headroom allow installation in confined areas. Enclosed double ratchet pawls with self adjusting disc brake standard. Designed with a safety factory four (4) times rated capacity. Individually tested at 150% rated capacity. Features black chain tempered to ISO 3077, pull chain, hardened two-stage gears and forged steel upper and lower hooks with safety latches. Constructed of high quality steel components ideal for industrial applications.

  • Heavy-duty stamped steel housing provides sturdy coverage
  • Grade 80 load chain is hardened for safety and durability
  • Tested to 150% of the rated capacity
  • Meets ASME/ANSI B30.16 requirements

Core Data

Assembled Weight: 35 Assembled Size: 8"W x 11"L x 6"H Color: Orange
Total Ship Weight: 37 Package 1 Size: 9"W x 12"D x 6"H Freight: Parcel

Specifications

Uniform Capacity (lb.): 2,000
Standard Lift (ft.): 20
Headroom (in.): 12
Black Chain Grade: 80
Pull Resistance (lb.): 68
