Steel Manual Chain Hoist 10 Ft. Lift 3,000 Lb. Capacity Orange

Manual Hand Chain Hoist for Overhead Load Lifting and Controlled Positioning, 3,000 lb. Capacity, Orange Finish – Model HCH-3-10
The hand chain hoists are ideal for industrial applications. The hoist is light weight, ergonomically friendly to handle, and designed for comfortable use in low headroom /confined areas or work. Features include a pull chain with upper and lower hooks constructed of forged steel for additional strength and hardened two stage gears for a quicker pulling time.
Product Status
Available QuickShip
Key Features
  • Hand chain hoists is ideal for industrial applications for optimal results
  • Ergonomic design is easy to handle and for comfortable use in confined areas
  • Features durable construction for added strength and long life
  • Includes a pull chain and hardened two stage gears for a quicker pulling time
Quick Actions

Product Resources

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   Hand Chain Hoists Manual   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 40 lbs

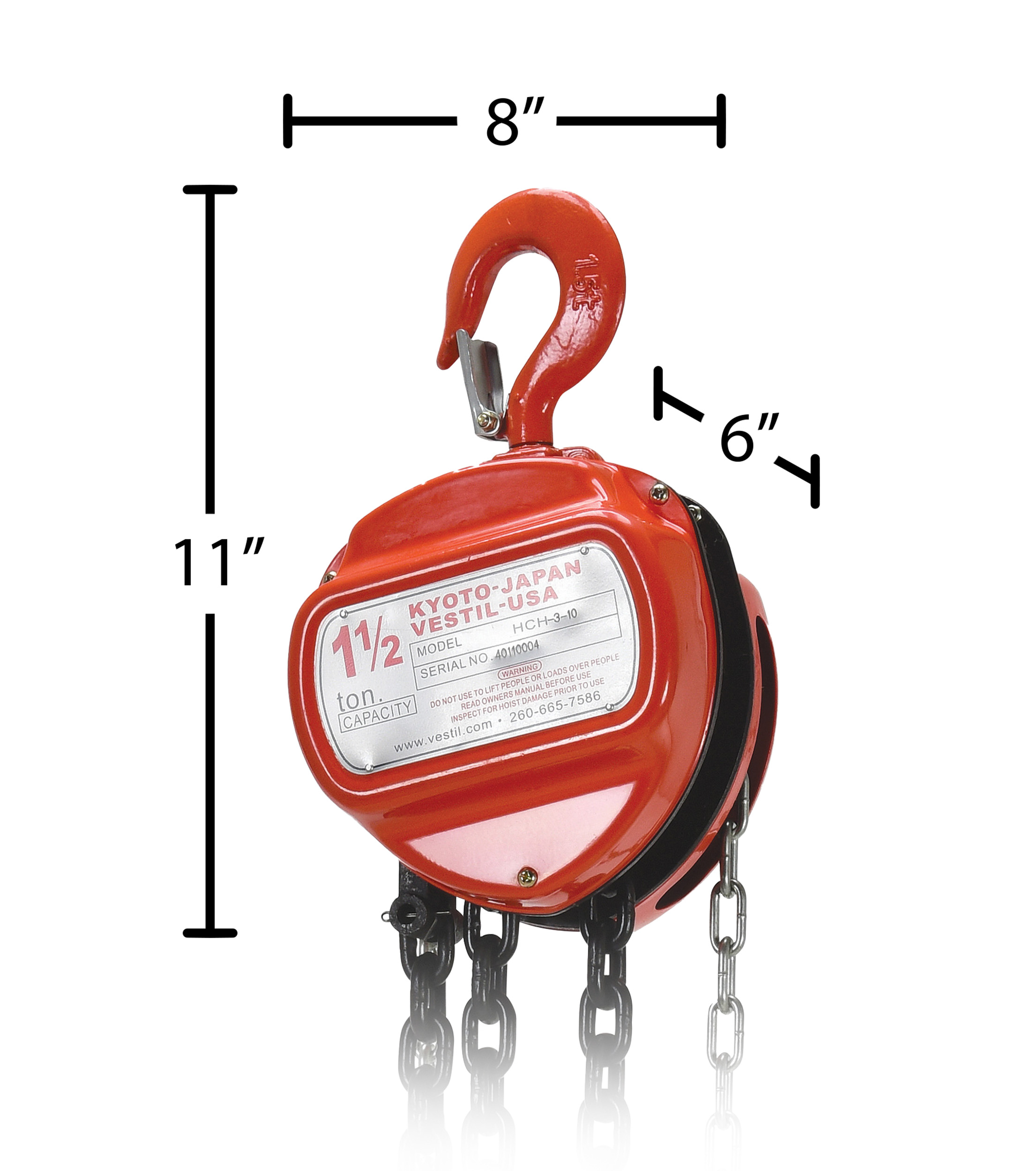

Assembled Size 8"W x 11"L x 6"H
Total Ship Weight 43 lbs
Package 1 Size 9"W x 12"D x 7"H
Color / Finish Orange
Freight Type Parcel

Additional Attributes

Uniform Capacity (lb.) 3,000
Standard Lift (ft.) 10
Headroom (in.) 15
Extended Product Details

Marketing Specs.

MFG Model # (Series)
HCH-3-10
Product Name
Steel Manual Chain Hoist 10 Ft. Lift 3,000 Lb. Capacity Orange
UPC
691215111171
GTIN
00691215111171
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Chain Hoists
Taxonomy 4
Hand
Assembled Depth (in.)
11
Assembled Width(in.)
8
Assembled Height(in.)
6
Assembled Weight(lbs.)
40
Color/Finish
Orange
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
12
Package Width (in.)
9
Package Height (in.)
7
Package Weight (in.)
43
Subclass
1
Freight Class
85
NMFC Code
Chain Pulley Hoists Chain Hoist Pulley Block
NMFC Number
117040
LTL Freight
Parcel
UNSPSC
24101602
HTSUS Number
8425.19.0000
USMCA HS
8425.19
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Yes
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: HCH-3-10

HCH-3-10

Steel Manual Chain Hoist 10 Ft. Lift 3,000 Lb. Capacity Orange

The hand chain hoists are ideal for industrial applications. The hoist is light weight, ergonomically friendly to handle, and designed for comfortable use in low headroom /confined areas or work. Features include a pull chain with upper and lower hooks constructed of forged steel for additional strength and hardened two stage gears for a quicker pulling time.

  • Hand chain hoists is ideal for industrial applications for optimal results
  • Ergonomic design is easy to handle and for comfortable use in confined areas
  • Features durable construction for added strength and long life
  • Includes a pull chain and hardened two stage gears for a quicker pulling time

Core Data

Assembled Weight: 40 Assembled Size: 8"W x 11"L x 6"H Color: Orange
Total Ship Weight: 43 Package 1 Size: 9"W x 12"D x 7"H Freight: Parcel

Specifications

Uniform Capacity (lb.): 3,000
Standard Lift (ft.): 10
Headroom (in.): 15
