Steel Portable Hydraulic Drum Carrier, Rotator and Boom 59-11/16 In. Lift Height 800 Lb. Capacity Blue / Yellow

Portable Lifting Boom for Opening, Moving, and Handling Industrial Drums and Barrels, 800 lb. Capacity with 59-11/16 in.

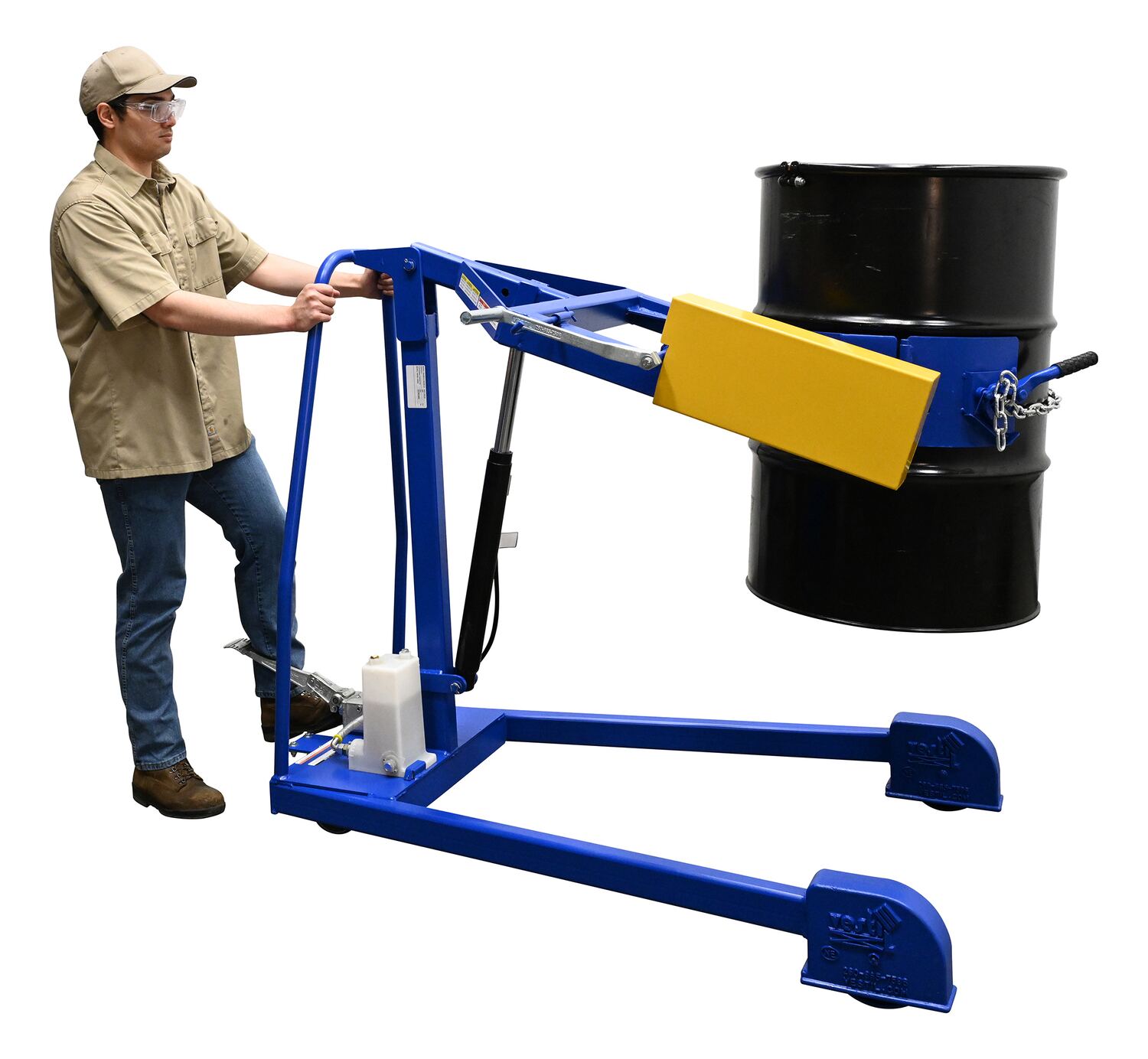

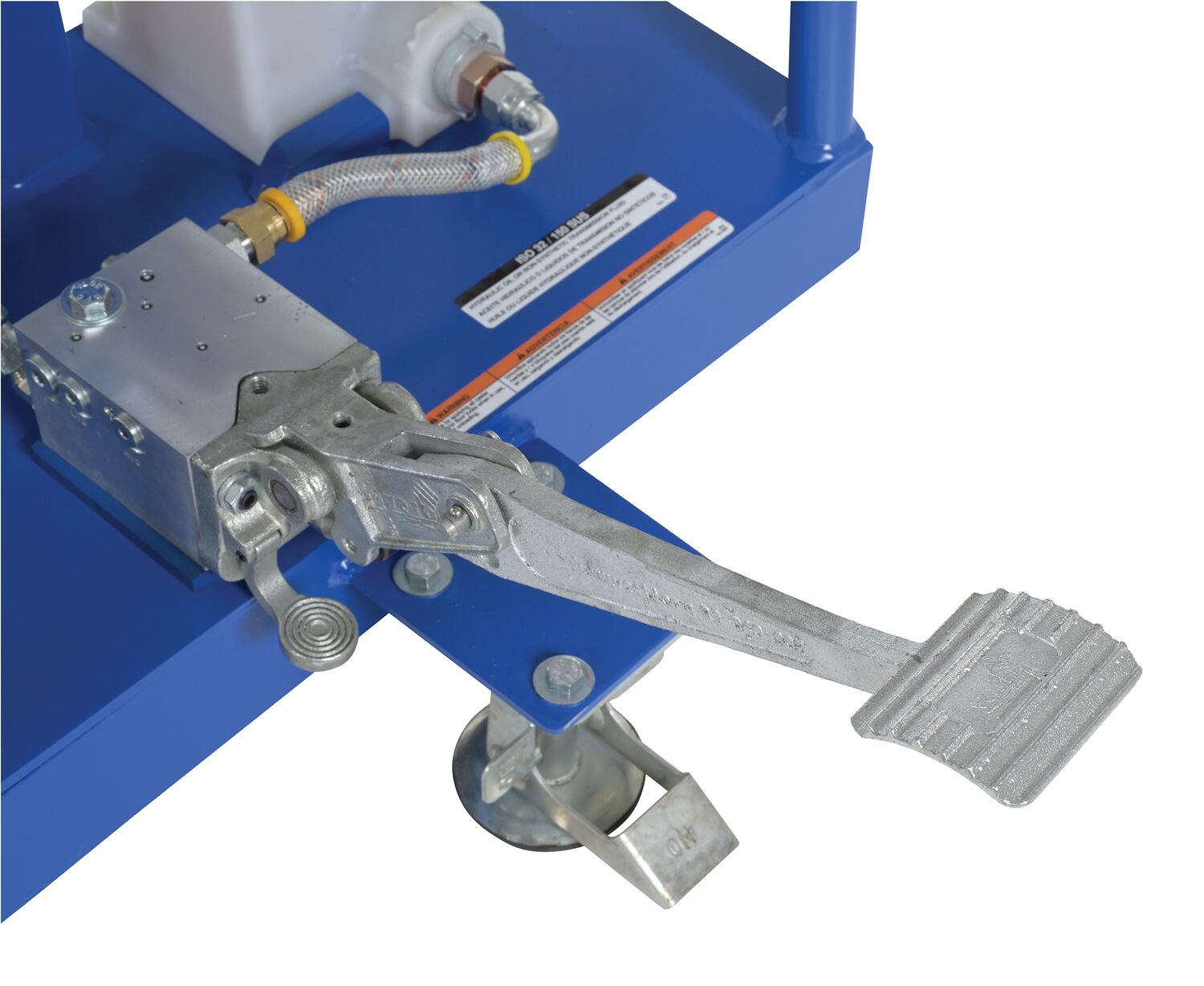

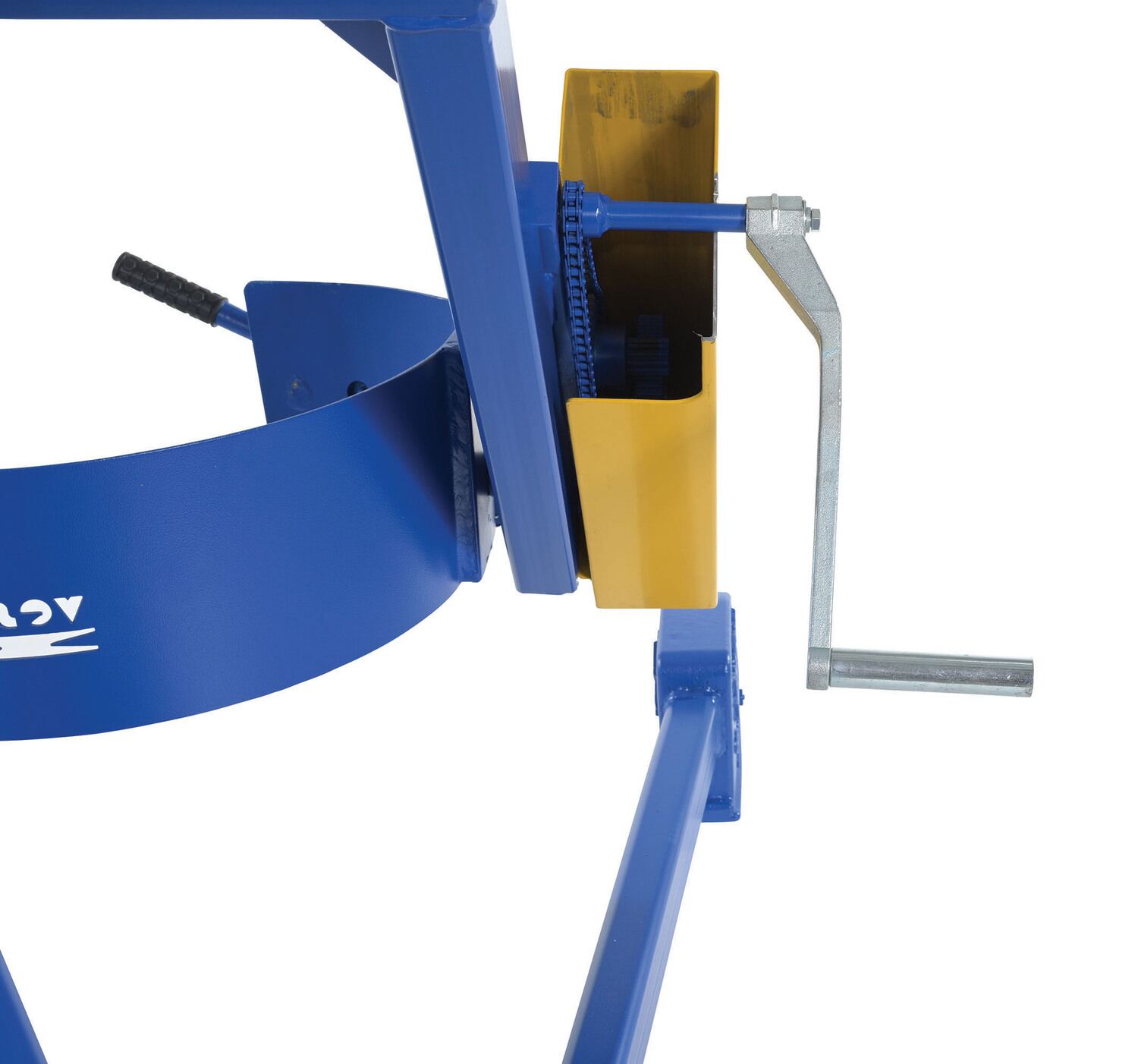

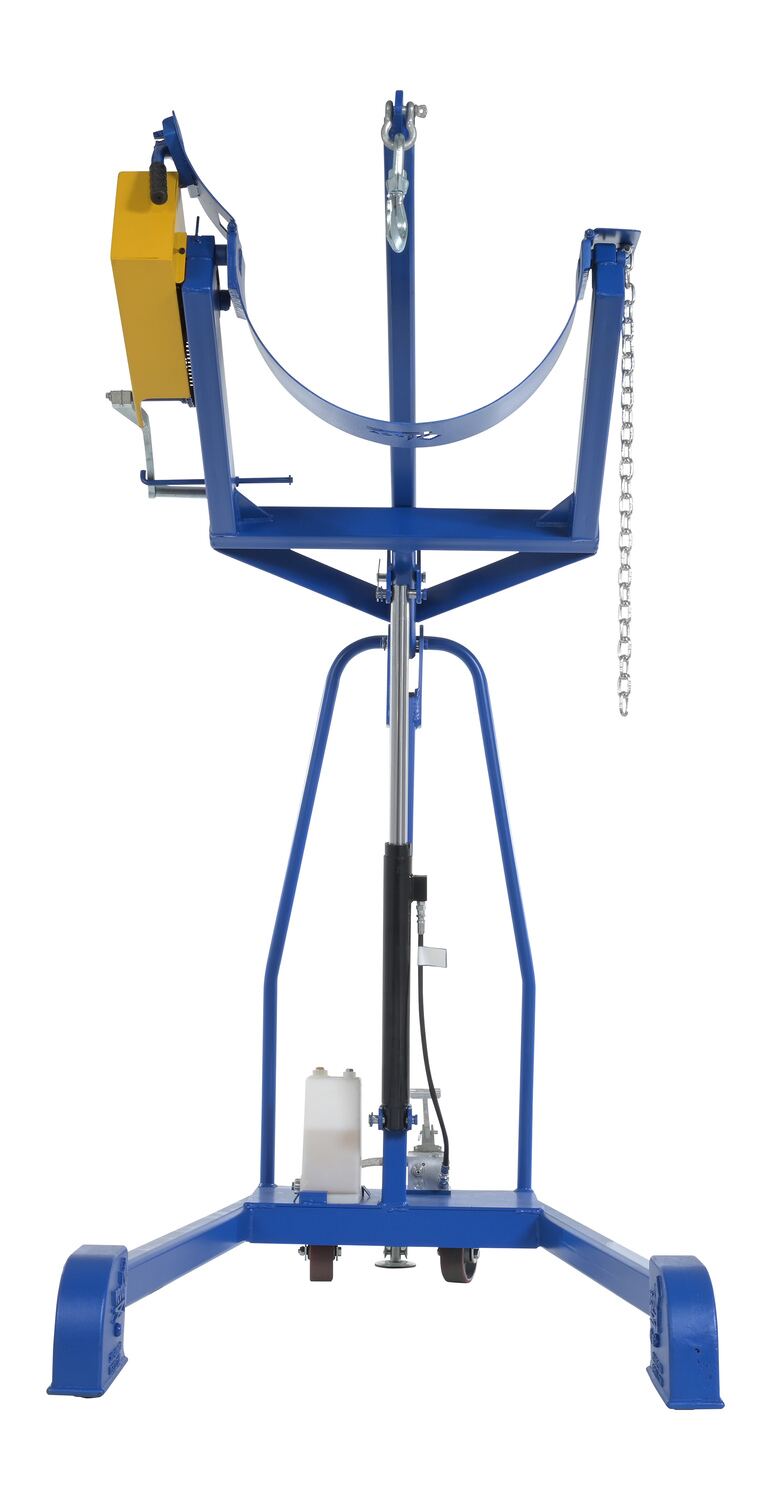

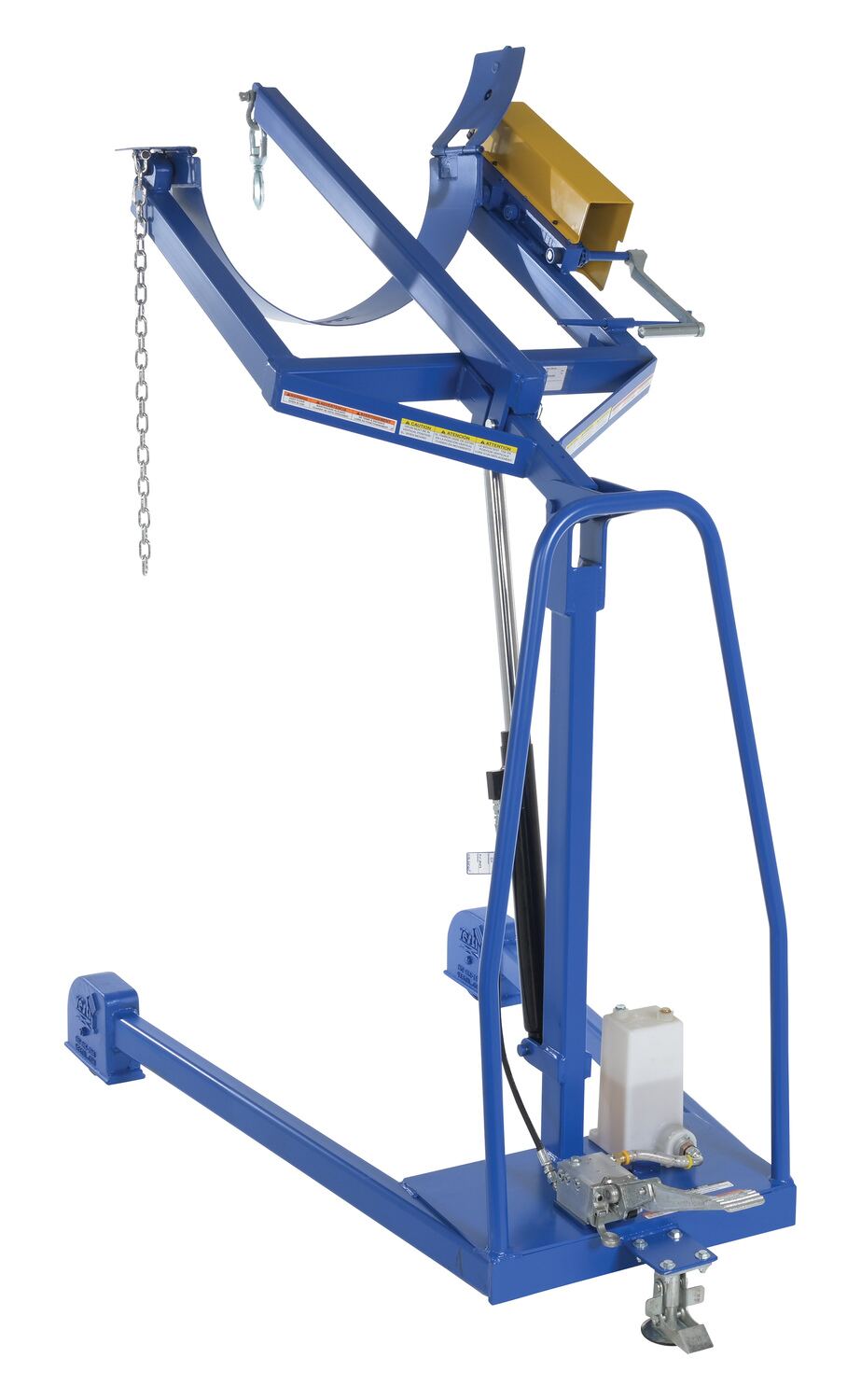

The portable Hydraulic drum carrier/rotator/boom allows one person to lift, transport, and dispense fully loaded steel drums with ease. It features a manual foot pump hydraulic lift and rolls on casters and wheels. The hand crank rotates the drum. This unit features a lifting boom attachment which stores on the outriggers.
Product Status
Out of Stock
Key Features
  • Unique design lifts & rotates drums up to 360 degrees
  • Rigid & swivel casters allow unit to roll smoothly
  • Standard design is for use with 55-gallon steel drums only
  • Heavy-duty welded steel construction provides long lasting rugged use
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   360 Image   Portable Hydraulic Drum Carrier/Rotator   Two Speed, Auto-Shifting Foot Pump Instruction Manual   Label Page PDF   Hydraulic Oil SDS   1 Year Warranty
Product Data

Core Data

Assembled Weight 406 lbs
Assembled Size 46.875"W x 72.5"L x 80.125"H
Total Ship Weight 485 lbs
Package 1 Size 40"W x 64"D x 62"H
Color / Finish Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 800
Lift Height (in.) 59-11/16
Accepts 55-gallon steel drum
Drum Rotation (degree) 360
Front Rigid Wheel Quantity/Diameter/Width (in.) (2) 8 x 2
Front Wheel Material Glass Filled Nylon
Rear Swivel Caster with floor lock Quantity/Diameter/Width (2) 5 x 2
Rear Caster Material Poly-on-Steel
Rotation Method Hand Crank
Maximum Drum Diameter 23.5
Minimum Drum Diameter 20.5
Extended Product Details

Marketing Specs.

MFG Model # (Series)
HDC-305-60
Product Name
Steel Portable Hydraulic Drum Carrier, Rotator and Boom 59-11/16 In. Lift Height 800 Lb. Capacity Blue / Yellow
UPC
691215022071
GTIN
00691215022071
Taxonomy 1
Material Handling
Taxonomy 2
Drum & Barrel Parts / Accessories
Taxonomy 3
Accessories
Taxonomy 4
Drum Rotators / Carriers
Taxonomy 5
Manual
Assembled Depth (in.)
72.5
Assembled Width(in.)
46.875
Assembled Height(in.)
80.125
Assembled Weight(lbs.)
406
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
64
Package Width (in.)
40
Package Height (in.)
62
Package Weight (in.)
485
Subclass
6
Freight Class
250
NMFC Code
Machinery or Machines NOI
NMFC Number
133300
LTL Freight
LTL Palletized
UNSPSC
24101903
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
Yes
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: HDC-305-60

HDC-305-60

Steel Portable Hydraulic Drum Carrier, Rotator and Boom 59-11/16 In. Lift Height 800 Lb. Capacity Blue / Yellow

The portable Hydraulic drum carrier/rotator/boom allows one person to lift, transport, and dispense fully loaded steel drums with ease. It features a manual foot pump hydraulic lift and rolls on casters and wheels. The hand crank rotates the drum. This unit features a lifting boom attachment which stores on the outriggers.

  • Unique design lifts & rotates drums up to 360 degrees
  • Rigid & swivel casters allow unit to roll smoothly
  • Standard design is for use with 55-gallon steel drums only
  • Heavy-duty welded steel construction provides long lasting rugged use

Core Data

Assembled Weight: 406 Assembled Size: 46.875"W x 72.5"L x 80.125"H Color: Blue
Total Ship Weight: 485 Package 1 Size: 40"W x 64"D x 62"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 800
Lift Height (in.): 59-11/16
Accepts: 55-gallon steel drum
Drum Rotation (degree): 360
Front Rigid Wheel Quantity/Diameter/Width (in.): (2) 8 x 2
Front Wheel Material: Glass Filled Nylon
Rear Swivel Caster with floor lock Quantity/Diameter/Width: (2) 5 x 2
Rear Caster Material: Poly-on-Steel
Rotation Method: Hand Crank
Maximum Drum Diameter: 23.5
Minimum Drum Diameter: 20.5
