  All Products   Drum Handling Equipment   Drum Positioners & Dumpers   Portable Hydraulic Drum Carrier/Rotator/Booms HDC-305-72
Product Image

Visual Reference

HDC-305-72
HDC-305-72
HDC-305-72
HDC-305-72
HDC-305-72
HDC-305-72
HDC-305-72
HDC-305-72
HDC-305-72
HDC-305-72
HDC-305-72
HDC-305-72

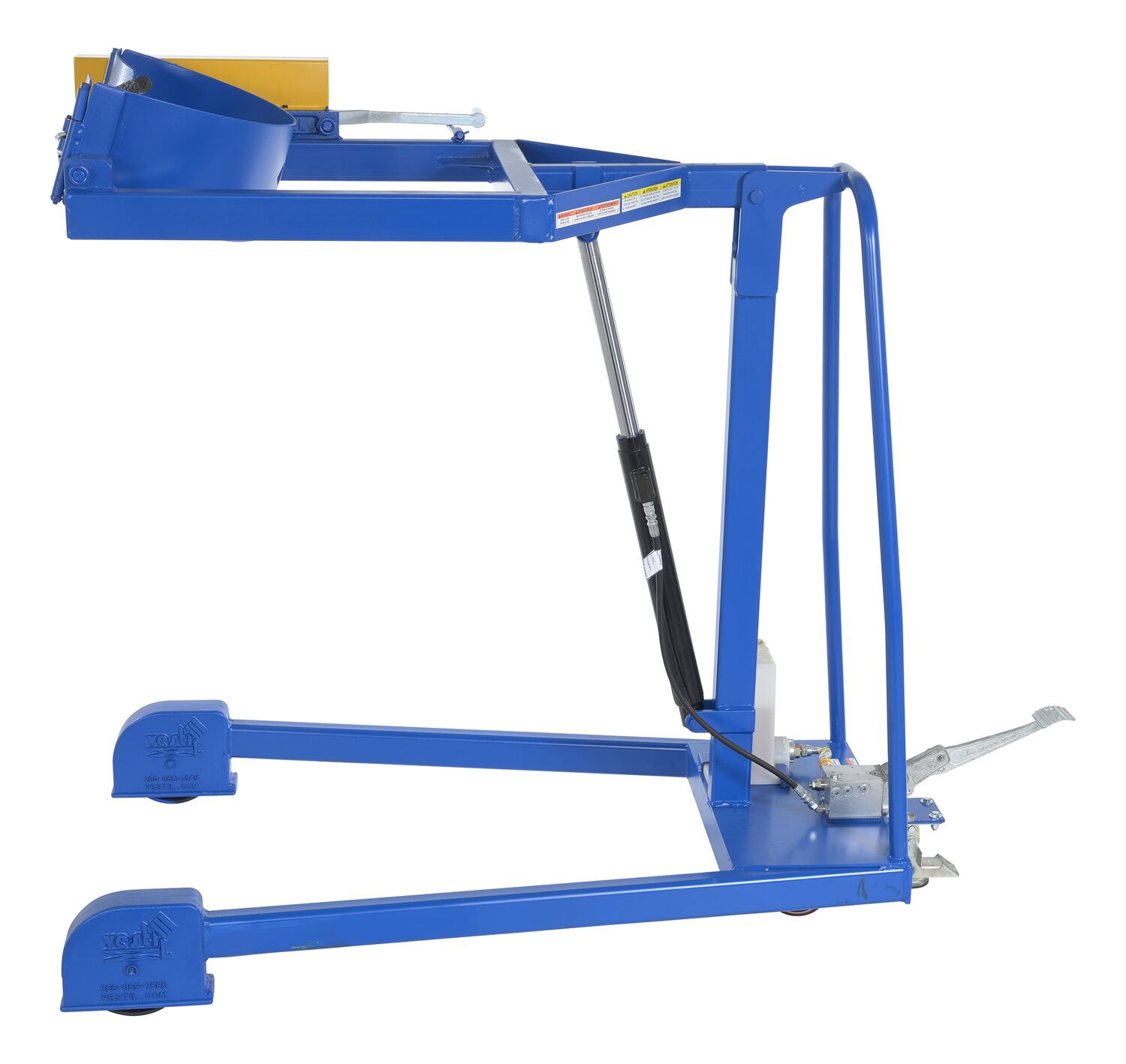

Steel Portable Hydraulic Drum Carrier, Rotator and Boom 71-1/4 In. Lift Height 800 Lb. Capacity Blue / Yellow

Portable Lifting Boom for Opening, Moving, and Handling Industrial Drums and Barrels, 800 lb. Capacity with 71-1/4 in.

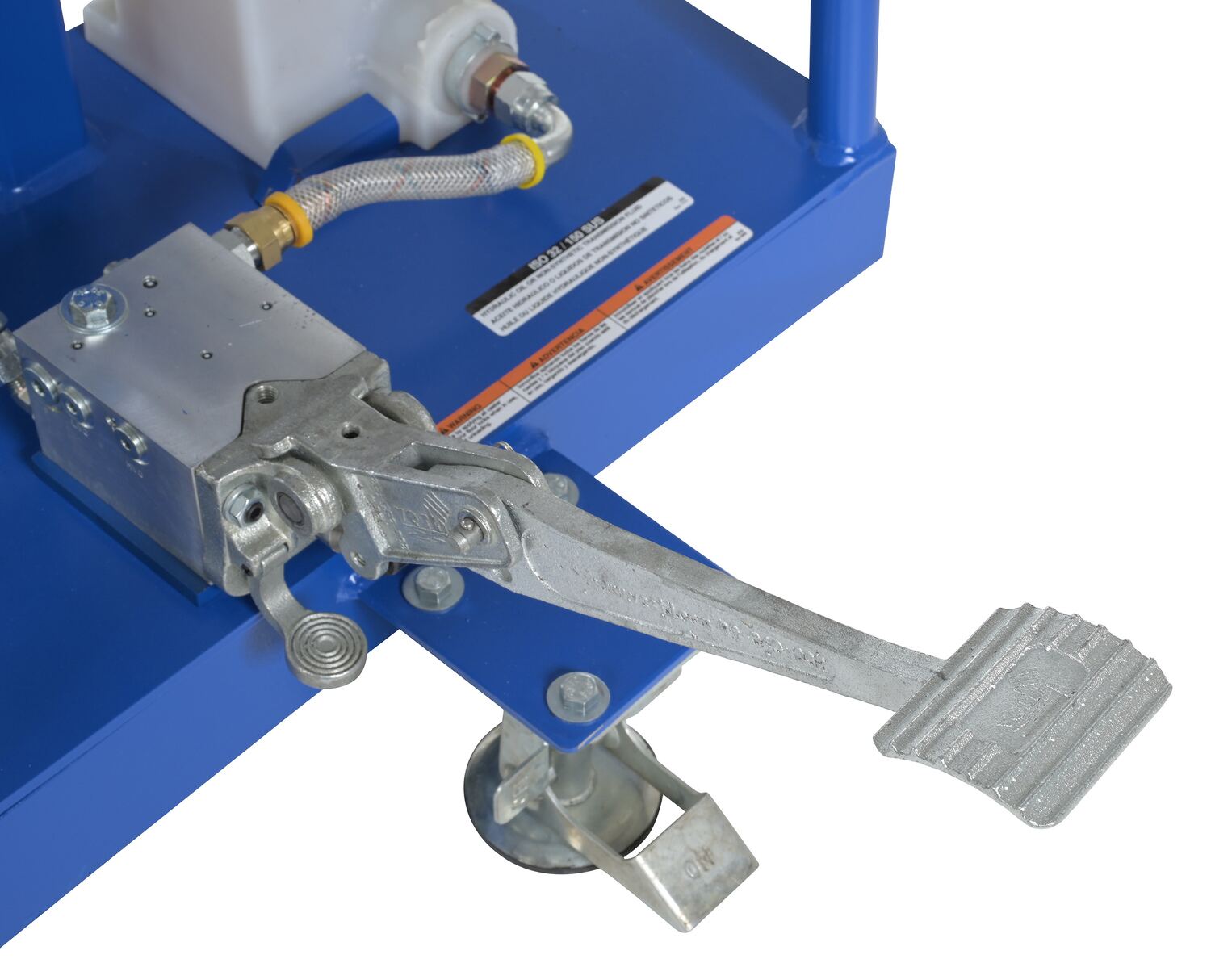

The portable Hydraulic drum carrier/rotator/boom allows one person to lift, transport, and dispense fully loaded steel drums with ease. It features a manual foot pump hydraulic lift and rolls on casters and wheels. This unit has a chain rotation to rotate the drum. This unit features a lifting boom attachment which stores on the outriggers.
Product Status
Out of Stock
Key Features
  • Unique design lifts & rotates drums up to 360 degrees

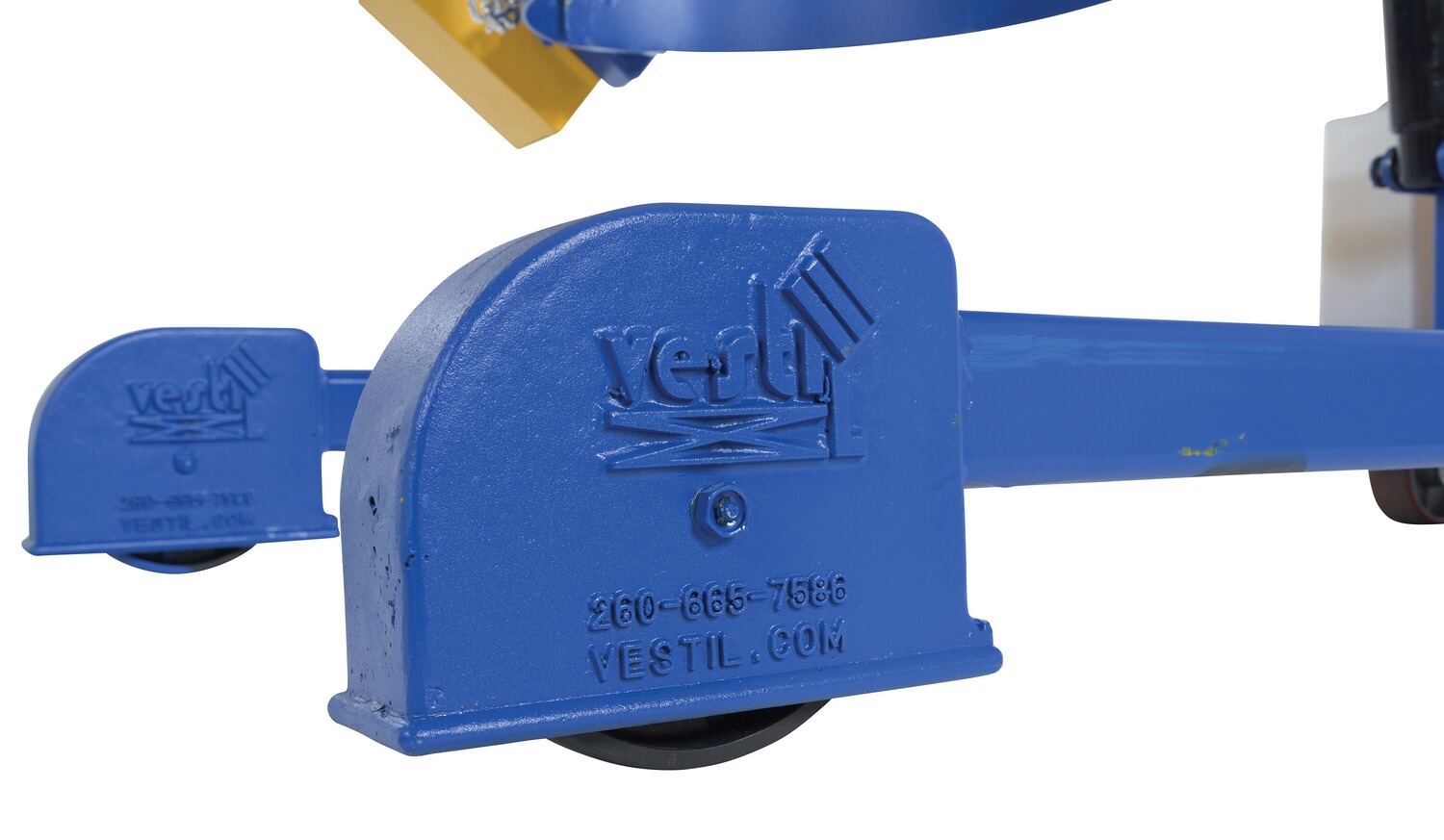

  • Rigid & swivel casters allow unit to roll smoothly
  • Standard design is for use with 55-gallon steel drums only
  • Heavy-duty welded steel construction provides long lasting rugged use

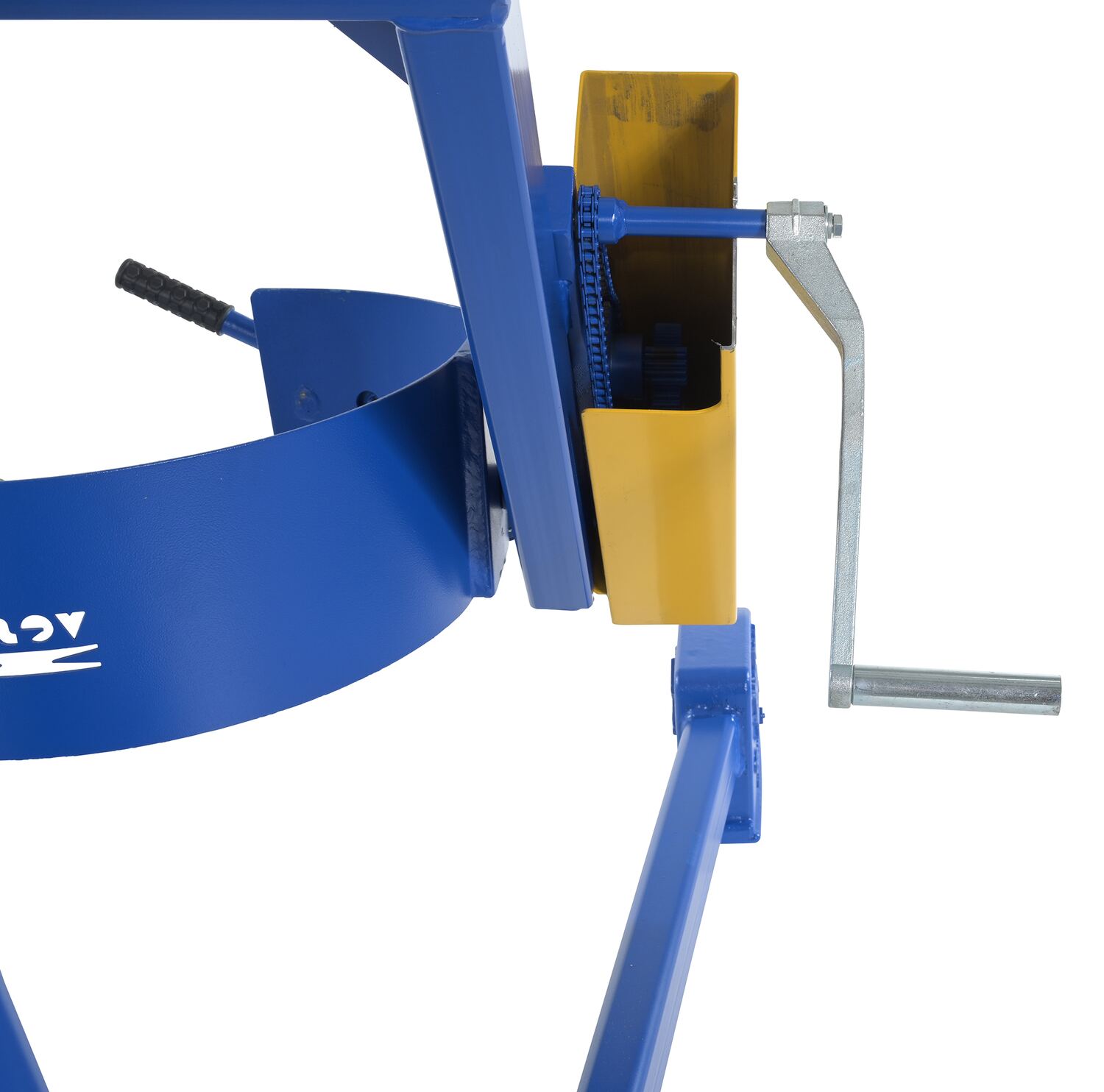

New Product Images Coming Soon - Design change to push handle, unit has pull chain rather than crank handle
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Portable Hydraulic Drum Carrier/Rotator   Two Speed, Auto-Shifting Foot Pump Instruction Manual   Label Page PDF   Hydraulic Oil SDS   1 Year Warranty
Product Data

Core Data

Assembled Weight 409 lbs
Assembled Size 39.9375"W x 72.5"L x 88.0625"H
Total Ship Weight 487 lbs
Package 1 Size 40"W x 67"D x 69"H
Color / Finish Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 800
Lift Height (in.) 72-3/16
Accepts 55-gallon drum
Drum Rotation (degree) 360
Front Rigid Wheel Quantity/Diameter/Width (in.) (2) 8 x 2
Front Wheel Material Glass Filled Nylon
Rear Swivel Caster with floor lock Quantity/Diameter/Width (2) 5 x 2
Rear Caster Material Poly-on-Steel
Rotation Method Pull Chain
Overall Width (in.) 39-15/16
Overall Length (in.) 72-1/2
Overall Height (in.) 88-1/16
Out Rigger Inside Dimension (in.) 32-7/16
Extended Product Details

Marketing Specs.

MFG Model # (Series)
HDC-305-72
Product Name
Steel Portable Hydraulic Drum Carrier, Rotator and Boom 71-1/4 In. Lift Height 800 Lb. Capacity Blue / Yellow
UPC
691215022101
GTIN
00691215022101
Taxonomy 1
Material Handling
Taxonomy 2
Drum & Barrel Parts / Accessories
Taxonomy 3
Accessories
Taxonomy 4
Drum Rotators / Carriers
Taxonomy 5
Manual
Assembled Depth (in.)
72.5
Assembled Width(in.)
39.9375
Assembled Height(in.)
88.0625
Assembled Weight(lbs.)
409
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
67
Package Width (in.)
40
Package Height (in.)
69
Package Weight (in.)
487
Subclass
6
Freight Class
250
NMFC Code
Machinery or Machines NOI
NMFC Number
133300
LTL Freight
LTL Palletized
UNSPSC
24101903
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
Yes
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: HDC-305-72

HDC-305-72

Steel Portable Hydraulic Drum Carrier, Rotator and Boom 71-1/4 In. Lift Height 800 Lb. Capacity Blue / Yellow

The portable Hydraulic drum carrier/rotator/boom allows one person to lift, transport, and dispense fully loaded steel drums with ease. It features a manual foot pump hydraulic lift and rolls on casters and wheels. This unit has a chain rotation to rotate the drum. This unit features a lifting boom attachment which stores on the outriggers.

  • Unique design lifts & rotates drums up to 360 degrees
  • Rigid & swivel casters allow unit to roll smoothly
  • Standard design is for use with 55-gallon steel drums only
  • Heavy-duty welded steel construction provides long lasting rugged use

Core Data

Assembled Weight: 409 Assembled Size: 39.9375"W x 72.5"L x 88.0625"H Color: Blue
Total Ship Weight: 487 Package 1 Size: 40"W x 67"D x 69"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 800
Lift Height (in.): 72-3/16
Accepts: 55-gallon drum
Drum Rotation (degree): 360
Front Rigid Wheel Quantity/Diameter/Width (in.): (2) 8 x 2
Front Wheel Material: Glass Filled Nylon
Rear Swivel Caster with floor lock Quantity/Diameter/Width: (2) 5 x 2
Rear Caster Material: Poly-on-Steel
Rotation Method: Pull Chain
Overall Width (in.): 39-15/16
Overall Length (in.): 72-1/2
Overall Height (in.): 88-1/16
Out Rigger Inside Dimension (in.): 32-7/16
