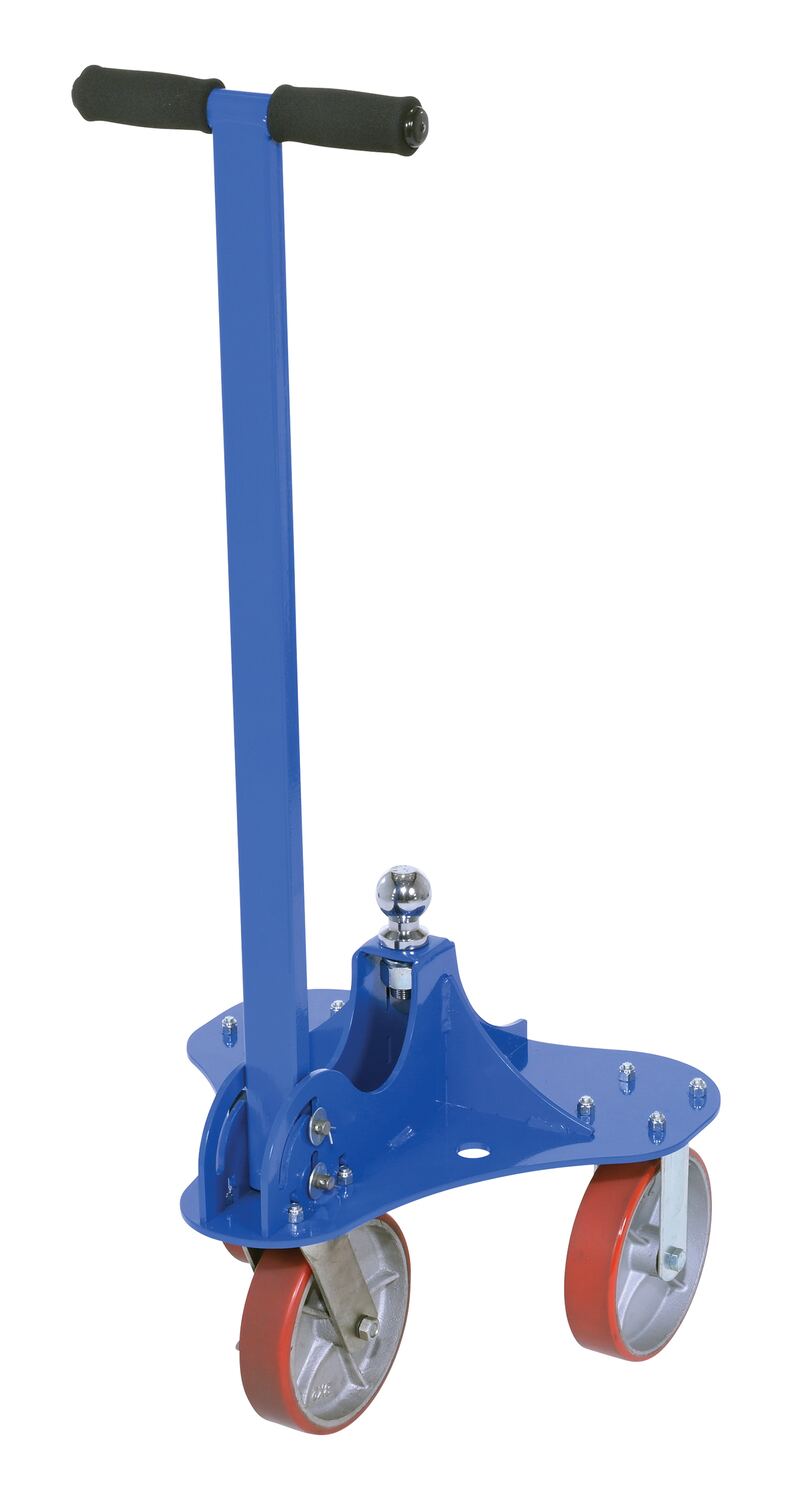

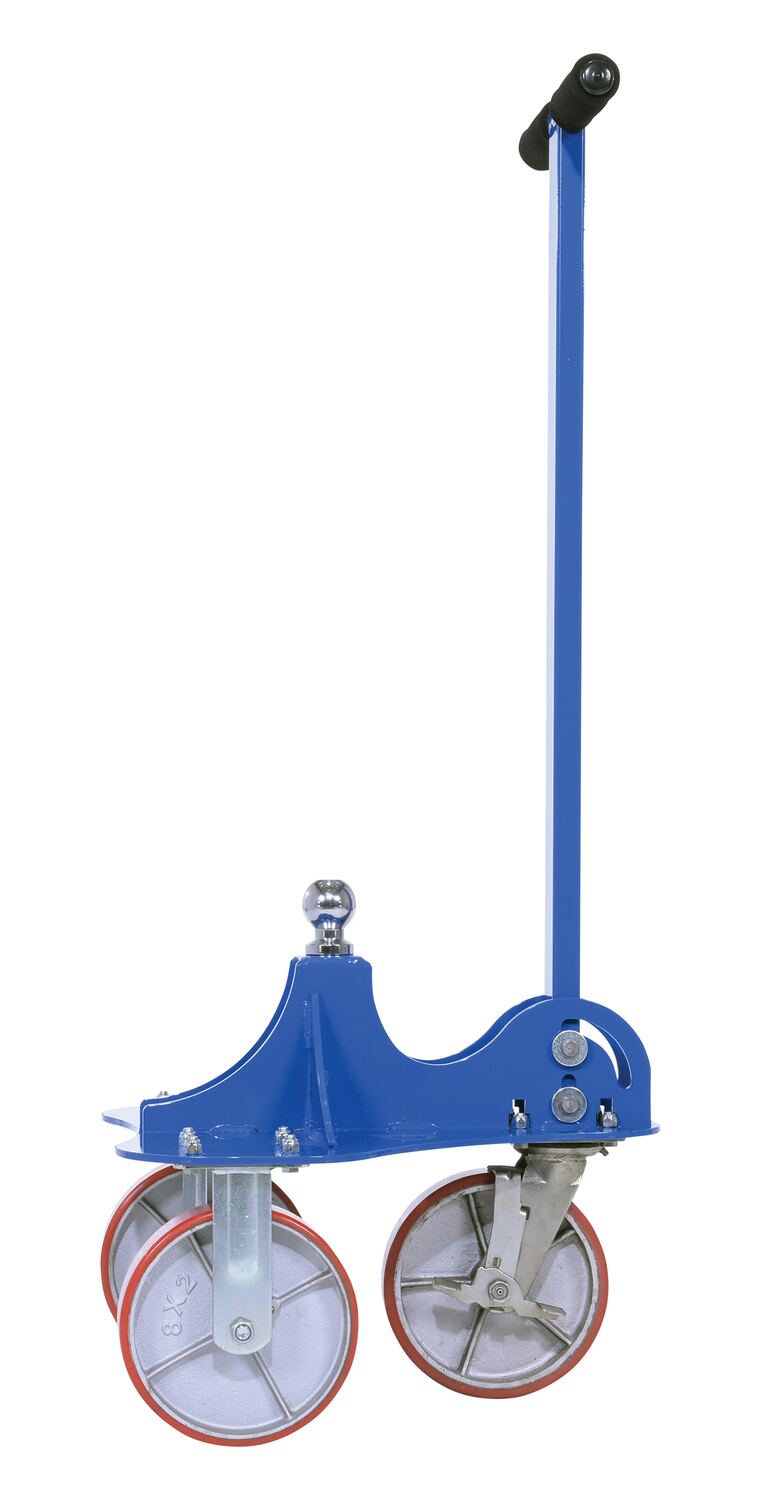

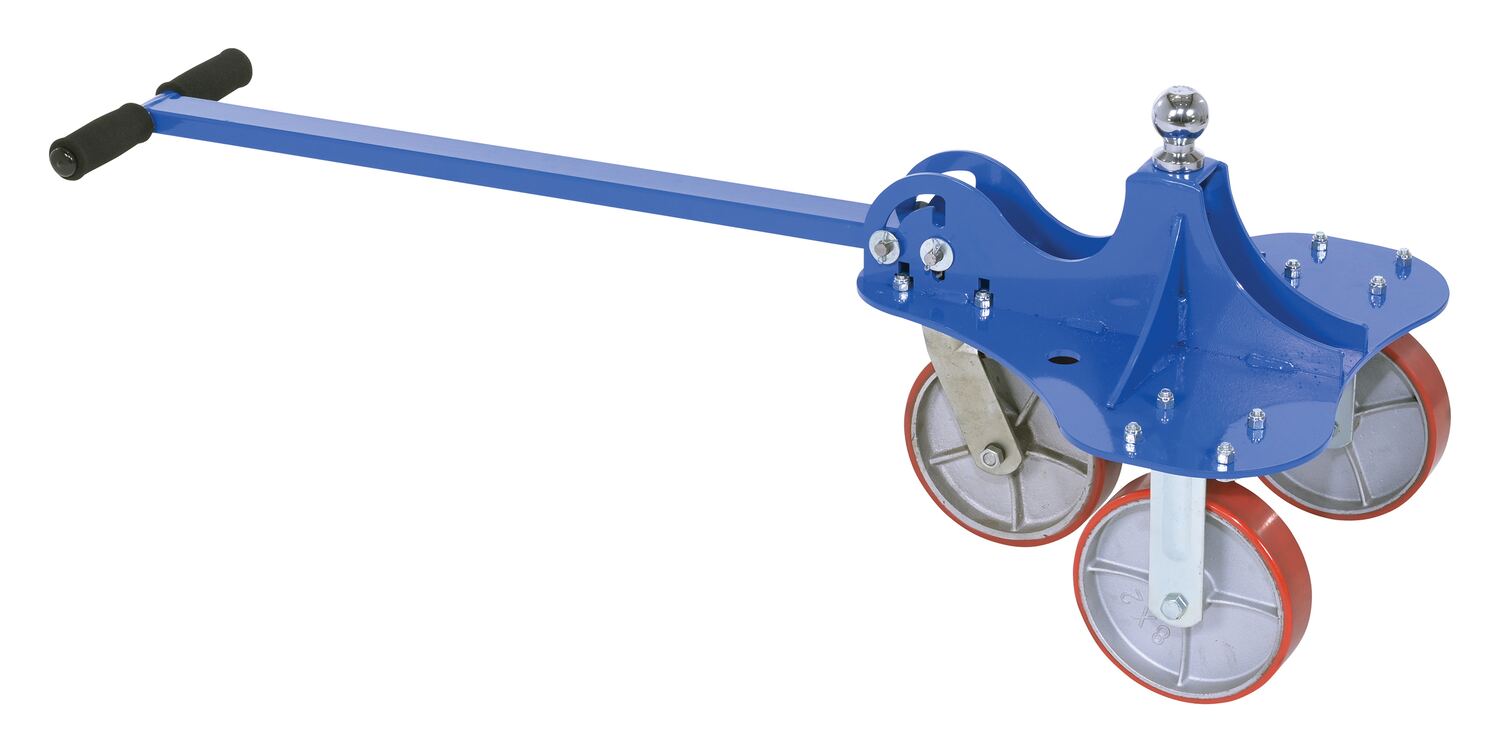

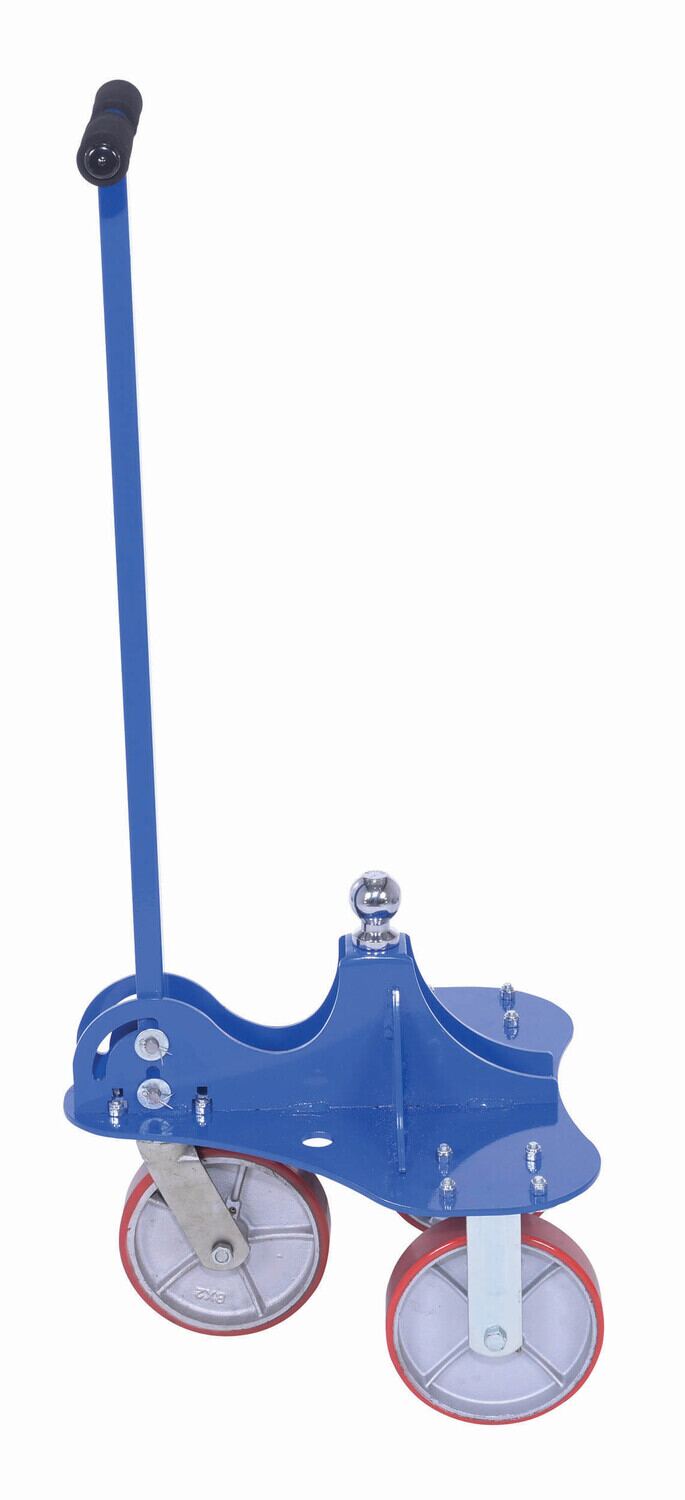

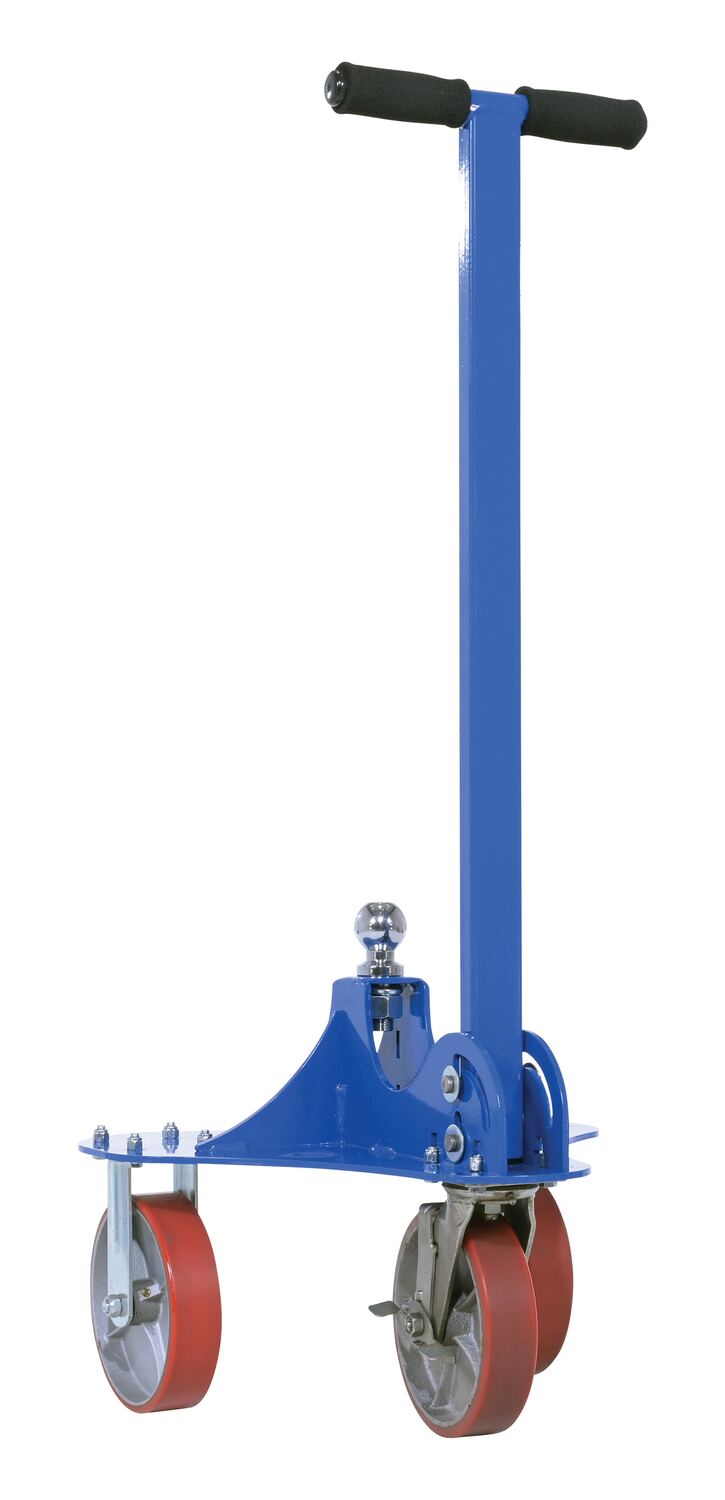

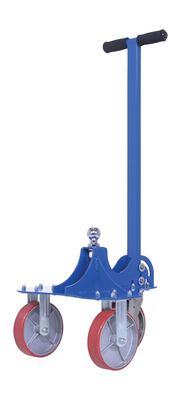

Steel Hitch Mover 3 Wheel with 2-5/16 In. Ball Diameter 2000 Lb Capacity Blue

Vestl 3 Wheel Steel Hitch Mover for Commercial and Industrial Trailer Movers Use, 2,000 lb. Capacity with 2-5/16 in.
A hitch mover is an excellent addition to the industrial workplace or the at-home shop. A unique open design enables a simple attachment to the ball hitch. The extended handle length minimizes slouching and bending and promotes a better posture for when manually moving a hitched trailer. With a steel construction, this trailer dolly is strong and durable throughout daily use. Blue powder coat finish for baked in added toughness. Hardware is included.
Product Status
Available
Key Features

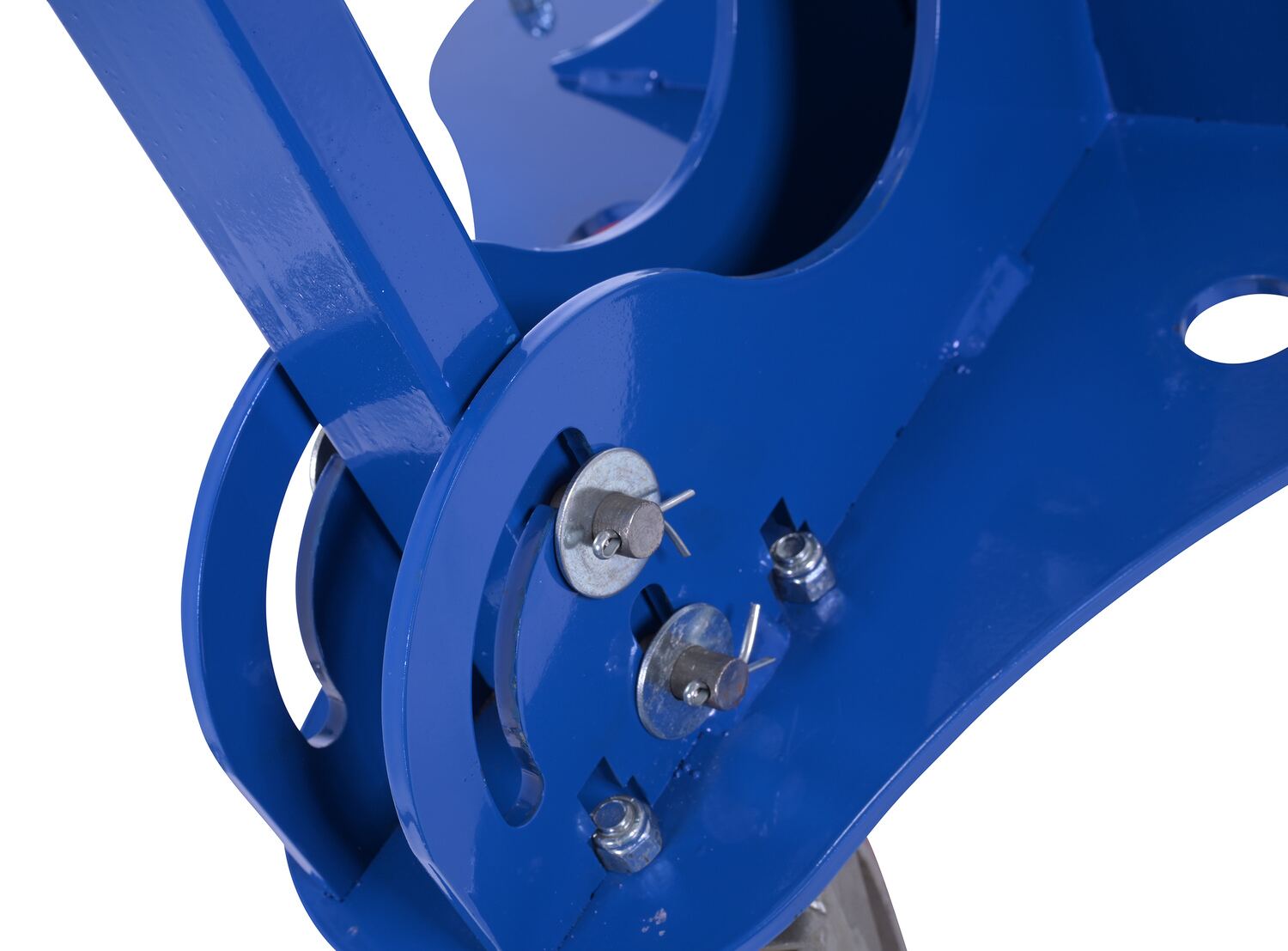

  • Handle is lockable in upright position

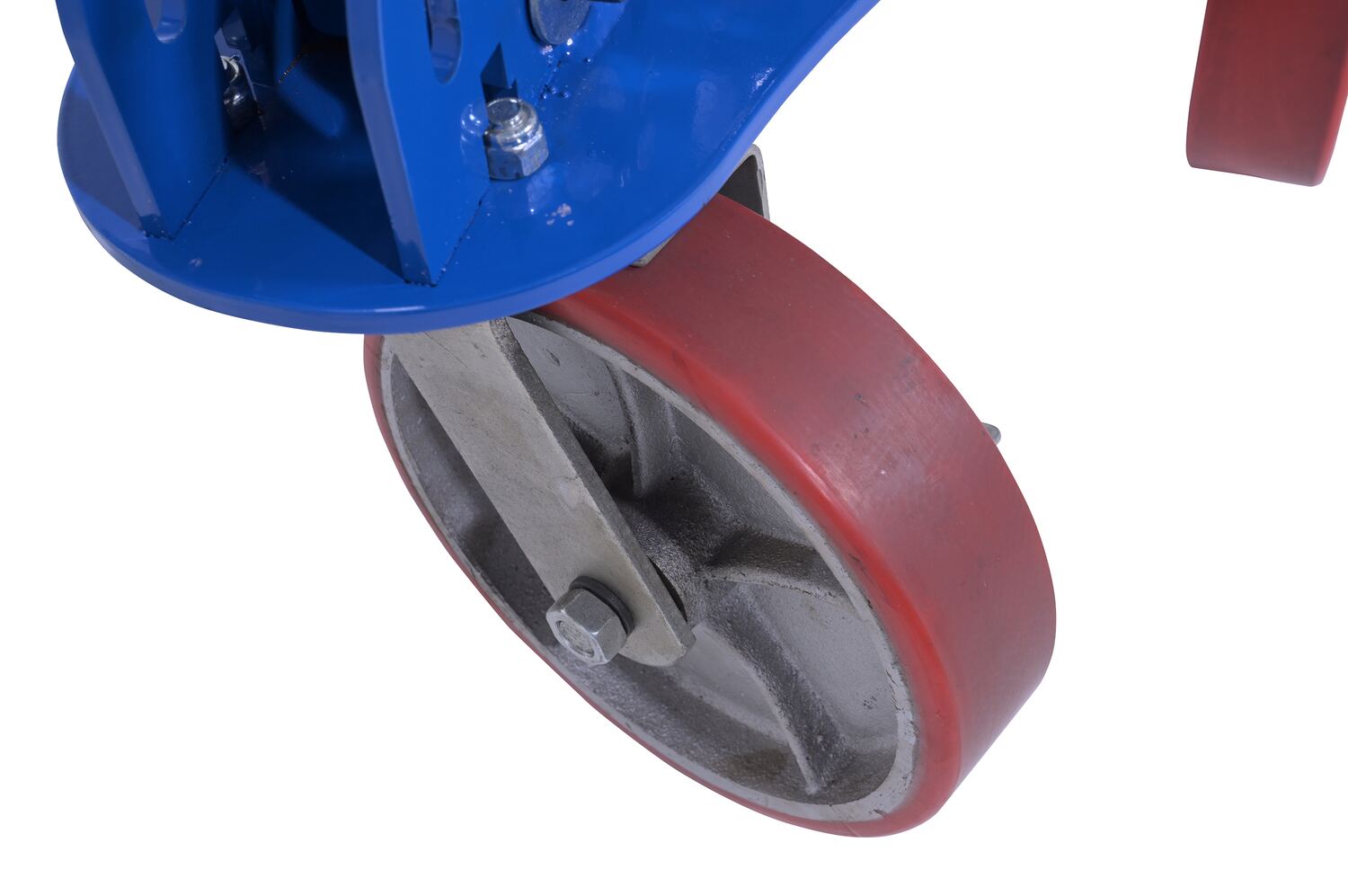

  • Rolls on three poly-on-steel casters

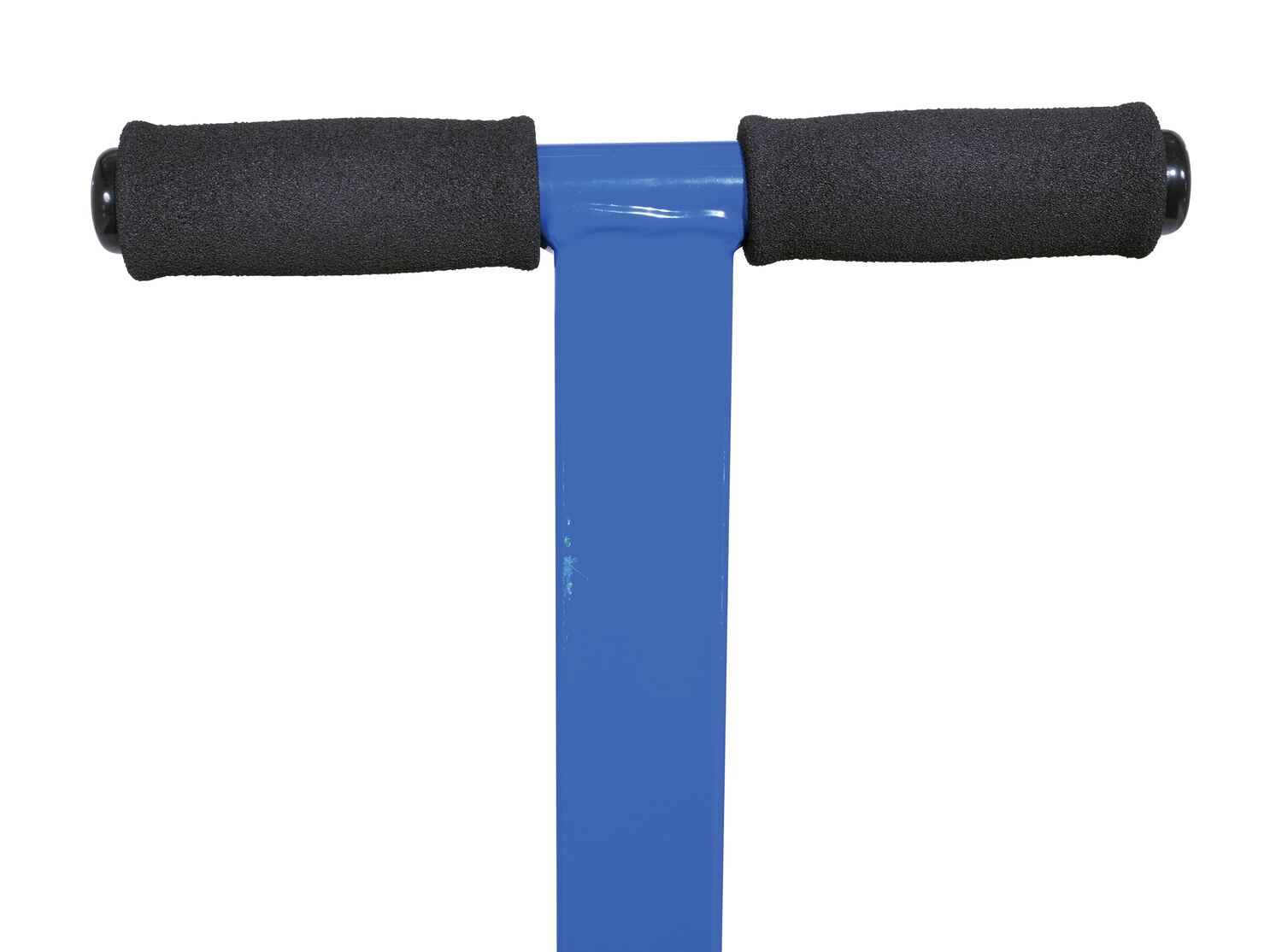

  • Separated handle-grip design
  • Includes ball hitch
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Hitch Trailer Mover   90 DAYS Warranty
Product Data

Core Data

Assembled Weight 84 lbs
Assembled Size 20"W x 21.5625"L x 46.5625"H
Total Ship Weight 86 lbs
Package 1 Size 22"W x 38"D x 8"H
Color / Finish BLUE
Freight Type Parcel

Additional Attributes

Capacity (lbs.) 2000
Overall Width (in.) 20
Overall Length (in.) 21-9/16 to 51-9/16
Overall Height (in.) 46-9/16

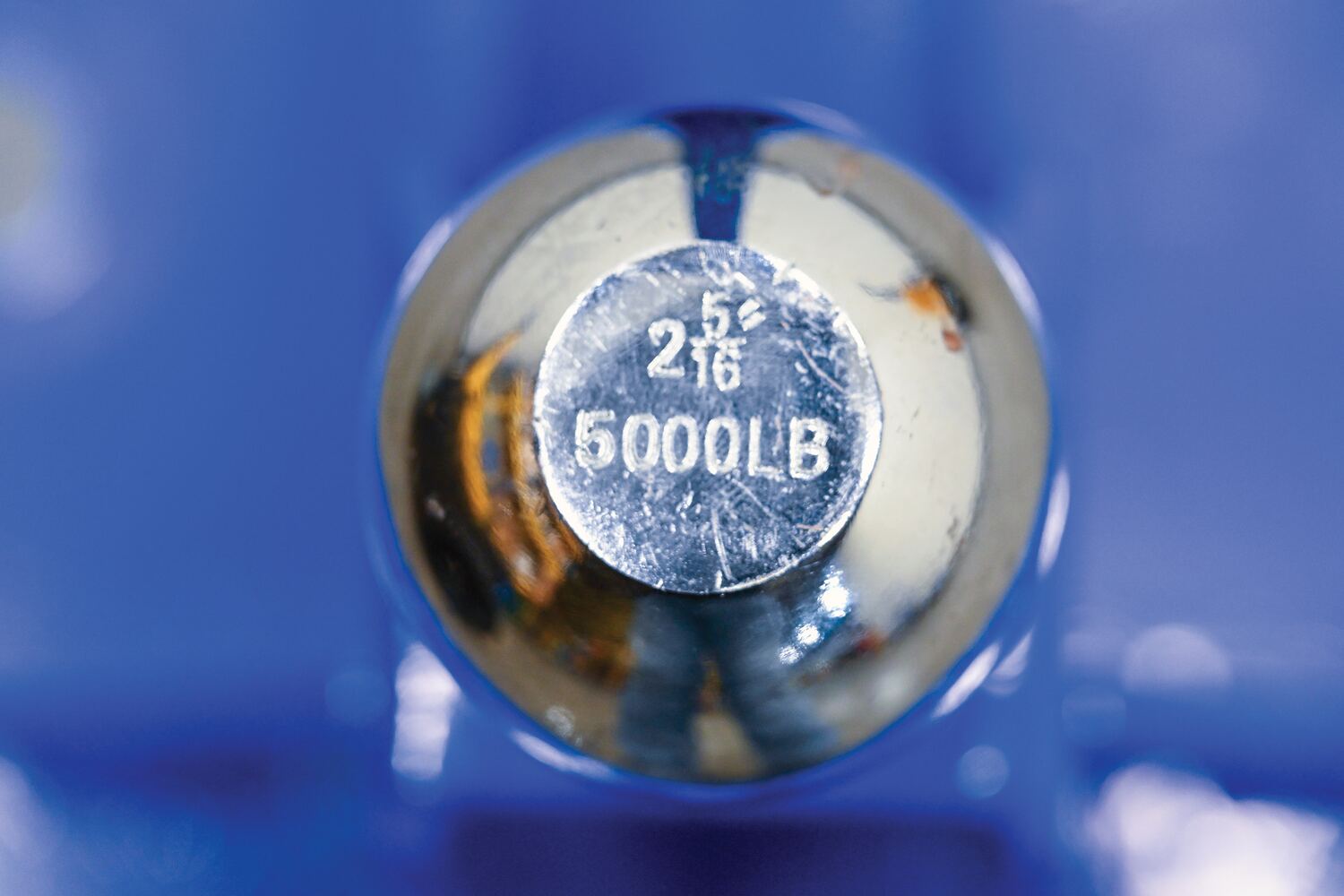

Removable Hitch Ball (in.) 2-5/16
Caster Material Poly on Steel
Caster Size (in.) 8 x 2
Swivel Caster Quantity 1
Rigid Caster Quantity 2
Total Caster Quantity 3
Extended Product Details

Marketing Specs.

MFG Model # (Series)
HM-3W2K-B2516
Product Name
Steel Hitch Mover 3 Wheel with 2-5/16 In. Ball Diameter 2000 Lb Capacity Blue
UPC
691215378246
GTIN
00691215378246
Taxonomy 1
Material Handling
Taxonomy 2
Hand Trucks & Dollies
Taxonomy 3
Cargo / Moving Dollies
Assembled Depth (in.)
21.5625
Assembled Width(in.)
20
Assembled Height(in.)
46.5625
Assembled Weight(lbs.)
84
Color/Finish
BLUE
Material
STEEL
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
38
Package Width (in.)
22
Package Height (in.)
8
Package Weight (in.)
86
Subclass
8
Freight Class
77.5
NMFC Code
Tugs or Tuggers used for pushing or pulling heavy
NMFC Number
190236
LTL Freight
Parcel
UNSPSC
25181708
HTSUS Number
8716.80.5090
USMCA HS
8716.80
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 DAYS Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: HM-3W2K-B2516

HM-3W2K-B2516

Steel Hitch Mover 3 Wheel with 2-5/16 In. Ball Diameter 2000 Lb Capacity Blue

A hitch mover is an excellent addition to the industrial workplace or the at-home shop. A unique open design enables a simple attachment to the ball hitch. The extended handle length minimizes slouching and bending and promotes a better posture for when manually moving a hitched trailer. With a steel construction, this trailer dolly is strong and durable throughout daily use. Blue powder coat finish for baked in added toughness. Hardware is included.

  • Handle is lockable in upright position
  • Rolls on three poly-on-steel casters
  • Separated handle-grip design
  • Includes ball hitch

Core Data

Assembled Weight: 84 Assembled Size: 20"W x 21.5625"L x 46.5625"H Color: BLUE
Total Ship Weight: 86 Package 1 Size: 22"W x 38"D x 8"H Freight: Parcel

Specifications

Capacity (lbs.): 2000
Overall Width (in.): 20
Overall Length (in.): 21-9/16 to 51-9/16
Overall Height (in.): 46-9/16
Removable Hitch Ball (in.): 2-5/16
Caster Material: Poly on Steel
Caster Size (in.): 8 x 2
Swivel Caster Quantity: 1
Rigid Caster Quantity: 2
Total Caster Quantity: 3
