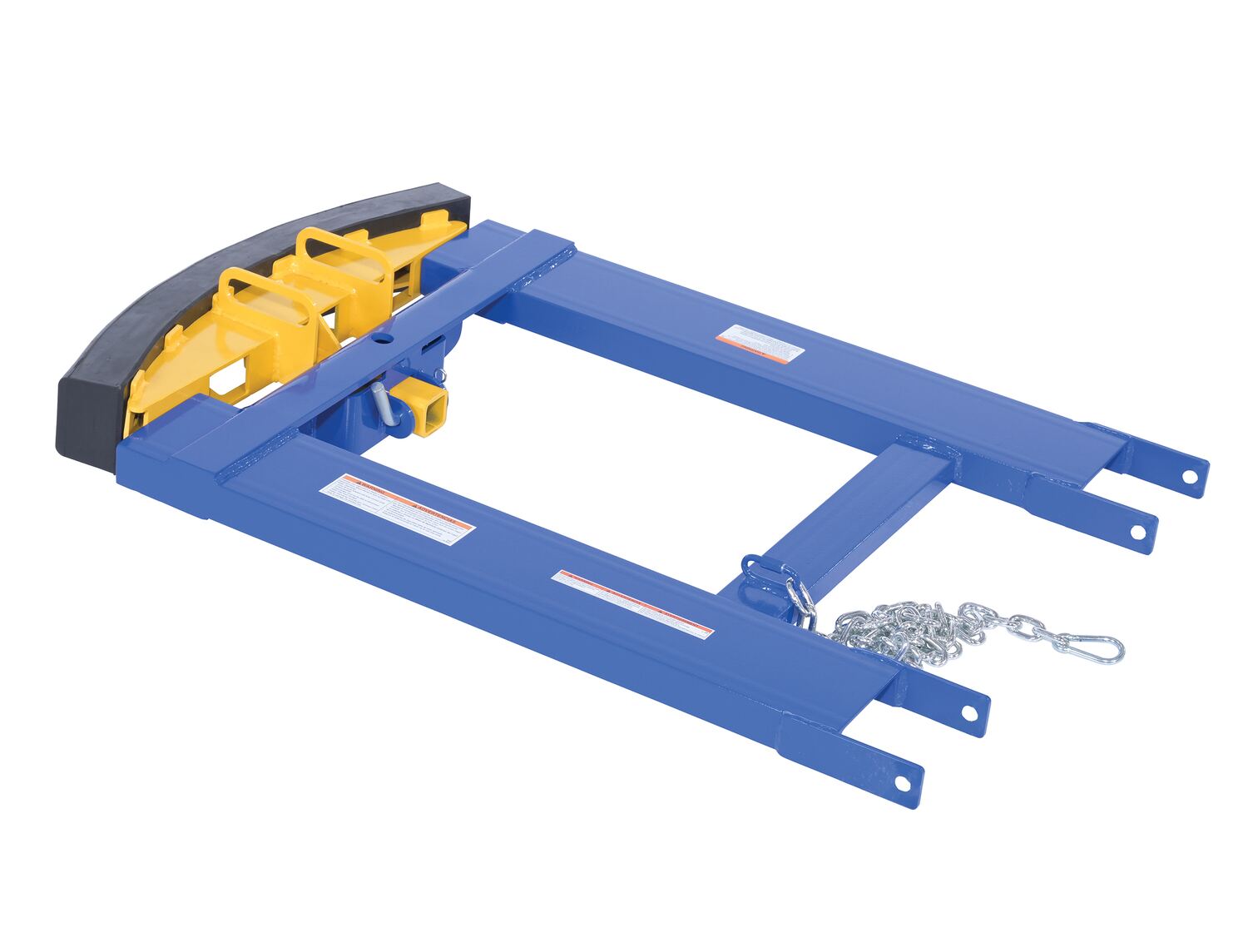

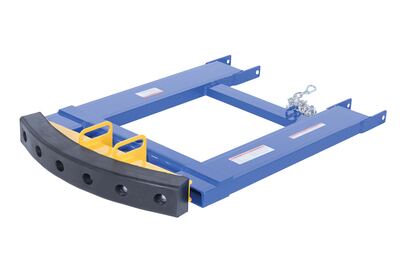

Steel Fork Truck Hook Base 32 In. Length With Steel/Rubber Push Bumper-Attachment to 2 In. Receiver 15 In. x 28 In. x 5-3/4 In Blue/Yellow

Hitch Attachment for Overhead Load Lifting and Controlled Positioning, 4,000 lb. Capacity with 32 in. Length

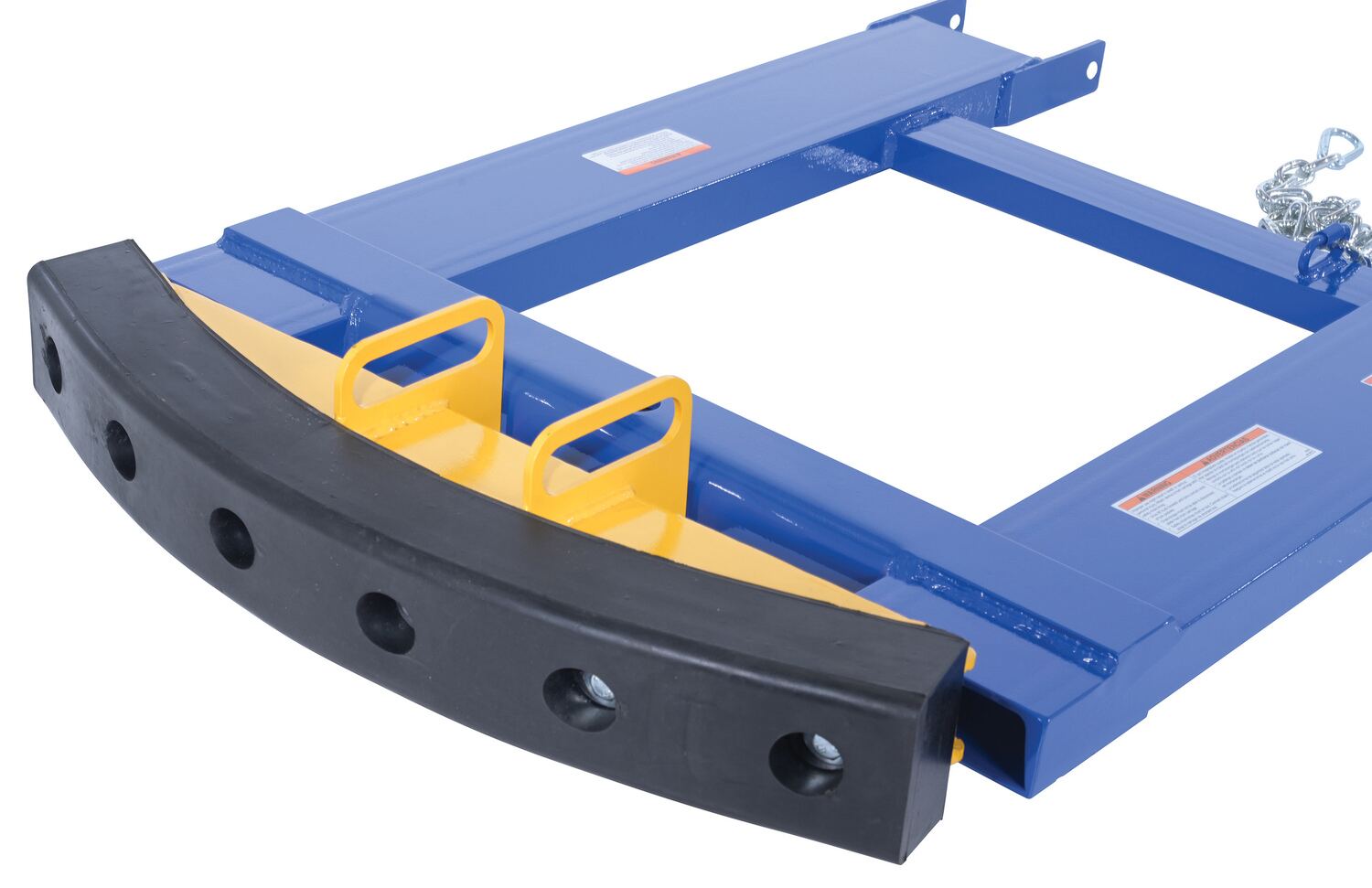

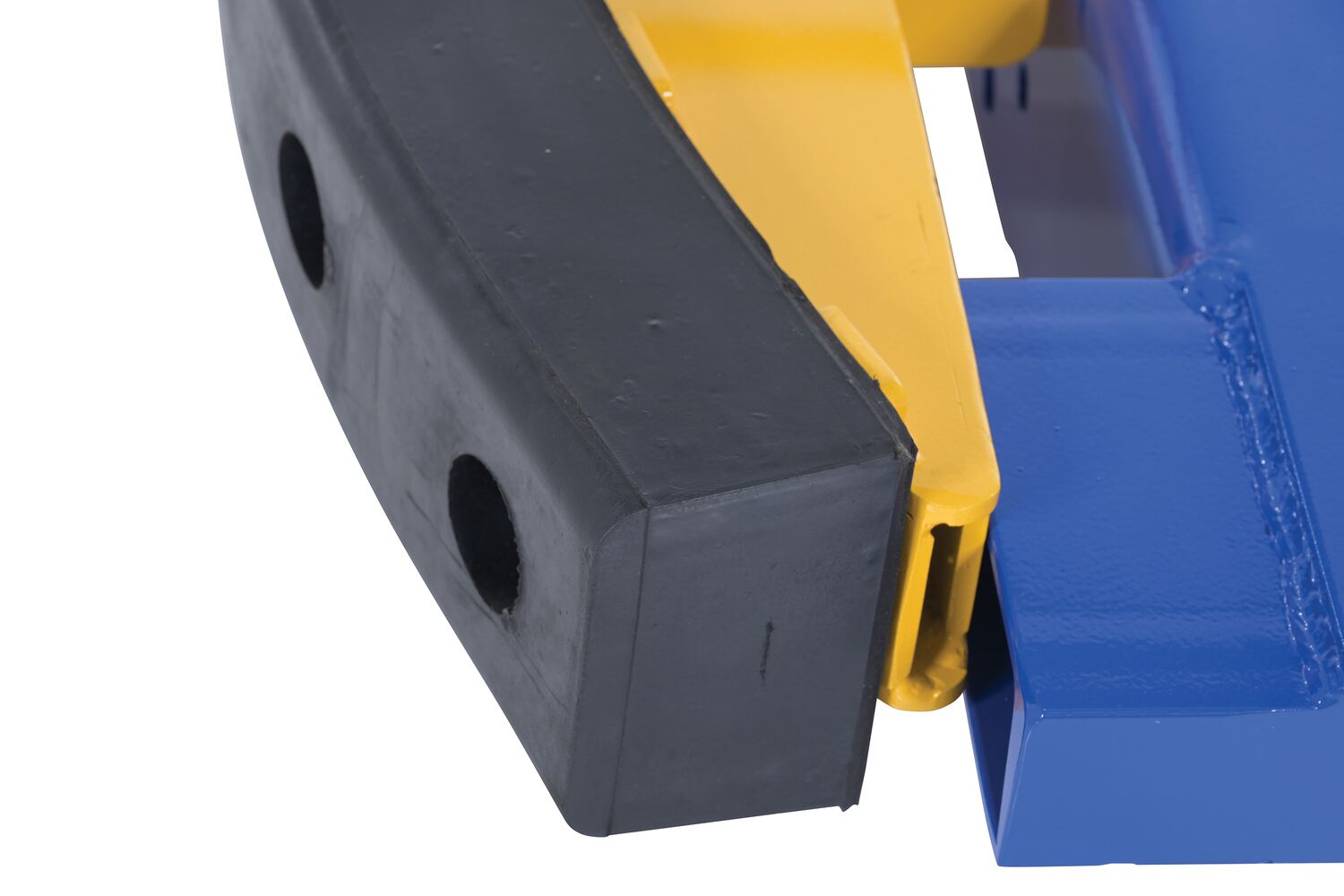

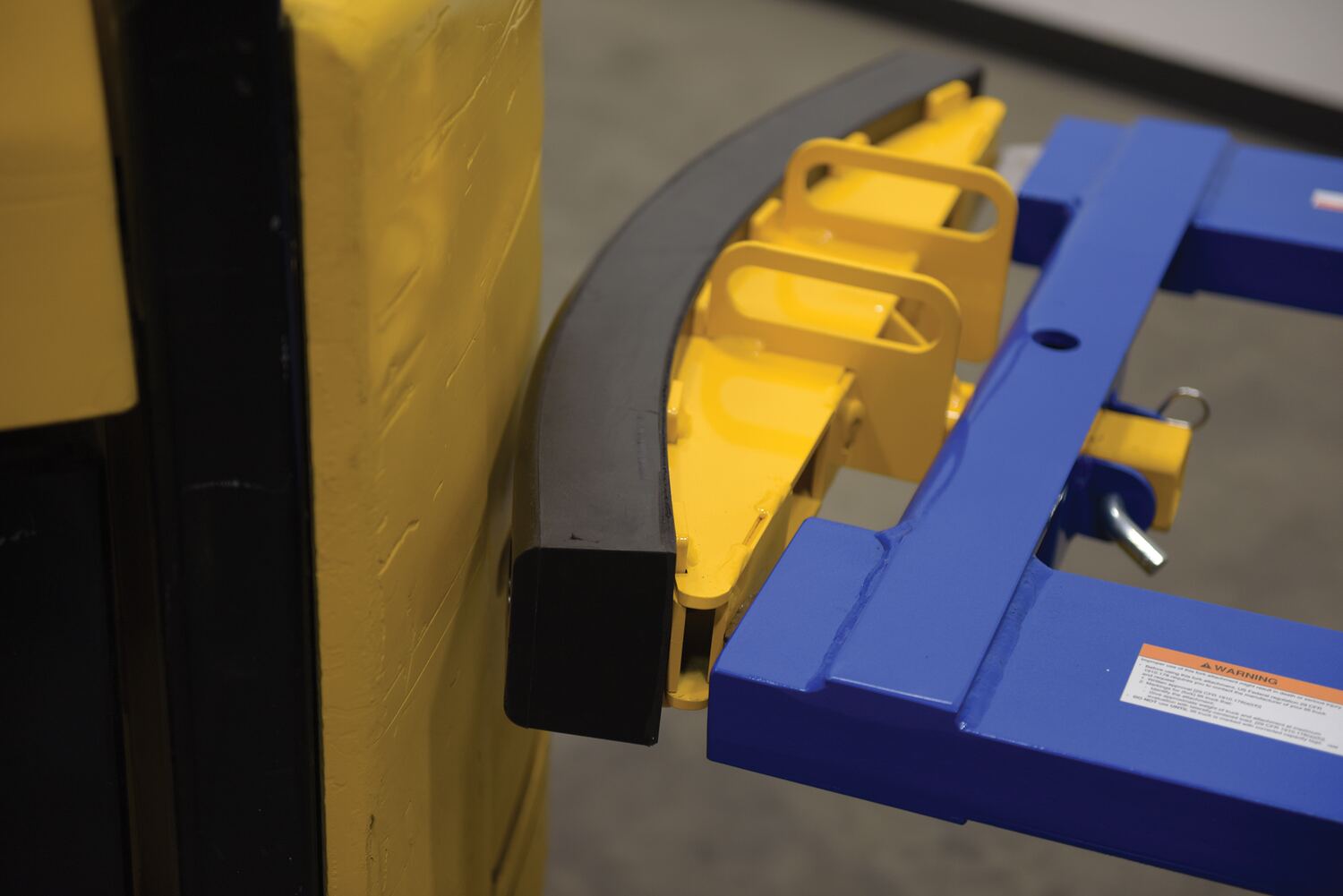

This push bumper with a hook base is a nice addition to any industrial setting. With a quick and seamless attachment, the unit is able to be used immediately. The base is constructed of steel to keep up well with the wear and tear of daily use. The front push bumper, made of rubber, helps to minimize any damage and abrasion that may occur. Steel portion of unit is powder coated for built in added toughness.
Product Status
Available
Key Features
  • Bumper tensile strength of 950 to 1050 PSI

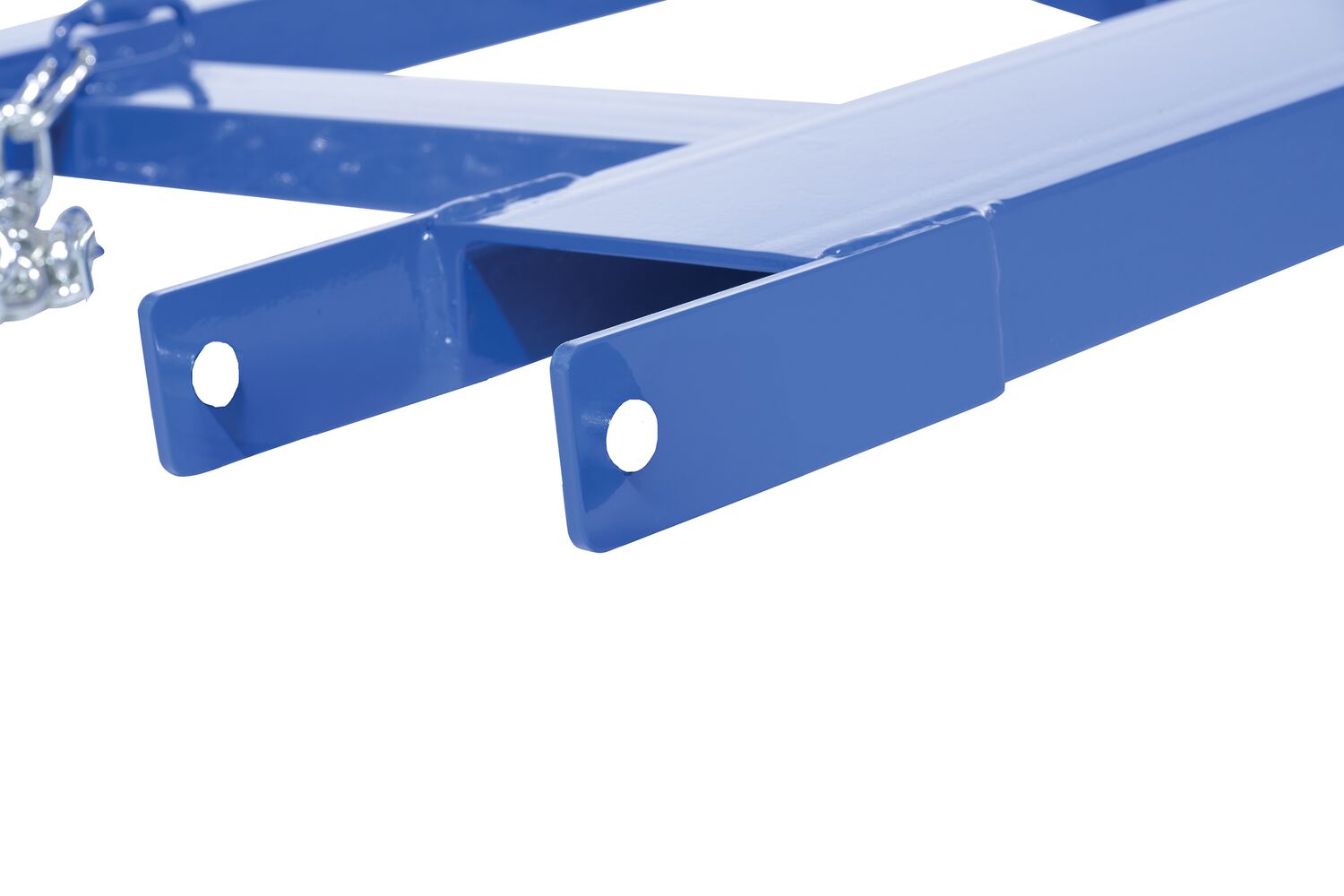

  • 5"W x 2"H usable fork pockets
  • Rubber bumper has a 95% impact recovery
  • Safety restraint chain included
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Fork Truck Base series HOOK-BASE Manual   model RPB-2 Push Bumper Instruction Manual   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 125 lbs
Assembled Size 30.5"W x 47.1875"L x 8.5"H
Total Ship Weight 165 lbs
Package 1 Size 40"W x 48"D x 15"H
Color / Finish BLUE|YELLOW
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 4000
Overall Width (in.) 30-1/2
Usable Width (in.) 30-3/16
Overall Length (in.) 47-3/16
Overall Height (in.) 8-1/2
Usable Height (in.) 4-1/2
Minimum Fork Length (in.) 36
Tine Lock Pins No
Vertical Center of Gravity (in.) 9/16
Horizontal Center of Gravity (in.) 24-3/4
Approx Weight/Lost Load (lbs.) 124.93
Extended Product Details

Marketing Specs.

MFG Model # (Series)
HOOK-BASE-32-RPB-2
Product Name
Steel Fork Truck Hook Base 32 In. Length With Steel/Rubber Push Bumper-Attachment to 2 In. Receiver 15 In. x 28 In. x 5-3/4 In Blue/Yellow
UPC
691215378734
GTIN
00691215378734
Taxonomy 1
Material Handling
Taxonomy 2
Forklift Attachments
Taxonomy 3
Hook Plates
Assembled Depth (in.)
47.1875
Assembled Width(in.)
30.5
Assembled Height(in.)
8.5
Assembled Weight(lbs.)
125
Color/Finish
BLUE|YELLOW
Material
STEEL
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
48
Package Width (in.)
40
Package Height (in.)
15
Package Weight (in.)
165
Subclass
7
Freight Class
92.5
NMFC Code
Lift Truck Attachments: Fork arms, fingers/tine
NMFC Number
193100
LTL Freight
LTL Palletized
UNSPSC
25181708
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: HOOK-BASE-32-RPB-2

HOOK-BASE-32-RPB-2

Steel Fork Truck Hook Base 32 In. Length With Steel/Rubber Push Bumper-Attachment to 2 In. Receiver 15 In. x 28 In. x 5-3/4 In Blue/Yellow

This push bumper with a hook base is a nice addition to any industrial setting. With a quick and seamless attachment, the unit is able to be used immediately. The base is constructed of steel to keep up well with the wear and tear of daily use. The front push bumper, made of rubber, helps to minimize any damage and abrasion that may occur. Steel portion of unit is powder coated for built in added toughness.

  • Bumper tensile strength of 950 to 1050 PSI
  • 5"W x 2"H usable fork pockets
  • Rubber bumper has a 95% impact recovery
  • Safety restraint chain included

Core Data

Assembled Weight: 125 Assembled Size: 30.5"W x 47.1875"L x 8.5"H Color: BLUE|YELLOW
Total Ship Weight: 165 Package 1 Size: 40"W x 48"D x 15"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 4000
Overall Width (in.): 30-1/2
Usable Width (in.): 30-3/16
Overall Length (in.): 47-3/16
Overall Height (in.): 8-1/2
Usable Height (in.): 4-1/2
Minimum Fork Length (in.): 36
Tine Lock Pins: No
Vertical Center of Gravity (in.): 9/16
Horizontal Center of Gravity (in.): 24-3/4
Approx Weight/Lost Load (lbs.): 124.93
