Product Data Sheet

  Print to PDF
  All Products   Protective Barriers   Machinery Guards   High Profile Machinery Guards HPRO-36-24-4
Product Image

Visual Reference

HPRO-36-24-4
HPRO-36-24-4
HPRO-36-24-4
HPRO-36-24-4
HPRO-36-24-4
HPRO-36-24-4
HPRO-36-24-4
HPRO-36-24-4
HPRO-36-24-4

Steel High Profile Machinery and Rack Guard 36 In. x 24 In. x 4 In. Yellow

High Profile Machinery Guard for Warehouse Traffic Control and Collision Protection, 36 in. x 24 in. x 4 in.
This High Profile machinery guard is heavy-duty welded steel construction for protecting racks, building walls, expensive equipment, and hundreds of other applications. Yellow powder coat finish. Two (2) base plates with four (4) pre-drilled mounting holes in each plate.
Product Status
Available QuickShip
Key Features
  • High profile design provides added protection to personnel and equipment
  • Four pre-drilled mounting holes in base plate allow quick lag down installation
  • Powder coat yellow finish provides long lasting durable coverage
  • Heavy-duty welded steel construction protects racks, building walls, expensive equipment, and hundreds of other applications
Quick Actions

Product Resources

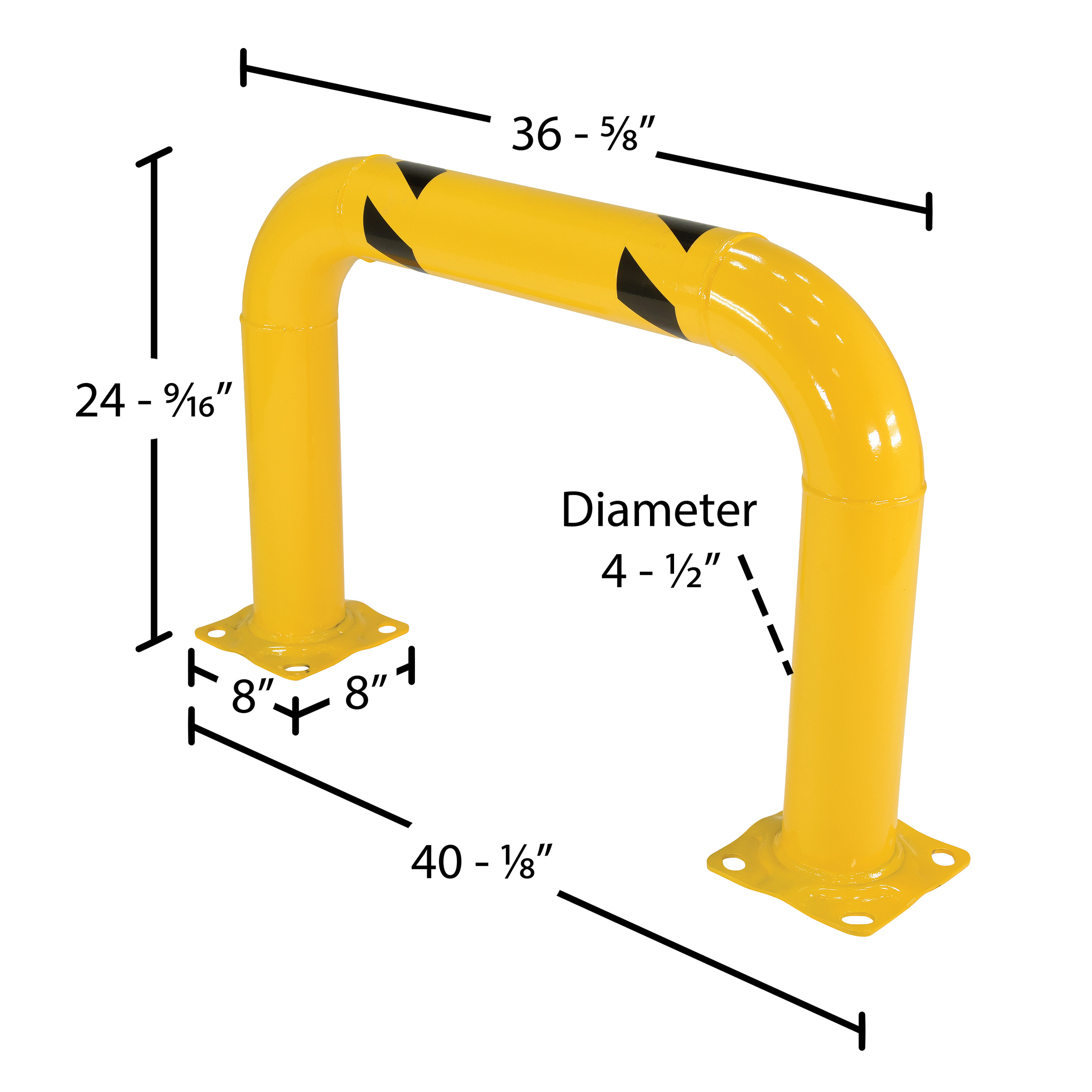

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   High Profile Machinery Guards   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 48 lbs
Assembled Size 8"W x 40.125"L x 24.5625"H
Total Ship Weight 48 lbs
Package 1 Size 8"W x 41"D x 25"H
Color / Finish Yellow
Freight Type Parcel

Additional Attributes

Guard Diameter (in.) 4-1/2
Guard Width (in.) 36-5/8
Base Plate Width/Length (in.) 8 x 8
Bolt Holes (qty.) 8
OSHA 1910.23(e)(1)
Extended Product Details

Marketing Specs.

MFG Model # (Series)
HPRO-36-24-4
Product Name
Steel High Profile Machinery and Rack Guard 36 In. x 24 In. x 4 In. Yellow
UPC
691215023962
GTIN
00691215023962
Taxonomy 1
Cleaning & Janitorial
Taxonomy 2
Storage & Organization
Taxonomy 3
Industrial Storage
Taxonomy 4
Accessories
Taxonomy 5
Rack Guards
Assembled Depth (in.)
40.125
Assembled Width(in.)
8
Assembled Height(in.)
24.5625
Assembled Weight(lbs.)
48
Color/Finish
Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
41
Package Width (in.)
8
Package Height (in.)
25
Package Weight (in.)
48
Subclass
1
Freight Class
200
NMFC Code
Machine Guards iron steel or wire
NMFC Number
124560
LTL Freight
Parcel
UNSPSC
23152204
HTSUS Number
7326.90.8688
USMCA HS
7326.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: HPRO-36-24-4

HPRO-36-24-4

Steel High Profile Machinery and Rack Guard 36 In. x 24 In. x 4 In. Yellow

This High Profile machinery guard is heavy-duty welded steel construction for protecting racks, building walls, expensive equipment, and hundreds of other applications. Yellow powder coat finish. Two (2) base plates with four (4) pre-drilled mounting holes in each plate.

  • High profile design provides added protection to personnel and equipment
  • Four pre-drilled mounting holes in base plate allow quick lag down installation
  • Powder coat yellow finish provides long lasting durable coverage
  • Heavy-duty welded steel construction protects racks, building walls, expensive equipment, and hundreds of other applications

Core Data

Assembled Weight: 48 Assembled Size: 8"W x 40.125"L x 24.5625"H Color: Yellow
Total Ship Weight: 48 Package 1 Size: 8"W x 41"D x 25"H Freight: Parcel

Specifications

Guard Diameter (in.): 4-1/2
Guard Width (in.): 36-5/8
Base Plate Width/Length (in.): 8 x 8
Bolt Holes (qty.): 8
OSHA: 1910.23(e)(1)
