  All Products   Protective Barriers   Bollards   Removable Bollards & Machine Guards HPRO-R-48-36-2
Product Image

Visual Reference

HPRO-R-48-36-2
HPRO-R-48-36-2
HPRO-R-48-36-2

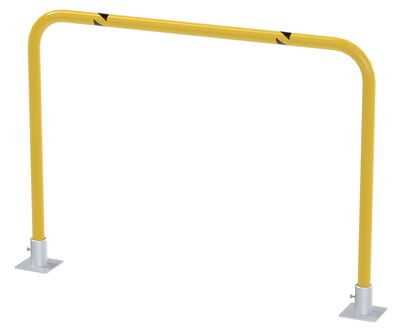

Steel Removable High Profile Machine and Rack Guard 48 In. x 36 In. x 2 In. Yellow

Removable Machinery Guard for Warehouse Traffic Control and Collision Protection, 48 in. x 36 in. x 2 in.
A High Profile machinery guard protects racks, building walls, expensive equipment, and a variety of other applications. This guard is detachable from the single socket base plate, allowing for quick installation and removal. Each guard is built of powder coated steel, while the base plate has a galvanized finish. Four (4) pre-drilled mounting holes in each plate.
Product Status
Available
Key Features
  • Single rail design
  • 5" x 5" base plate
  • Black and yellow safety stripes for added visibility
  • 1/4" base plate thickness
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   High Profile Machinery Guards   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 29 lbs
Assembled Size 5"W x 51.3125"L x 36.1875"H
Total Ship Weight 74 lbs
Package 1 Size 40"W x 54"D x 10"H
Color / Finish Yellow
Freight Type LTL Palletized

Additional Attributes

Pipe Diameter (In.) 1-11/16
Bollard Height (In.) 36-3/16
Base Plate Width (In.) 5
Base Plate Length (In.) 5
Base Plate Thickness (In.) 5/8
Mounting Holes (Each Base Plate) 4
Base Plate Finish Galvanized
Mounting Hole Dia. (In.) 3/8
Mounting Hardware Included? No
Machine Guard Length (in.) 48
Overall Length (in.) 51-5/16
Extended Product Details

Marketing Specs.

MFG Model # (Series)
HPRO-R-48-36-2
Product Name
Steel Removable High Profile Machine and Rack Guard 48 In. x 36 In. x 2 In. Yellow
UPC
691215378918
GTIN
00691215378918
Taxonomy 1
Cleaning & Janitorial
Taxonomy 2
Storage & Organization
Taxonomy 3
Industrial Storage
Taxonomy 4
Accessories
Taxonomy 5
Rack Guards
Assembled Depth (in.)
51.3125
Assembled Width(in.)
5
Assembled Height(in.)
36.1875
Assembled Weight(lbs.)
29
Color/Finish
Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
54
Package Width (in.)
40
Package Height (in.)
10
Package Weight (in.)
74
Subclass
1
Freight Class
200
NMFC Code
Machine Guards, iron, steel or wire
NMFC Number
124560
LTL Freight
LTL Palletized
UNSPSC
23152204
HTSUS Number
7326.90.8688
USMCA HS
7326.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: HPRO-R-48-36-2

HPRO-R-48-36-2

Steel Removable High Profile Machine and Rack Guard 48 In. x 36 In. x 2 In. Yellow

A High Profile machinery guard protects racks, building walls, expensive equipment, and a variety of other applications. This guard is detachable from the single socket base plate, allowing for quick installation and removal. Each guard is built of powder coated steel, while the base plate has a galvanized finish. Four (4) pre-drilled mounting holes in each plate.

  • Single rail design
  • 5" x 5" base plate
  • Black and yellow safety stripes for added visibility
  • 1/4" base plate thickness

Core Data

Assembled Weight: 29 Assembled Size: 5"W x 51.3125"L x 36.1875"H Color: Yellow
Total Ship Weight: 74 Package 1 Size: 40"W x 54"D x 10"H Freight: LTL Palletized

Specifications

Pipe Diameter (In.): 1-11/16
Bollard Height (In.): 36-3/16
Base Plate Width (In.): 5
Base Plate Length (In.): 5
Base Plate Thickness (In.): 5/8
Mounting Holes (Each Base Plate): 4
Base Plate Finish: Galvanized
Mounting Hole Dia. (In.): 3/8
Mounting Hardware Included?: No
Machine Guard Length (in.): 48
Overall Length (in.): 51-5/16
