Steel Square High Profile Machinery and Rack Guard 48 In. x 24 In. x 5 In. Yellow

High Profile Machinery Guard for Warehouse Traffic Control and Collision Protection, 48 in. x 24 in. x 5 in.
Heavy duty machine and rack guards are simple and efficient ways of enhancing safety. The large upright size keeps machinery safe from unintended impact. The unit has a strong steel construction with a yellow powder coat finish for both strength and continued visibility. A simple installation will have these guards in place and protecting assets in just a short period of time.
Product Status
Available
Key Features
  • Perfect for protecting items
  • Highly visible
  • Simple foundation installation
  • Strong steel design
Quick Actions

Product Resources

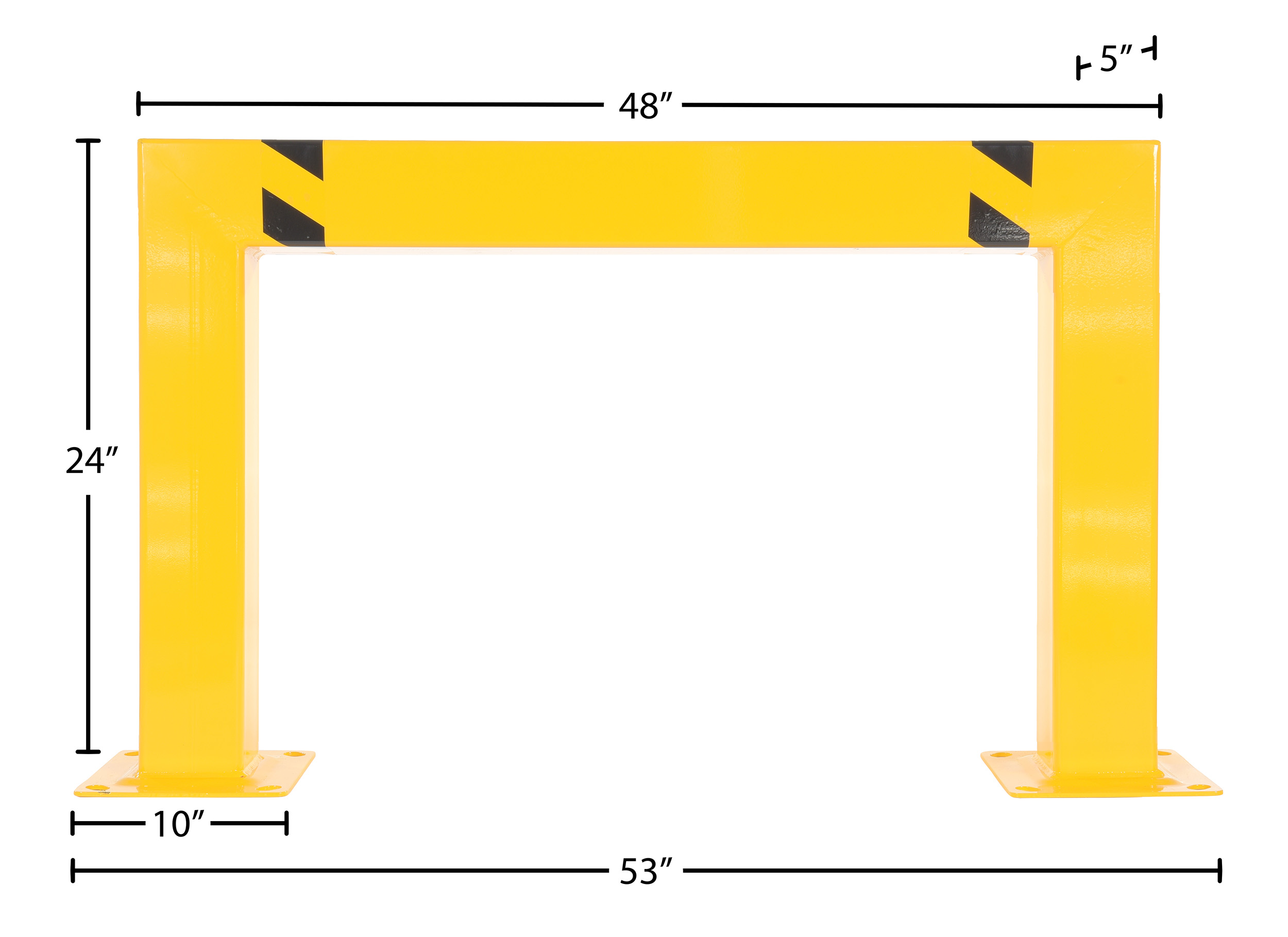

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   High Profile Machinery Guards   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 96 lbs
Assembled Size 10"W x 53"L x 24"H
Total Ship Weight 96 lbs
Package 1 Size 53"W x 10"D x 24"H
Color / Finish Yellow
Freight Type Parcel

Additional Attributes

Usable Width (in.) 5
Usable Length (in.) 48
Usable Height (in.) 24
Plate Width (in.) 10
Plate Length (in.) 10
Plate Thickness (in.) 3/16
Plate holes (qty.) 4
Hole Slot Diameter (in.) 7/8 X 1-1/4
Extended Product Details

Marketing Specs.

MFG Model # (Series)
HPRO-SQ-48-24-5
Product Name
Steel Square High Profile Machinery and Rack Guard 48 In. x 24 In. x 5 In. Yellow
UPC
691215329279
GTIN
00691215329279
Taxonomy 1
Cleaning & Janitorial
Taxonomy 2
Storage & Organization
Taxonomy 3
Industrial Storage
Taxonomy 4
Accessories
Taxonomy 5
Rack Guards
Assembled Depth (in.)
53
Assembled Width(in.)
10
Assembled Height(in.)
24
Assembled Weight(lbs.)
96
Color/Finish
Yellow
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
10
Package Width (in.)
53
Package Height (in.)
24
Package Weight (in.)
96
Subclass
1
Freight Class
200
NMFC Code
Machine Guards iron steel or wire
NMFC Number
124560
LTL Freight
Parcel
UNSPSC
23152204
HTSUS Number
7326.90.8688
USMCA HS
7326.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: HPRO-SQ-48-24-5

HPRO-SQ-48-24-5

Steel Square High Profile Machinery and Rack Guard 48 In. x 24 In. x 5 In. Yellow

Heavy duty machine and rack guards are simple and efficient ways of enhancing safety. The large upright size keeps machinery safe from unintended impact. The unit has a strong steel construction with a yellow powder coat finish for both strength and continued visibility. A simple installation will have these guards in place and protecting assets in just a short period of time.

  • Perfect for protecting items
  • Highly visible
  • Simple foundation installation
  • Strong steel design

Core Data

Assembled Weight: 96 Assembled Size: 10"W x 53"L x 24"H Color: Yellow
Total Ship Weight: 96 Package 1 Size: 53"W x 10"D x 24"H Freight: Parcel

Specifications

Usable Width (in.): 5
Usable Length (in.): 48
Usable Height (in.): 24
Plate Width (in.): 10
Plate Length (in.): 10
Plate Thickness (in.): 3/16
Plate holes (qty.): 4
Hole Slot Diameter (in.): 7/8 X 1-1/4
