Galvanized Steel Construction Safety Barrier Base For HRAIL Models

Galvanized Interlocking Barrier for Warehouse Traffic Control and Collision Protection with Welded Steel Construction, Gray Finish – Model HRAIL-BASE
Base unit for construction safety barriers. Includes two receiver posts allowing for connection of two panels.
Product Status
Available QuickShip
Key Features
  • Design temporarily secures job site from theft, hazard liability, and dumping
  • Base unit for construction safety barriers
  • Includes two receiver posts allowing for connection of two panels
  • Chain link fence is secured to barrier with steel ties
Quick Actions

Product Resources

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  HRAIL series Galvanized Construction Barrier Systems Owners Manual   90 Days Warranty
Product Data

Core Data

Assembled Weight 7 lbs

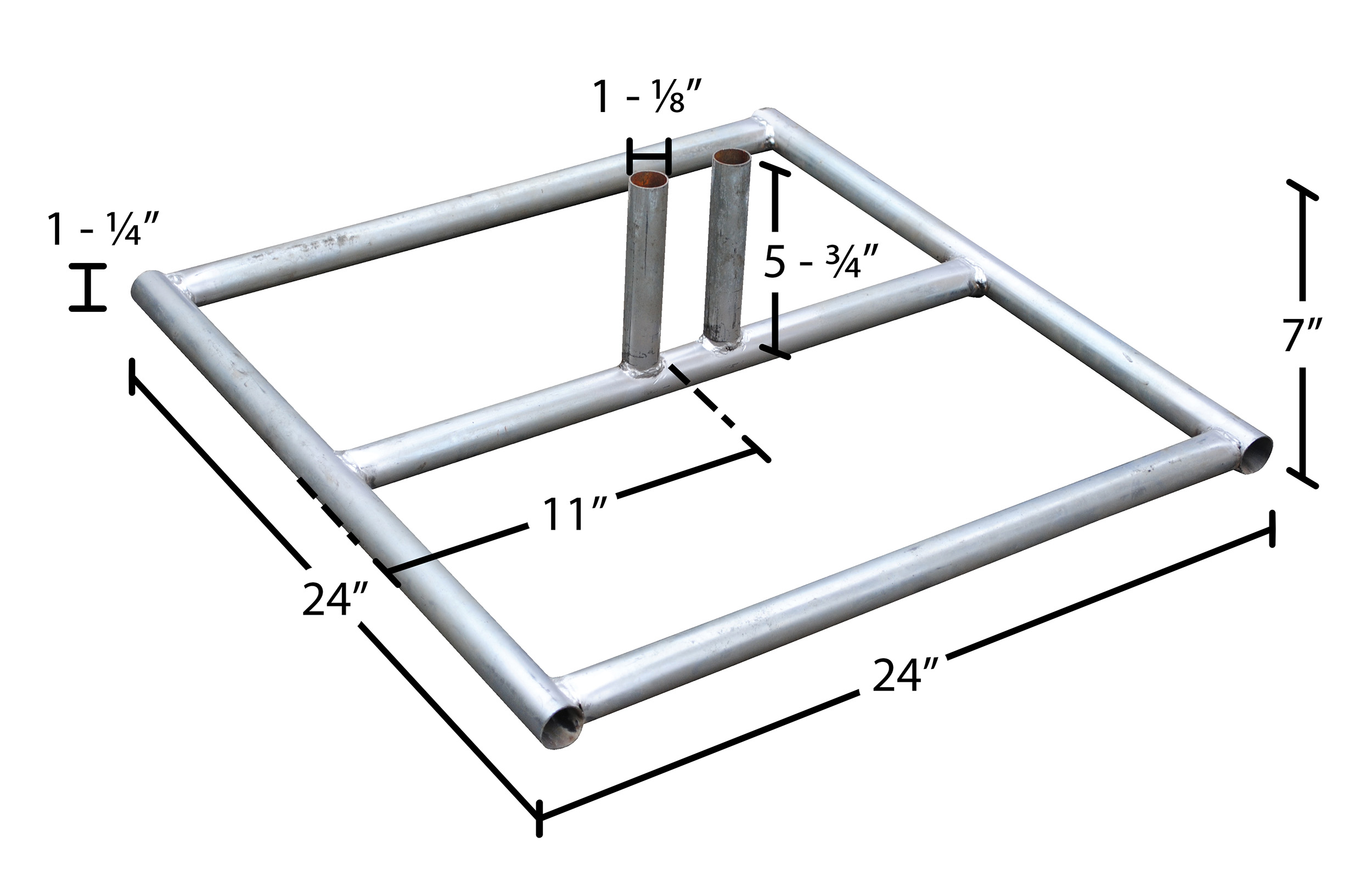

Assembled Size 24"W x 24"L x 7"H
Total Ship Weight 7 lbs
Package 1 Size 24"W x 24"D x 8"H
Color / Finish Gray
Freight Type Parcel

Additional Attributes

Base Tubing Diameter (in.) 1-1/4
Receiver Post (qty.) 2
Receiver Post Height (in.) 5-3/4
Receiver Post Diameter (in.) 1-1/8
Extended Product Details

Marketing Specs.

MFG Model # (Series)
HRAIL-BASE
Product Name
Galvanized Steel Construction Safety Barrier Base For HRAIL Models
UPC
691215097345
GTIN
00691215097345
Taxonomy 1
Hardware
Taxonomy 2
Safety & Security
Taxonomy 3
Safety Barriers
Taxonomy 4
Barricade Bases / Feet
Assembled Depth (in.)
24
Assembled Width(in.)
24
Assembled Height(in.)
7
Assembled Weight(lbs.)
7
Color/Finish
Gray
Material
Welded Steel
Option? Y/N
Y
Sell UOM
EA-Each
Country Of Origin
TR
Approval Drawing Required? Y/N
N
Assembly
Assembled
Compatible Products
HRAIL-9072, HRAIL-A-9072, HRAIL-PNL, HRAIL-CON

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
24
Package Width (in.)
24
Package Height (in.)
8
Package Weight (in.)
7
Subclass
6
Freight Class
300
NMFC Code
Barricade pedestrian iron steel alum combined
NMFC Number
68005
LTL Freight
Parcel
UNSPSC
23152206
HTSUS Number
7308.90.9590
USMCA HS
7308.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Yes
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: HRAIL-BASE

HRAIL-BASE

Galvanized Steel Construction Safety Barrier Base For HRAIL Models

Base unit for construction safety barriers. Includes two receiver posts allowing for connection of two panels.

  • Design temporarily secures job site from theft, hazard liability, and dumping
  • Base unit for construction safety barriers
  • Includes two receiver posts allowing for connection of two panels
  • Chain link fence is secured to barrier with steel ties

Core Data

Assembled Weight: 7 Assembled Size: 24"W x 24"L x 7"H Color: Gray
Total Ship Weight: 7 Package 1 Size: 24"W x 24"D x 8"H Freight: Parcel

Specifications

Base Tubing Diameter (in.): 1-1/4
Receiver Post (qty.): 2
Receiver Post Height (in.): 5-3/4
Receiver Post Diameter (in.): 1-1/8
