  All Products   Storage Solutions   Cantilever Racking   Heavy-Duty Cantilever Racking HSA-C-18
Product Image

Visual Reference

HSA-C-18
HSA-C-18
HSA-C-18
HSA-C-18
HSA-C-18
HSA-C-18

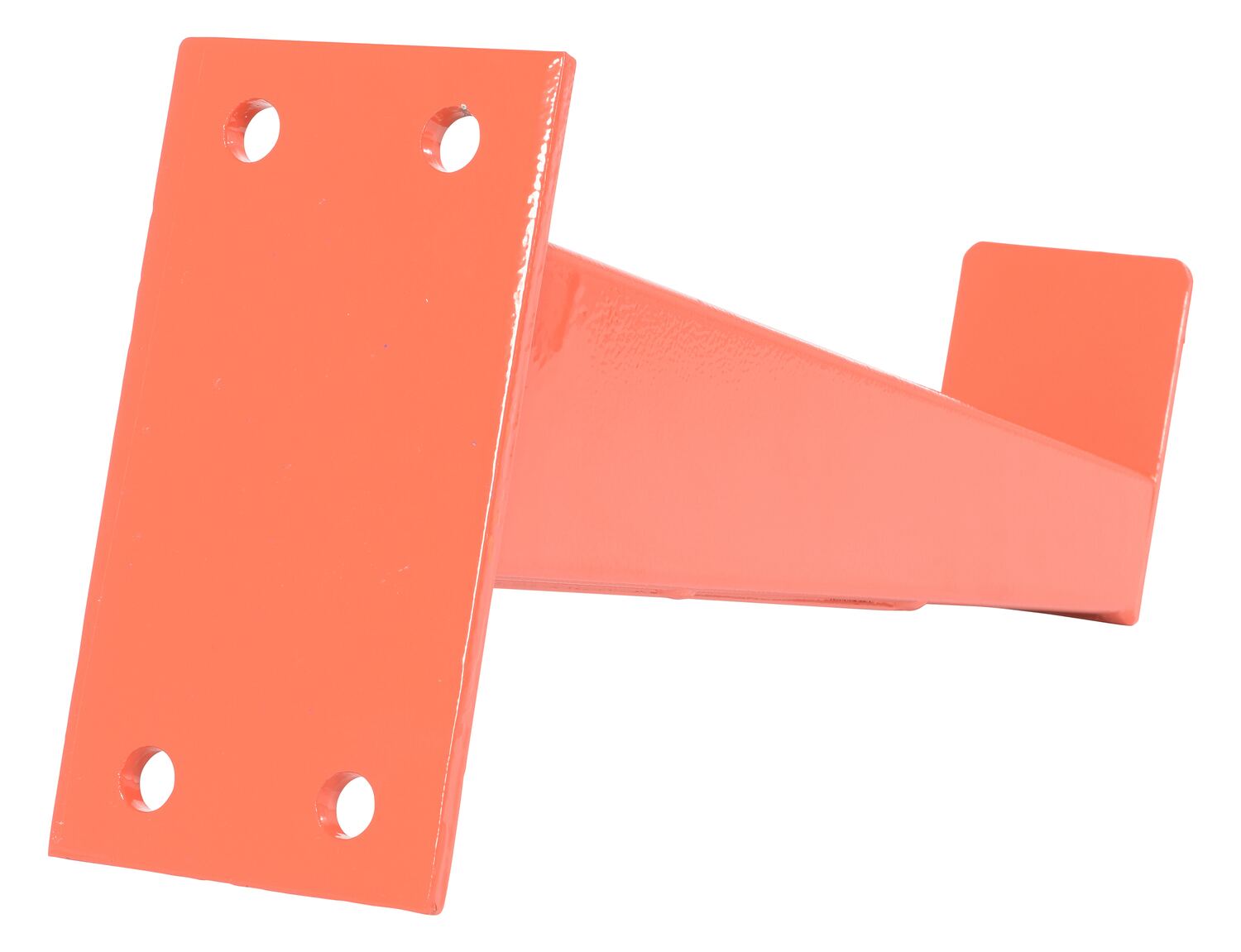

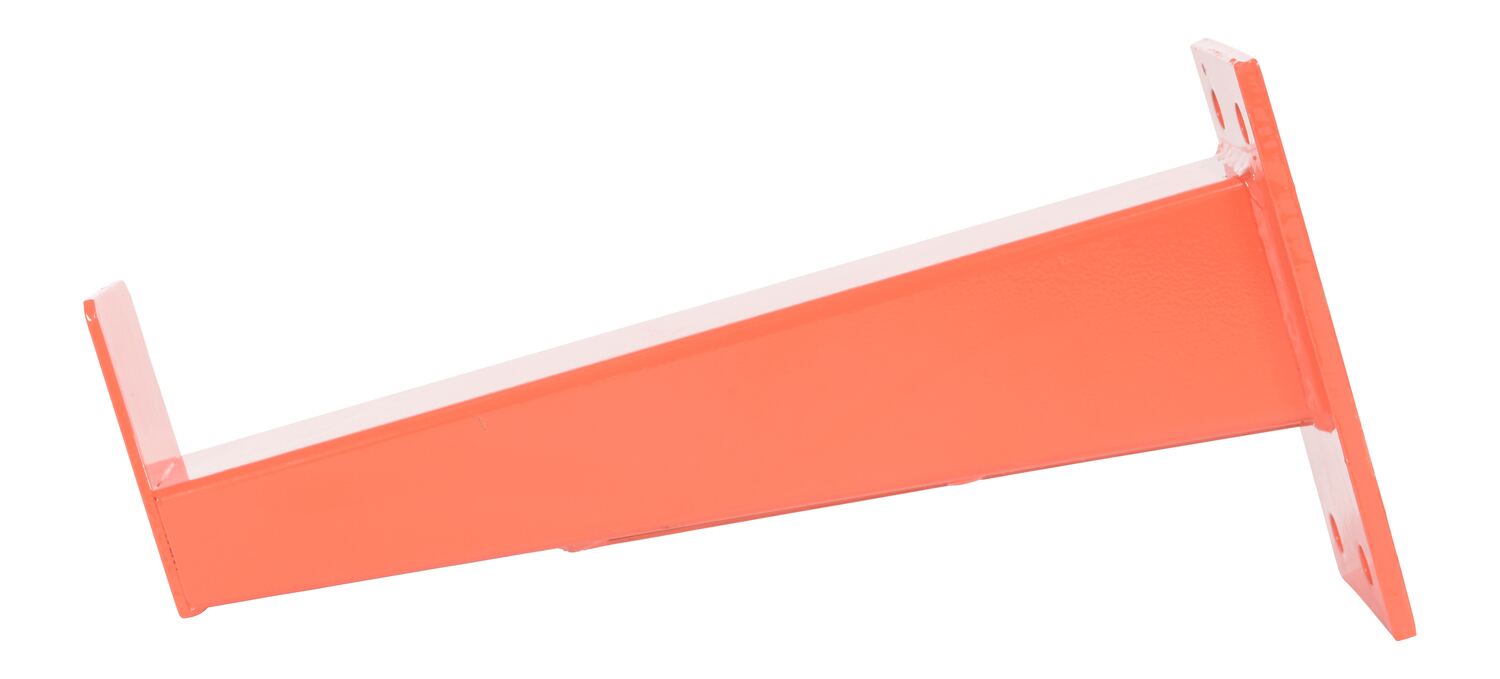

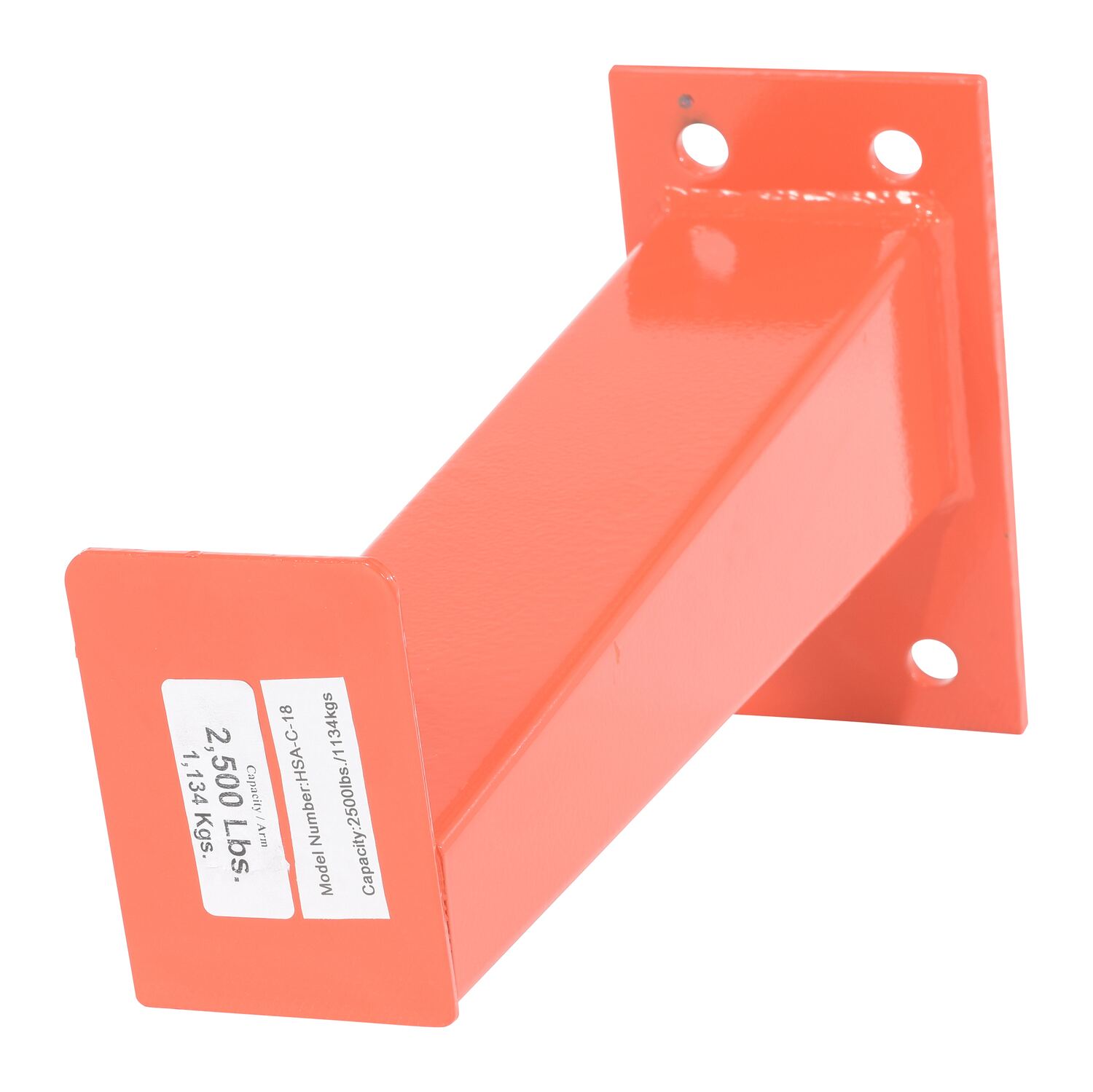

Steel Heavy Duty Cantilever Straight Arm 18 In. 2,500 Lb. Capacity Orange

Heavy-Duty Cantilever Racks for Organized Warehouse Storage and Material Support, 2,500 lb. Capacity with 18 in.
The Heavy Duty Cantilever rack is completely adjustable for application specific design flexibility. Long, welded stock is handled quickly and efficiently by forklift; instant accessibility to one (1) piece or a full load. These straight arms are adjustable up and down the length of the upright. To adjust, align arms with pre-drilled holes and bolt in (hardware included). All arms feature lips to prevent product from falling off. Uprights and arms are sold each, not in pairs. Custom rack systems can be designed for your special application.
Product Status
Available QuickShip
Key Features
  • Adjustable design provides added flexibility
  • Lips prevent product from falling off
  • High capacity holds the heaviest loads
  • Heavy duty steel construction provides long lasting rugged use
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   360 Image   1 Year Warranty
Product Data

Core Data

Assembled Weight 16 lbs
Assembled Size 5"W x 18"L x 9"H
Total Ship Weight 16 lbs
Package 1 Size 11"W x 19"D x 10"H
Color / Finish Orange
Freight Type Parcel

Additional Attributes

Uniform Capacity Per Arm (lb.) 2,500
Component Straight Arm
Lip (in.) 3-1/8
Extended Product Details

Marketing Specs.

MFG Model # (Series)
HSA-C-18
Product Name
Steel Heavy Duty Cantilever Straight Arm 18 In. 2,500 Lb. Capacity Orange
UPC
691215063173
GTIN
00691215063173
Taxonomy 1
Cleaning & Janitorial
Taxonomy 2
Storage & Organization
Taxonomy 3
Industrial Storage
Taxonomy 4
Cantilever Rack Arms
Assembled Depth (in.)
18
Assembled Width(in.)
5
Assembled Height(in.)
9
Assembled Weight(lbs.)
16
Color/Finish
Orange
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
TR
Approval Drawing Required? Y/N
N
Assembly
Assembled
Compatible Products
HU-C-10-18, HDU-C-10-18, HU-C-12-18, HDU-C-12-18, HU-C-14-18, HDU-C-14-18, HU-C-8-18, HDU-C-8-18

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
19
Package Width (in.)
11
Package Height (in.)
10
Package Weight (in.)
16
Subclass
6
Freight Class
65
NMFC Code
Racks Pallet or Warehouse metal
NMFC Number
164340
LTL Freight
Parcel
UNSPSC
24102004
HTSUS Number
7308.90.9590
USMCA HS
7308.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: HSA-C-18

HSA-C-18

Steel Heavy Duty Cantilever Straight Arm 18 In. 2,500 Lb. Capacity Orange

The Heavy Duty Cantilever rack is completely adjustable for application specific design flexibility. Long, welded stock is handled quickly and efficiently by forklift; instant accessibility to one (1) piece or a full load. These straight arms are adjustable up and down the length of the upright. To adjust, align arms with pre-drilled holes and bolt in (hardware included). All arms feature lips to prevent product from falling off. Uprights and arms are sold each, not in pairs. Custom rack systems can be designed for your special application.

  • Adjustable design provides added flexibility
  • Lips prevent product from falling off
  • High capacity holds the heaviest loads
  • Heavy duty steel construction provides long lasting rugged use

Core Data

Assembled Weight: 16 Assembled Size: 5"W x 18"L x 9"H Color: Orange
Total Ship Weight: 16 Package 1 Size: 11"W x 19"D x 10"H Freight: Parcel

Specifications

Uniform Capacity Per Arm (lb.): 2,500
Component: Straight Arm
Lip (in.): 3-1/8
