Steel Hydraulic Post Table 16-1/4 In. x 16-1/4 In. 200 Lb. Capacity Blue

Foot Operated Hydraulic Post Table for Commercial and Industrial Post Tables Use, 200 lb. Capacity with 16-1/4 in. x 16-1/4 in.
The Hydraulic post table is built for heavy-duty shop use and includes a platform that swivels for use as a turntable. This post table is good for many material handling uses including: lifting dies and castings, moving machine parts, positioning welders work, leveling feed material for pump presses, conveyors and press brakes, and similar material handling jobs. The posts are telescoping to help stabilize and support loads during operation. Table includes four (4) casters; two (2) locking swivel with brakes and two (2) rigid. This light duty-unit features a single-speed foot pump. All foot pumps include a down speed control valve for safe platform lowering. Unit comes standard with a removable rubber platform cover.
Product Status
Available QuickShip
Key Features
  • Heavy-duty construction is ideal for industrial work areas
  • Telescopic posts stabilize loads during use
  • Units feature two rigid and two swivel casters for easy portability
  • Patented ergonomic push handle makes pushing the unit safe and easy
Quick Actions

Product Resources

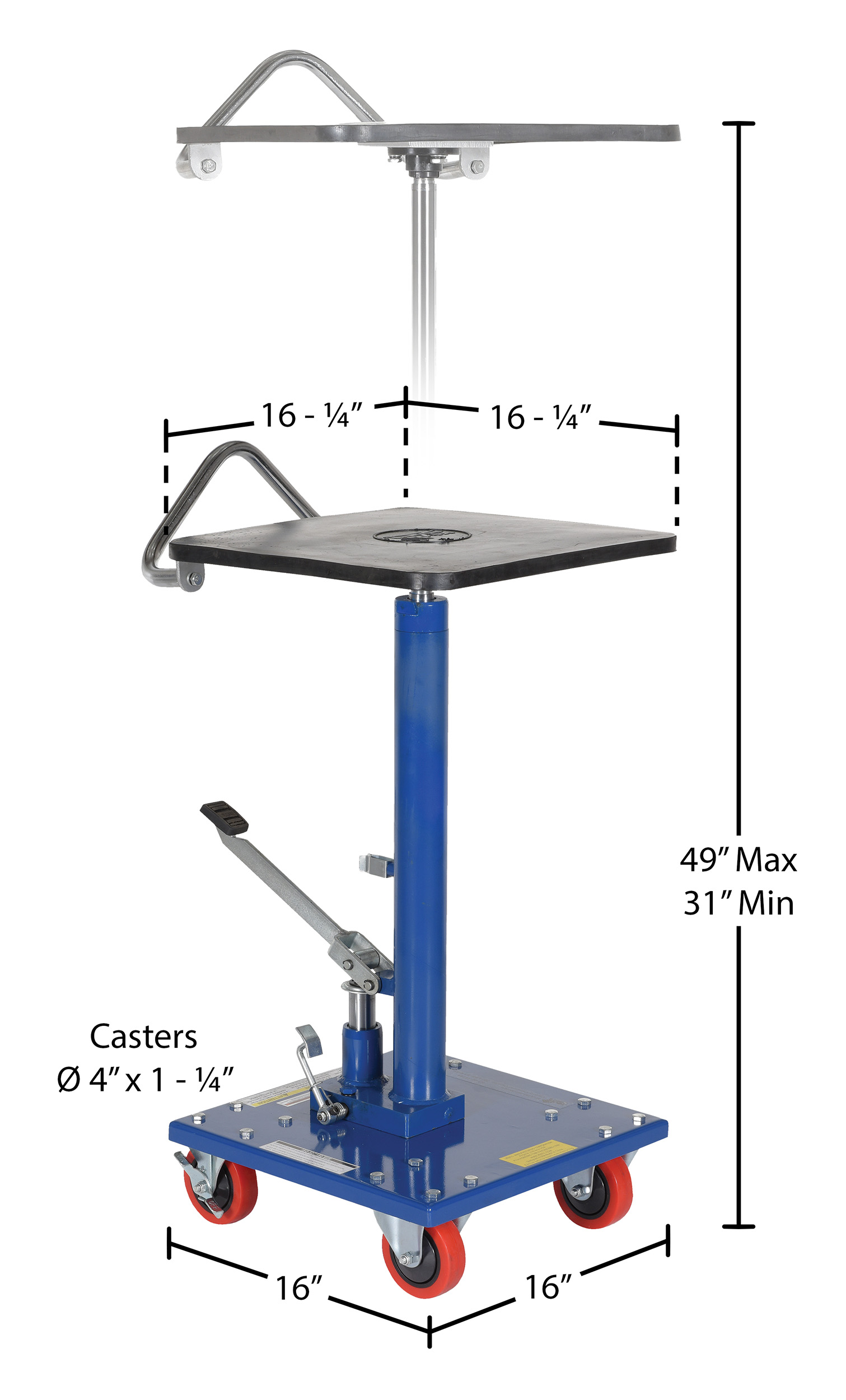

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Hydraulic Post Tables   Hydrualic Post Tables HT-A series   Label Page PDF   Hydraulic Oil SDS   1 Year Warranty
Product Data

Core Data

Assembled Weight 81 lbs
Assembled Size 16.25"W x 16.25"L x 31"H
Total Ship Weight 126 lbs
Package 1 Size 40"W x 48"D x 11"H
Color / Finish Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 200
Platform Width (in.) 16-1/4
Platform Length (in.) 16-1/4
Lowered Height (in.) 31
Raised Height (in.) 49
Post (qty.) 1
Operation 1-Speed Foot Pump
Caster Diameter (in.) 4
Caster Width (in.) 1-1/4
Caster Material Poly-on-Poly
Caster Type (2) Rigid, (2) Swivel w/ Locking Brakes
Application Ergonomic Lifting
Base Type Solid Steel
Deck Type Solid
Platform Swivel Degree 360
Handle Height (in.) 35
# Pumps to Raise 15
Extended Product Details

Marketing Specs.

MFG Model # (Series)
HT-02-1616A
Product Name
Steel Hydraulic Post Table 16-1/4 In. x 16-1/4 In. 200 Lb. Capacity Blue
UPC
691215051668
GTIN
00691215051668
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Lifters / Tilters
Taxonomy 4
Post Tables
Taxonomy 5
Manual
Assembled Depth (in.)
16.25
Assembled Width(in.)
16.25
Assembled Height(in.)
31
Assembled Weight(lbs.)
81
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
48
Package Width (in.)
40
Package Height (in.)
11
Package Weight (in.)
126
Subclass
18
Freight Class
92.5
NMFC Code
Conveyors, Elevators or Lifts, or Parts thereof
NMFC Number
120700
LTL Freight
LTL Palletized
UNSPSC
27120000
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
Yes
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: HT-02-1616A

HT-02-1616A

Steel Hydraulic Post Table 16-1/4 In. x 16-1/4 In. 200 Lb. Capacity Blue

The Hydraulic post table is built for heavy-duty shop use and includes a platform that swivels for use as a turntable. This post table is good for many material handling uses including: lifting dies and castings, moving machine parts, positioning welders work, leveling feed material for pump presses, conveyors and press brakes, and similar material handling jobs. The posts are telescoping to help stabilize and support loads during operation. Table includes four (4) casters; two (2) locking swivel with brakes and two (2) rigid. This light duty-unit features a single-speed foot pump. All foot pumps include a down speed control valve for safe platform lowering. Unit comes standard with a removable rubber platform cover.

  • Heavy-duty construction is ideal for industrial work areas
  • Telescopic posts stabilize loads during use
  • Units feature two rigid and two swivel casters for easy portability
  • Patented ergonomic push handle makes pushing the unit safe and easy

Core Data

Assembled Weight: 81 Assembled Size: 16.25"W x 16.25"L x 31"H Color: Blue
Total Ship Weight: 126 Package 1 Size: 40"W x 48"D x 11"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 200
Platform Width (in.): 16-1/4
Platform Length (in.): 16-1/4
Lowered Height (in.): 31
Raised Height (in.): 49
Post (qty.): 1
Operation: 1-Speed Foot Pump
Caster Diameter (in.): 4
Caster Width (in.): 1-1/4
Caster Material: Poly-on-Poly
Caster Type: (2) Rigid, (2) Swivel w/ Locking Brakes
Application: Ergonomic Lifting
Base Type: Solid Steel
Deck Type: Solid
Platform Swivel Degree: 360
Handle Height (in.): 35
# Pumps to Raise: 15
