Steel Portable Welded Hydraulic Hefti-Lift 880 Lb. Capacity Blue

Portable Manual Foot Pump Lift for Commercial and Industrial Portable Load Lifters Use, 880 lb. Capacity
The Hefti-Lift units provide reliable powerful lifting when moving and positioning loads. The manual hydraulic foot pump yields 1" of platform travel per stroke. The units roll smoothly on two rigid and two swivel poly-on-steel casters with foot operated brake. The units are designed of welded steel construction with chrome platform uprights. Each fork is 4."W x 2."H, the fork length is the same as the platform length. Overall fork width is 22". Not for use with pallets.
Product Status
Available QuickShip
Key Features
  • Non-slip chain provides accurate deck positioning
  • Two rigid and two swivel poly-on-steel casters roll smoothly either loaded or unloaded
  • Removable platform allows operation requiring forks
  • Welded steel construction provides long lasting rugged use
Quick Actions

Product Resources

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   90 Days Warranty
Product Data

Core Data

Assembled Weight 187 lbs

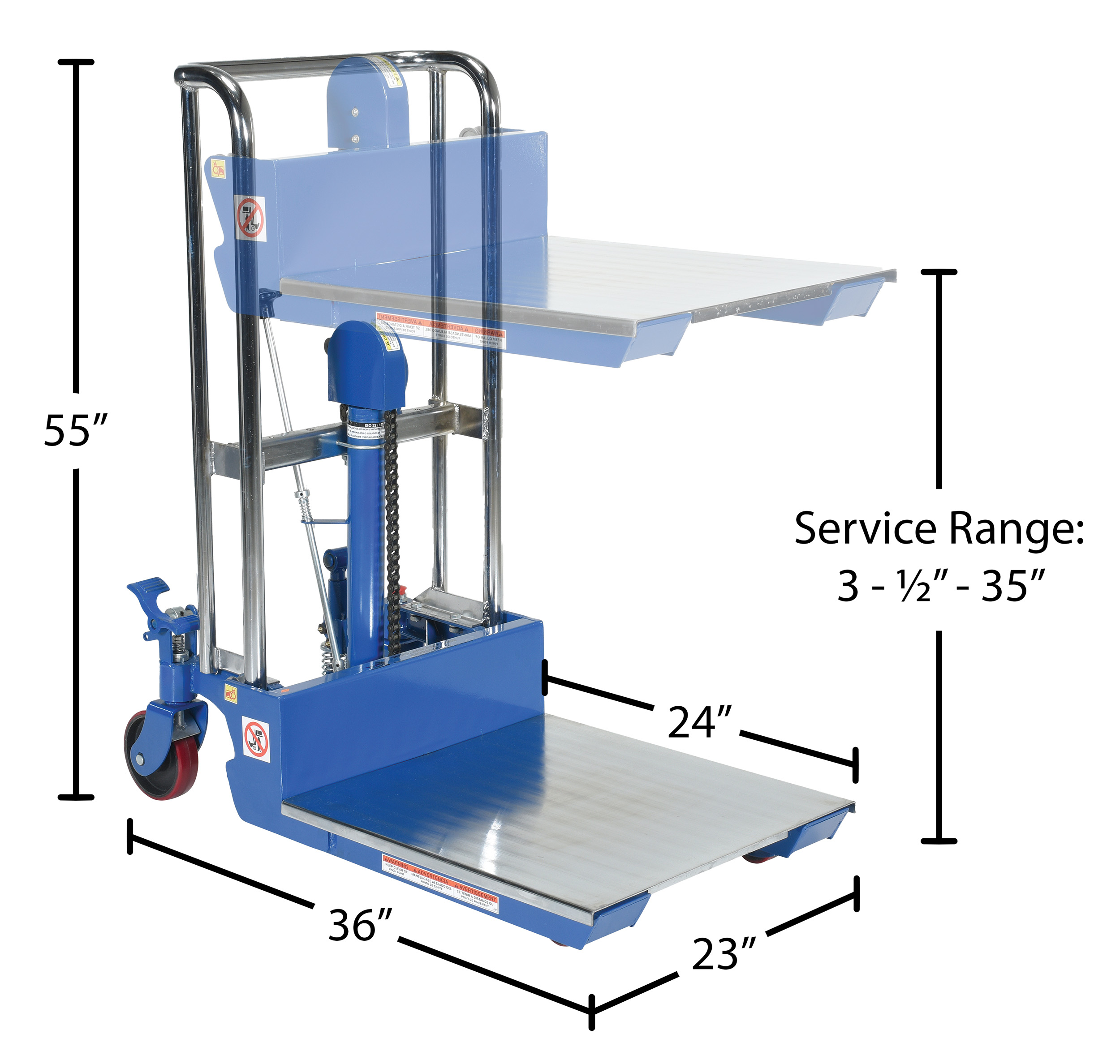

Assembled Size 23"W x 36"L x 55"H
Total Ship Weight 235 lbs
Package 1 Size 40"W x 48"D x 59"H
Color / Finish Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 880
Platform Width/Length (in.) 23 x 24
Service Range (in.) 3-1/2 to 35
Operation Foot Pump
Extended Product Details

Marketing Specs.

MFG Model # (Series)
HYD-3
Product Name
Steel Portable Welded Hydraulic Hefti-Lift 880 Lb. Capacity Blue
UPC
691215129336
GTIN
00691215129336
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Lifters / Tilters
Taxonomy 4
Load Lifter
Taxonomy 5
Manual
Assembled Depth (in.)
36
Assembled Width(in.)
23
Assembled Height(in.)
55
Assembled Weight(lbs.)
187
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
48
Package Width (in.)
40
Package Height (in.)
59
Package Weight (in.)
235
Subclass
1
Freight Class
175
NMFC Code
Lift trucks hand including pallet jacks
NMFC Number
189240
LTL Freight
LTL Palletized
UNSPSC
24101600
HTSUS Number
8427.90.0090
USMCA HS
8427.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: HYD-3

HYD-3

Steel Portable Welded Hydraulic Hefti-Lift 880 Lb. Capacity Blue

The Hefti-Lift units provide reliable powerful lifting when moving and positioning loads. The manual hydraulic foot pump yields 1" of platform travel per stroke. The units roll smoothly on two rigid and two swivel poly-on-steel casters with foot operated brake. The units are designed of welded steel construction with chrome platform uprights. Each fork is 4."W x 2."H, the fork length is the same as the platform length. Overall fork width is 22". Not for use with pallets.

  • Non-slip chain provides accurate deck positioning
  • Two rigid and two swivel poly-on-steel casters roll smoothly either loaded or unloaded
  • Removable platform allows operation requiring forks
  • Welded steel construction provides long lasting rugged use

Core Data

Assembled Weight: 187 Assembled Size: 23"W x 36"L x 55"H Color: Blue
Total Ship Weight: 235 Package 1 Size: 40"W x 48"D x 59"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 880
Platform Width/Length (in.): 23 x 24
Service Range (in.): 3-1/2 to 35
Operation: Foot Pump
