Steel Portable Foot Pump Hefti-Lift 41 In. x 54 In. 880 Lb. Capacity Blue

Portable Manual Foot Pump Lift for Commercial and Industrial Portable Load Lifters Use, 880 lb. Capacity with 41 in. x 54 in., Blue Finish – Model HYD-5

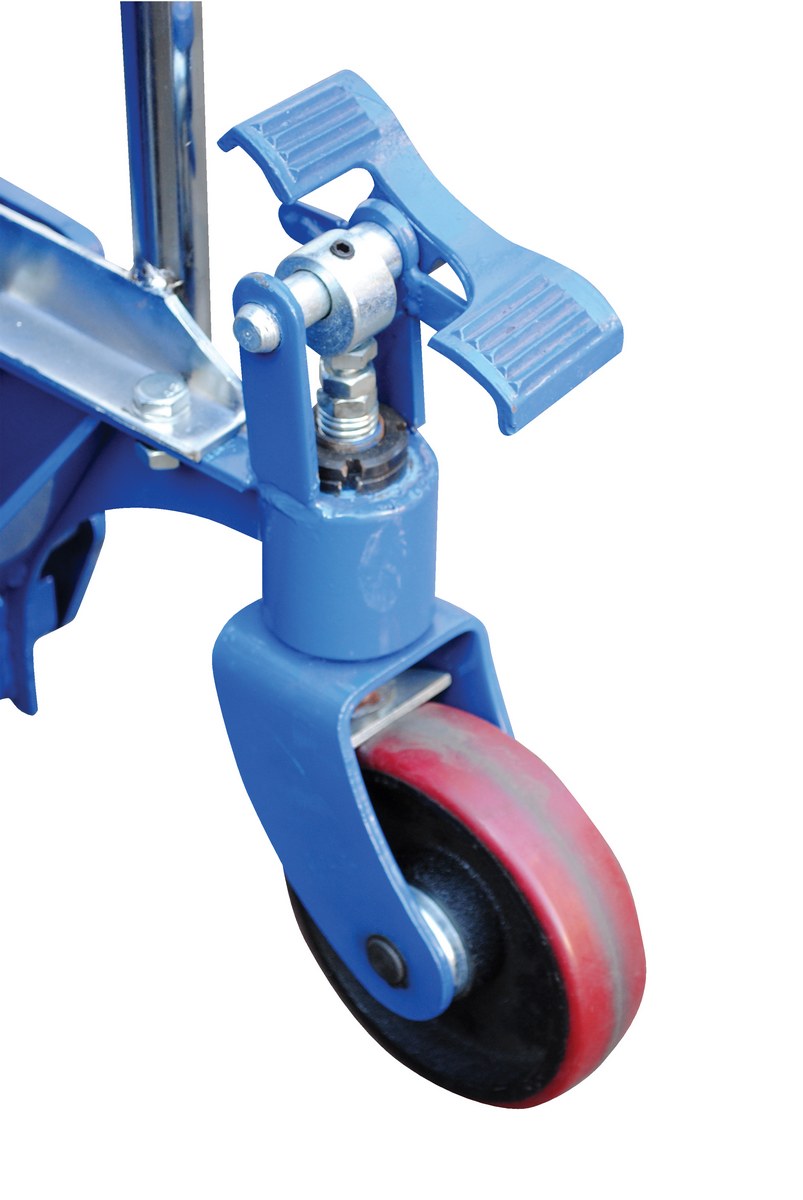

The Hefti-Lift is a user friendly, portable hydraulic lift. The lift provides reliable, power lifting when moving and positioning loads. It includes a removable platform for operation requiring forks. The non-slip chain is used for accurate positioning while the lift rolls easily on two rigid and two swivel poly-on-steel casters that includes a foot operated brake. The lift is all welded construction with a chrome platform and uprights. Not for use with pallets.
Product Status
Available QuickShip
Key Features
  • Non-slip chain provides accurate deck positioning
  • Two rigid and two swivel poly-on-steel casters roll smoothly either loaded or unloaded
  • Removable platform allows operation requiring forks
  • Welded steel construction provides long lasting rugged use
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   360 Image   Label Page PDF   Hydraulic Oil SDS   90 Days Warranty
Product Data

Core Data

Assembled Weight 246 lbs
Assembled Size 23"W x 36"L x 55"H
Total Ship Weight 246 lbs
Package 1 Size 48"W x 48"D x 59"H
Color / Finish Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 880
Platform Width/Length (in.) 23 x 24
Service Range (in.) 4-1/2 to 44
Operation Foot Pump
Platform Travel per Stroke (in.) 3/4
Individual Fork Width/Length (in.) 4-3/8 x 24
Fork Spacing (in.) 21-5/8
Handle Height (in.) 42
Back Caster Quantity/Diameter/Width (in.) (2) 6 x 2
Back Caster Type Swivel
Front Caster Quantity/Diameter/Width (in.) (2) 3 x 2
Front Caster Type Rigid
Caster Material Poly-on-Steel
Outrigger Inside Dimension (in.) 14
Outrigger Outside Dimension (in.) 18-1/4
Extended Product Details

Marketing Specs.

MFG Model # (Series)
HYD-5
Product Name
Steel Portable Foot Pump Hefti-Lift 41 In. x 54 In. 880 Lb. Capacity Blue
UPC
691215024358
GTIN
00691215024358
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Lifters / Tilters
Taxonomy 4
Load Lifter
Taxonomy 5
Manual
Assembled Depth (in.)
36
Assembled Width(in.)
23
Assembled Height(in.)
55
Assembled Weight(lbs.)
246
Color/Finish
Blue
Material
Welded Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
48
Package Width (in.)
48
Package Height (in.)
59
Package Weight (in.)
246
Subclass
1
Freight Class
175
NMFC Code
Lift trucks hand including pallet jacks
NMFC Number
189240
LTL Freight
LTL Palletized
UNSPSC
24101600
HTSUS Number
8427.90.0090
USMCA HS
8427.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
Yes
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: HYD-5

HYD-5

Steel Portable Foot Pump Hefti-Lift 41 In. x 54 In. 880 Lb. Capacity Blue

The Hefti-Lift is a user friendly, portable hydraulic lift. The lift provides reliable, power lifting when moving and positioning loads. It includes a removable platform for operation requiring forks. The non-slip chain is used for accurate positioning while the lift rolls easily on two rigid and two swivel poly-on-steel casters that includes a foot operated brake. The lift is all welded construction with a chrome platform and uprights. Not for use with pallets.

  • Non-slip chain provides accurate deck positioning
  • Two rigid and two swivel poly-on-steel casters roll smoothly either loaded or unloaded
  • Removable platform allows operation requiring forks
  • Welded steel construction provides long lasting rugged use

Core Data

Assembled Weight: 246 Assembled Size: 23"W x 36"L x 55"H Color: Blue
Total Ship Weight: 246 Package 1 Size: 48"W x 48"D x 59"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 880
Platform Width/Length (in.): 23 x 24
Service Range (in.): 4-1/2 to 44
Operation: Foot Pump
Platform Travel per Stroke (in.): 3/4
Individual Fork Width/Length (in.): 4-3/8 x 24
Fork Spacing (in.): 21-5/8
Handle Height (in.): 42
Back Caster Quantity/Diameter/Width (in.): (2) 6 x 2
Back Caster Type: Swivel
Front Caster Quantity/Diameter/Width (in.): (2) 3 x 2
Front Caster Type: Rigid
Caster Material: Poly-on-Steel
Outrigger Inside Dimension (in.): 14
Outrigger Outside Dimension (in.): 18-1/4
