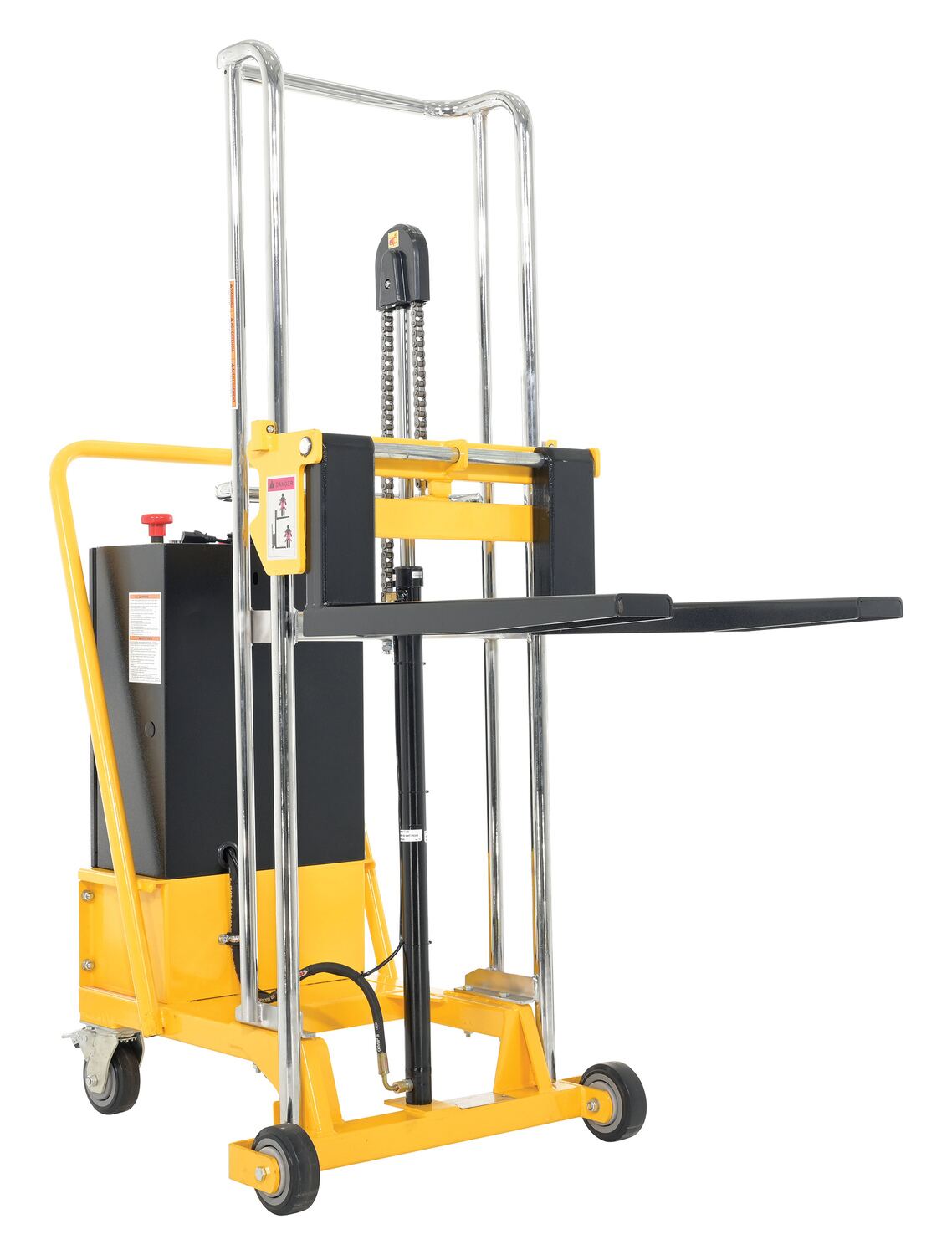

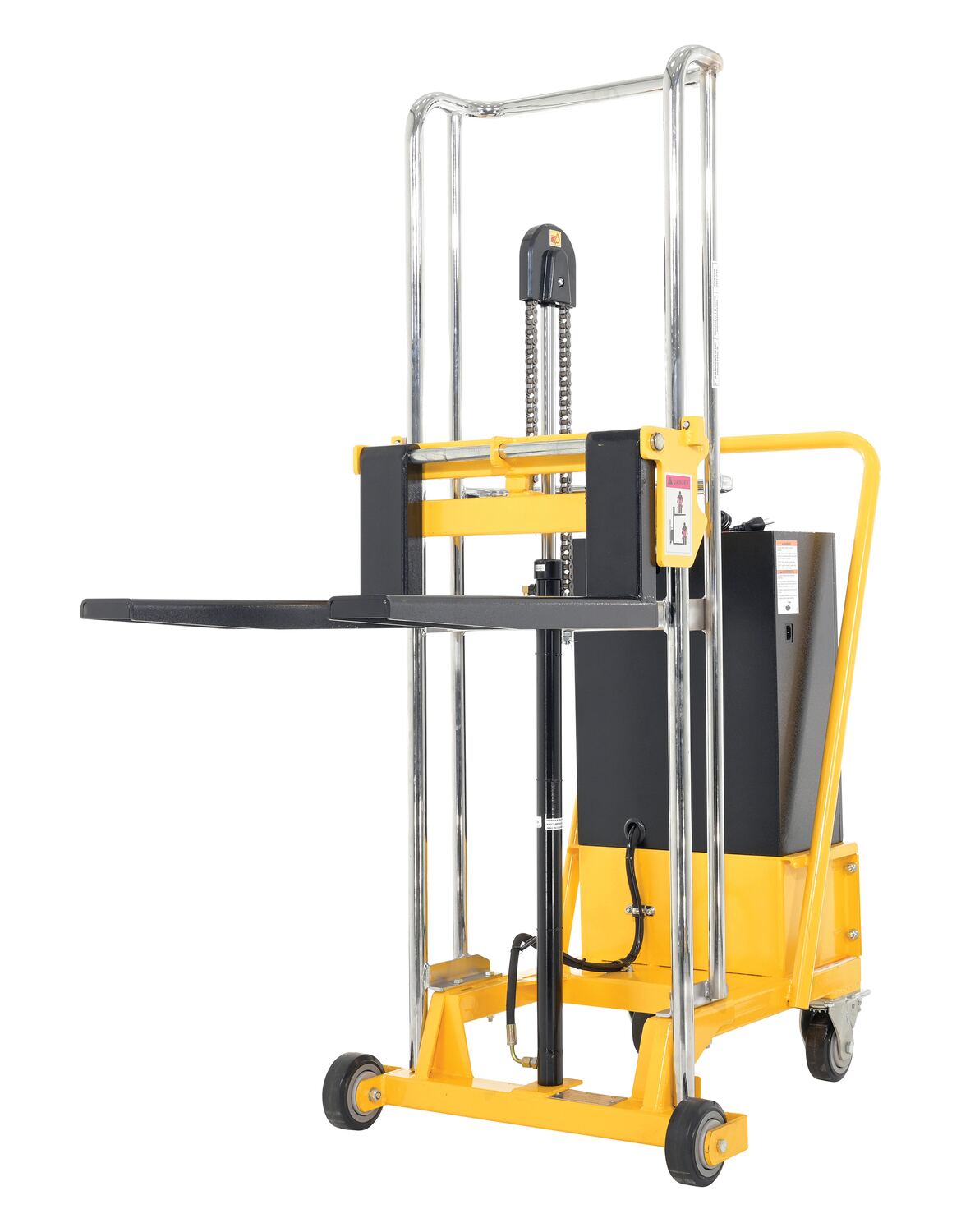

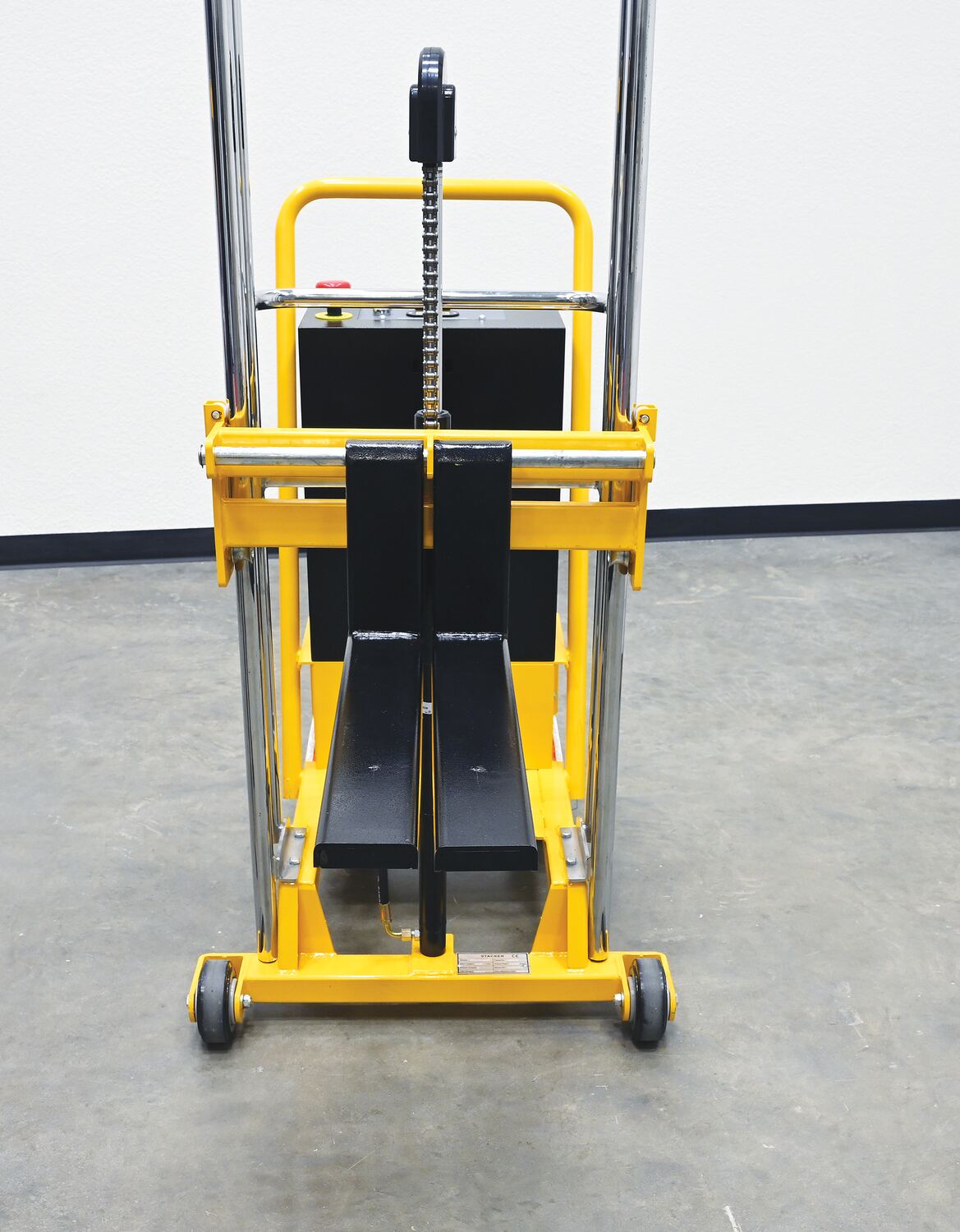

Steel Counter Balanced Hefti-Lift 68 In. x 68-3/4 In. 550 Lb. Capacity Yellow / Black

Portable Hefti-lift for Commercial and Industrial Portable Load Lifters Use, 550 lb. Capacity with 68 in. x 68-3/4 in.

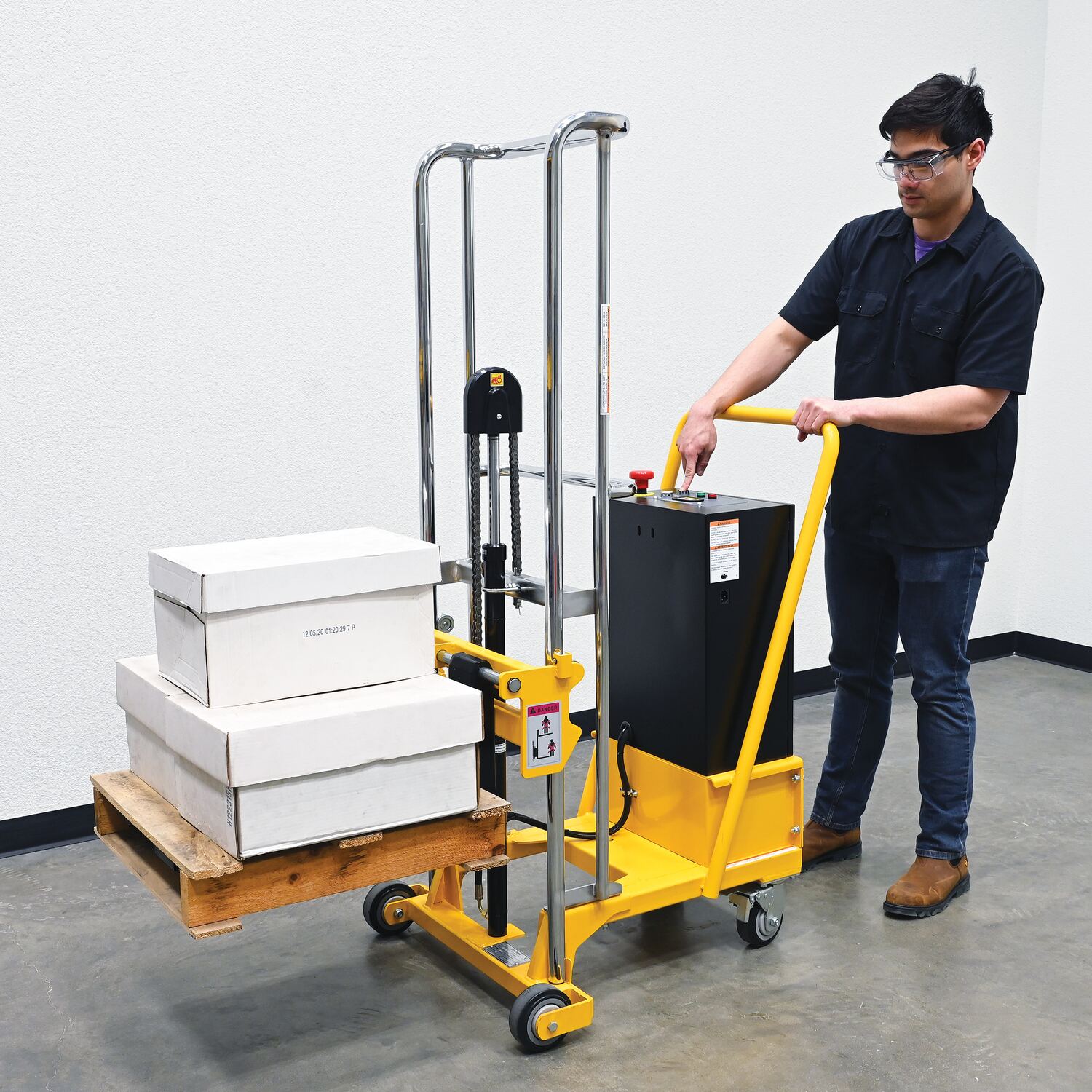

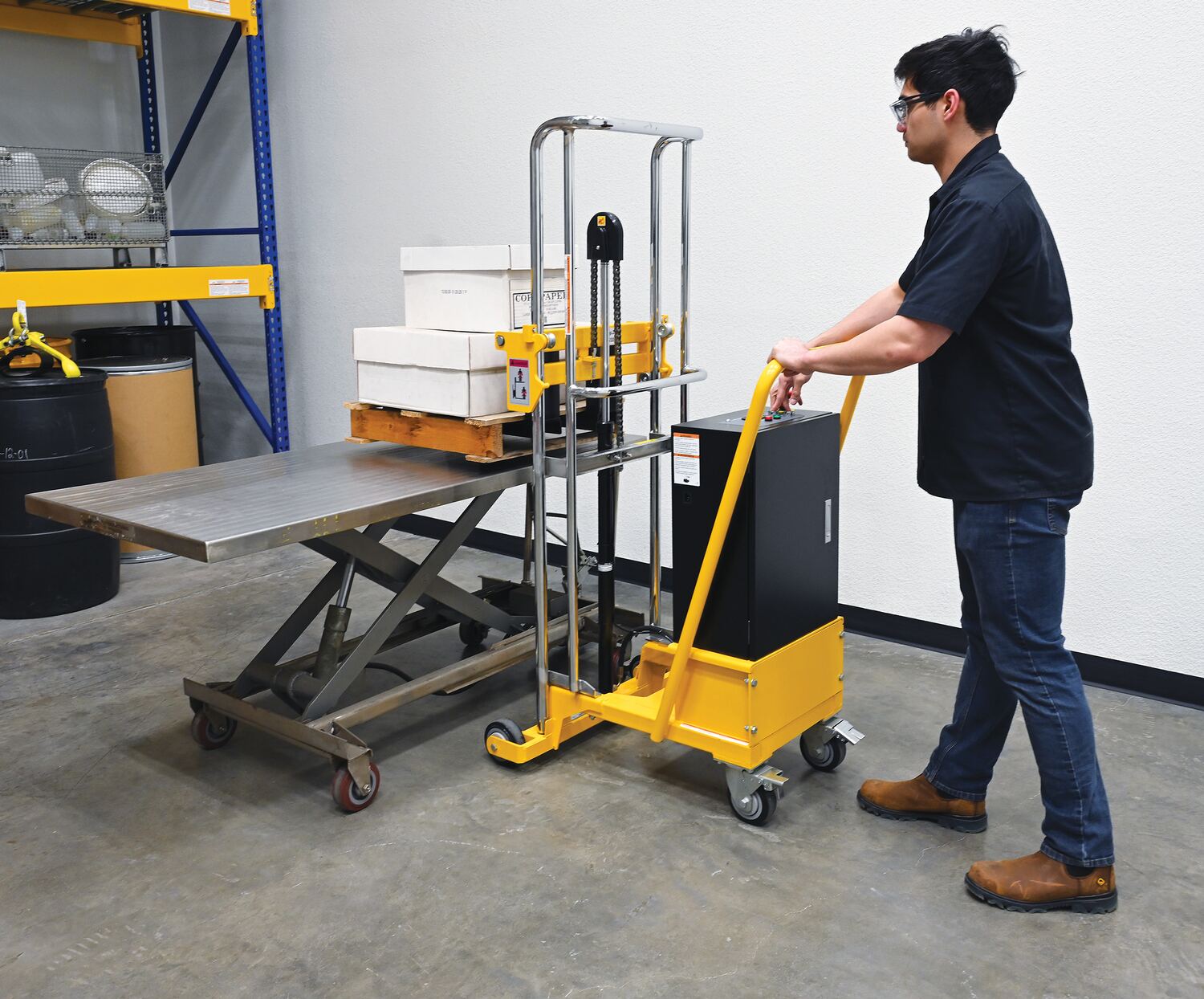

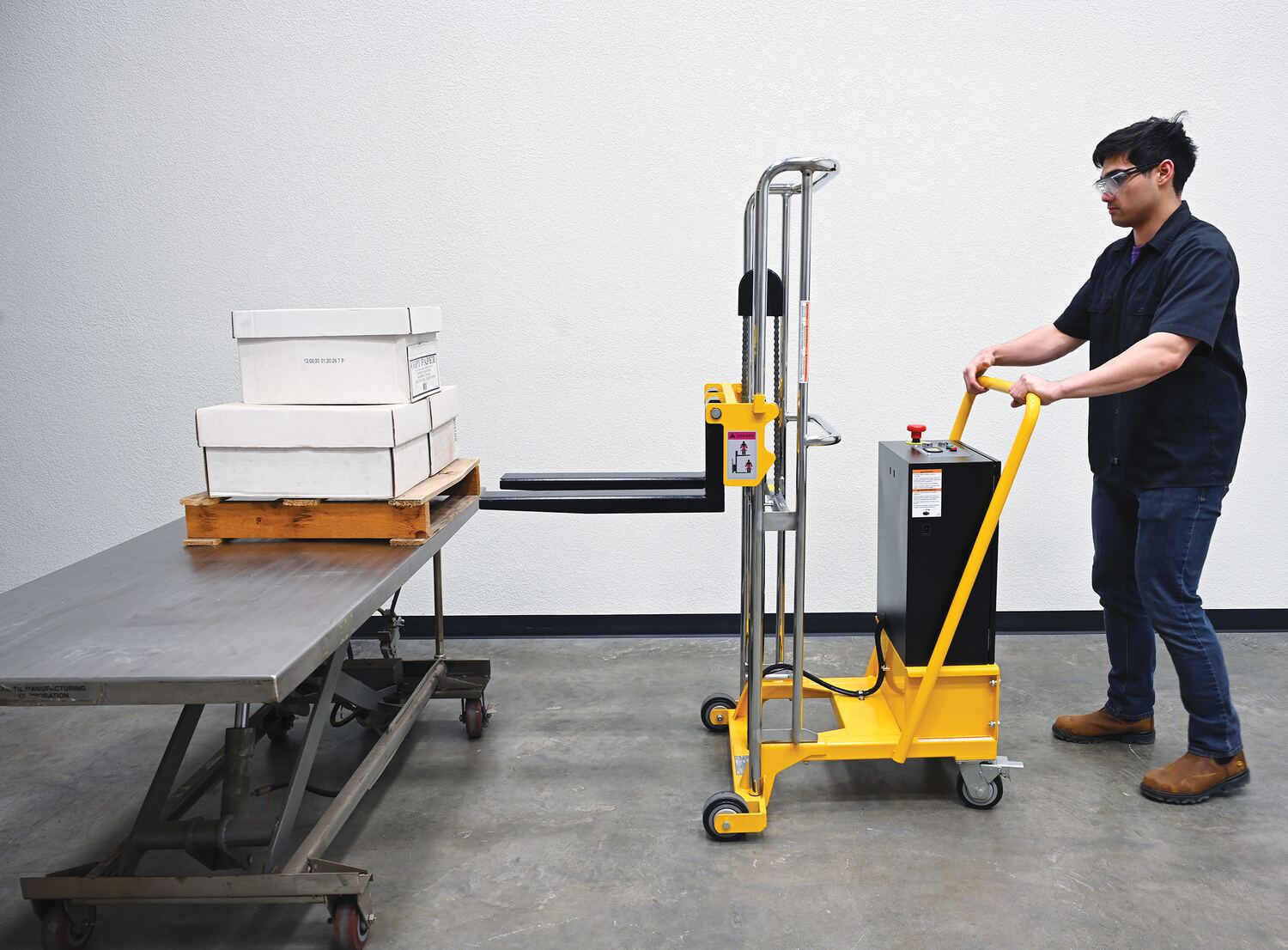

DC powered portable hydraulic lifts are user friendly providing reliable, powerful lifting when moving and positioning loads. Units roll easily on two rigid and two swivel poly-on-steel casters and include a foot operated brake. Not for use with pallets. All welded steel construction with chrome uprights. Variety of attachments available.
Product Status
Available QuickShip
Key Features
  • Non-slip chain provides accurate deck positioning

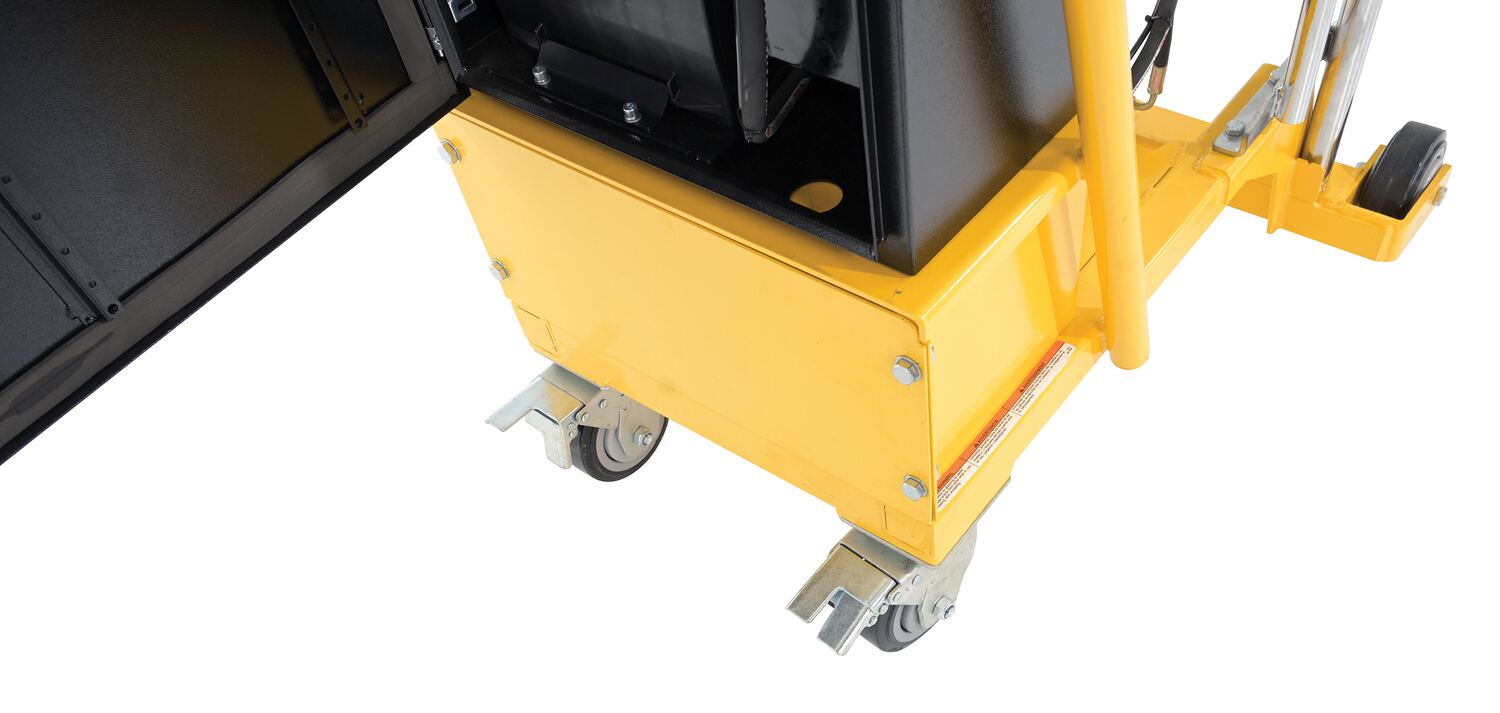

  • Two rigid and two swivel poly-on-steel casters roll smoothly either loaded or unloaded
  • Includes a foot operated brake
  • Welded steel construction provides long lasting rugged use
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Hydraulic Oil SDS   Valve-Regulated Lead Acid Batteries SDS   90 Days Warranty
Product Data

Core Data

Assembled Weight 566 lbs
Assembled Size 29.5"W x 59"L x 68"H
Total Ship Weight 555 lbs
Package 1 Size 41"W x 65"D x 77"H
Color / Finish Yellow / Black
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 550
Service Range (in.) 2-3/4 to 55-1/2
Operation (1) 12V DC

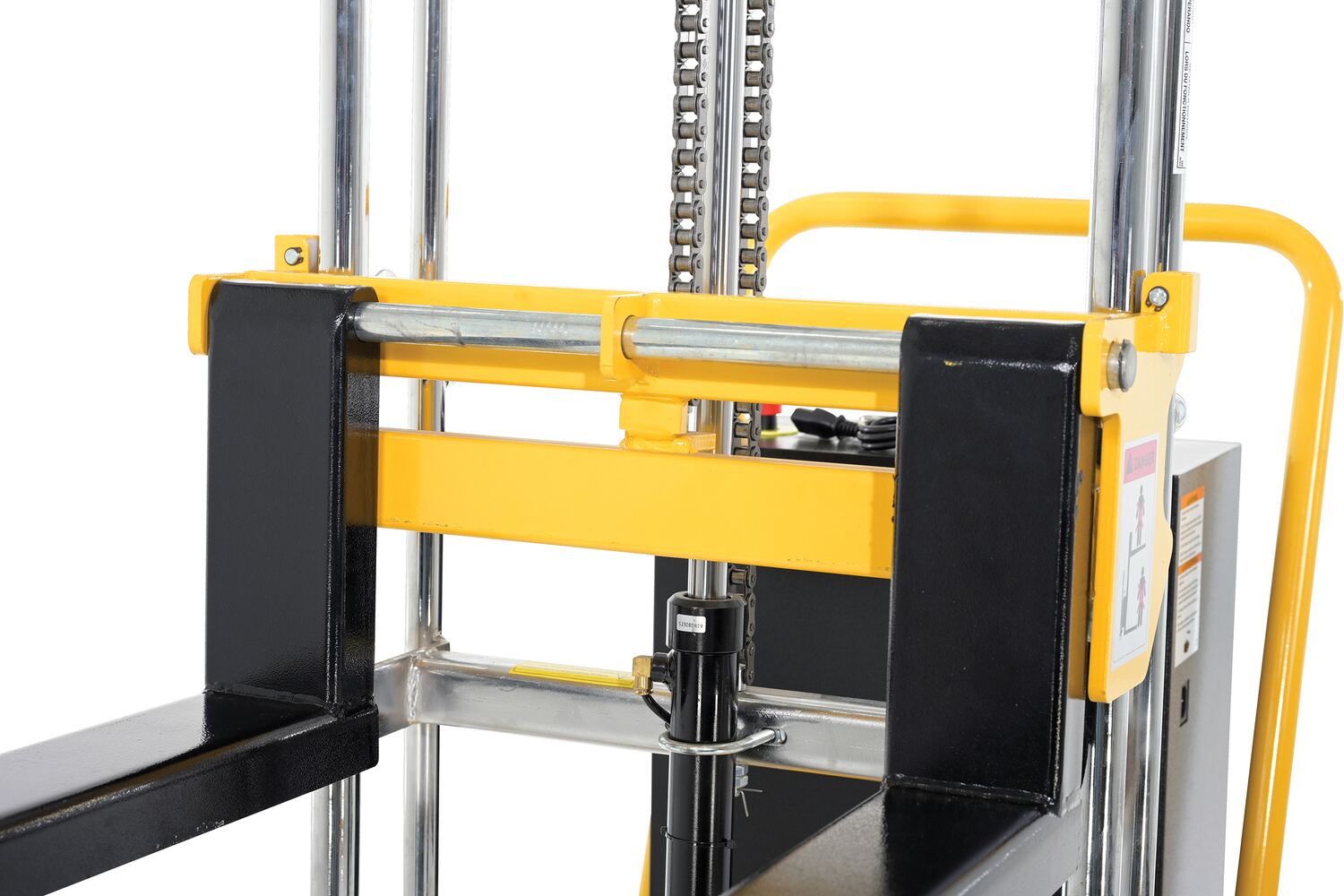

Fork Width/Height (in.) 4-1/2 x 2-1/2
Fork Length 25-3/4
Overall Fork Width (in.) 22
Handle Height (in.) 45
Caster Quantity/Diameter/Width (in.) (4) 5 x 2
Caster Type (2) Rigid, (2) Swivel with Brake
Caster Material Poly-On-Steel

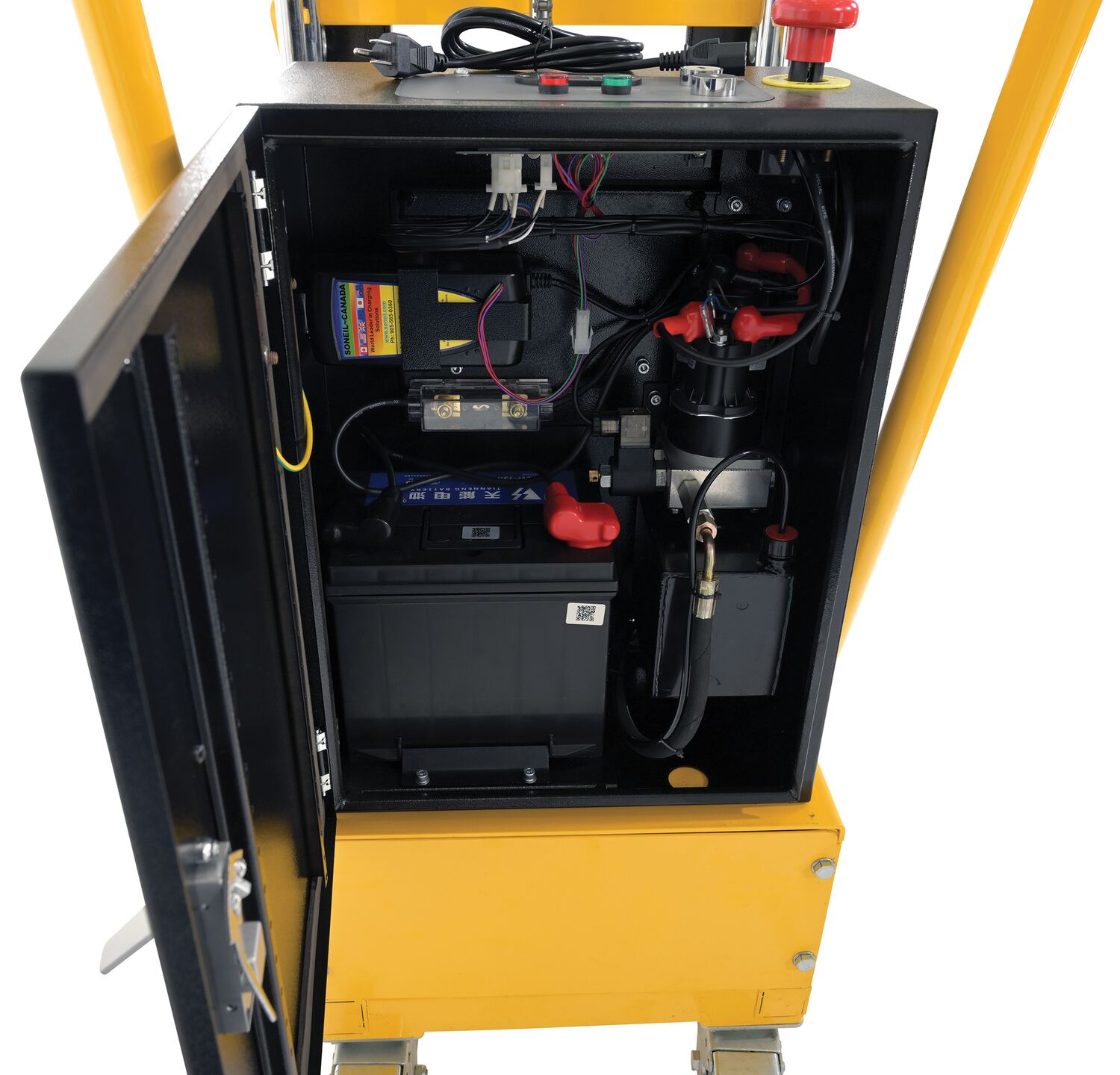

Battery Information

Battery Depth 13
Battery Width 7
Battery Height 11
Battery Weight 47
Battery Freight Class 60
Battery NMFC Number 60700
Battery NMFC Description Gel batteries on unit
Lithium Battery Configuration C -- Contained In
Extended Product Details

Marketing Specs.

MFG Model # (Series)
HYD-CB-10-DC
Product Name
Steel Counter Balanced Hefti-Lift 68 In. x 68-3/4 In. 550 Lb. Capacity Yellow / Black
UPC
691215113168
GTIN
00691215113168
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Lifters / Tilters
Taxonomy 4
Load Lifter
Taxonomy 5
Electric
Assembled Depth (in.)
59
Assembled Width(in.)
29.5
Assembled Height(in.)
68
Assembled Weight(lbs.)
566
Color/Finish
Yellow / Black
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
65
Package Width (in.)
41
Package Height (in.)
77
Package Weight (in.)
555
Subclass
6
Freight Class
200
NMFC Code
Cars, Lift Trucks or Vehicles,áNOI, not designed for general highway use,
NMFC Number
190235
LTL Freight
LTL Palletized
UNSPSC
24101604
HTSUS Number
8427.90.0090
USMCA HS
8427.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
Yes
MSDS? Yes/No
Yes
Batteries Included?
Yes
Battery Weight (lbs.)
47
Battery Freight Class
60
Battery NMFC Number
60700
Battery NMFC Description
Gel batteries on unit
Lithium Battery Configuration
C -- Contained In

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: HYD-CB-10-DC

HYD-CB-10-DC

Steel Counter Balanced Hefti-Lift 68 In. x 68-3/4 In. 550 Lb. Capacity Yellow / Black

DC powered portable hydraulic lifts are user friendly providing reliable, powerful lifting when moving and positioning loads. Units roll easily on two rigid and two swivel poly-on-steel casters and include a foot operated brake. Not for use with pallets. All welded steel construction with chrome uprights. Variety of attachments available.

  • Non-slip chain provides accurate deck positioning
  • Two rigid and two swivel poly-on-steel casters roll smoothly either loaded or unloaded
  • Includes a foot operated brake
  • Welded steel construction provides long lasting rugged use

Core Data

Assembled Weight: 566 Assembled Size: 29.5"W x 59"L x 68"H Color: Yellow / Black
Total Ship Weight: 555 Package 1 Size: 41"W x 65"D x 77"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 550
Service Range (in.): 2-3/4 to 55-1/2
Operation: (1) 12V DC
Fork Width/Height (in.): 4-1/2 x 2-1/2
Fork Length: 25-3/4
Overall Fork Width (in.): 22
Handle Height (in.): 45
Caster Quantity/Diameter/Width (in.): (4) 5 x 2
Caster Type: (2) Rigid, (2) Swivel with Brake
Caster Material: Poly-On-Steel
