Product Data Sheet

  Print to PDF
  All Products   Ergonomic Solutions   Portable Load Lifters   Hydra Carts HYDRA-AF-18
Product Image

Visual Reference

HYDRA-AF-18
HYDRA-AF-18
HYDRA-AF-18
HYDRA-AF-18
HYDRA-AF-18

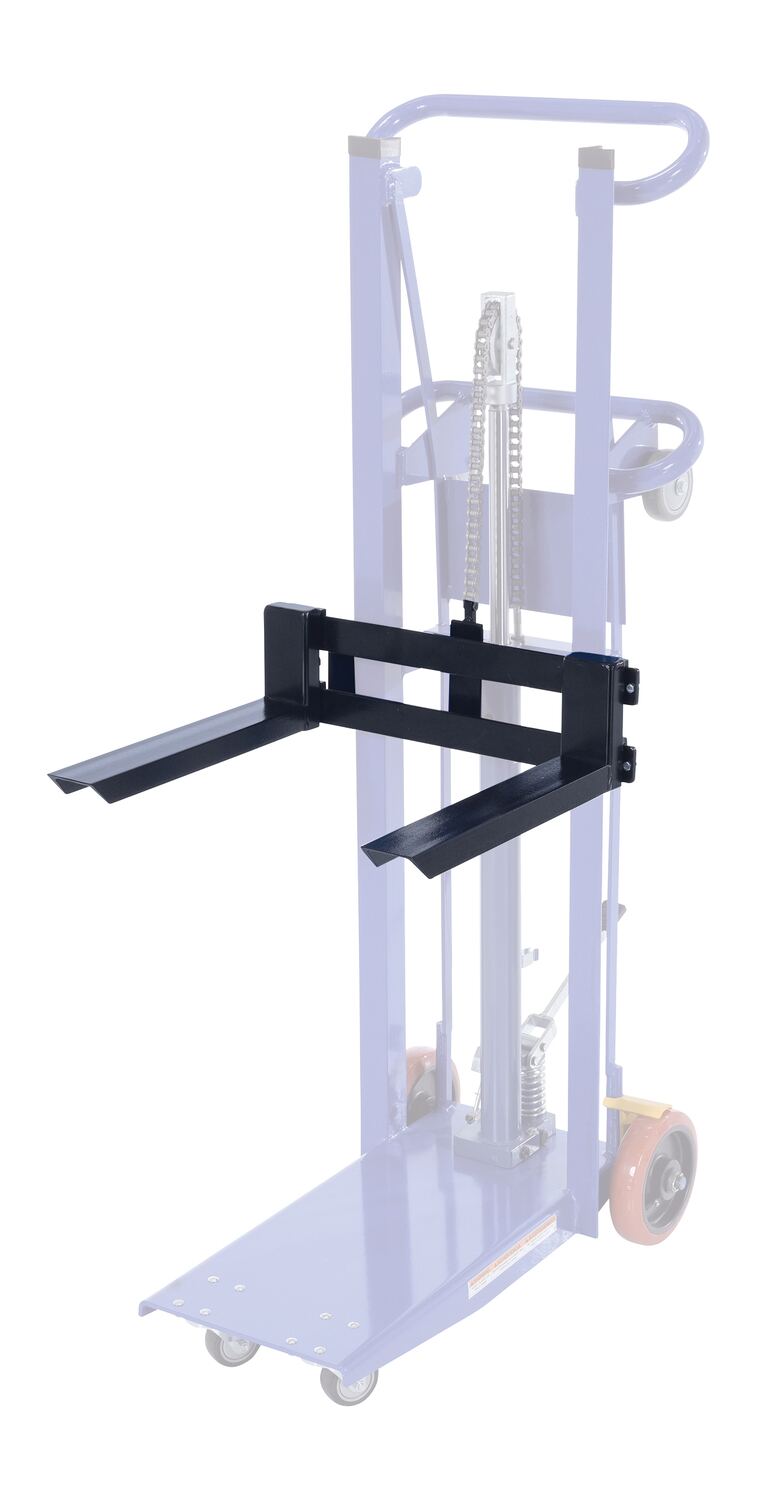

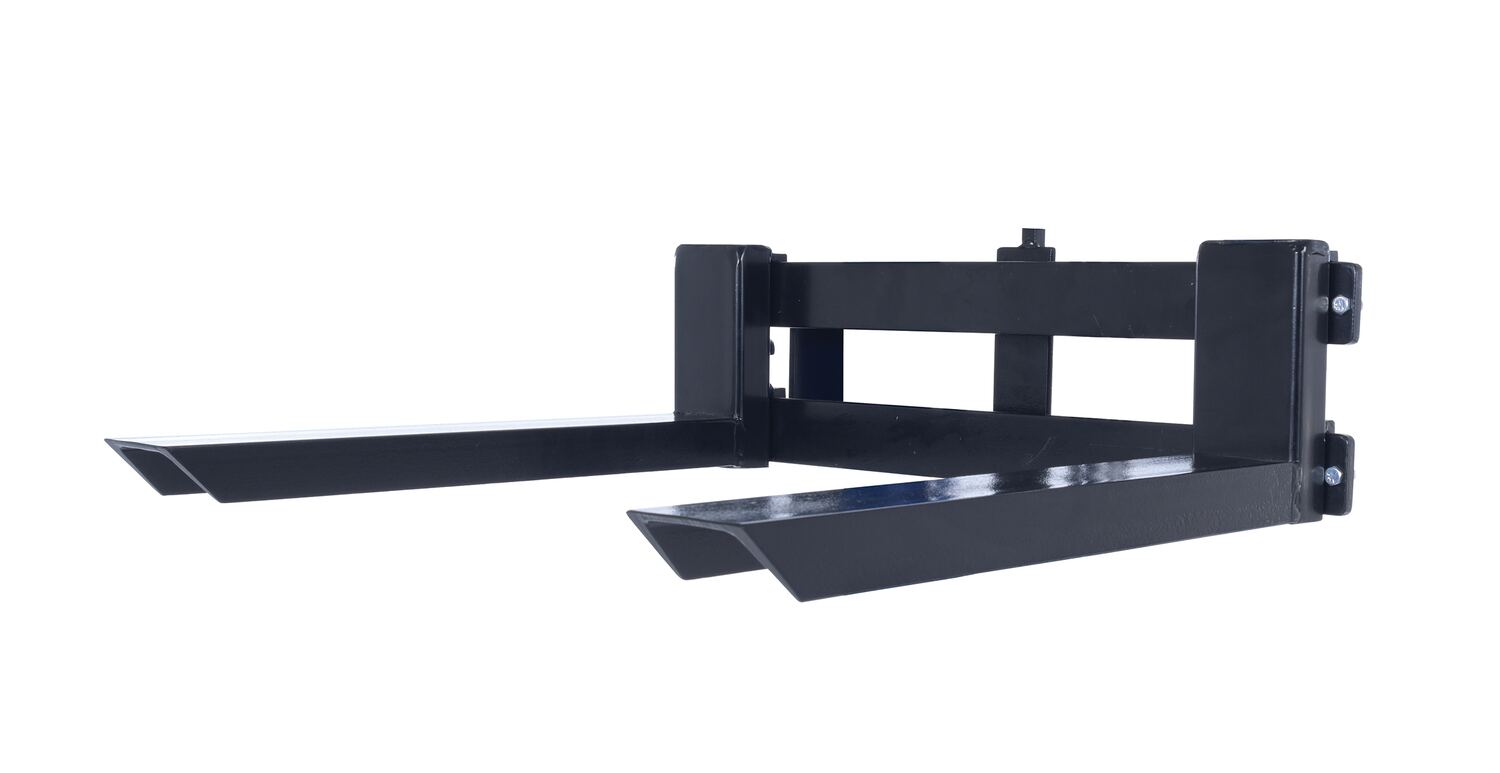

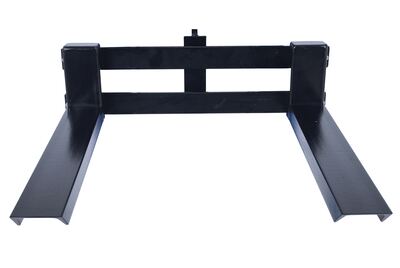

Steel Adjustable Width Forks Attachment 6 In. to 22 In. For Hydraulic Lift Cart Model 750 Lb. Capacity Black

Adjustable Long Forks for Ergonomic Load Lifting and Workstation Positioning, 750 lb. Capacity with 6 in.
Optional 3" x 18" forks for hydra carts.
Product Status
Available
Key Features
  • Extended forks for transferring loads
  • Quick attachment for immediate use
  • Adjustable to best fit the users needs
  • Smooth finish to diminish abrasion of products
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   HYDRA series Hydraulic Lift Truck Manual   90 Days Warranty
Product Data

Core Data

Assembled Weight 41 lbs
Assembled Size 23"W x 24.0625"L x 8.75"H
Total Ship Weight 41 lbs
Package 1 Size 3"W x 18"D x 6"H
Color / Finish Black
Freight Type Parcel

Additional Attributes

Fork Width/Length (in.) 3 x 18
Forks O.D. Minimum/Maximum (in.) 6 to 22
Overall Height (in.) 8-3/4
Overall Width (in.) 23
Overall Length (in.) 24-1/16
Max Fork OD (in.) 21-7/8
Max Capacity (lb.) 1000
Extended Product Details

Marketing Specs.

MFG Model # (Series)
HYDRA-AF-18
Product Name
Steel Adjustable Width Forks Attachment 6 In. to 22 In. For Hydraulic Lift Cart Model 750 Lb. Capacity Black
UPC
691215024402
GTIN
00691215024402
Taxonomy 1
Material Handling
Taxonomy 2
Forklift Attachments
Taxonomy 3
Replacement Forks
Assembled Depth (in.)
24.0625
Assembled Width(in.)
23
Assembled Height(in.)
8.75
Assembled Weight(lbs.)
41
Color/Finish
Black
Material
Steel
Option? Y/N
Y
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled
Compatible Products
HYDRA-4, HYDRA-HD

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
18
Package Width (in.)
3
Package Height (in.)
6
Package Weight (in.)
41
Subclass
1
Freight Class
175
NMFC Code
Lift trucks hand including pallet jacks
NMFC Number
189240
LTL Freight
Parcel
UNSPSC
24101600
HTSUS Number
8427.90.0090
USMCA HS
8427.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: HYDRA-AF-18

HYDRA-AF-18

Steel Adjustable Width Forks Attachment 6 In. to 22 In. For Hydraulic Lift Cart Model 750 Lb. Capacity Black

Optional 3" x 18" forks for hydra carts.

  • Extended forks for transferring loads
  • Quick attachment for immediate use
  • Adjustable to best fit the users needs
  • Smooth finish to diminish abrasion of products

Core Data

Assembled Weight: 41 Assembled Size: 23"W x 24.0625"L x 8.75"H Color: Black
Total Ship Weight: 41 Package 1 Size: 3"W x 18"D x 6"H Freight: Parcel

Specifications

Fork Width/Length (in.): 3 x 18
Forks O.D. Minimum/Maximum (in.): 6 to 22
Overall Height (in.): 8-3/4
Overall Width (in.): 23
Overall Length (in.): 24-1/16
Max Fork OD (in.): 21-7/8
Max Capacity (lb.): 1000
