Steel Hydra Lift Cart 24 In. x 21-7/16 In. Platform 1000 Lb. Capacity Blue

Hydra Lift Cart for Ergonomic Load Lifting and Workstation Positioning, 1,000 lb. Capacity with 35-5/16 in. x 61-13/16 in.
The hydra cart transports loads in the lowered position and maneuver work materials to an ergonomic height, which is ideal in compact work areas. It's safe and easy for one person handling of loads and an efficient way to unload heavy objects from semi-trailers. The rugged steel construction allows for many years of service. The dependable precision built hydraulic system is activated by an easy action foot lever. The additional rollers on the handle make loading into a delivery truck easy.
Product Status
Available QuickShip
Key Features
  • Ideal in compact work areas and for many years of service
  • Efficient way to unload heavy objects for one person handling
  • Precision built hydraulic system is activated by an easy action foot lever

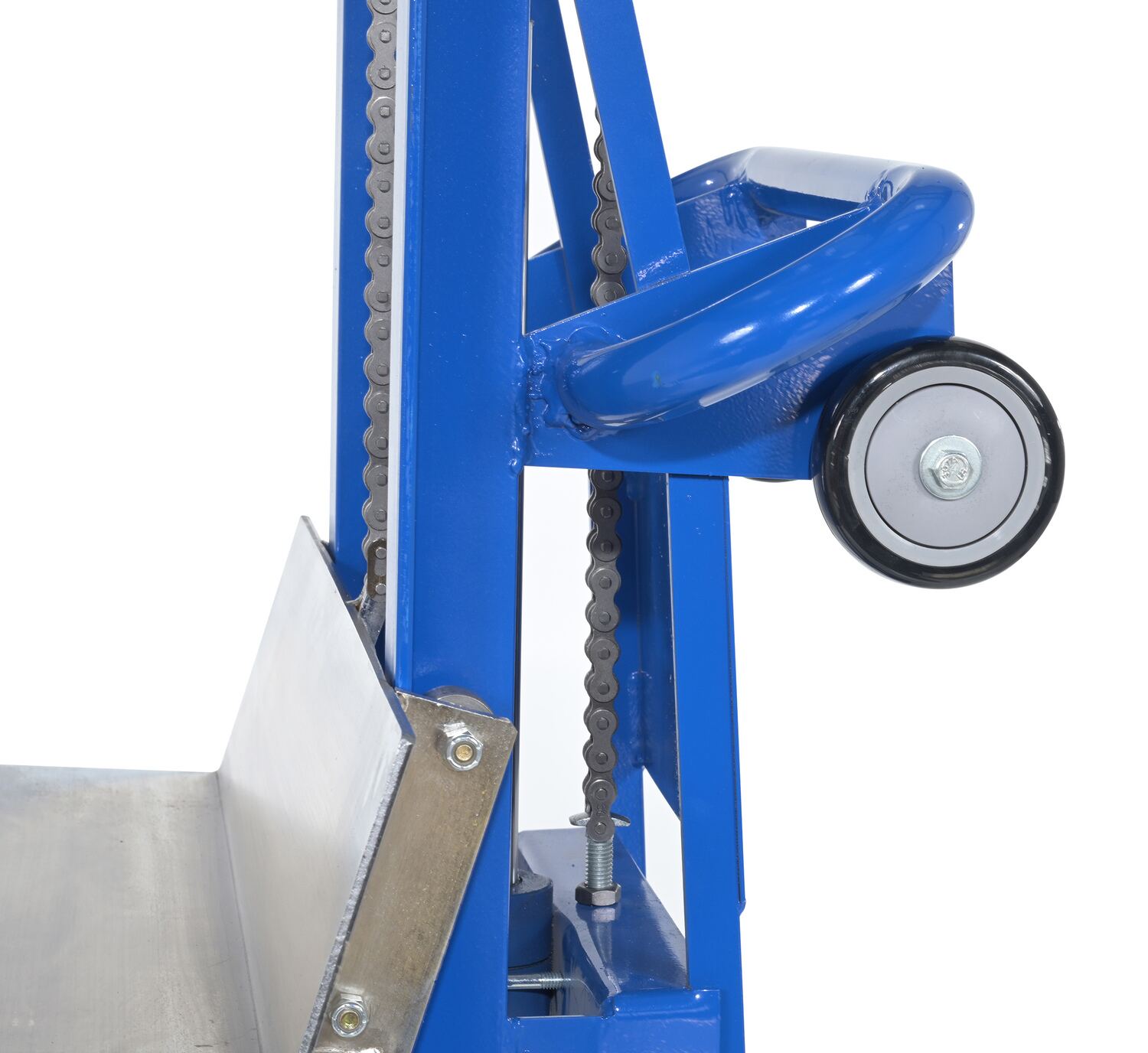

  • Additional rollers on handle make loading into a truck easy
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   HYDRA series Hydraulic Lift Truck Manual   Label Page PDF   Hydraulic Oil SDS   90 Days Warranty
Product Data

Core Data

Assembled Weight 229 lbs
Assembled Size 24"W x 35.3125"L x 63"H
Total Ship Weight 241 lbs
Package 1 Size 40"W x 48"D x 67"H
Color / Finish Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 1000
Platform Width (in.) 24
Platform Length (in.) 21-7/16
Lowered Height (in.) 4-3/4
Raised Height (in.) 52-3/4
Lift Per Pump (in.) 1
Rear Caster Quantity/Diameter/Width (in.) (2) 3 x 1-1/4
Rear Caster Material Poly-on-Poly
Rear Caster Type Swivel w/Brake
Front Caster Quantity/Diameter/Width (in.) (2) 4 x 1-1/4
Front Caster Material Poly-on-Poly
Front Caster Type Rigid
Handle Caster Diameter/Width (in.) 4 x 1-1/4
Handle Caster Material Poly on Poly
Handle Caster Type Rigid
Overall Width (in.) 24
Overall Length (in.) 35-5/16
Overall Height (in.) 63
Extended Product Details

Marketing Specs.

MFG Model # (Series)
HYDRA-HD
Product Name
Steel Hydra Lift Cart 24 In. x 21-7/16 In. Platform 1000 Lb. Capacity Blue
UPC
691215024433
GTIN
00691215024433
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Lifters / Tilters
Taxonomy 4
Load Lifter
Taxonomy 5
Manual
Assembled Depth (in.)
35.3125
Assembled Width(in.)
24
Assembled Height(in.)
63
Assembled Weight(lbs.)
229
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
48
Package Width (in.)
40
Package Height (in.)
67
Package Weight (in.)
241
Subclass
1
Freight Class
175
NMFC Code
Lift trucks hand including pallet jacks
NMFC Number
189240
LTL Freight
LTL Palletized
UNSPSC
24101501
HTSUS Number
8427.90.0090
USMCA HS
8427.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
Yes
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: HYDRA-HD

HYDRA-HD

Steel Hydra Lift Cart 24 In. x 21-7/16 In. Platform 1000 Lb. Capacity Blue

The hydra cart transports loads in the lowered position and maneuver work materials to an ergonomic height, which is ideal in compact work areas. It's safe and easy for one person handling of loads and an efficient way to unload heavy objects from semi-trailers. The rugged steel construction allows for many years of service. The dependable precision built hydraulic system is activated by an easy action foot lever. The additional rollers on the handle make loading into a delivery truck easy.

  • Ideal in compact work areas and for many years of service
  • Efficient way to unload heavy objects for one person handling
  • Precision built hydraulic system is activated by an easy action foot lever
  • Additional rollers on handle make loading into a truck easy

Core Data

Assembled Weight: 229 Assembled Size: 24"W x 35.3125"L x 63"H Color: Blue
Total Ship Weight: 241 Package 1 Size: 40"W x 48"D x 67"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 1000
Platform Width (in.): 24
Platform Length (in.): 21-7/16
Lowered Height (in.): 4-3/4
Raised Height (in.): 52-3/4
Lift Per Pump (in.): 1
Rear Caster Quantity/Diameter/Width (in.): (2) 3 x 1-1/4
Rear Caster Material: Poly-on-Poly
Rear Caster Type: Swivel w/Brake
Front Caster Quantity/Diameter/Width (in.): (2) 4 x 1-1/4
Front Caster Material: Poly-on-Poly
Front Caster Type: Rigid
Handle Caster Diameter/Width (in.): 4 x 1-1/4
Handle Caster Material: Poly on Poly
Handle Caster Type: Rigid
Overall Width (in.): 24
Overall Length (in.): 35-5/16
Overall Height (in.): 63
