Steel Intermediate Bulk Container Tilt Stand with Fork Pockets and Adjustable Legs 48-1/2 In. x 49-1/2 In. 4400 Lb. Capacity Blue

Intermediate Bulk Container Tilt Stand with Fork Pockets and Adjustable Legs for Commercial and Industrial Retention Basins & Containers Use, 4,400 lb. Capacity with 48-1/2 in. x 49-1/2
An intermediate bulk container tilt station is designed of a sturdy steel construction which, provides a secure tilting of containers for complete draining. Fork pockets are included for simple raising and lowering, as well as, easy access to valve connections. Anchor all 4 legs to the ground with 3/8" X 4" (L) anchor bolts. To use simple place the container on the station. When the container is in the secure position, start the draining process. As the fluid flows from the container, the rear of the station will rise up creating an angle for a better release of fluids.
Product Status
Available QuickShip
Key Features
  • Rising design as weight diminishes
  • Powder coated for baked in added toughness
  • Strong construction for daily use
  • Sleek smooth finish
Quick Actions

Product Resources

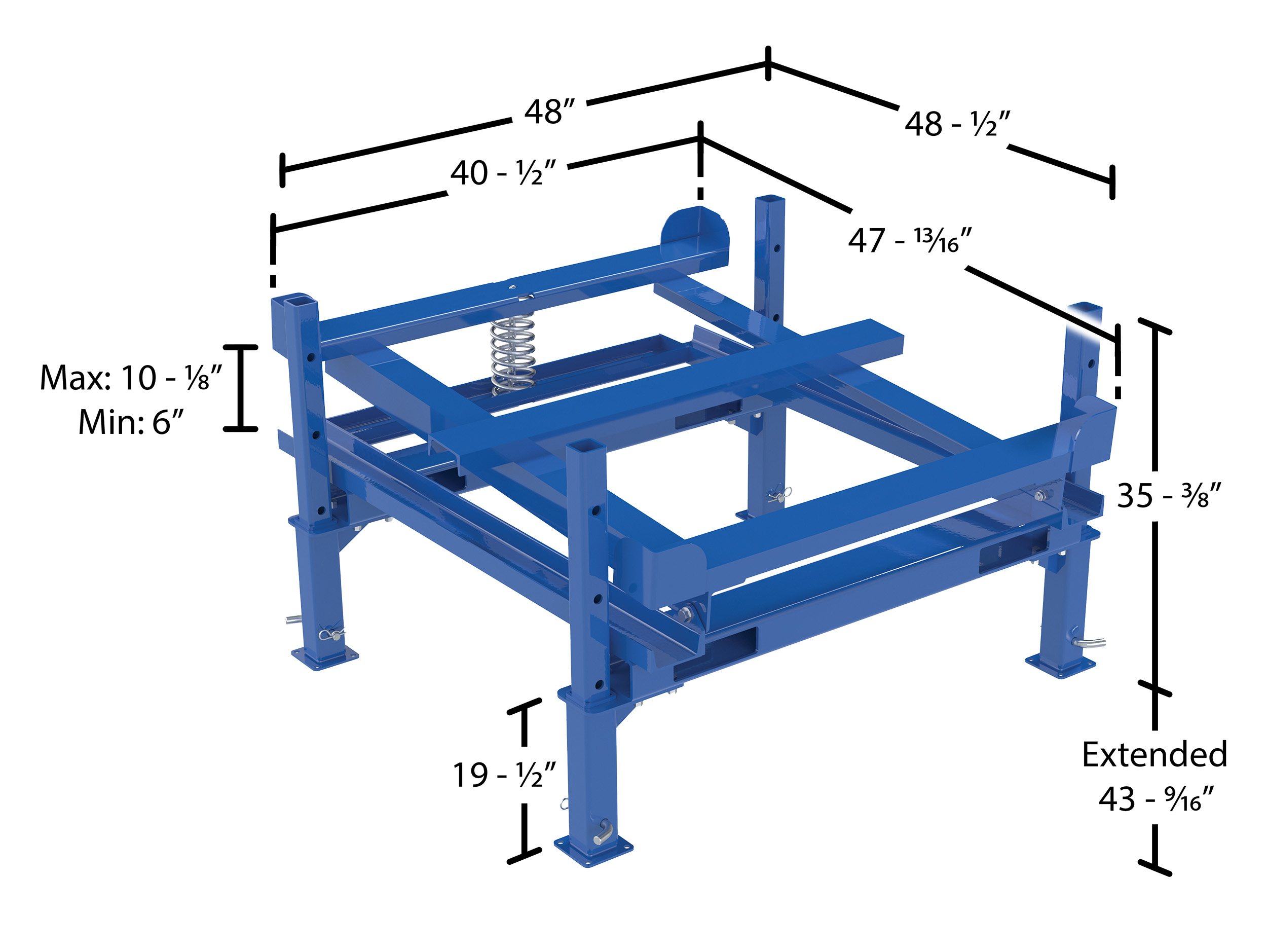

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   IBC-TLT-FPL Adjustable Intermediate Bulk Container Tilt Stand w/ Fork Pockets   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 340 lbs
Assembled Size 48"W x 48.5"L x 35.375"H
Total Ship Weight 348 lbs
Package 1 Size 40"W x 48"D x 29"H
Color / Finish Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 4,400
Platform Length (in.) 47-13/16
Platform Width (in.) 40-1/2
Platform Raised Height (in.) 10-1/8
Platform Lowered Height (in.) 6
Maximum Tilt Degree 5
Fork Pocket Size (in.) 7 x 2
Fork Pocket Center (in.) 27
Foot Bolt Hole Diameter (in.) 7/16
Height Adjustment 6 In. Increments
Vertical Center of Gravity (in.) 15-9/16
Horizontal Center of Gravity (in.) 23-9/16
Extended Product Details

Marketing Specs.

MFG Model # (Series)
IBC-TLT-FPL
Product Name
Steel Intermediate Bulk Container Tilt Stand with Fork Pockets and Adjustable Legs 48-1/2 In. x 49-1/2 In. 4400 Lb. Capacity Blue
UPC
691215344197
GTIN
00691215344197
Taxonomy 1
Material Handling
Taxonomy 2
Forklift Attachments
Taxonomy 3
Loading Platform
Assembled Depth (in.)
48.5
Assembled Width(in.)
48
Assembled Height(in.)
35.375
Assembled Weight(lbs.)
340
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembled
Compatible Products
IBC-TLT-FPL-5BKH

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
48
Package Width (in.)
40
Package Height (in.)
29
Package Weight (in.)
348
Subclass
18
Freight Class
92.5
NMFC Code
Conveyors Elevators or Lifts NOI
NMFC Number
120700
LTL Freight
LTL Palletized
UNSPSC
23153000
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: IBC-TLT-FPL

IBC-TLT-FPL

Steel Intermediate Bulk Container Tilt Stand with Fork Pockets and Adjustable Legs 48-1/2 In. x 49-1/2 In. 4400 Lb. Capacity Blue

An intermediate bulk container tilt station is designed of a sturdy steel construction which, provides a secure tilting of containers for complete draining. Fork pockets are included for simple raising and lowering, as well as, easy access to valve connections. Anchor all 4 legs to the ground with 3/8" X 4" (L) anchor bolts. To use simple place the container on the station. When the container is in the secure position, start the draining process. As the fluid flows from the container, the rear of the station will rise up creating an angle for a better release of fluids.

  • Rising design as weight diminishes
  • Powder coated for baked in added toughness
  • Strong construction for daily use
  • Sleek smooth finish

Core Data

Assembled Weight: 340 Assembled Size: 48"W x 48.5"L x 35.375"H Color: Blue
Total Ship Weight: 348 Package 1 Size: 40"W x 48"D x 29"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 4,400
Platform Length (in.): 47-13/16
Platform Width (in.): 40-1/2
Platform Raised Height (in.): 10-1/8
Platform Lowered Height (in.): 6
Maximum Tilt Degree: 5
Fork Pocket Size (in.): 7 x 2
Fork Pocket Center (in.): 27
Foot Bolt Hole Diameter (in.): 7/16
Height Adjustment: 6 In. Increments
Vertical Center of Gravity (in.): 15-9/16
Horizontal Center of Gravity (in.): 23-9/16
