  All Products   Drum Handling Equipment   Retention Basins & Containers   IBC Tilt Stands w/ Fork Pockets & IBC Tilting Cart IBC-TLT-FPL-SS
Product Image

Visual Reference

IBC-TLT-FPL-SS
IBC-TLT-FPL-SS
IBC-TLT-FPL-SS
IBC-TLT-FPL-SS
IBC-TLT-FPL-SS
IBC-TLT-FPL-SS
IBC-TLT-FPL-SS
IBC-TLT-FPL-SS
IBC-TLT-FPL-SS

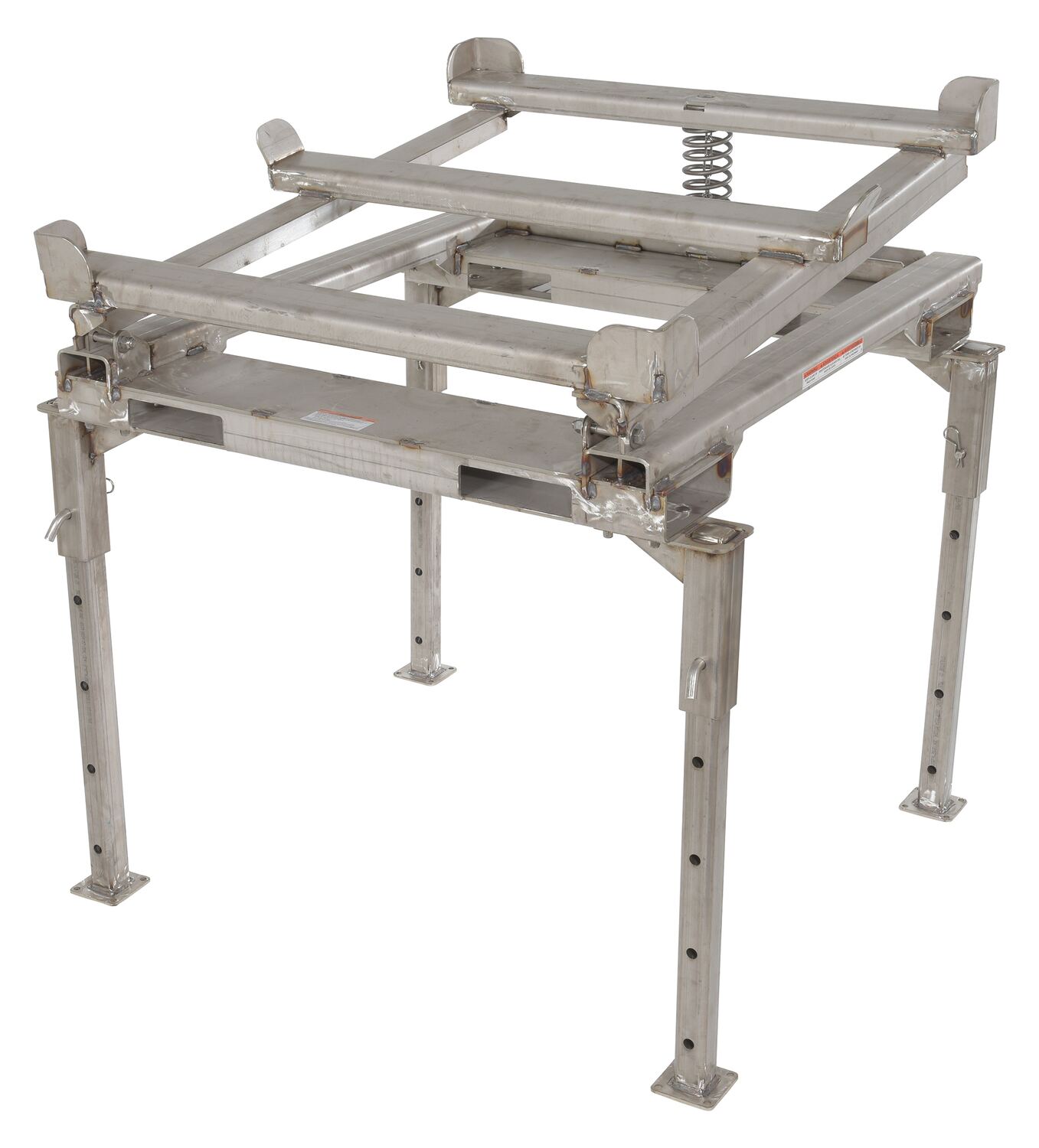

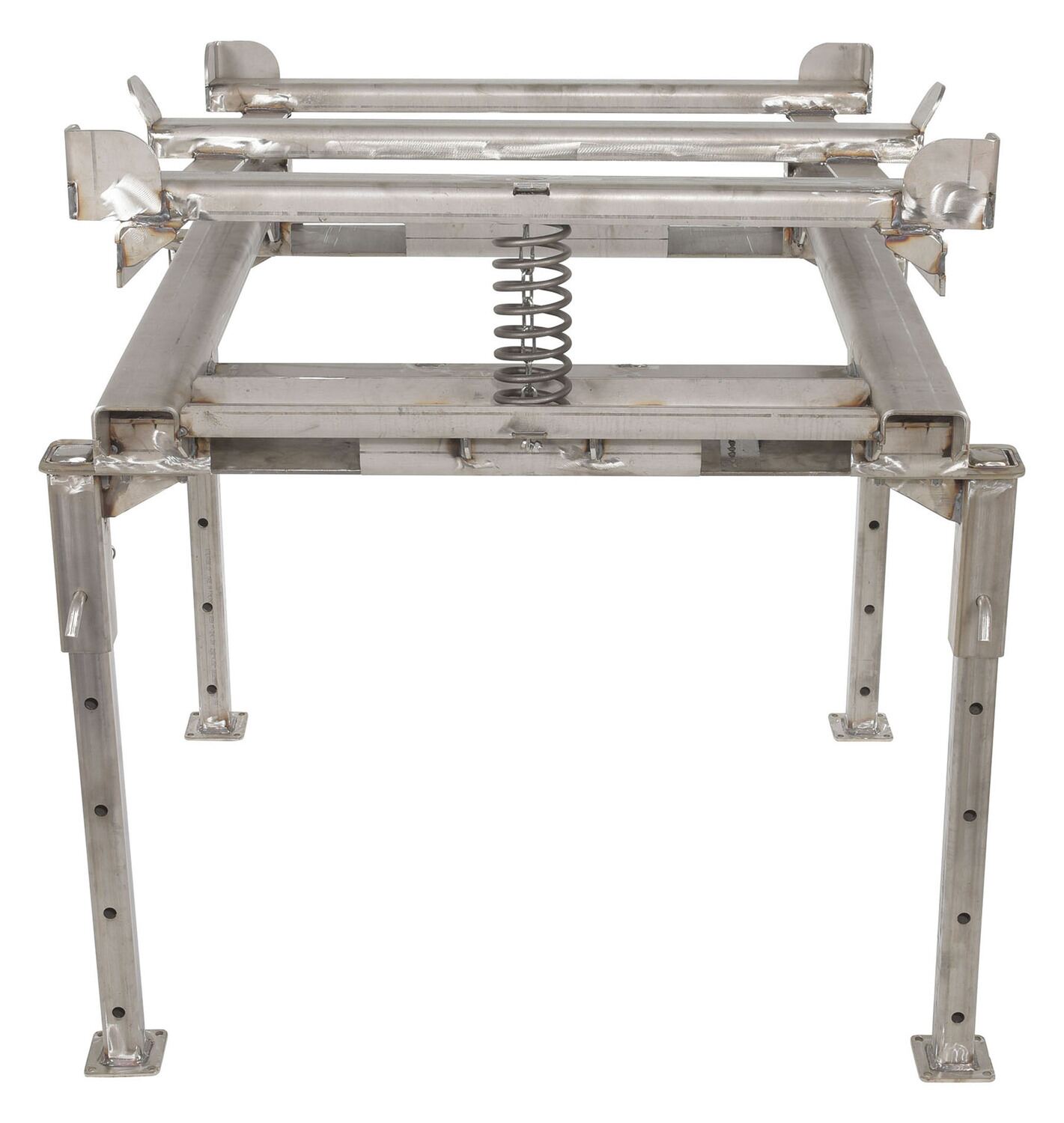

Stainless Steel Intermediate Bulk Container Tilt Stand with Fork Pockets and Adjustable Legs 49-3/4 In. x 50-1/2 In. 4400 Lb. Capacity Silver

Intermediate Bulk Container Tilt Stand with Fork Pockets and Adjustable Legs for Commercial and Industrial Retention Basins & Containers Use, 4,400 lb. Capacity with 49-3/4 in. x 50-1/2
An intermediate bulk container tilt support stand is designed to provide a secure tilting of containers for complete draining. Anchor all 4 legs to the ground with 3/8" X 4" (L) anchor bolts. The adjustable height of the stand allows for easy access to valve connections and minimizes user bending and twisting. To use, simply place the container on the stand. When the container is in the secure position, start the draining process. As the fluid flows from the container, the rear of the stand platform will rise up creating an angle for a better release of fluids.
Product Status
Available
Key Features
  • Tilt rises as weight diminishes
  • Easily cleanable, stainless steel construction
  • Built in fork pockets
  • Pre-drilled mounting holes
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   360 Image   IBC-TLT-FPL Adjustable Intermediate Bulk Container Tilt Stand w/ Fork Pockets   Label Page PDF   90 Days Warranty
Product Data

Core Data

Assembled Weight 402 lbs
Assembled Size 48"W x 49.75"L x 35.25"H
Total Ship Weight 452 lbs
Package 1 Size 41"W x 49"D x 26"H
Color / Finish Silver
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 4,400
Platform Length (in.) 48-1/2
Platform Width (in.) 40-1/2
Platform Raised Height (in.) 10
Platform Lowered Height (in.) 6
Maximum Tilt Degree 5
Fork Pocket Size (in.) 7 x 2
Fork Pocket Center (in.) 23
Height Adjustment 6 In. Increments
Foot Bolt Hole Diameter 7/16
Vertical Center of Gravity (in.) 15-1/4
Horizontal Center of Gravity (in.) 24-9/16
Extended Product Details

Marketing Specs.

MFG Model # (Series)
IBC-TLT-FPL-SS
Product Name
Stainless Steel Intermediate Bulk Container Tilt Stand with Fork Pockets and Adjustable Legs 49-3/4 In. x 50-1/2 In. 4400 Lb. Capacity Silver
UPC
691215372121
GTIN
00691215372121
Taxonomy 1
Material Handling
Taxonomy 2
Forklift Attachments
Taxonomy 3
Loading Platform
Assembled Depth (in.)
49.75
Assembled Width(in.)
48
Assembled Height(in.)
35.25
Assembled Weight(lbs.)
402
Color/Finish
Silver
Material
Stainless Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembly required
Compatible Products
IBC-TLT-FPL-SS-5BKH

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
49
Package Width (in.)
41
Package Height (in.)
26
Package Weight (in.)
452
Subclass
18
Freight Class
92.5
NMFC Code
Conveyors Elevators or Lifts NOI
NMFC Number
120700
LTL Freight
LTL Palletized
UNSPSC
23153000
HTSUS Number
8428.90.0390
USMCA HS
8428.90
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
90 Days Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: IBC-TLT-FPL-SS

IBC-TLT-FPL-SS

Stainless Steel Intermediate Bulk Container Tilt Stand with Fork Pockets and Adjustable Legs 49-3/4 In. x 50-1/2 In. 4400 Lb. Capacity Silver

An intermediate bulk container tilt support stand is designed to provide a secure tilting of containers for complete draining. Anchor all 4 legs to the ground with 3/8" X 4" (L) anchor bolts. The adjustable height of the stand allows for easy access to valve connections and minimizes user bending and twisting. To use, simply place the container on the stand. When the container is in the secure position, start the draining process. As the fluid flows from the container, the rear of the stand platform will rise up creating an angle for a better release of fluids.

  • Tilt rises as weight diminishes
  • Easily cleanable, stainless steel construction
  • Built in fork pockets
  • Pre-drilled mounting holes

Core Data

Assembled Weight: 402 Assembled Size: 48"W x 49.75"L x 35.25"H Color: Silver
Total Ship Weight: 452 Package 1 Size: 41"W x 49"D x 26"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 4,400
Platform Length (in.): 48-1/2
Platform Width (in.): 40-1/2
Platform Raised Height (in.): 10
Platform Lowered Height (in.): 6
Maximum Tilt Degree: 5
Fork Pocket Size (in.): 7 x 2
Fork Pocket Center (in.): 23
Height Adjustment: 6 In. Increments
Foot Bolt Hole Diameter: 7/16
Vertical Center of Gravity (in.): 15-1/4
Horizontal Center of Gravity (in.): 24-9/16
