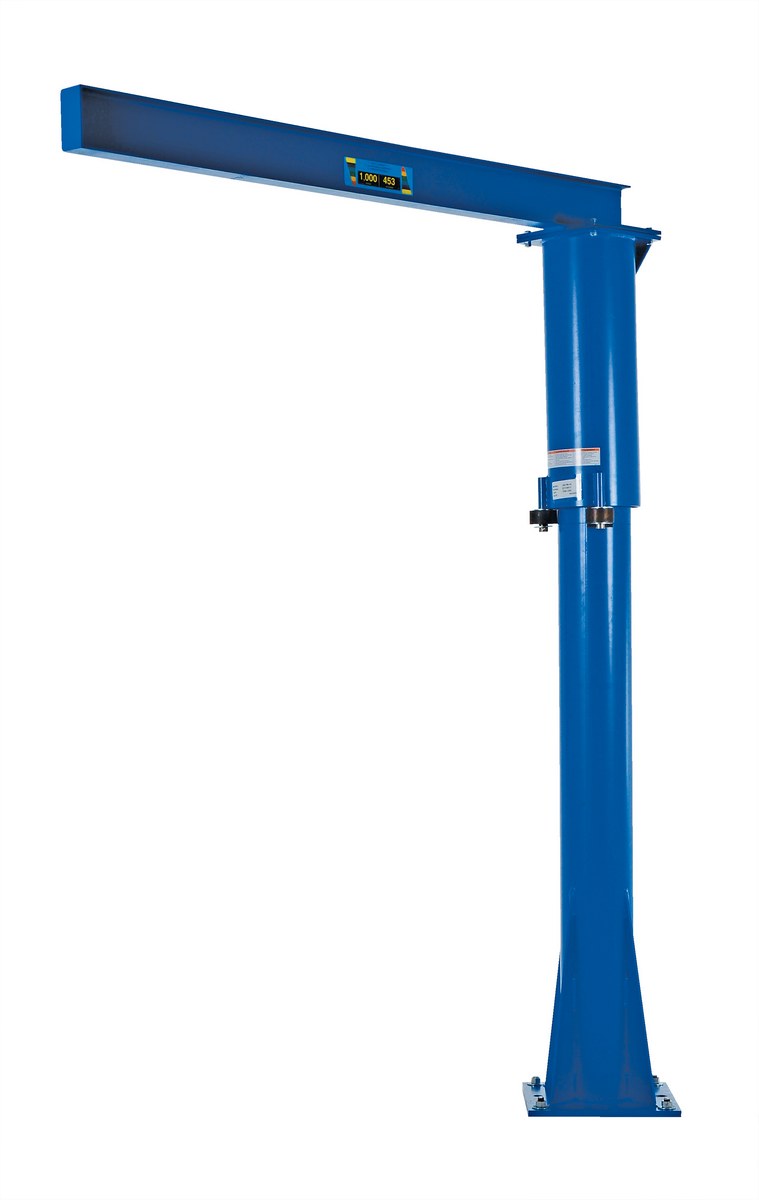

Steel Floor Mounted Jib 80 In. I-Beam 1000 Lb. Capacity Blue

JIB-FM-10-80 for Overhead Load Lifting and Controlled Positioning, 1,000 lb. Capacity with 80 in. I-Beam
This floor mounted jib adapts well to a variety of applications. With the unique design, the jib is functional in any direction for complete customization of the work station. Solid steel construction will assist workers in lifting awkward material. Hoists & Trollies can be ordered separately.
Product Status
Available
Key Features
  • Eight (8) pre-drilled mounting holes
  • Full 360 degree rotation
  • Requires reinforced concrete pad for installation
  • Fixed height design provides workplace consistency
Quick Actions

Product Resources

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Floor Mounted Jibs Crane series JIB-FM Instruction Manual   Label Page PDF   1 Year Warranty
Product Data

Core Data

Assembled Weight 563 lbs
Assembled Size 17"W x 82.5"L x 105.5"H
Total Ship Weight 610 lbs
Package 1 Size 44"W x 99"D x 24"H
Color / Finish Blue
Freight Type LTL Palletized

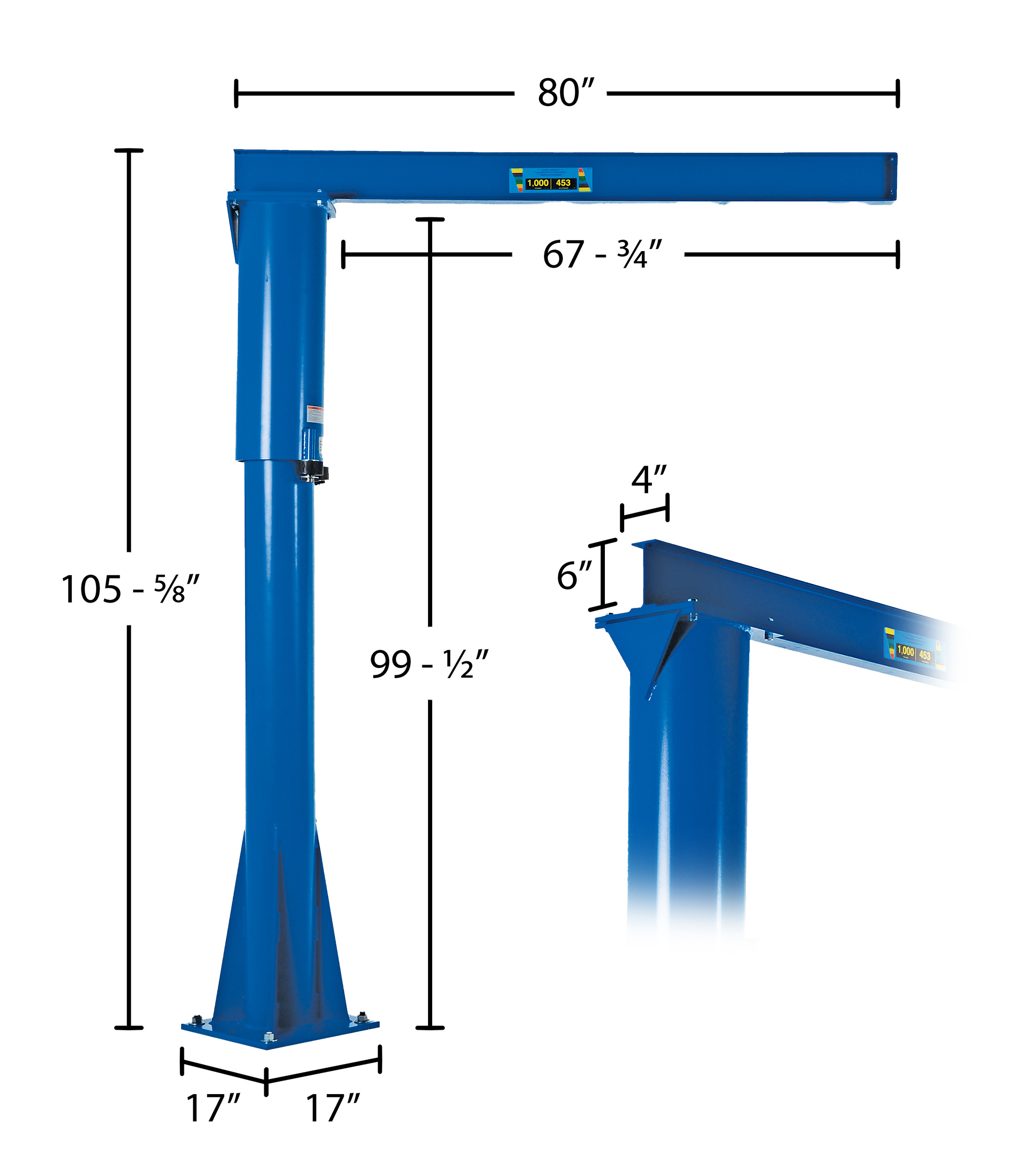

Additional Attributes

Uniform Capacity (lb.) 1,000
Under I-Beam to Ground Length (in.) 99-1/2
I-Beam (Flange x Height) (in.) 4 x 6
Overall I-Beam Length (in.) 80
Usable I-Beam Length (in.) 67-3/4
Rotation Degree 360
Base Plate Length/Width (in.) 17 x 17
Extended Product Details

Marketing Specs.

MFG Model # (Series)
JIB-FM-10
Product Name
Steel Floor Mounted Jib 80 In. I-Beam 1000 Lb. Capacity Blue
UPC
691215024723
GTIN
00691215024723
Taxonomy 1
Material Handling
Taxonomy 2
Lifting Equipment
Taxonomy 3
Jibs
Taxonomy 4
Floor Mounted
Assembled Depth (in.)
82.5
Assembled Width(in.)
17
Assembled Height(in.)
105.5
Assembled Weight(lbs.)
563
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
US
Approval Drawing Required? Y/N
N
Assembly
Assembly required

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
99
Package Width (in.)
44
Package Height (in.)
24
Package Weight (in.)
610
Subclass
9
Freight Class
100
NMFC Code
MACHINERY GROUP
NMFC Number
133300
LTL Freight
LTL Palletized
UNSPSC
24101652
HTSUS Number
8426.30.0000
USMCA HS
8426.30
Origin Criterion
B
Certification Indicator
D
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
No
Batteries Included?
No

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Yes
Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: JIB-FM-10

JIB-FM-10

Steel Floor Mounted Jib 80 In. I-Beam 1000 Lb. Capacity Blue

This floor mounted jib adapts well to a variety of applications. With the unique design, the jib is functional in any direction for complete customization of the work station. Solid steel construction will assist workers in lifting awkward material. Hoists & Trollies can be ordered separately.

  • Eight (8) pre-drilled mounting holes
  • Full 360 degree rotation
  • Requires reinforced concrete pad for installation
  • Fixed height design provides workplace consistency

Core Data

Assembled Weight: 563 Assembled Size: 17"W x 82.5"L x 105.5"H Color: Blue
Total Ship Weight: 610 Package 1 Size: 44"W x 99"D x 24"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 1,000
Under I-Beam to Ground Length (in.): 99-1/2
I-Beam (Flange x Height) (in.): 4 x 6
Overall I-Beam Length (in.): 80
Usable I-Beam Length (in.): 67-3/4
Rotation Degree: 360
Base Plate Length/Width (in.): 17 x 17
