  All Products   Ergonomic Solutions   Tote/ Skid Lifters   Tote Lifters L-270-DC-HD
Product Image

Visual Reference

L-270-DC-HD
L-270-DC-HD
L-270-DC-HD
L-270-DC-HD
L-270-DC-HD
L-270-DC-HD
L-270-DC-HD
L-270-DC-HD
L-270-DC-HD
L-270-DC-HD
L-270-DC-HD

Steel DC Powered Tote Lift 63 In. x 26-3/4 In. x 46-1/2 In. 3000 Lb. Capacity Blue

DC Powered Tote Lift for Commercial and Industrial Tote/ Skid Lifters Use, 3,000 lb. Capacity with 63 in. x 26-3/4 in. x 46-1/2 in.
The tote lifter is designed to lift open bottom skids, boxes, and baskets. Lifter is DC power with rocker switch to raise or lower. This DC powered unit includes an on-board battery charger. The side stabilizers lock lift in place when load is raised over a certain height.
Product Status
Available QuickShip
Key Features
  • Solid steel construction provides long lasting rugged use
  • Automatic stabilizers engage when forks reach specific height
  • Stabilizers design prevent unit from moving
  • Front rollers and two rear swivel casters allow for easy portability
Quick Actions

Product Resources

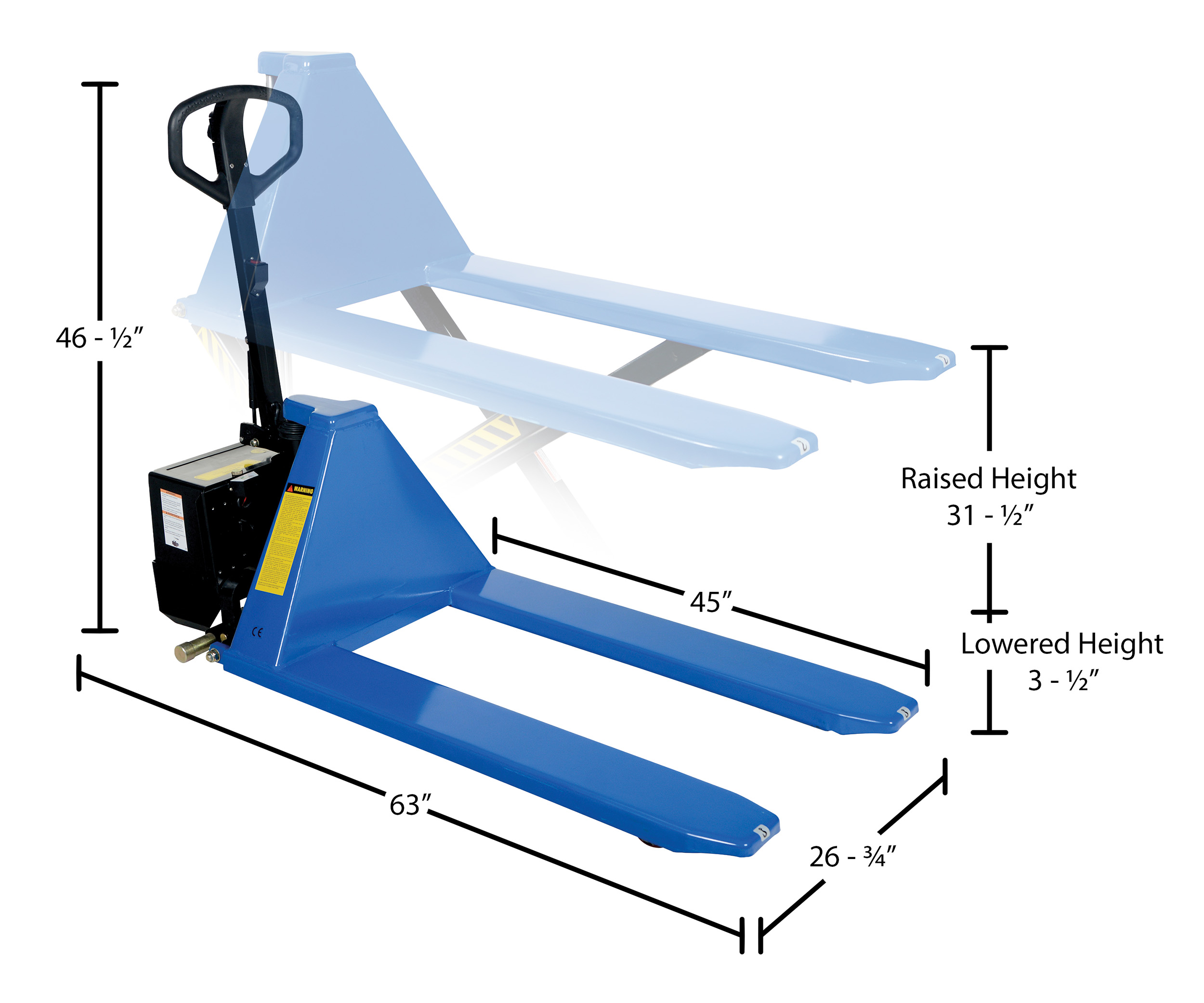

Image Gallery View product images Dimensions Open dimensioned image Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Approval Drawing   Testing Certificate   Hand Pump & DC Powered Tote Lifters   Label Page PDF   Hydraulic Oil SDS   Lvdao battery SDS   MSE Valve Regulated Lead Acid Battery Series SDS   1 Year Warranty
Product Data

Core Data

Assembled Weight 378 lbs
Assembled Size 26.75"W x 63"L x 46.5"H
Total Ship Weight 428 lbs
Package 1 Size 48"W x 71"D x 55"H
Color / Finish Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 3,000
Operation 12 Volt DC Power
Side Stabilizer Locks at Raised Height (in.) 20-1/2
Fork Width (in.) 27
Fork Length (in.) 45
Lowered Height (in.) 3-1/2
Raised Height (in.) 31-1/2
Front Roller Diameter (in.) 3
Front Roller Width (in.) 1-7/8
Rear Wheel Diameter (in.) 5-3/4
Rear Wheel Width (in.) 1-5/8
Rear Wheel Material Poly-On-Steel
Handle Length (in.) 30
Handle Material Steel/Plastic
Maximum Amperage 140

Battery Information

Battery Depth 10
Battery Width 7
Battery Height 11
Battery Weight 44
Battery Freight Class 60
Battery NMFC Number 60700
Battery NMFC Description Gel batteries on unit
Lithium Battery Configuration C -- Contained In
Extended Product Details

Marketing Specs.

MFG Model # (Series)
L-270-DC-HD
Product Name
Steel DC Powered Tote Lift 63 In. x 26-3/4 In. x 46-1/2 In. 3000 Lb. Capacity Blue
UPC
691215025027
GTIN
00691215025027
Taxonomy 1
Material Handling
Taxonomy 2
Pallet Jacks and Lifts
Assembled Depth (in.)
63
Assembled Width(in.)
26.75
Assembled Height(in.)
46.5
Assembled Weight(lbs.)
378
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
71
Package Width (in.)
48
Package Height (in.)
55
Package Weight (in.)
428
Subclass
6
Freight Class
200
NMFC Code
Cars, Lift Trucks or Vehicles,áNOI, not designed for general highway use,
NMFC Number
190235
LTL Freight
LTL Palletized
UNSPSC
24101604
HTSUS Number
8427.90.0090
USMCA HS
8427.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
Yes
Batteries Included?
Yes
Battery Weight (lbs.)
44
Battery Freight Class
60
Battery NMFC Number
60700
Battery NMFC Description
Gel batteries on unit
Lithium Battery Configuration
C -- Contained In

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: L-270-DC-HD

L-270-DC-HD

Steel DC Powered Tote Lift 63 In. x 26-3/4 In. x 46-1/2 In. 3000 Lb. Capacity Blue

The tote lifter is designed to lift open bottom skids, boxes, and baskets. Lifter is DC power with rocker switch to raise or lower. This DC powered unit includes an on-board battery charger. The side stabilizers lock lift in place when load is raised over a certain height.

  • Solid steel construction provides long lasting rugged use
  • Automatic stabilizers engage when forks reach specific height
  • Stabilizers design prevent unit from moving
  • Front rollers and two rear swivel casters allow for easy portability

Core Data

Assembled Weight: 378 Assembled Size: 26.75"W x 63"L x 46.5"H Color: Blue
Total Ship Weight: 428 Package 1 Size: 48"W x 71"D x 55"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 3,000
Operation: 12 Volt DC Power
Side Stabilizer Locks at Raised Height (in.): 20-1/2
Fork Width (in.): 27
Fork Length (in.): 45
Lowered Height (in.): 3-1/2
Raised Height (in.): 31-1/2
Front Roller Diameter (in.): 3
Front Roller Width (in.): 1-7/8
Rear Wheel Diameter (in.): 5-3/4
Rear Wheel Width (in.): 1-5/8
Rear Wheel Material: Poly-On-Steel
Handle Length (in.): 30
Handle Material: Steel/Plastic
Maximum Amperage: 140
