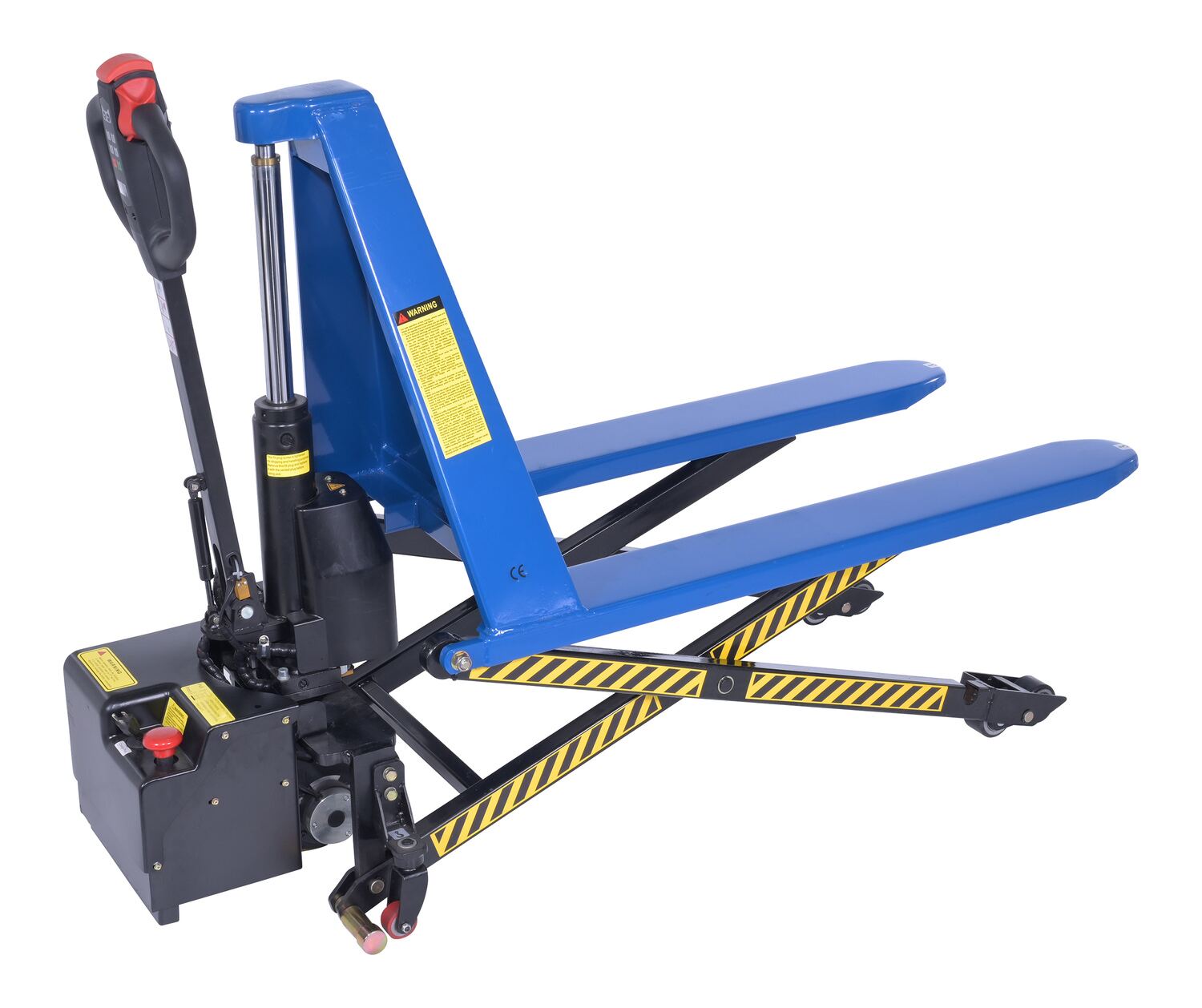

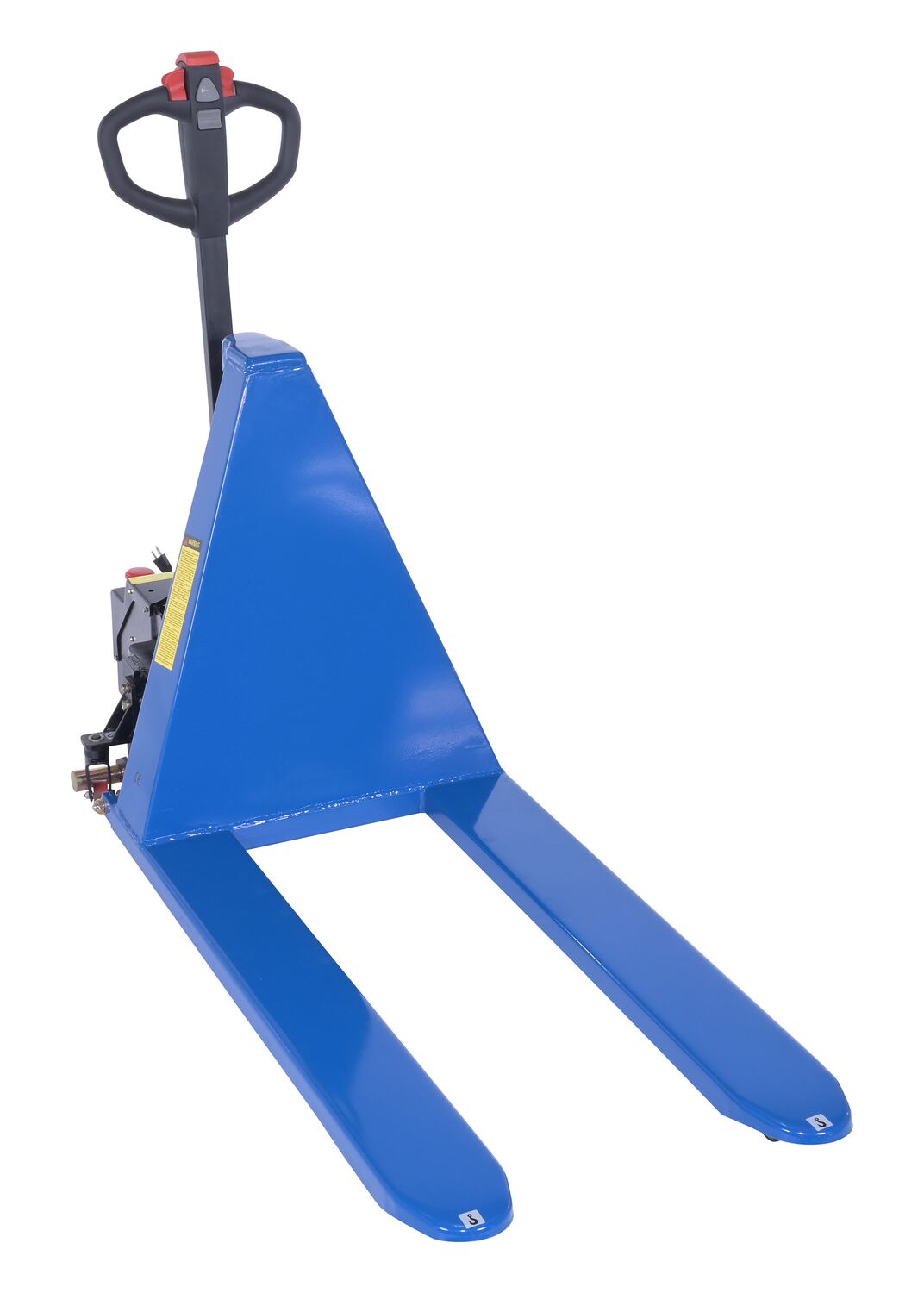

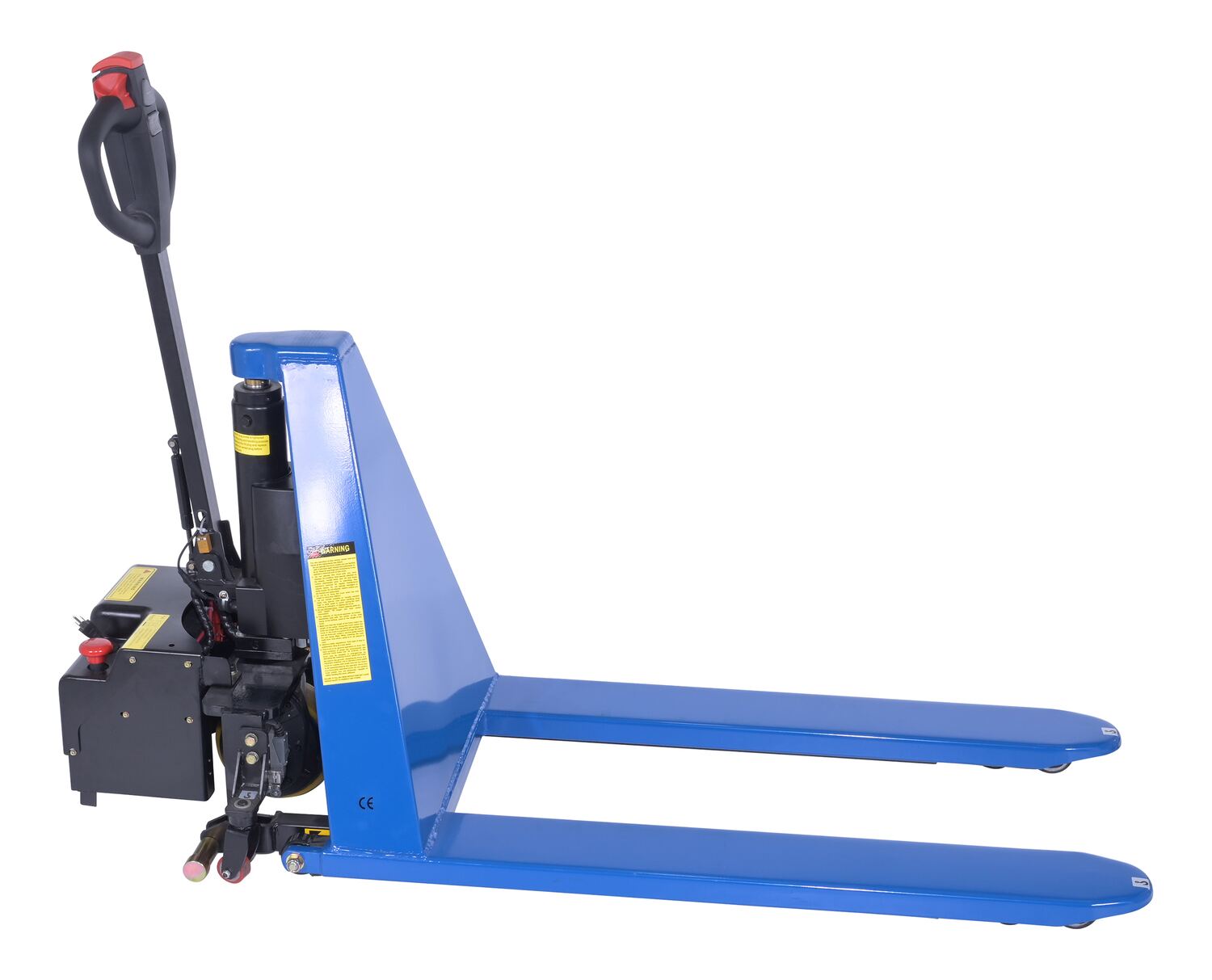

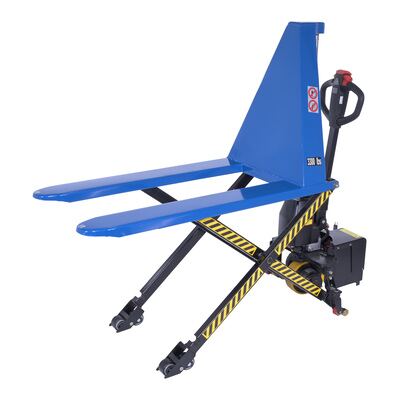

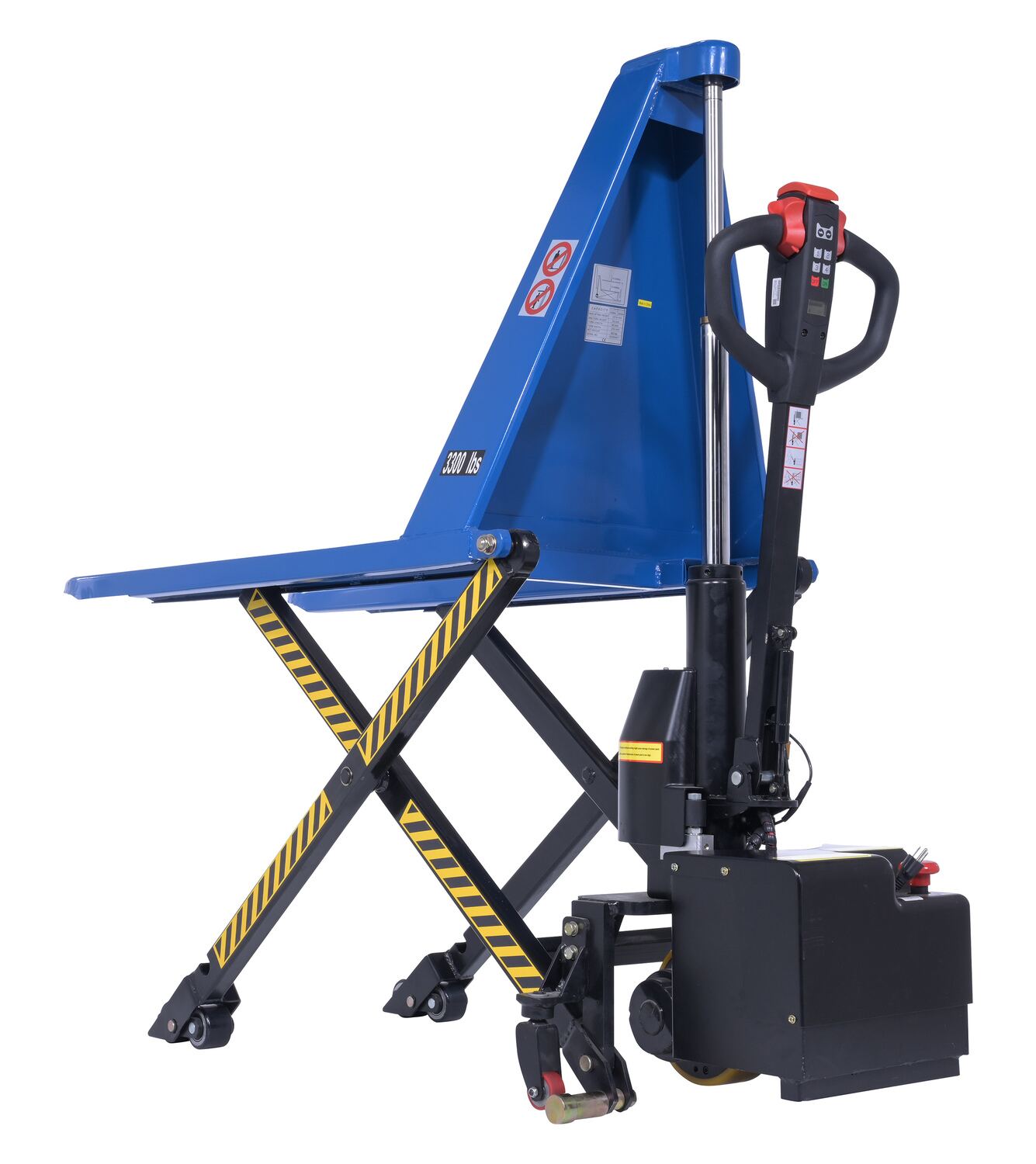

Steel DC Powered Tote Lift 27x45 Traction Drive 3000 Lb. Capacity Blue

DC Powered Tote Lift 27x45 Traction Drive for Commercial and Industrial Tote/ Skid Lifters Use, 3,000 lb. Capacity

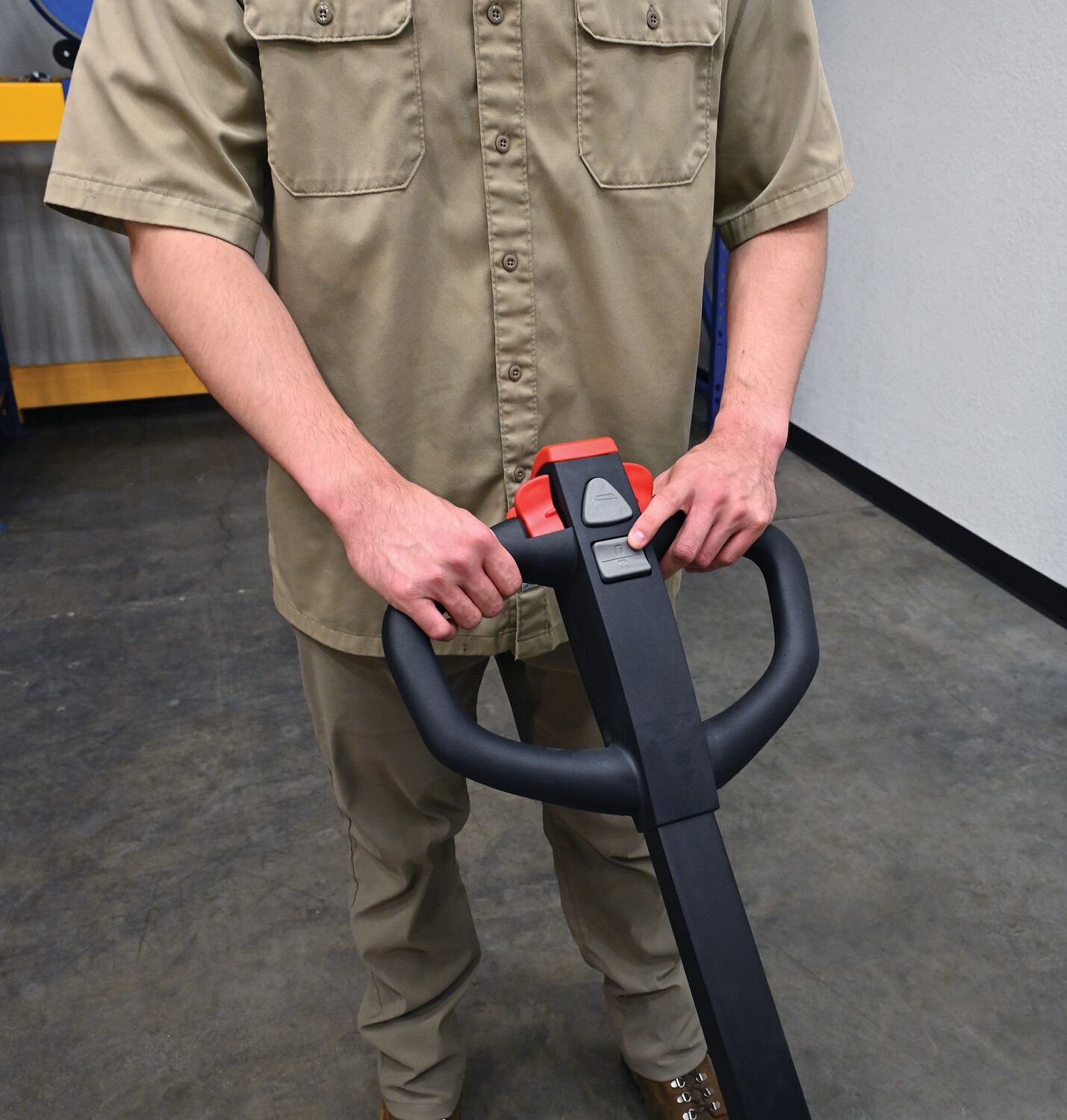

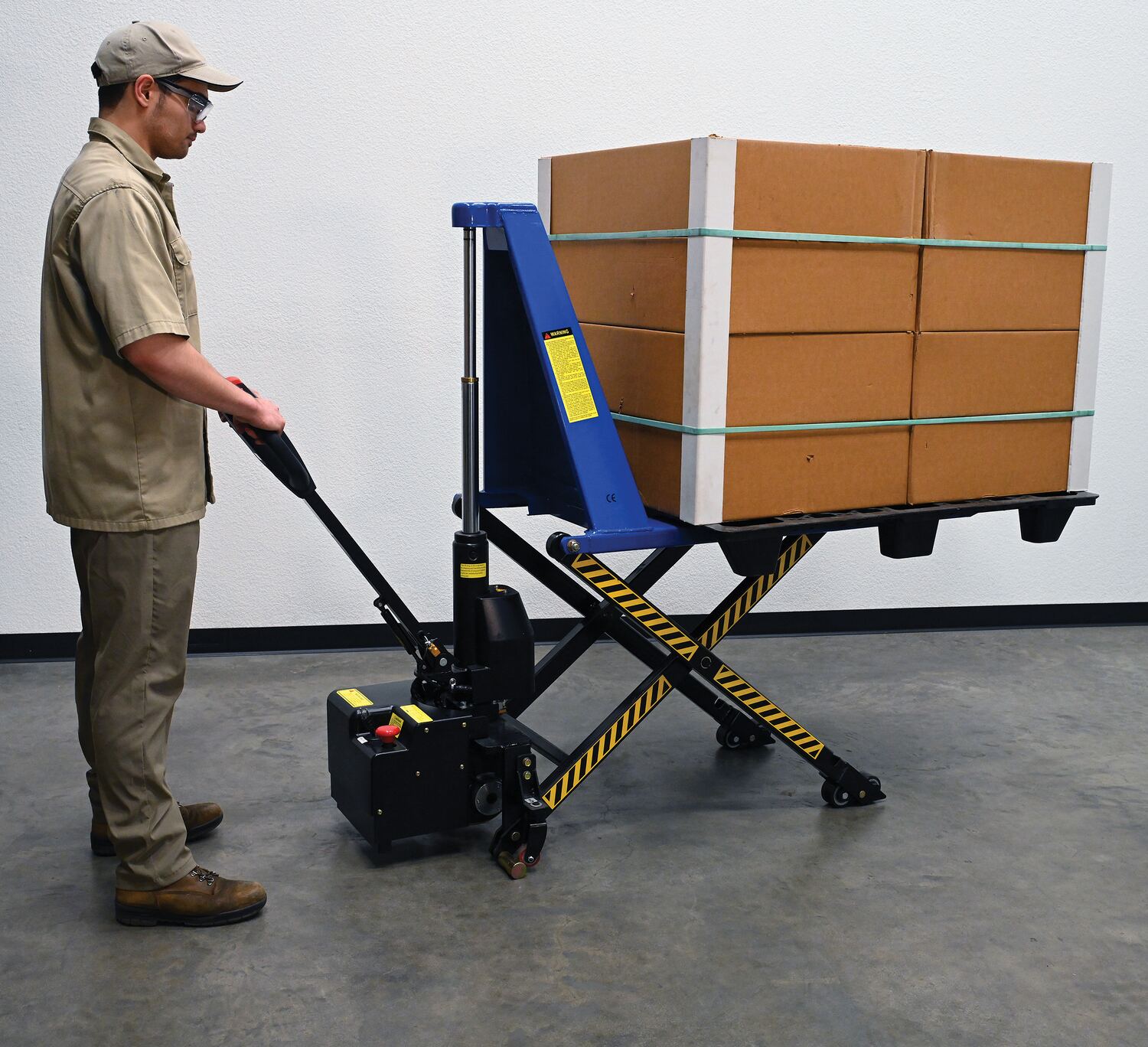

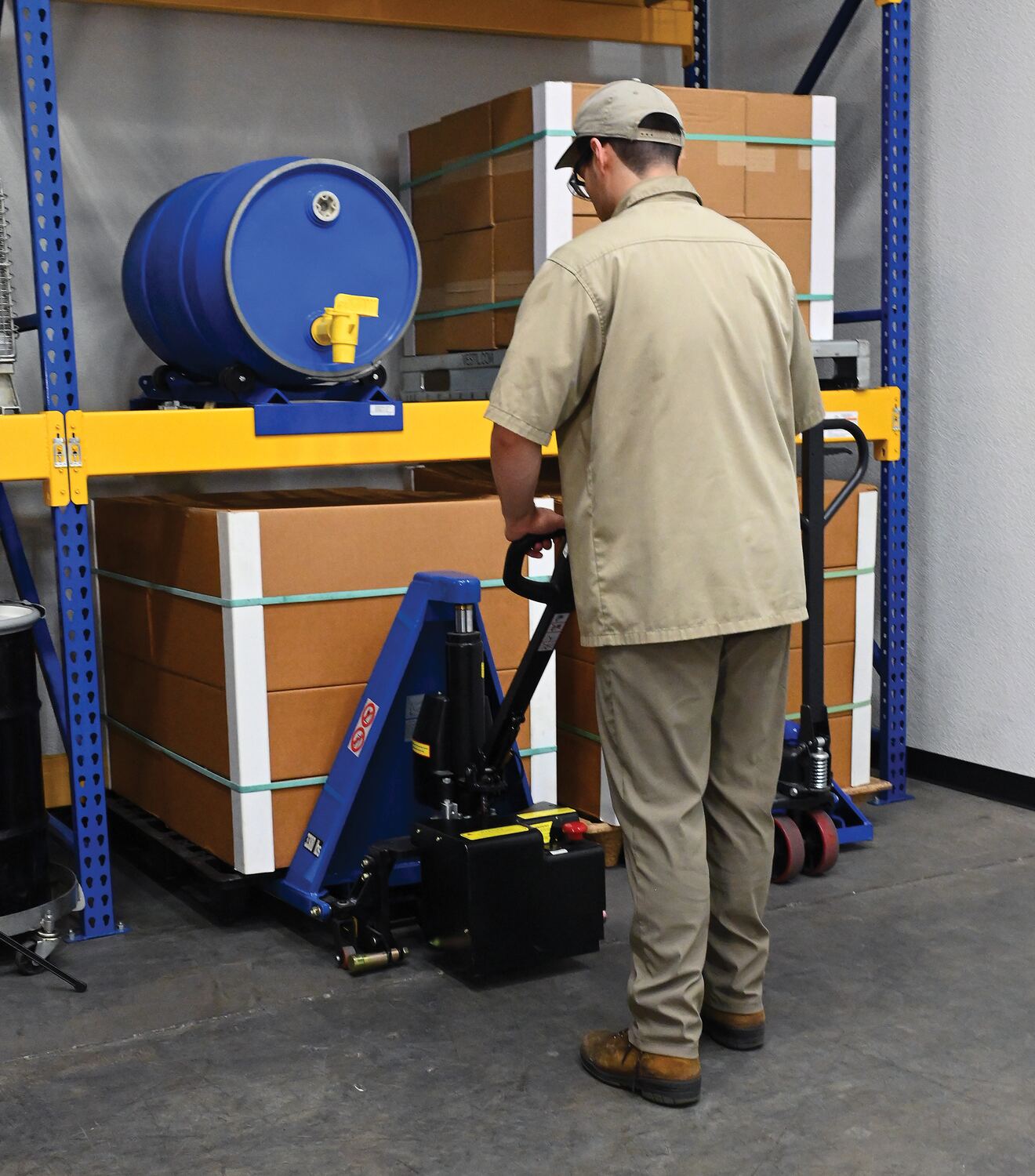

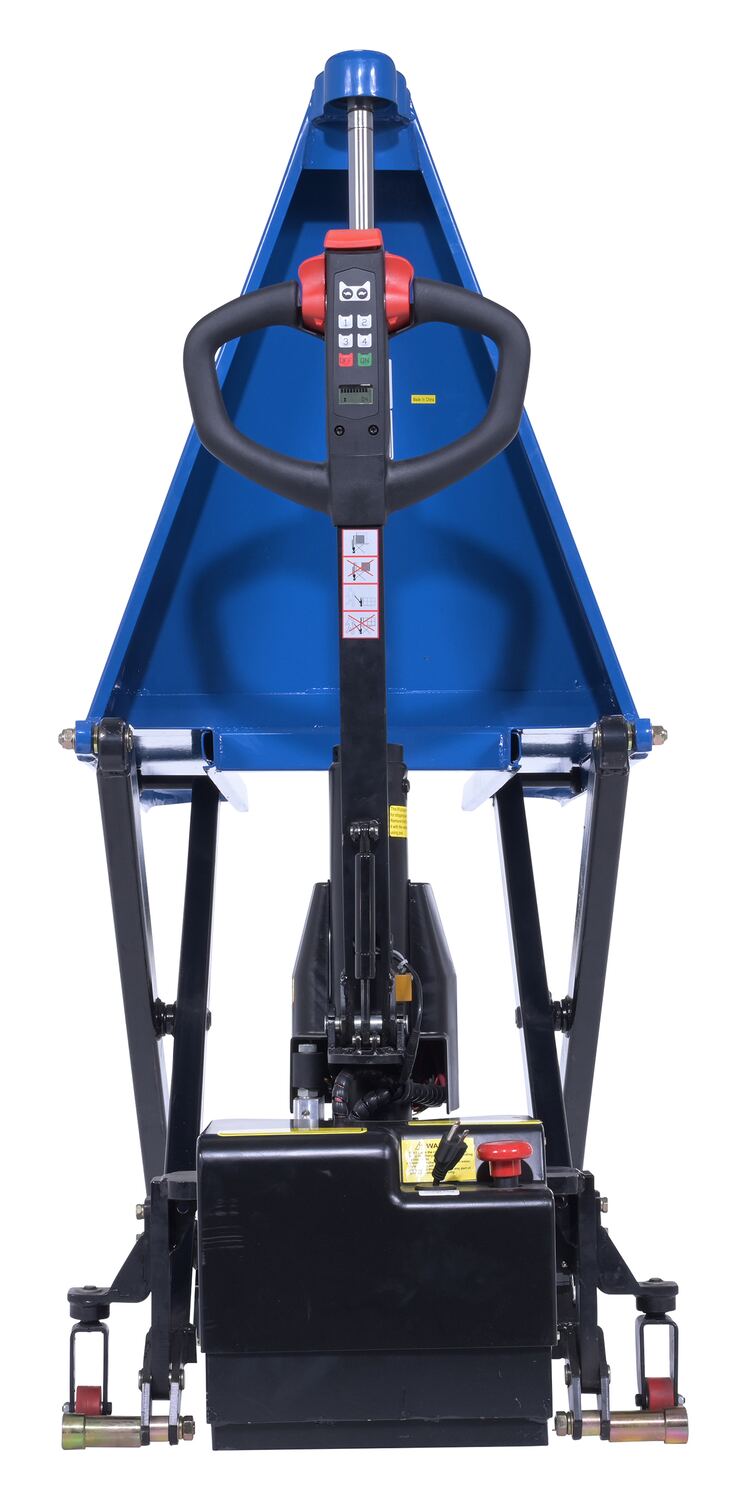

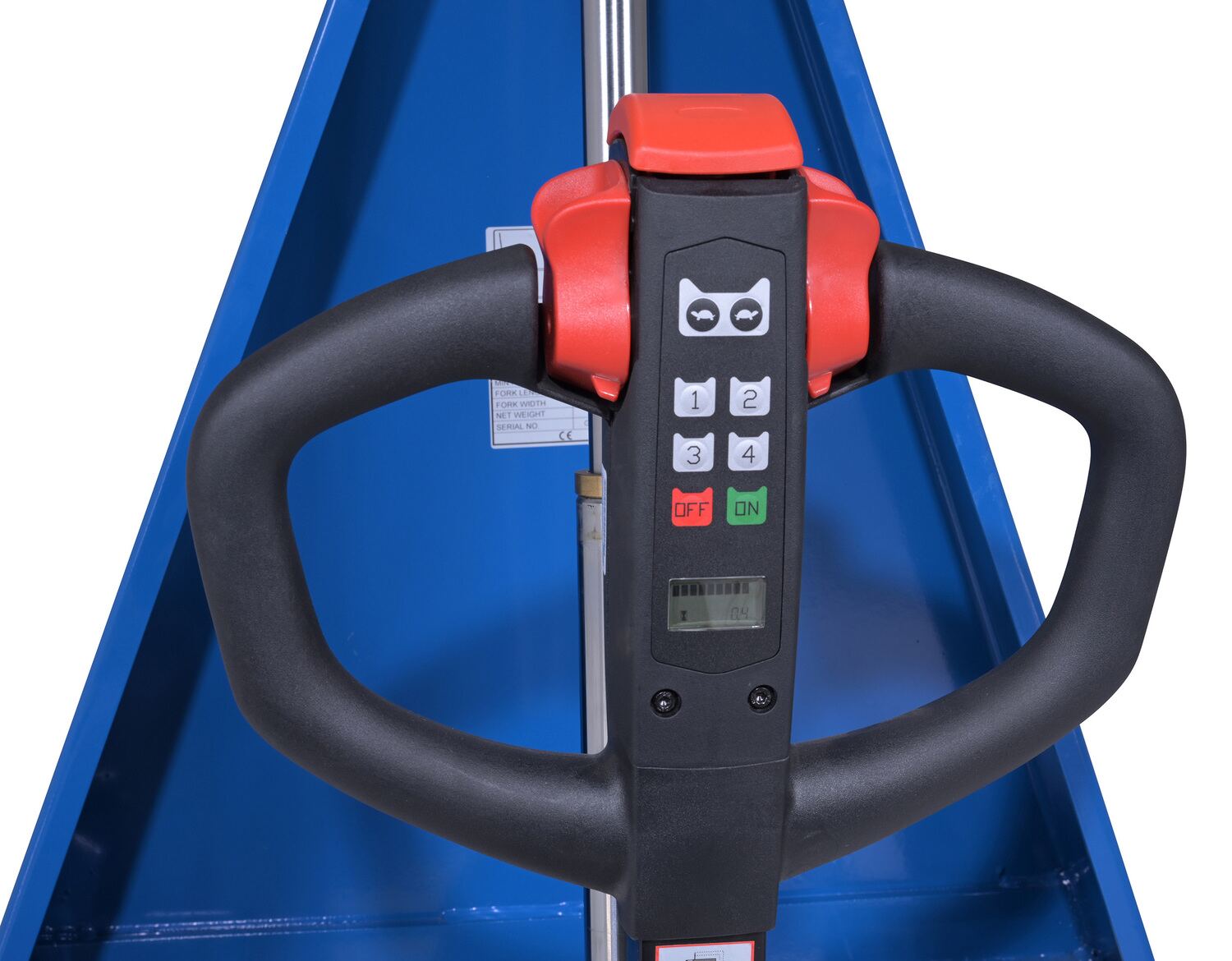

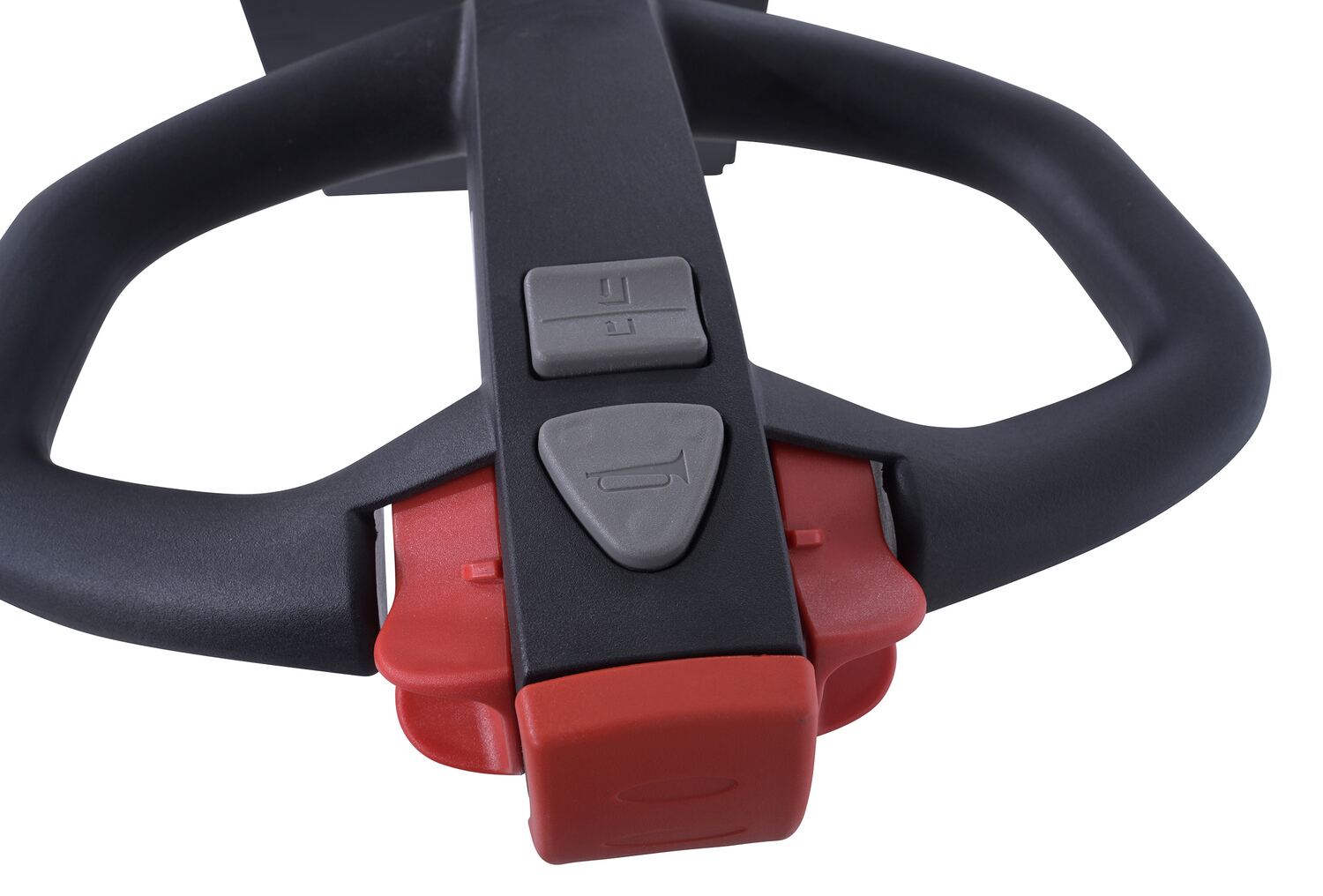

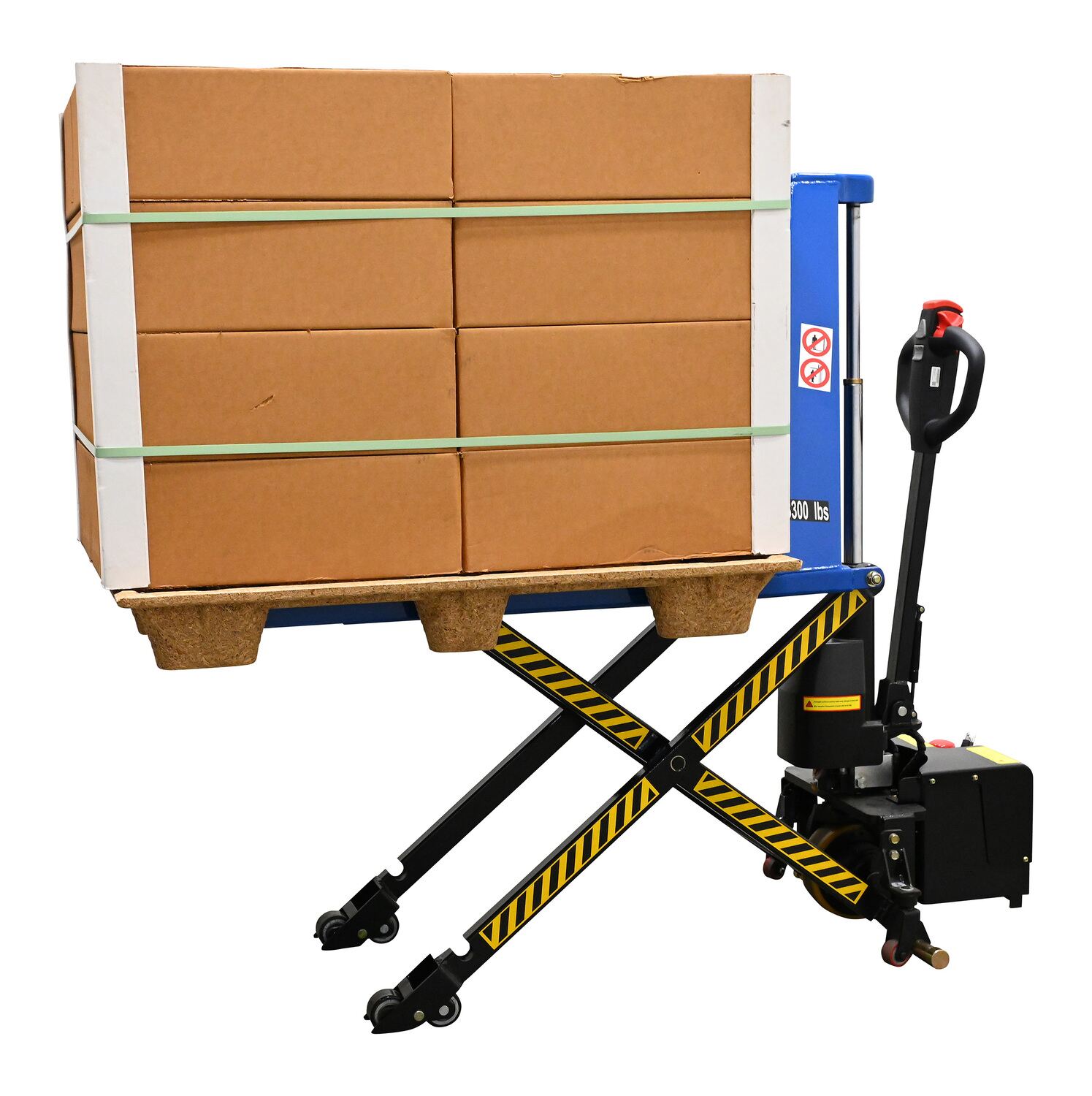

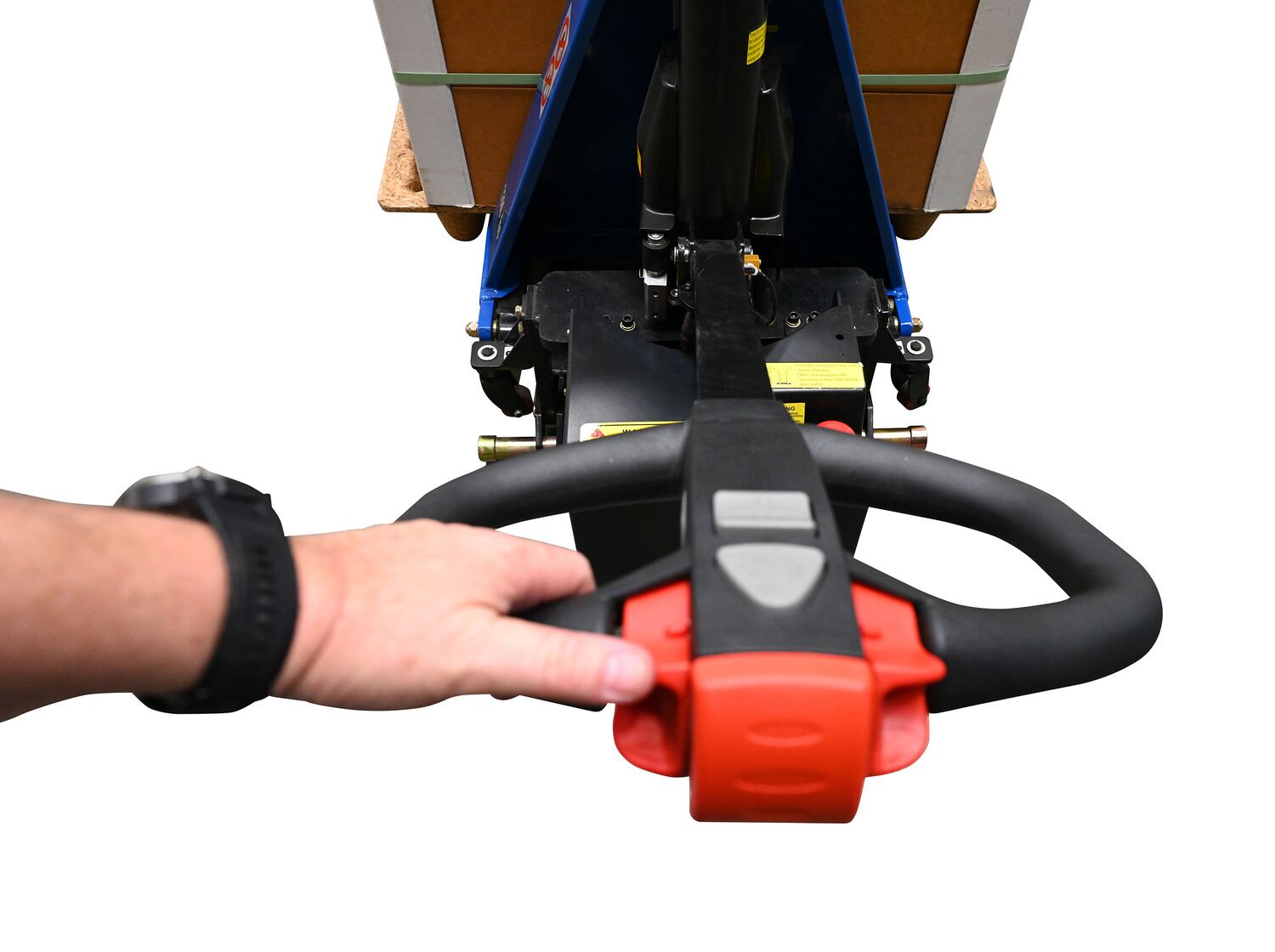

This tote lifter is specifically designed to raise open bottom skids, boxes, and baskets. With an ergonomic handle and adjustable speeds, light and heavy loads are easily accommodated. Built-in controls are located on the steering handle and are effortlessly accessible. The open sided design allows for a safe loading and unloading process.
Product Status
Available QuickShip
Key Features

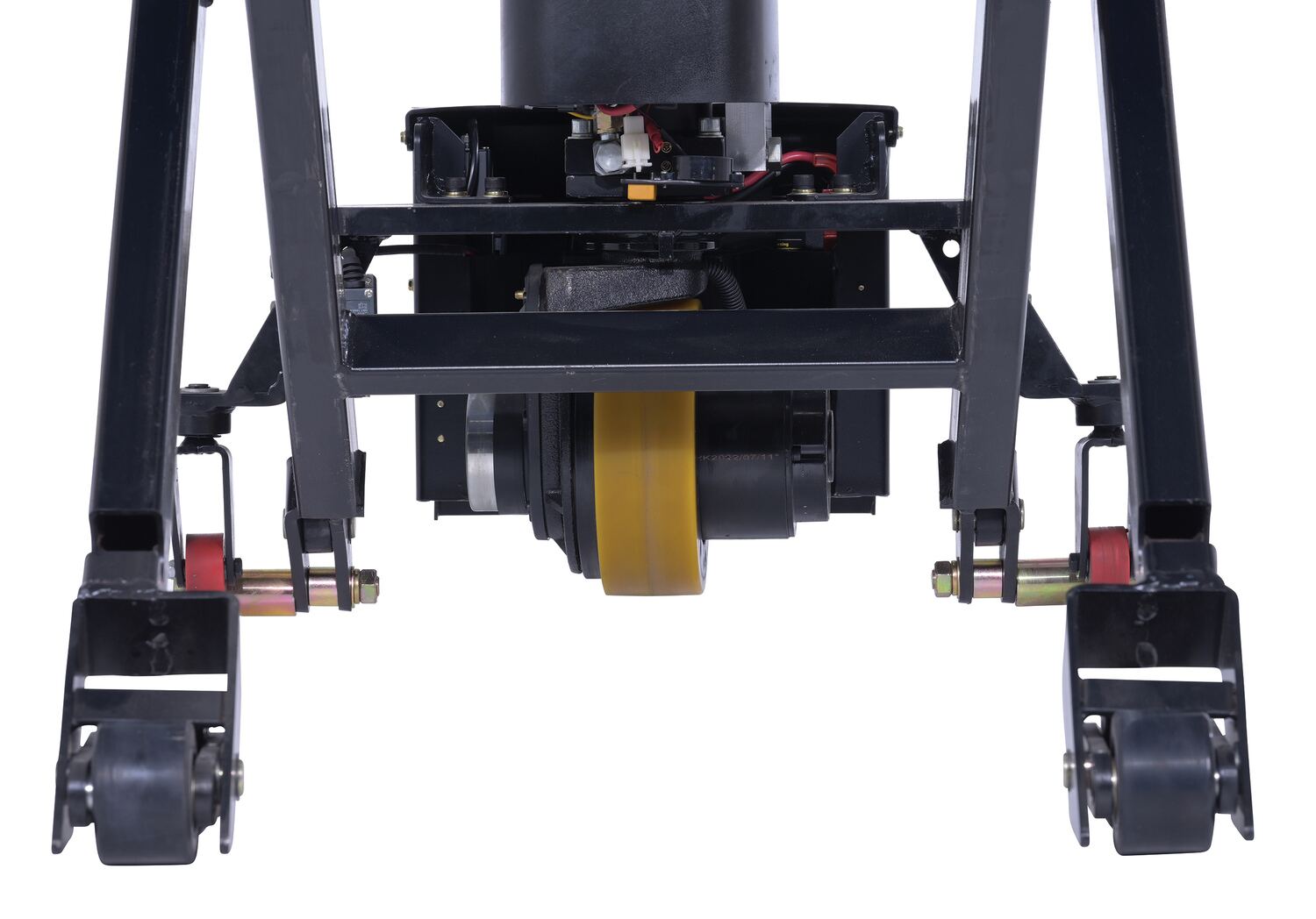

  • Powered traction drive

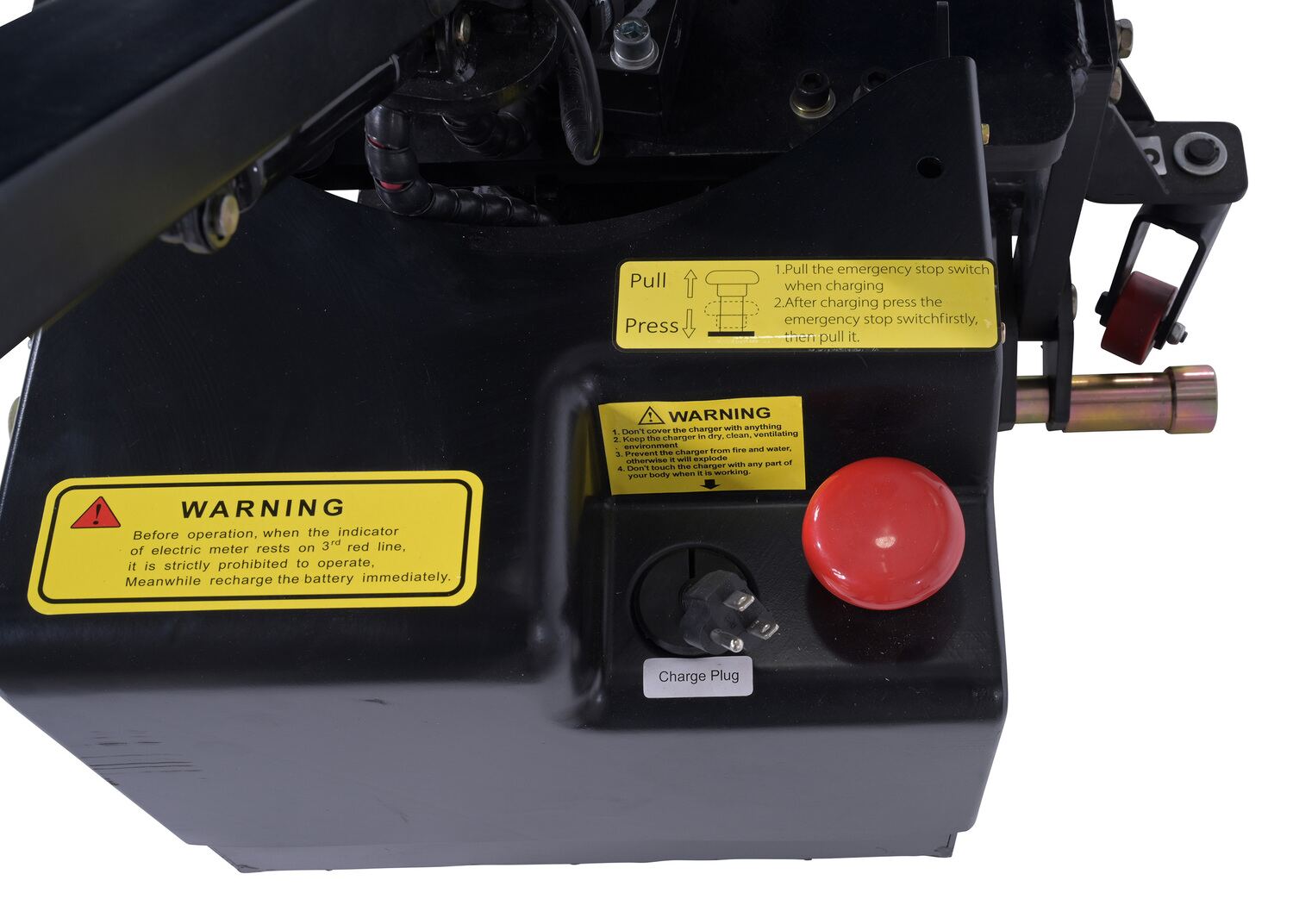

  • On-board battery charger
  • Two internal gel batteries
  • Side load stabilizers
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   Hand Pump & DC Powered Tote Lifters   Label Page PDF   Haufu Lithium Battery SDS   Hydraulic Oil SDS   1 Year Warranty
Product Data

Core Data

Assembled Weight 370 lbs
Assembled Size 26.75"W x 62.25"L x 51.25"H
Total Ship Weight 410 lbs
Package 1 Size 44"W x 68"D x 57"H
Color / Finish Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 3,000
Operation 12 Volt DC Power
Side Stabilizer Locks at Raised Height (in.) 20-1/2
Fork Width (in.) 27
Fork Length (in.) 45
Lowered Height (in.) 3-1/2
Raised Height (in.) 31-1/2
Front Roller Diameter (in.) 3
Front Roller Width (in.) 1-7/8
Rear Wheel Diameter (in.) 5-3/4
Rear Wheel Width (in.) 1-5/8
Rear Wheel Material Poly-On-Steel
Handle Length (in.) 30
Handle Material Steel/Plastic
Maximum Amperage 140

Battery Information

Battery Depth 10
Battery Width 7
Battery Height 11
Battery Weight 44
Battery Freight Class 60
Battery NMFC Number 60700
Battery NMFC Description Gel batteries on unit
Lithium Battery Configuration C -- Contained In
Extended Product Details

Marketing Specs.

MFG Model # (Series)
L-270-DC-HD-CTD
Product Name
Steel DC Powered Tote Lift 27x45 Traction Drive 3000 Lb. Capacity Blue
UPC
691215377171
GTIN
00691215377171
Taxonomy 1
Material Handling
Taxonomy 2
Pallet Jacks and Lifts
Assembled Depth (in.)
62.25
Assembled Width(in.)
26.75
Assembled Height(in.)
51.25
Assembled Weight(lbs.)
370
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled
Compatible Products
L-PLATE-27

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
68
Package Width (in.)
44
Package Height (in.)
57
Package Weight (in.)
410
Subclass
1
Freight Class
175
NMFC Code
Lift trucks hand including pallet jacks handles detached
NMFC Number
189240
LTL Freight
LTL Palletized
UNSPSC
24101604
HTSUS Number
8427.90.0090
USMCA HS
8427.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
YES
Batteries Included?
Yes
Battery Weight (lbs.)
44
Battery Freight Class
60
Battery NMFC Number
60700
Battery NMFC Description
Gel batteries on unit
Lithium Battery Configuration
C -- Contained In

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: L-270-DC-HD-CTD

L-270-DC-HD-CTD

Steel DC Powered Tote Lift 27x45 Traction Drive 3000 Lb. Capacity Blue

This tote lifter is specifically designed to raise open bottom skids, boxes, and baskets. With an ergonomic handle and adjustable speeds, light and heavy loads are easily accommodated. Built-in controls are located on the steering handle and are effortlessly accessible. The open sided design allows for a safe loading and unloading process.

  • Powered traction drive
  • On-board battery charger
  • Two internal gel batteries
  • Side load stabilizers

Core Data

Assembled Weight: 370 Assembled Size: 26.75"W x 62.25"L x 51.25"H Color: Blue
Total Ship Weight: 410 Package 1 Size: 44"W x 68"D x 57"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 3,000
Operation: 12 Volt DC Power
Side Stabilizer Locks at Raised Height (in.): 20-1/2
Fork Width (in.): 27
Fork Length (in.): 45
Lowered Height (in.): 3-1/2
Raised Height (in.): 31-1/2
Front Roller Diameter (in.): 3
Front Roller Width (in.): 1-7/8
Rear Wheel Diameter (in.): 5-3/4
Rear Wheel Width (in.): 1-5/8
Rear Wheel Material: Poly-On-Steel
Handle Length (in.): 30
Handle Material: Steel/Plastic
Maximum Amperage: 140
