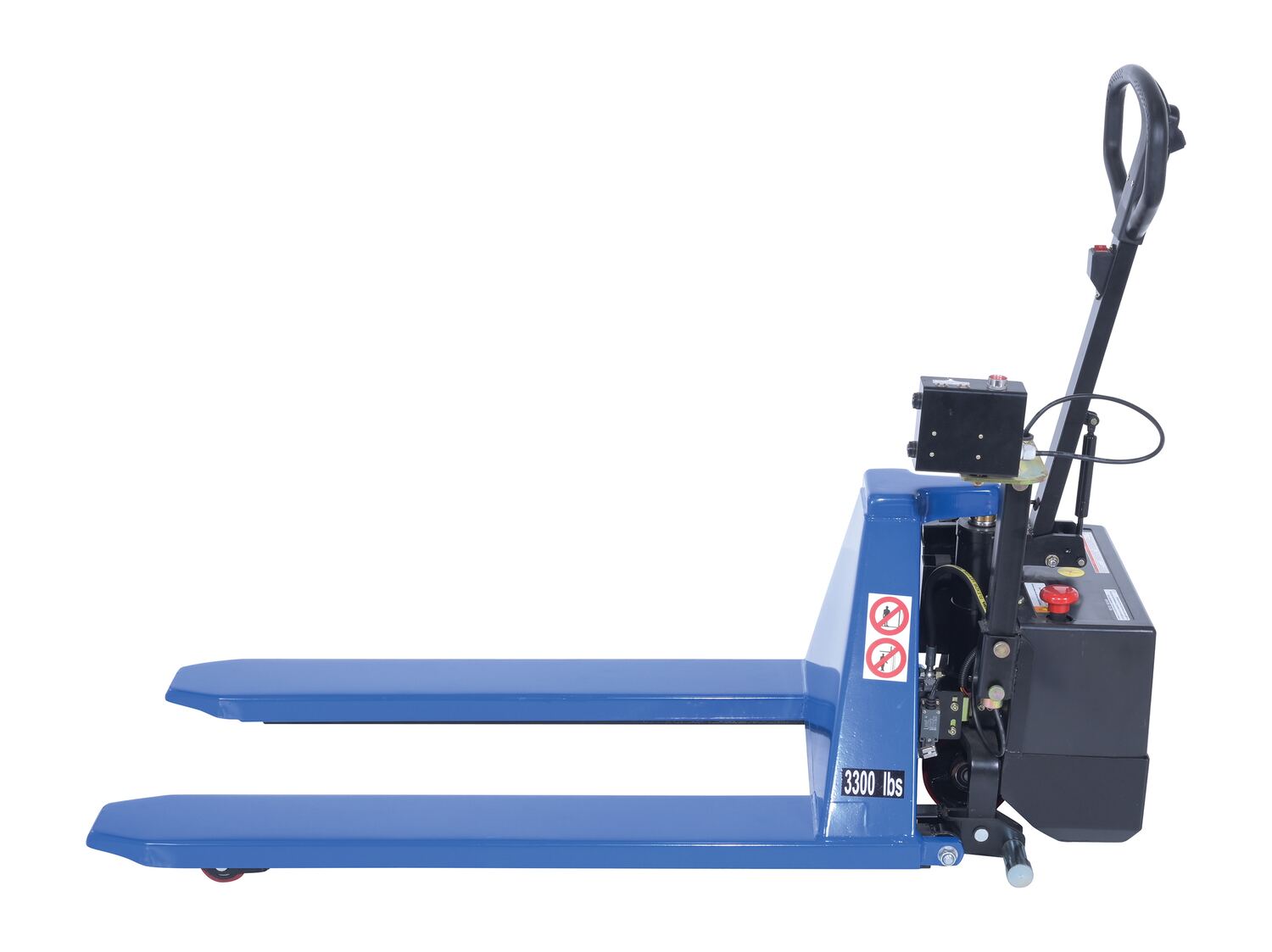

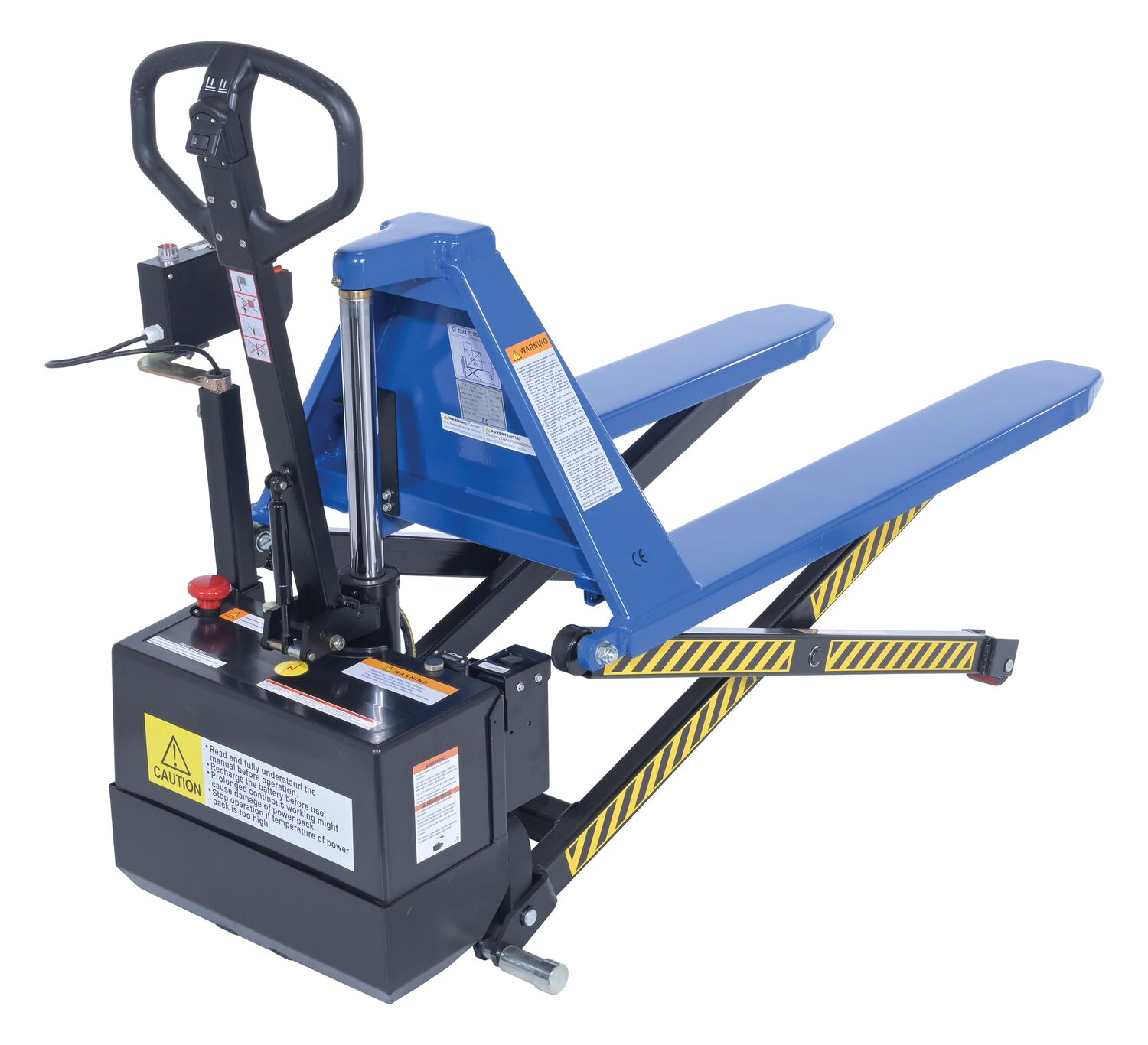

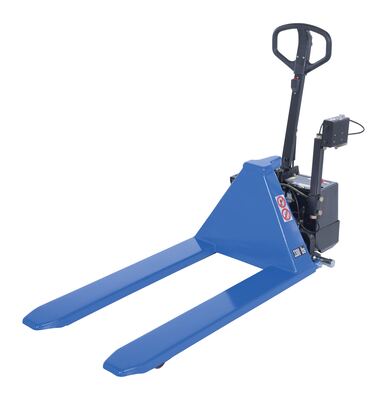

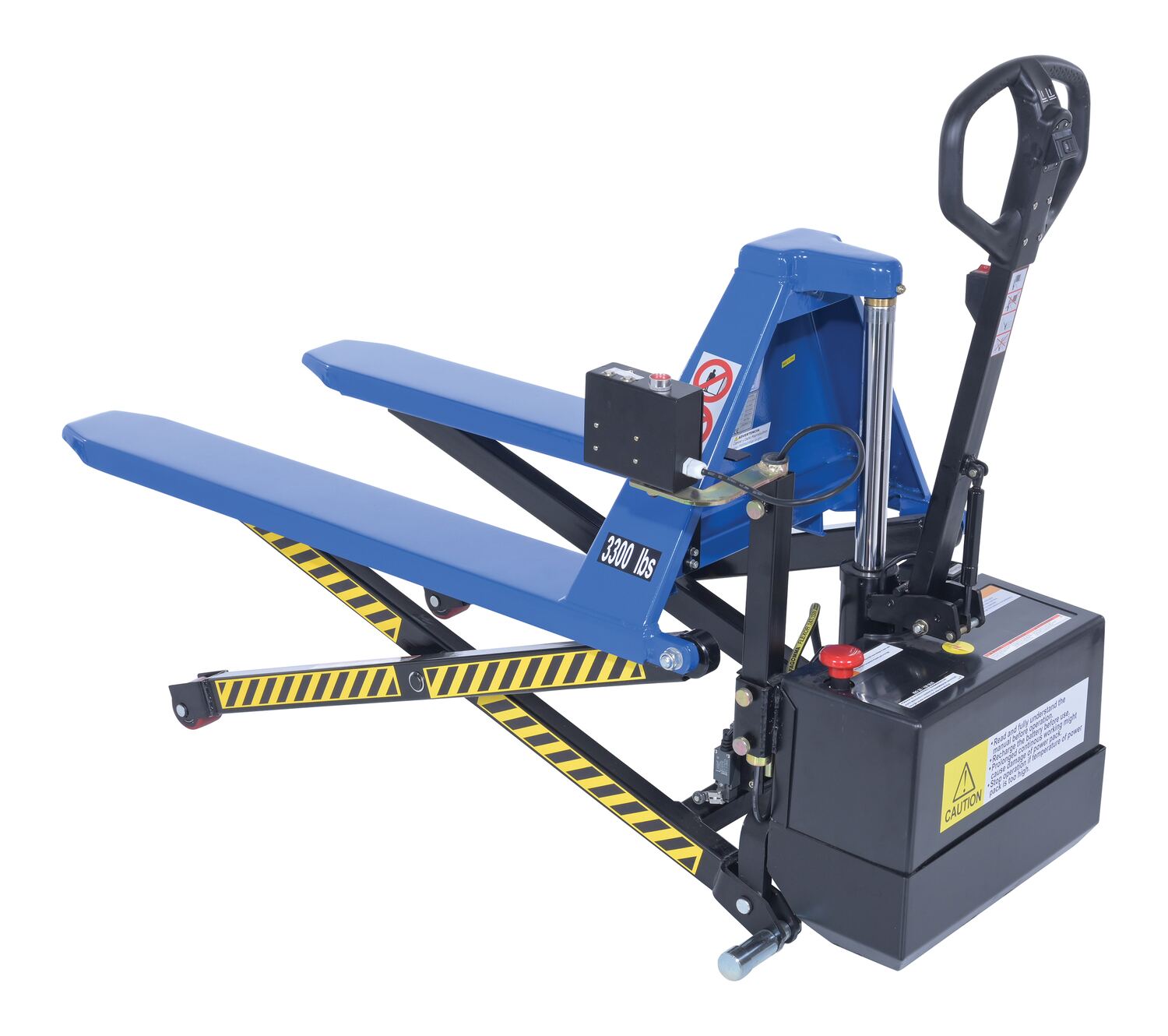

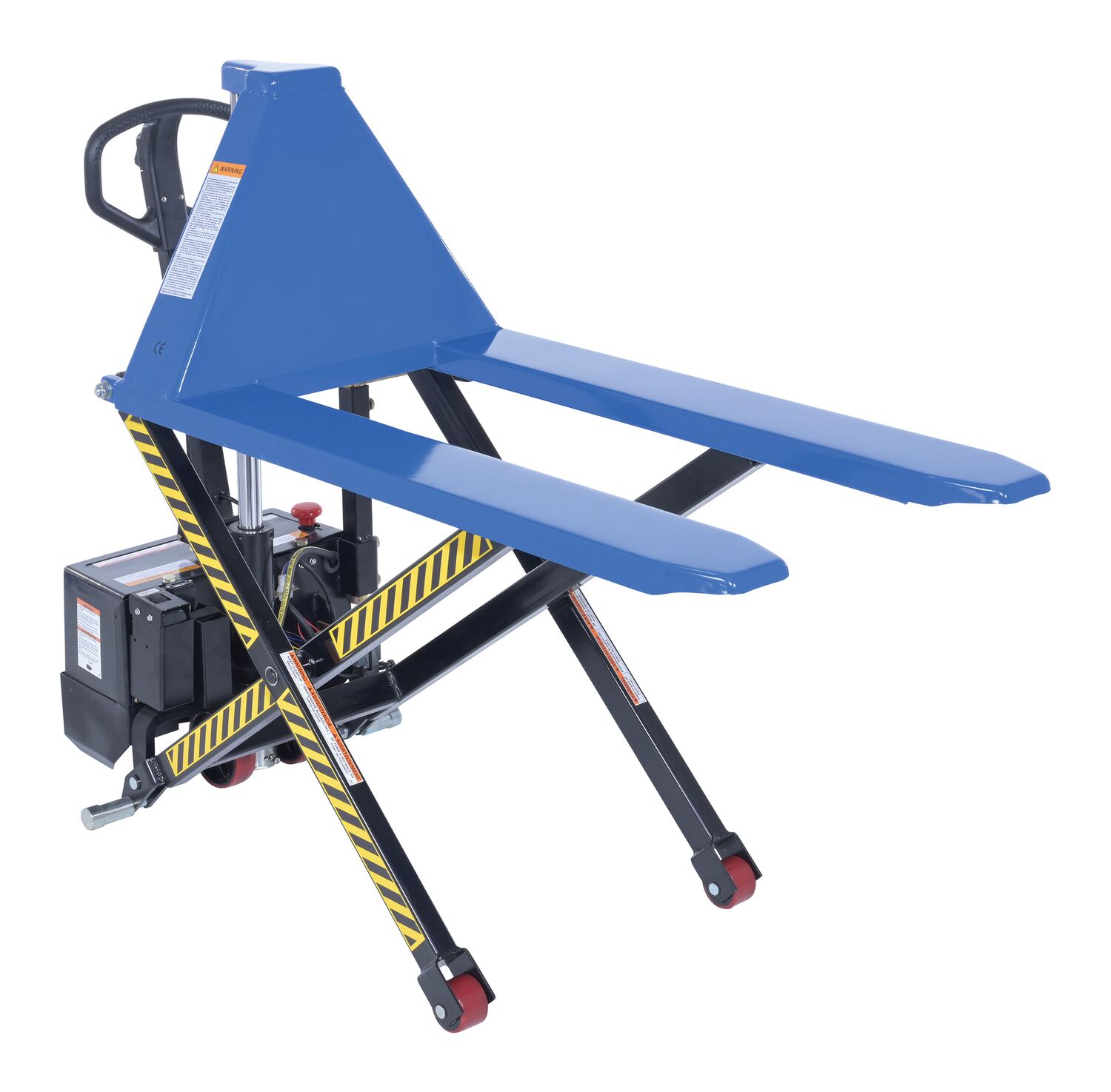

Steel DC Powered Tote Lift Photo Eye 62-1/4 In. x 29 In. x 51-1/4 In. 3000 Lb. Capacity Blue

DC-Powered Tote Lift with Photo Eye for Commercial and Industrial Tote/ Skid Lifters Use, 3,000 lb. Capacity with 62-1/4 in. x 29 in. x 51-1/4 in.

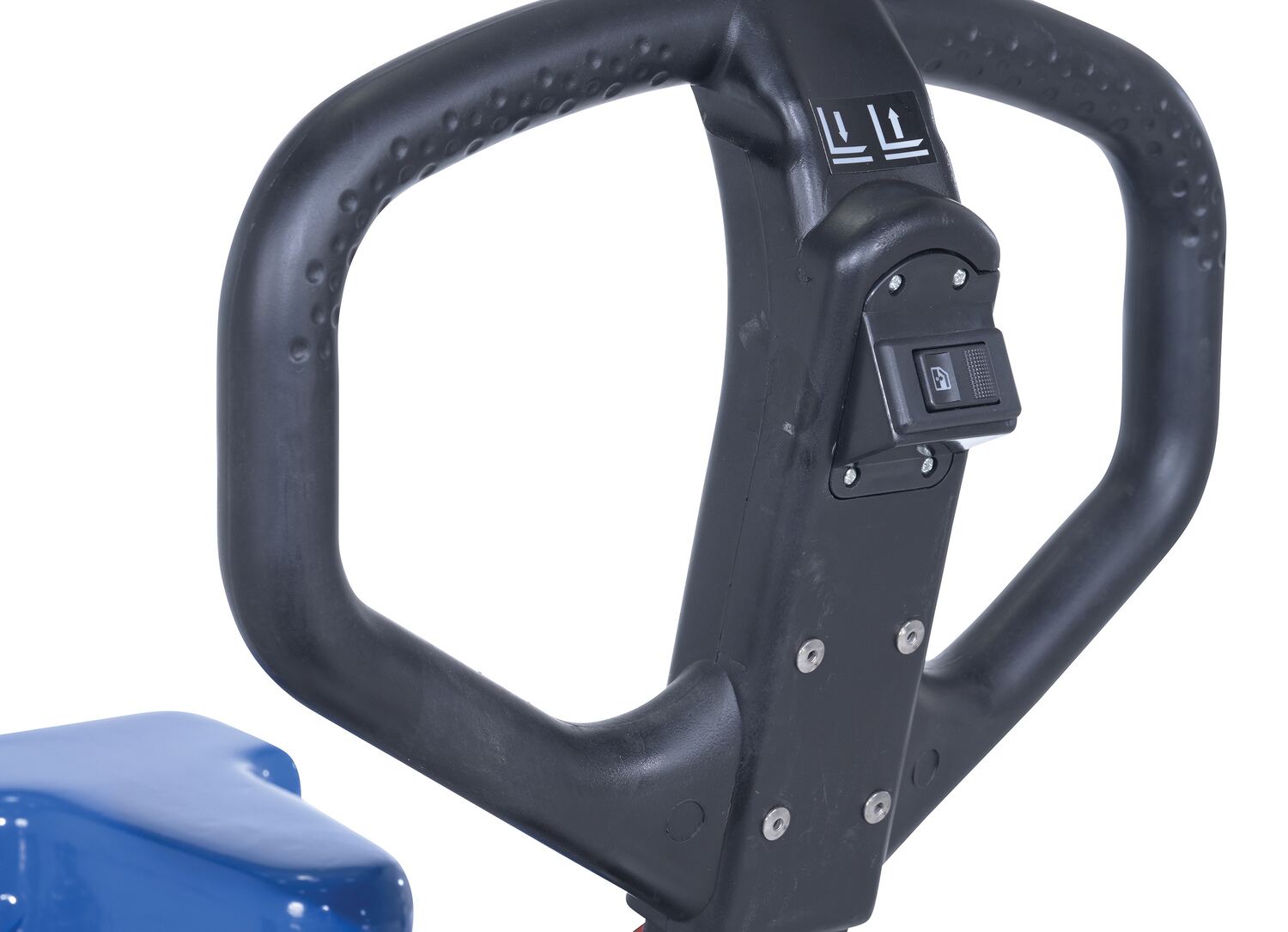

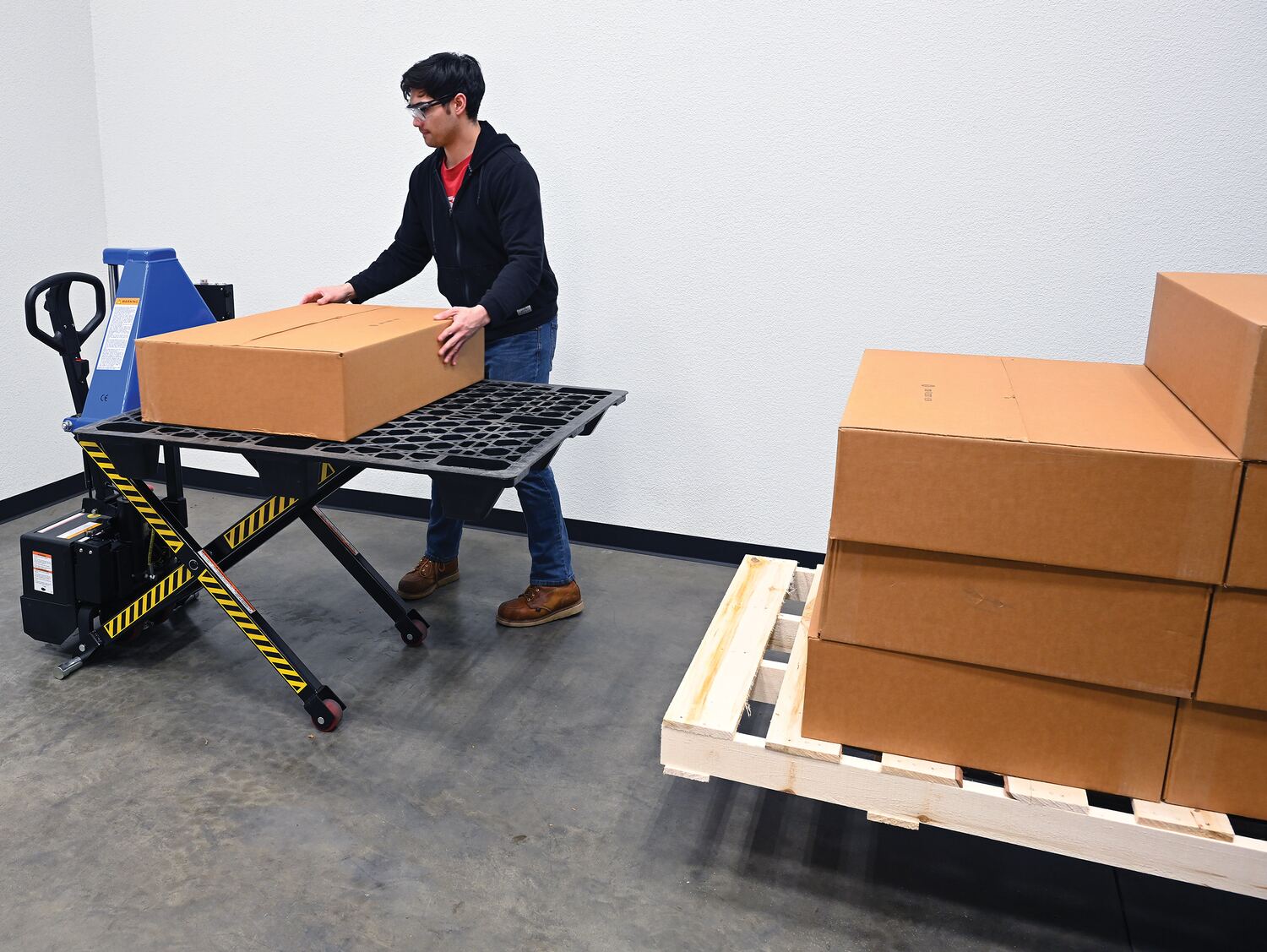

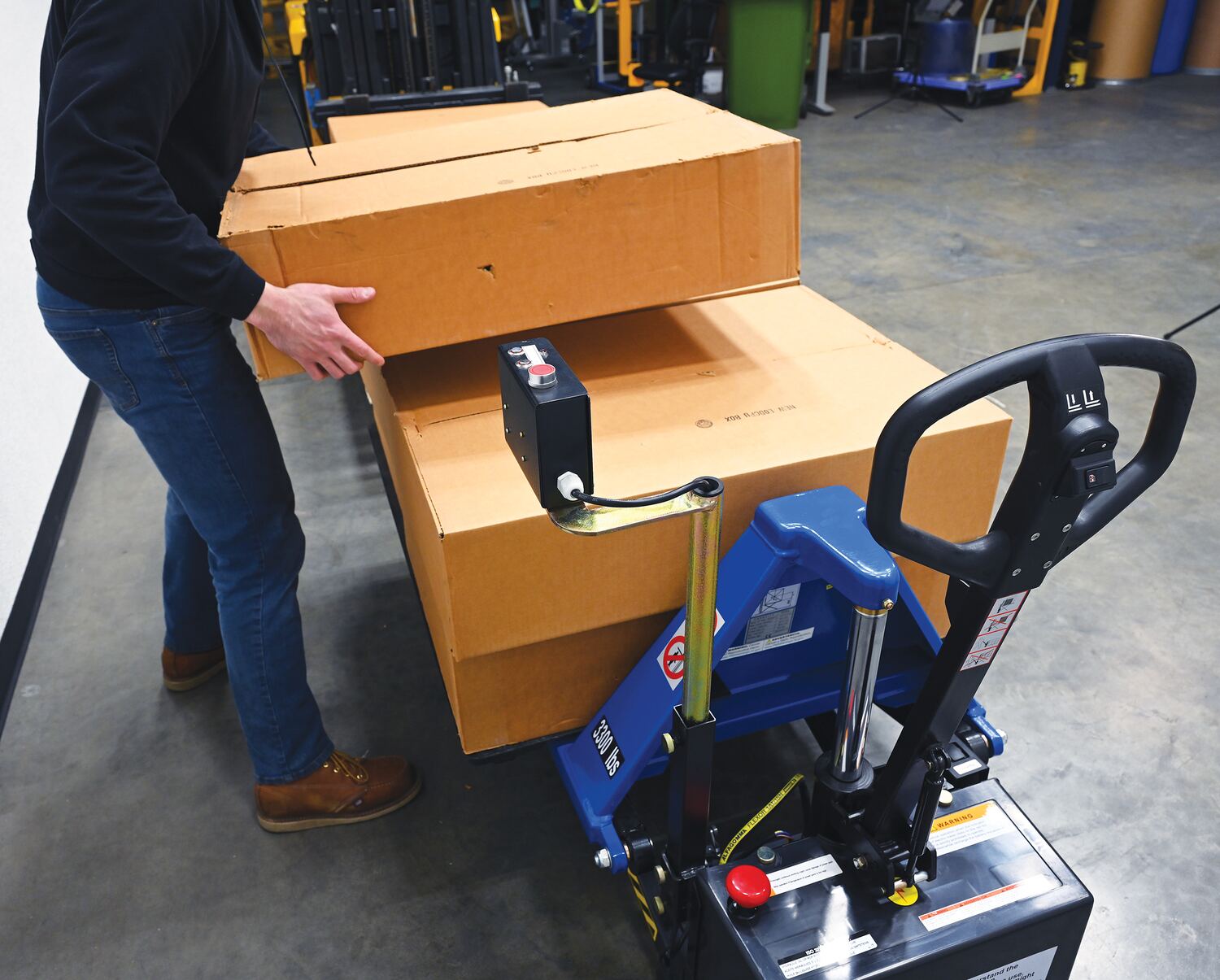

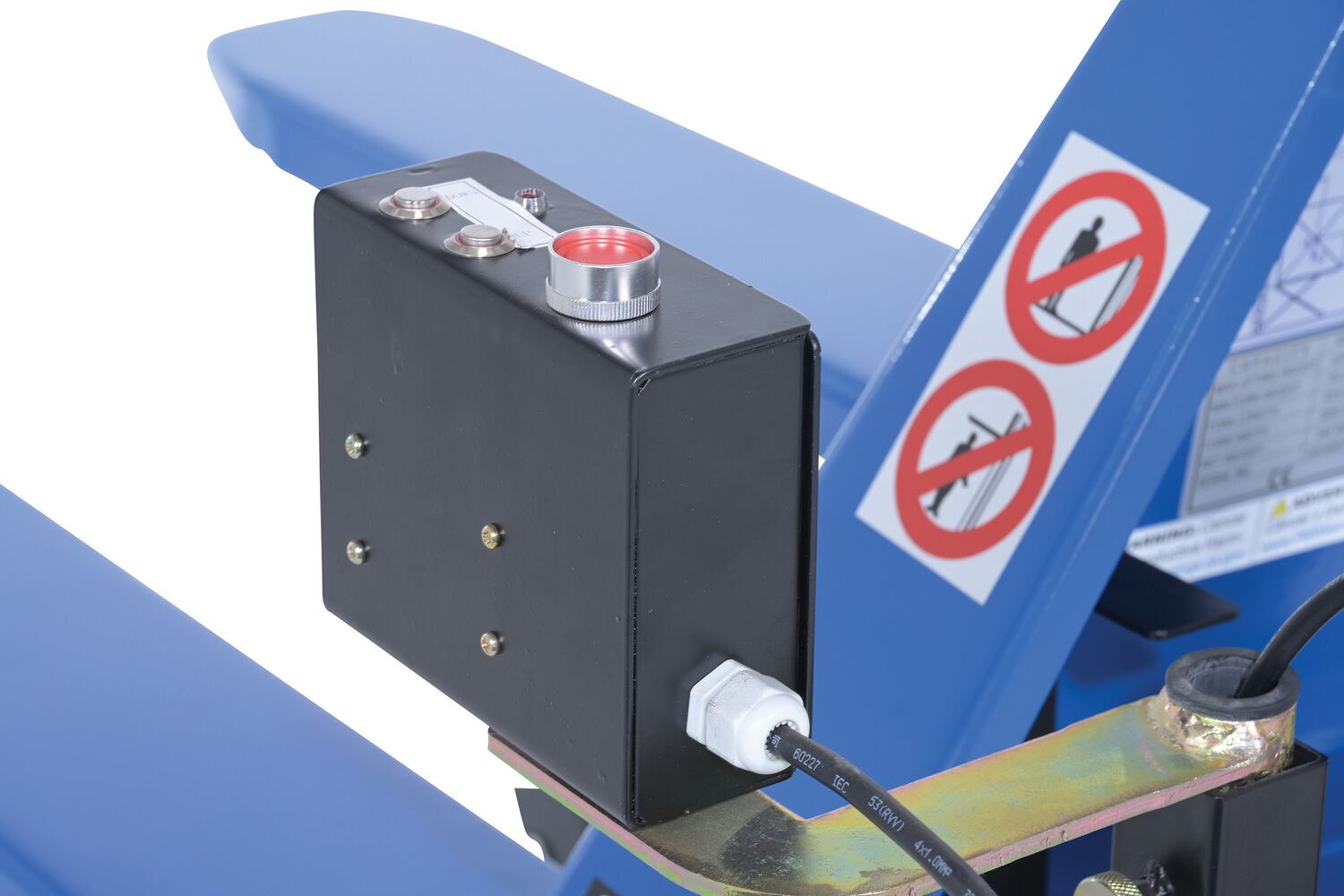

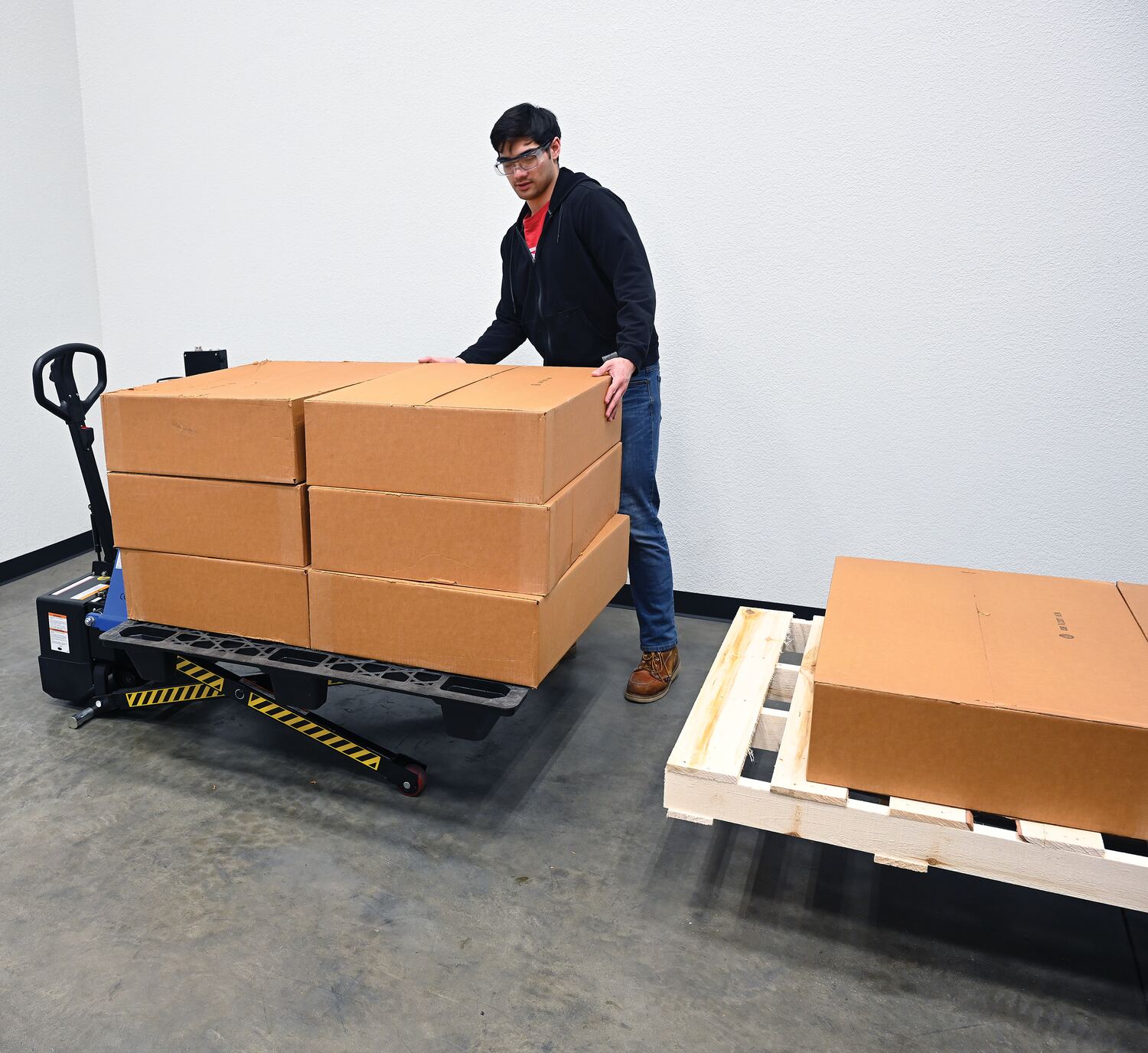

Whether your load is light, small, heavy, or large this tote lifter can manage the job! With its specifically designed structure, it is perfect for lifting open bottom skids, boxes, and baskets. Through a DC power supply, a simple rocker switch is used for raising and lowering. Not only that; but used in conjunction with the attached photo eye sensor, adjusting load heights has seldom been easier or more accurate. The photo eye sensor provides a visual representation of the tote lifters height while in the raising, lowering, or stationary process. An on-board battery charger is included to provide consistent power throughout the working day.
Product Status
Out of Stock QuickShip
Key Features

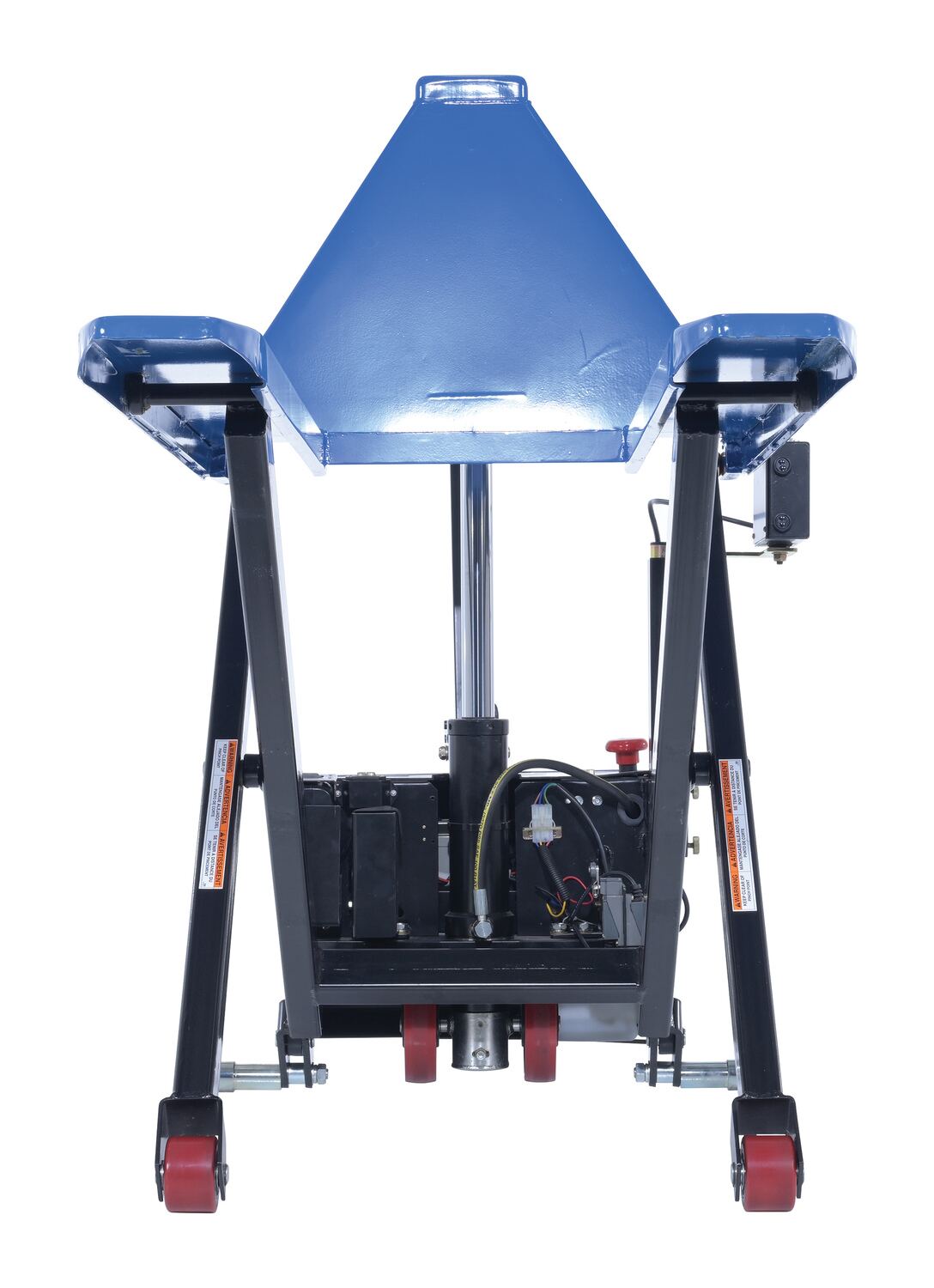

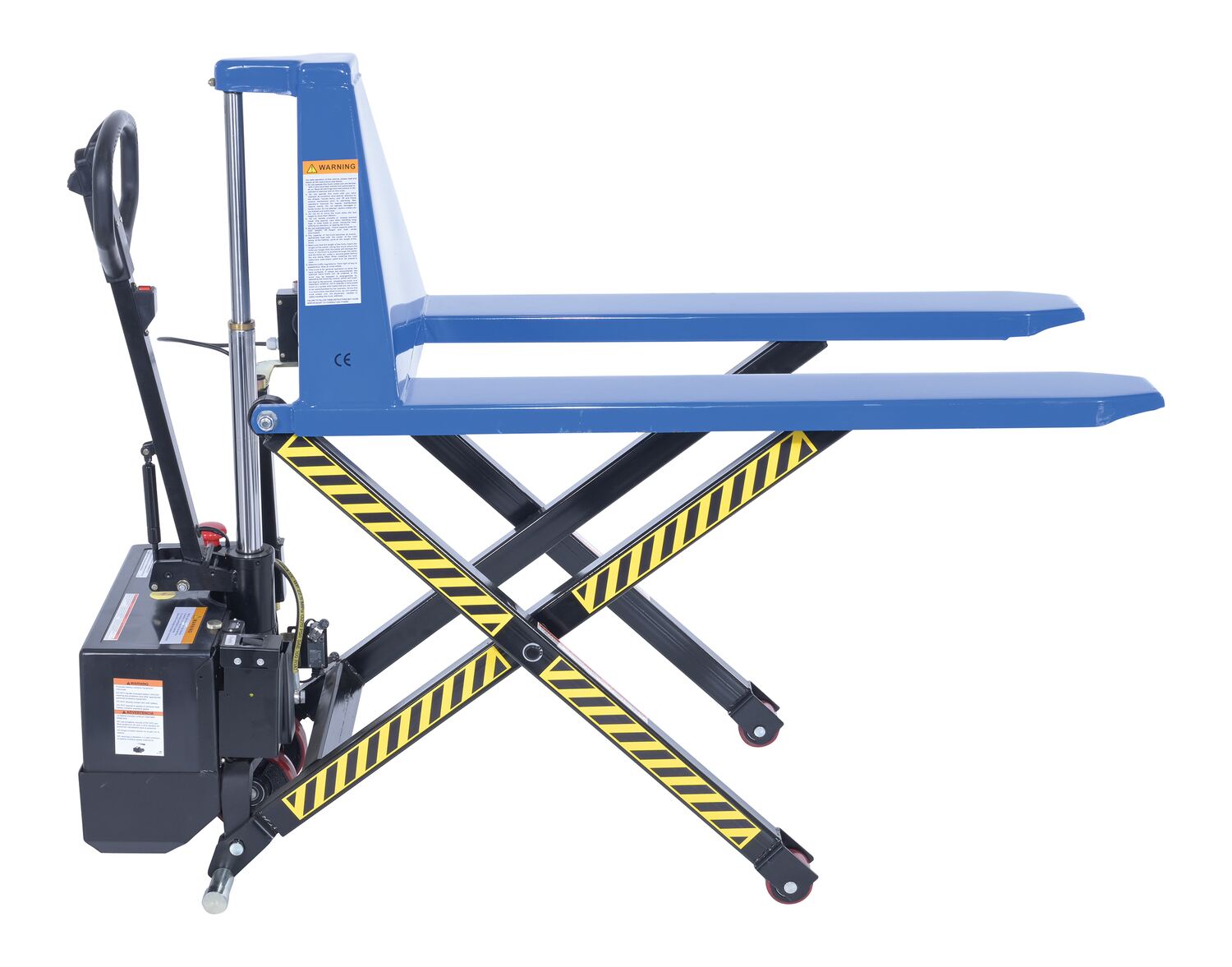

  • Automatic stabilizers engage when forks reach specific height

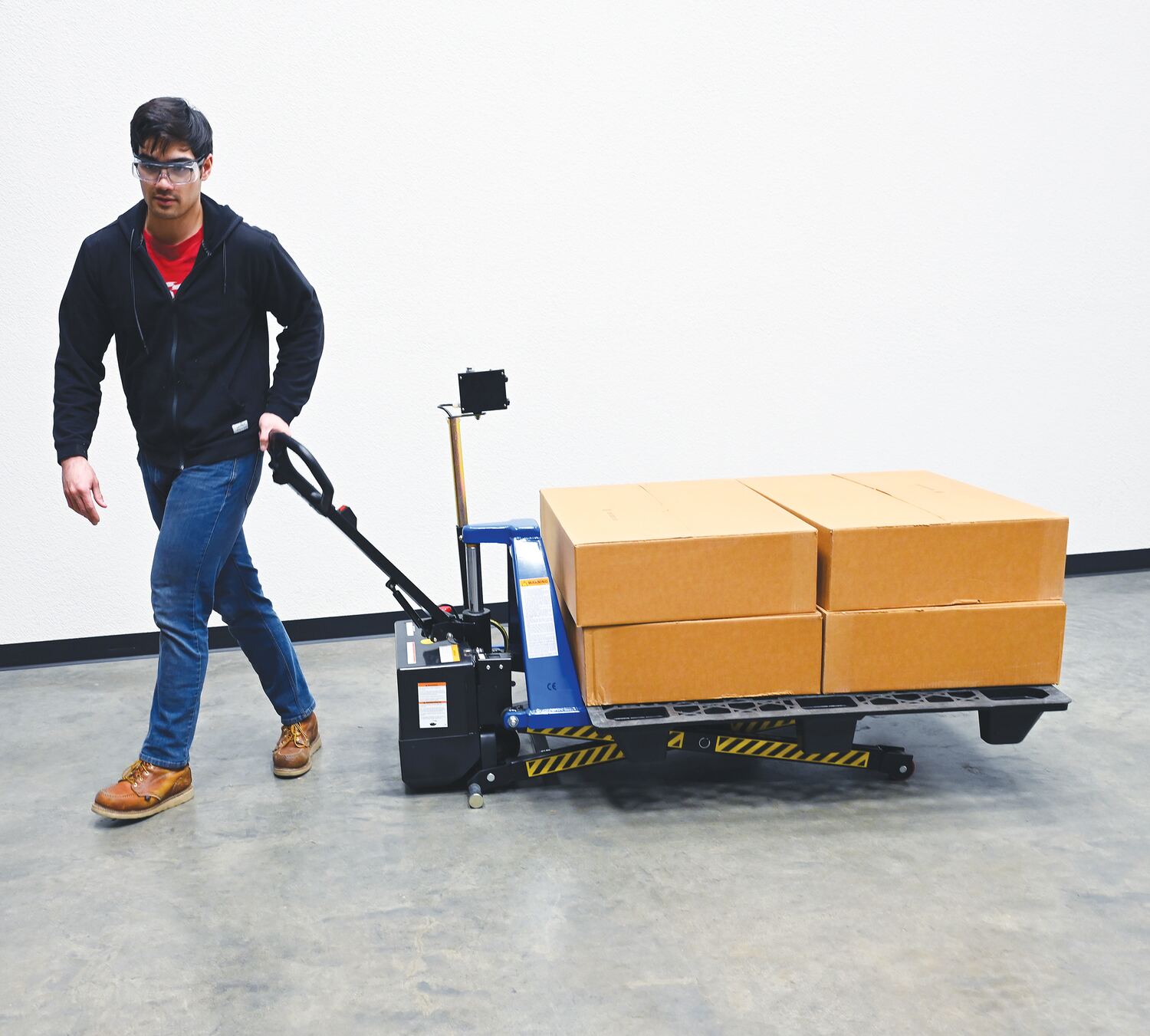

  • Front rollers and two rear swivel casters allow for easy portability
  • 12V DC battery included
  • Built of steel with a powder coat finish
Quick Actions

Product Resources

Image Gallery View product images Contact Vestil Ask about this product
Documents

PDFs & Product Files

  Testing Certificate   Hand Pump & DC Powered Tote Lifters   Label Page PDF   Hydraulic Oil SDS   Sealed Lead Acid SDS   1 Year Warranty
Product Data

Core Data

Assembled Weight 390 lbs
Assembled Size 29"W x 62.25"L x 51.25"H
Total Ship Weight 435 lbs
Package 1 Size 40"W x 64"D x 57"H
Color / Finish Blue
Freight Type LTL Palletized

Additional Attributes

Uniform Capacity (lb.) 3,000
Photo Eye? Yes
Side Stabilizer Locks at Raised Height (in.) 20-1/2
Fork Width (in.) 27
Fork Length (in.) 45
Lowered Height (in.) 3-1/2
Raised Height (in.) 31-1/2
Front Roller Diameter (in.) 3
Front Roller Width (in.) 1-7/8
Rear Wheel Diameter (in.) 5-3/4
Rear Wheel Width (in.) 1-5/8
Rear Wheel Material Poly-On-Steel
Handle Length (in.) 30
Handle Material Steel/Plastic
Maximum Amperage 140

Battery Information

Battery Depth 10
Battery Width 7
Battery Height 11
Battery Freight Class 60
Battery NMFC Number 60700
Battery NMFC Description Gel batteries on unit
Lithium Battery Configuration C -- Contained In
Extended Product Details

Marketing Specs.

MFG Model # (Series)
L-270-DC-HD-PE
Product Name
Steel DC Powered Tote Lift Photo Eye 62-1/4 In. x 29 In. x 51-1/4 In. 3000 Lb. Capacity Blue
UPC
691215378970
GTIN
00691215378970
Taxonomy 1
Material Handling
Taxonomy 2
Pallet Jacks and Lifts
Assembled Depth (in.)
62.25
Assembled Width(in.)
29
Assembled Height(in.)
51.25
Assembled Weight(lbs.)
390
Color/Finish
Blue
Material
Steel
Option? Y/N
N
Sell UOM
EA-Each
Country Of Origin
CN
Approval Drawing Required? Y/N
N
Assembly
Assembled

Logistics

Packaging Level
BASE_UNIT_OR_EACH
Package Depth (in.)
64
Package Width (in.)
40
Package Height (in.)
57
Package Weight (in.)
435
Subclass
6
Freight Class
200
NMFC Code
Cars, Lift Trucks or Vehicles,áNOI, not designed for general highway use
NMFC Number
190235
LTL Freight
LTL Palletized
UNSPSC
24101604
HTSUS Number
8427.90.0090
USMCA HS
8427.90
Origin Criterion
NO
Certification Indicator
NO
ECCN
EAR99
US Shipping Point
Angola, IN
Supplier Postal Code
46703
Hazardous Material? Yes/No
No
MSDS? Yes/No
Yes
Batteries Included?
Yes
Battery Freight Class
60
Battery NMFC Number
60700
Battery NMFC Description
Gel batteries on unit
Lithium Battery Configuration
C -- Contained In

Warranty

Warranty
Yes
Manufactuer Warranty
1 Year Limited Warranty
Warranty Type
Limited - Parts
Cancelable? Y/N
Y
Returnable? Y/N
Y
California Prop 65 Compliant?
Unknown

Prop 65 Warning

Copyright © 2026 All Rights Reserved, Vestil Manufacturing Corp.

Details For Model: L-270-DC-HD-PE

L-270-DC-HD-PE

Steel DC Powered Tote Lift Photo Eye 62-1/4 In. x 29 In. x 51-1/4 In. 3000 Lb. Capacity Blue

Whether your load is light, small, heavy, or large this tote lifter can manage the job! With its specifically designed structure, it is perfect for lifting open bottom skids, boxes, and baskets. Through a DC power supply, a simple rocker switch is used for raising and lowering. Not only that; but used in conjunction with the attached photo eye sensor, adjusting load heights has seldom been easier or more accurate. The photo eye sensor provides a visual representation of the tote lifters height while in the raising, lowering, or stationary process. An on-board battery charger is included to provide consistent power throughout the working day.

  • Automatic stabilizers engage when forks reach specific height
  • Front rollers and two rear swivel casters allow for easy portability
  • 12V DC battery included
  • Built of steel with a powder coat finish

Core Data

Assembled Weight: 390 Assembled Size: 29"W x 62.25"L x 51.25"H Color: Blue
Total Ship Weight: 435 Package 1 Size: 40"W x 64"D x 57"H Freight: LTL Palletized

Specifications

Uniform Capacity (lb.): 3,000
Photo Eye?: Yes
Side Stabilizer Locks at Raised Height (in.): 20-1/2
Fork Width (in.): 27
Fork Length (in.): 45
Lowered Height (in.): 3-1/2
Raised Height (in.): 31-1/2
Front Roller Diameter (in.): 3
Front Roller Width (in.): 1-7/8
Rear Wheel Diameter (in.): 5-3/4
Rear Wheel Width (in.): 1-5/8
Rear Wheel Material: Poly-On-Steel
Handle Length (in.): 30
Handle Material: Steel/Plastic
Maximum Amperage: 140
